Low Cost 5bar 10 bar 20bar Pressure Sensor For Water & Gas Measurement

Feedback Ratings
  • 10-49 Pieces
    $18.00
  • 50-999 Pieces
    $13.50
  • >=1000 Pieces
    $11.00
1 batch = 10 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
14 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
WNK
Model Number:
W21
Measured media:
liquid, gas and steam
Interface Type:
I2C, SPI
Output:
4-20mA/0-5V/0-10V/0.5-4.5vdc
Accuracy:
±0.5%, ±1%,
Total Error Band:
±1.0%
Pressure range:
0-400Kpa~10MPa
Burst pressure:
P*10
Sensor material::
Al2O3
Housing material:
316L
Power Supply:
3.3V, 5V, 12V, 24V

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
20X15X30 cm
Gross weight per batch:
1.5 kg
Package Type:
standard carton packing
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 14 To be negotiated
Video Description



 Low Cost 5bar 10 bar 20bar Pressure Sensor For Water & Gas Measurement

Product Description



W21 series pressure sensor core is a dry ceramic capacitive pressure sensor which is made of special method by using ceramic material. The ceramic is a recognized material with high elasticity, corrosion resistance, abrasion resistance, impact resistance and vibration. The thermal stability of the ceramic can make its operating temperature range up to -40 to 135 ℃, and has a high precision measurement, high stability. Its anti-overload capacity of up to 100 times the range, completely solve the other types of sensors in the small range of poor overload capacity of the shortcomings, which in addition to the general sensor range, the most characteristic is its positive and negative gauge pressure function, Such as: ± 10kPa, ± 1MPa and so on. Ceramic capacitive pressure sensor with high output, wide range, especially suitable for the manufacture of high-performance industrial control pressure transmitter and adapt to the harsh environment of the pressure measurement.



Features:

• Dry ceramic capacitive pressure sensor;
• Rugged ceramic capacitor sensitive diaphragm;

 •Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;



Applications:

• pressure measurement of gases, vapors or liquids in all areas;
• Liquid level, volume or mass measurement;
• Can be integrated into a variety of user-defined solutions.

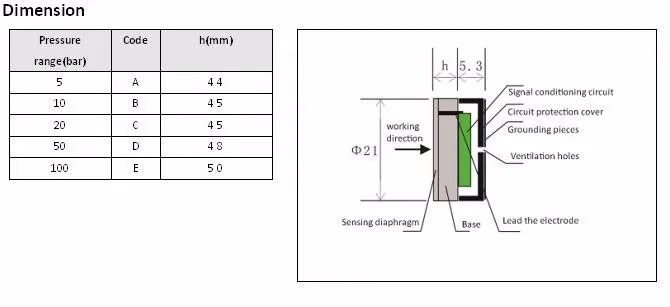

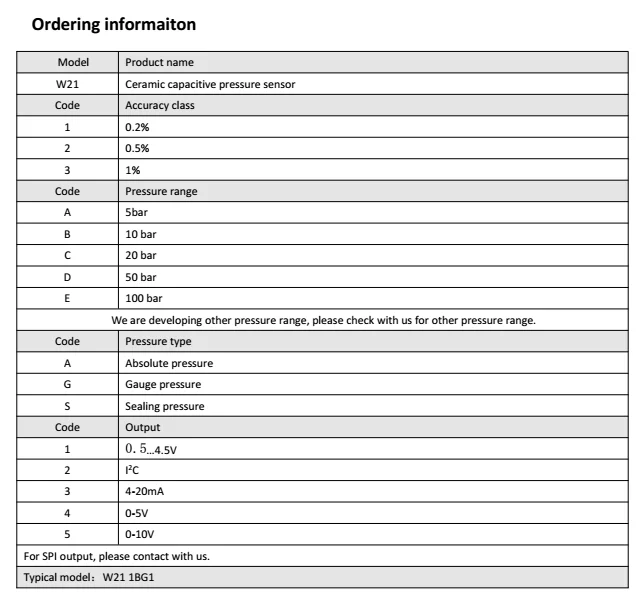

W21 Ceramic Capacitive  Pressure Sensor
Sensor material
AL2O3 Ceramic Capacitive
Applicable media
Liquid, Gas
Pressure range
0-500kPa~100bar
Pressure measurment
Gauge, Absolute, Sealing
Output
4-20mA, 1-5V,  I2C , 0.5-4.5V, 0-10V, 0-5V
Accuracy
0.5%, 1%
Power supply
5V, 3.3V, 12V, 24V  (based on output)
