Low Price Automatic 5 Gallon Big Bottle Liquid Water Filling Plant Machine with New Design

  • >=1 Sets
    $12,500.00
Power:
50KW
Model Number:
TXG-600
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Canada, Turkey, United Kingdom, Viet Nam, Peru, Pakistan, Russia, Thailand
Showroom Location:
Canada, Philippines, Saudi Arabia, Morocco, Argentina
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/380V
Place of Origin:
China
Brand Name:
U TECH
Dimension(L*W*H):
5.9m*1.5*1.8m
Weight:
2500kg
Certification:
CE SGS ISO
Warranty:
2 years
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Long Service Life
Model:
TXG-600
Filling volume:
3gallon-5gallon
Capacity:
600bph
Filling material:
Flowing Liquid
Bottle type:
PET,Plastic
Material:
SUS304
Control:
PLC+ Touch Screen
Keywords:
5 Gallon Drinking Water Production Plant
Product Certification certification
CE Certified.
Valid from 2016-12-07 until 2021-12-06
SGS Certified.
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description

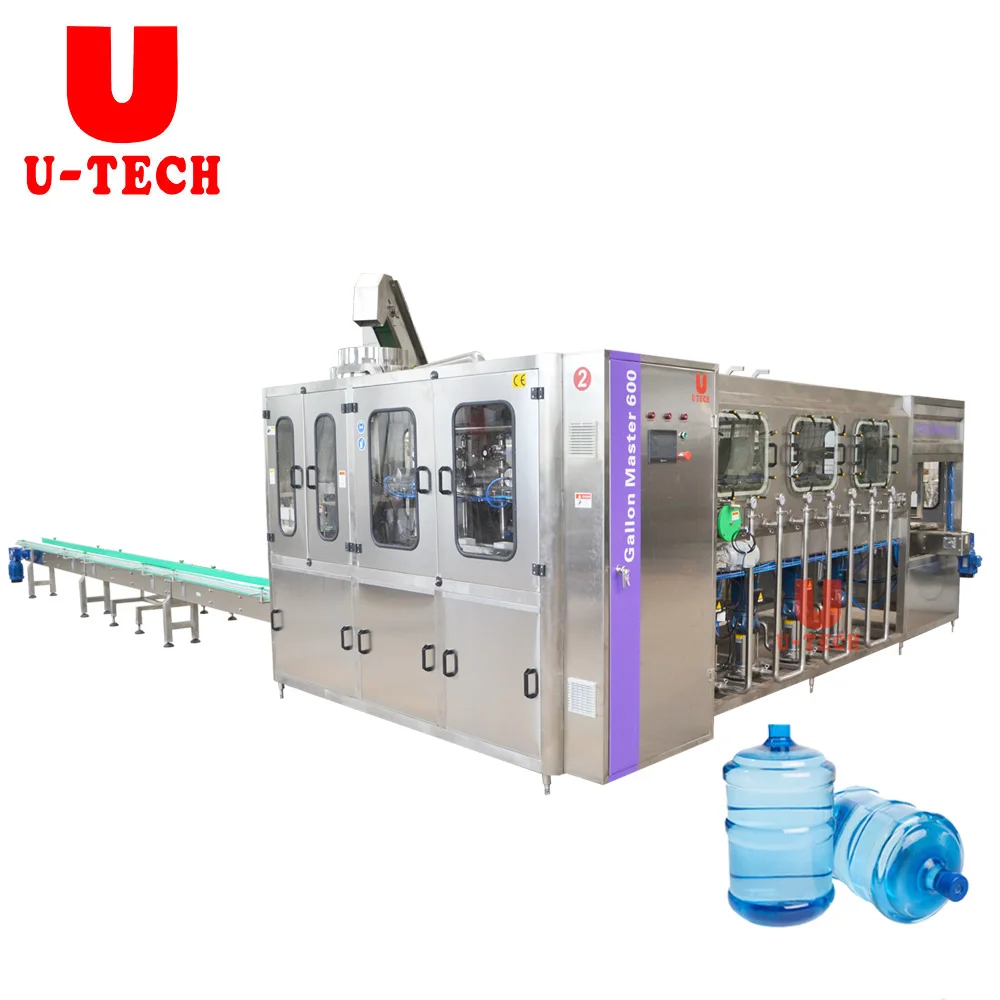

This filling line specially for 3-5 gallons barreled drinking water,with type TXG-100,TXG-150,TXG-300,TXG-450,TXG-600,TXG-900,TXG-1200,TXG-1500,TXG-2000.It integrates bottle washing,filling and capping into one unit.In order to achieve the purpose of washing and sterilizing.The washing machine use multi-washing liquid spray and-thimerosal spray.This thimerosal can be used circularly.The capping machine can cap barrel automatically.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatically carry out barrel,washing,sterilizing,filling,capping,counting and products discharge,with complete function,modern design and high degree of automation.It is a new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatics technologies together.

Technical Parameters
Model
TXG-100
TXG-150
TXG-300
TXG-450
TXG-600
Capacity(5 gallon)
100BPH
150BPH
300BPH
450BPH
600BPH
Working position number
3
5
7
9
11
Filling heads
1
1
2
3
4
Capping heads
1
1
1
1
1
Suitable bottle
PET bottle,plastic bottle
Diameter of bottle
∅265-273mm
Height of bottle
150-360mm
Suitable cap
Plastic cap
Weight
450Kg
500Kg
2500Kg
3000Kg
3500Kg
Main motor power
1.4kw
1.5kw
6kw
30kw
32kw
Machine Details

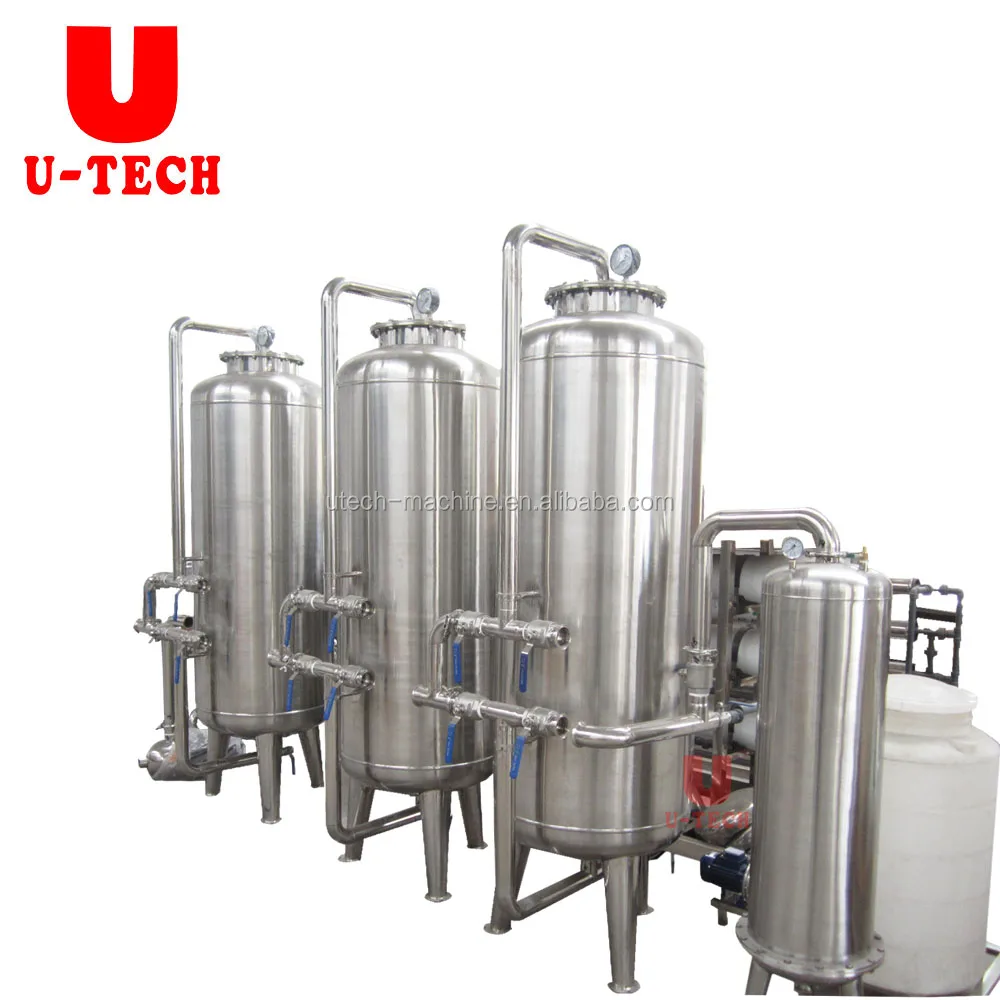

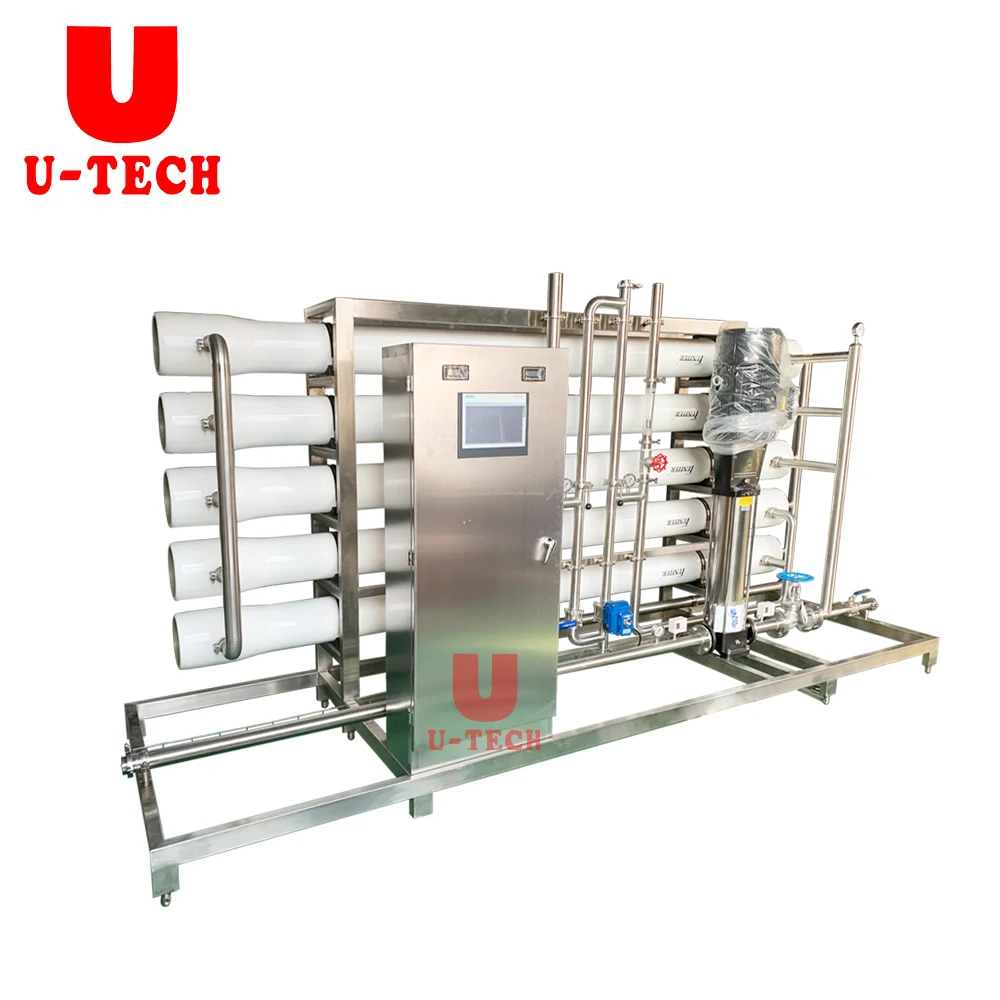

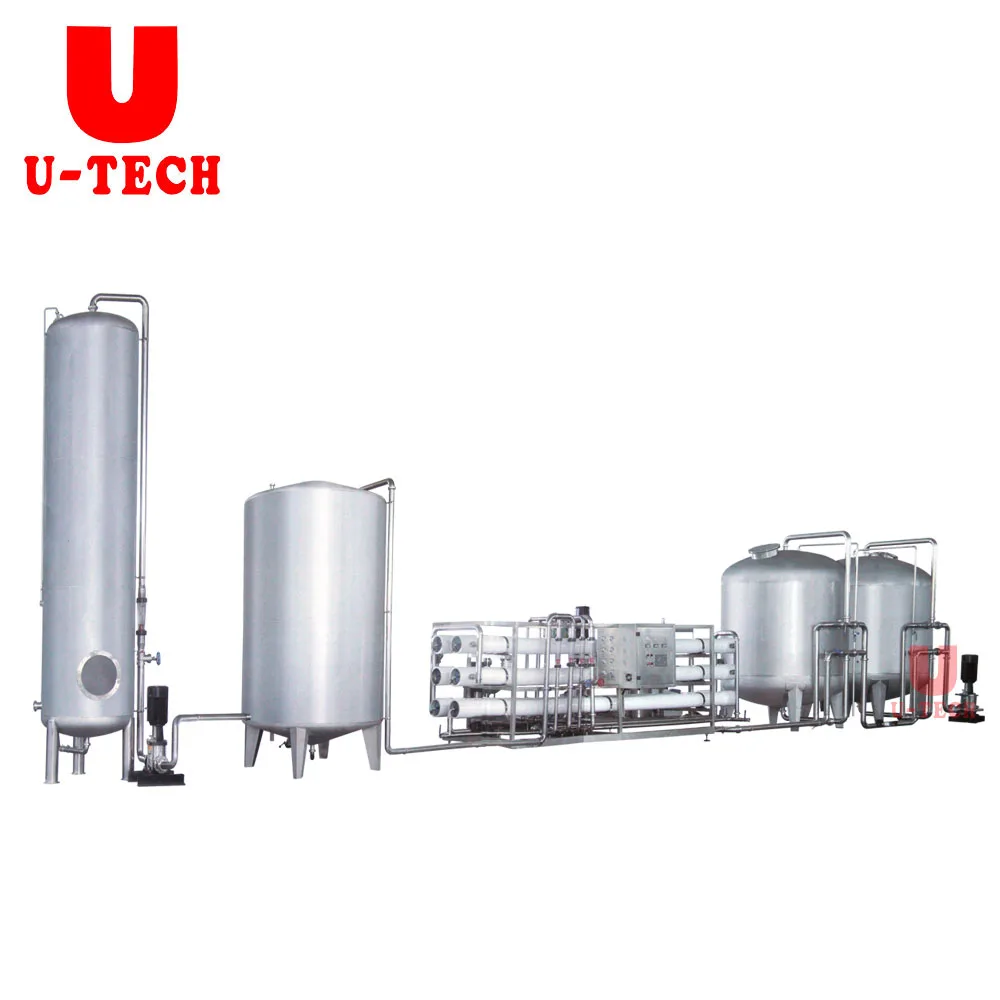

1 water treatment part

Stainless steel high pressure film shell
Online type electricity indicator(with stable compensation)
Include silica sand filter, active carbon filter, sodium-ion exchanger, precision filter, reverse osmosis, hollow fiber filter, UV sterilizing and water tank, etc.

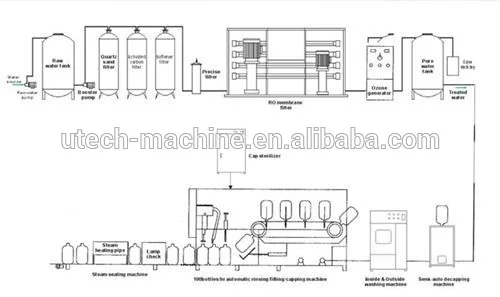

2 Working process of pure water filling part

The whole production process operates as follows.Empty barrel are conveyed stably by conveying belt into decapping machine,which will remove bottle caps.Those caps can be recycled after being cleaned and disinfected.Then barrel are conveyed into the extemal brush washing machine to take all-round rising with hot alkali and pure water.After rinsed,barrel will be sent to rising filling capping machine,where bottles are rinsed inside with hot alkali,disinfectant liquid and pure water,and then barrel is filled with pure water provided by water treatment system.Then after capped,those barreled water is sent to shrink packing machine in which shrink packaging of caps is done.The whole production process is controlled by PLC,so this barreled water production line is automatic,through control panel,users can monitor visually working conditions of each machine section and operate conveniently.

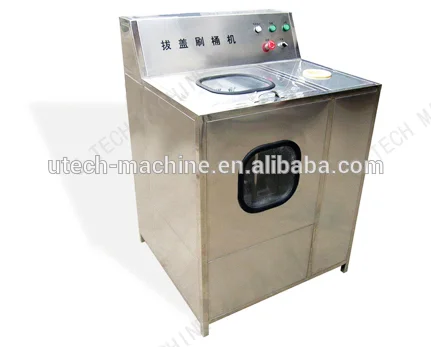

Pull out cover machine
Cap extractor, mainly in order to meet the needs of the majority of mineral water plant pure water plant manufacturers, the tedious empty barrel processing process into a simple automation.

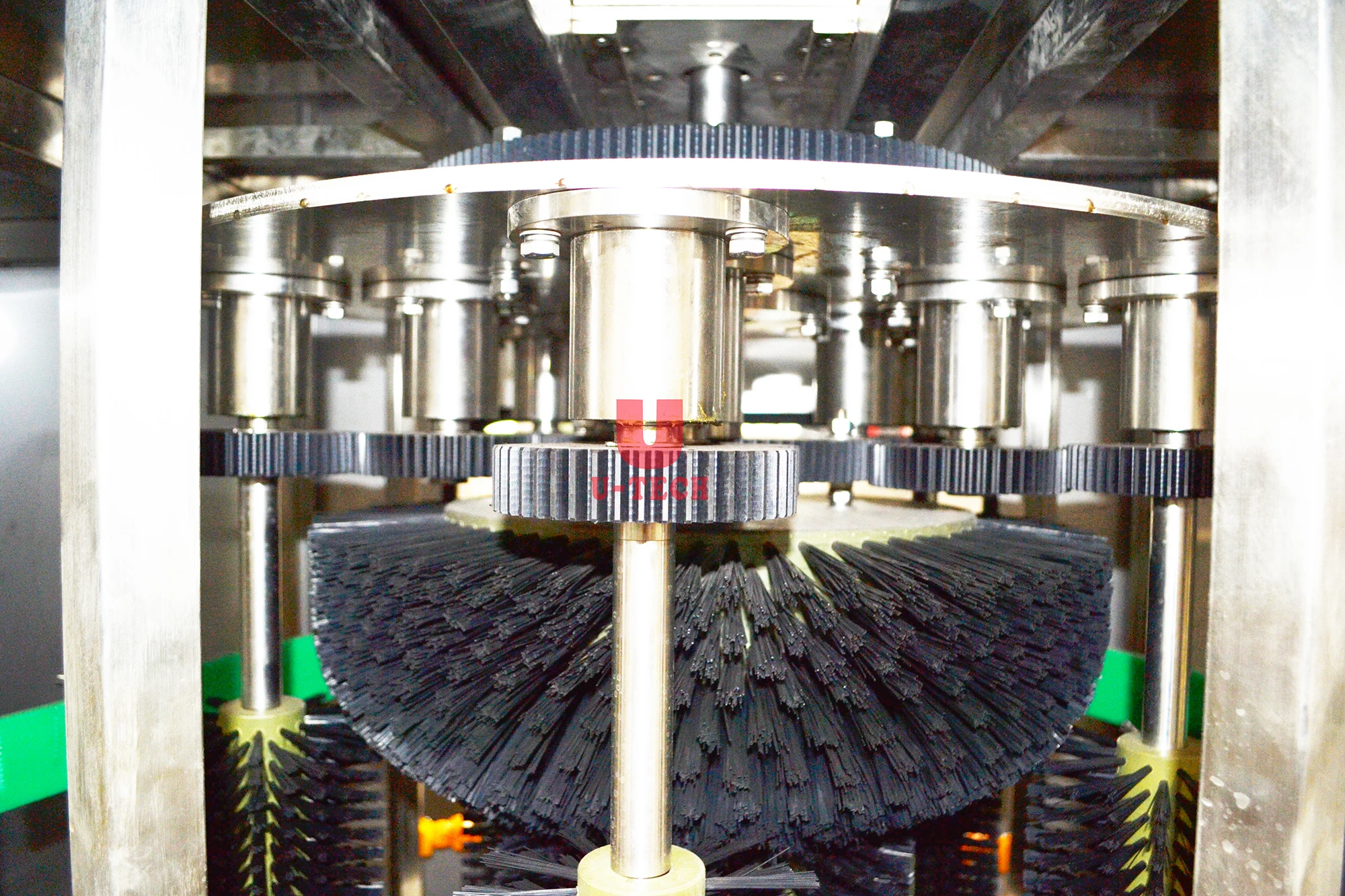

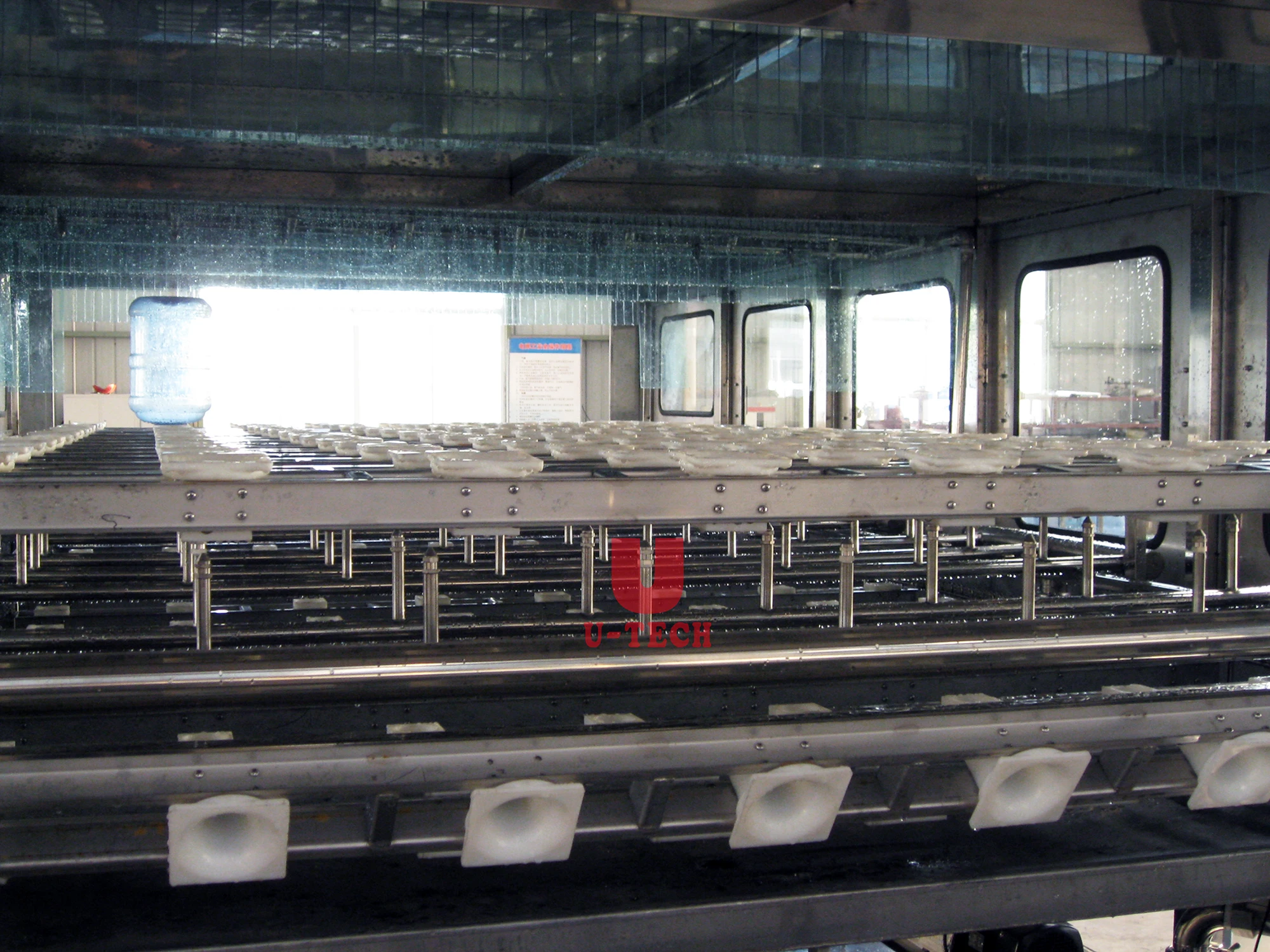

External surface scour machine
The inside and outside nozzles used for washing the barrel are made of the unique technical equipment imported from American spray company.

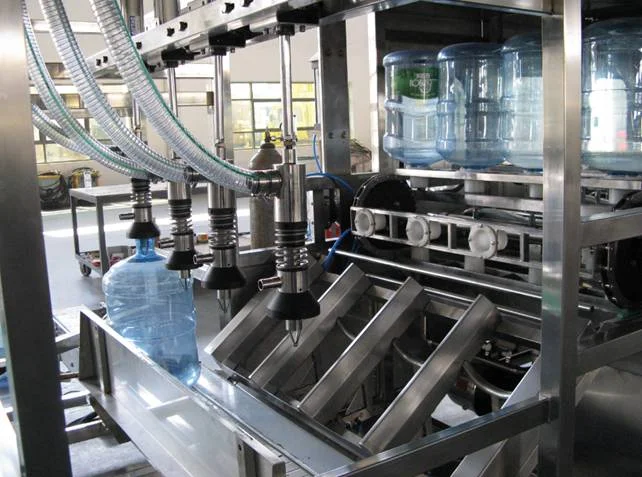

Filling machine
The production line of pure water filling machine is the core equipment for the production line of 3-gallon and 5-gallon barrels of drinking water.

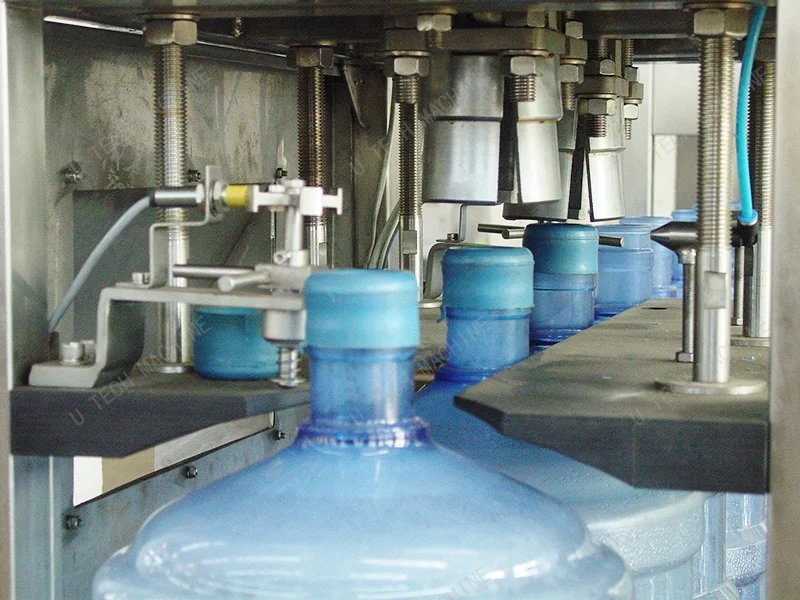

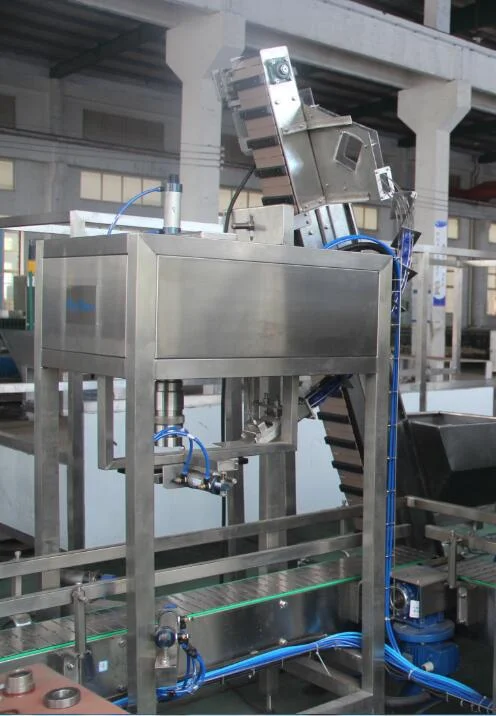

Screw cap machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

3 Packing part

POM chain with long service life, low failure rate.
●Bottle feeding adopts pneumatic resistance between bottle type to ensure uniform spacing, bagging operation is more convenient.

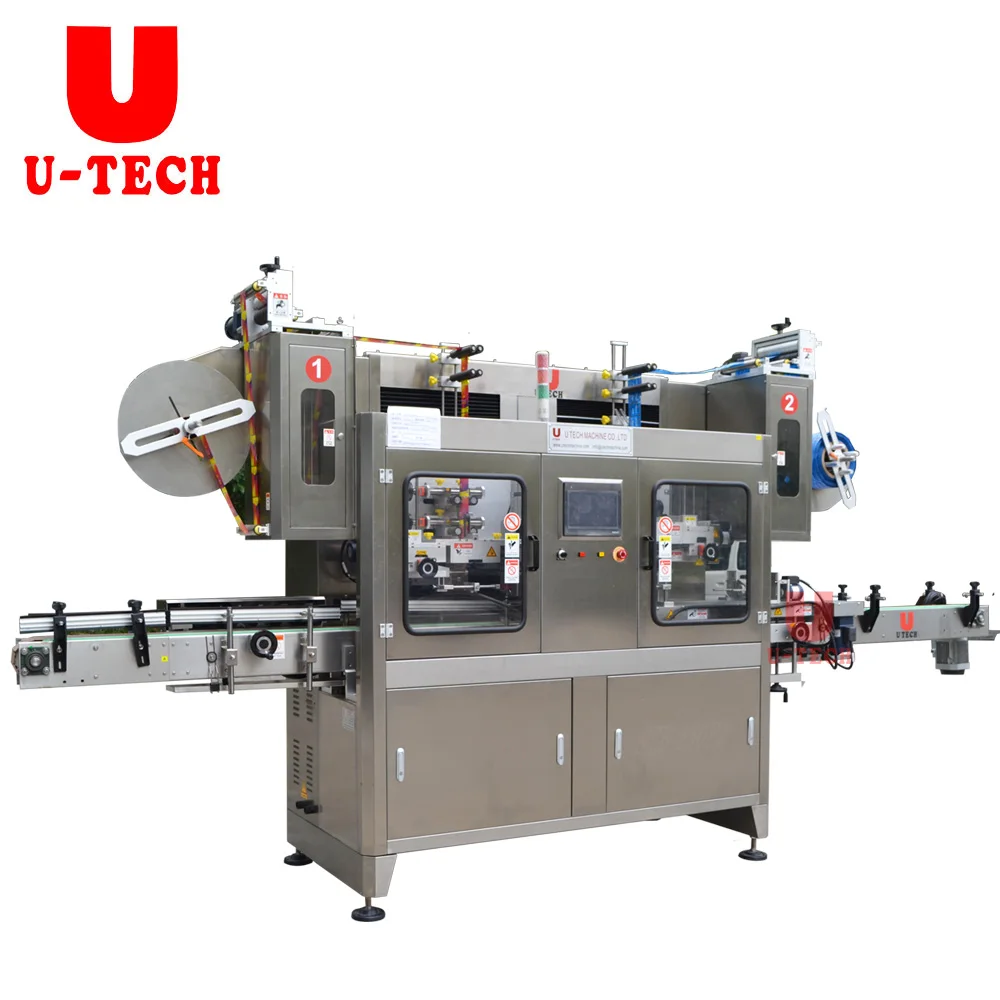

 Sleeve Labeling Machine
This machine adopts international advaced technology;cover the circle label on the pet bottle.And then hot shrinking to fix on the
position which bottle body is designed.This machine's structure is compact,and suitable for the production line of different
direction and different height.
The machinery part adopts combination designing of modularization,and makes the machine reasonable.
The height adjustment adopts motor fluctuating;It is convenient to replace the material.The special cutter head designing,make the
film-rolling cut more correct and reliable.
Steam Shrink Tunnel
In the case of diffenerent and irregular round bottles,square bottles and flat bottles and flat bottles etc,the new-style steam
shrinking oven is easy to adjust and maintain.It has an even shrinking.The distribution of low-pressure steam drum and spouting way of steam are uniform and designed with seamless tube.The nozzle is divied to be adjustable three segments and the
height,postion and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.

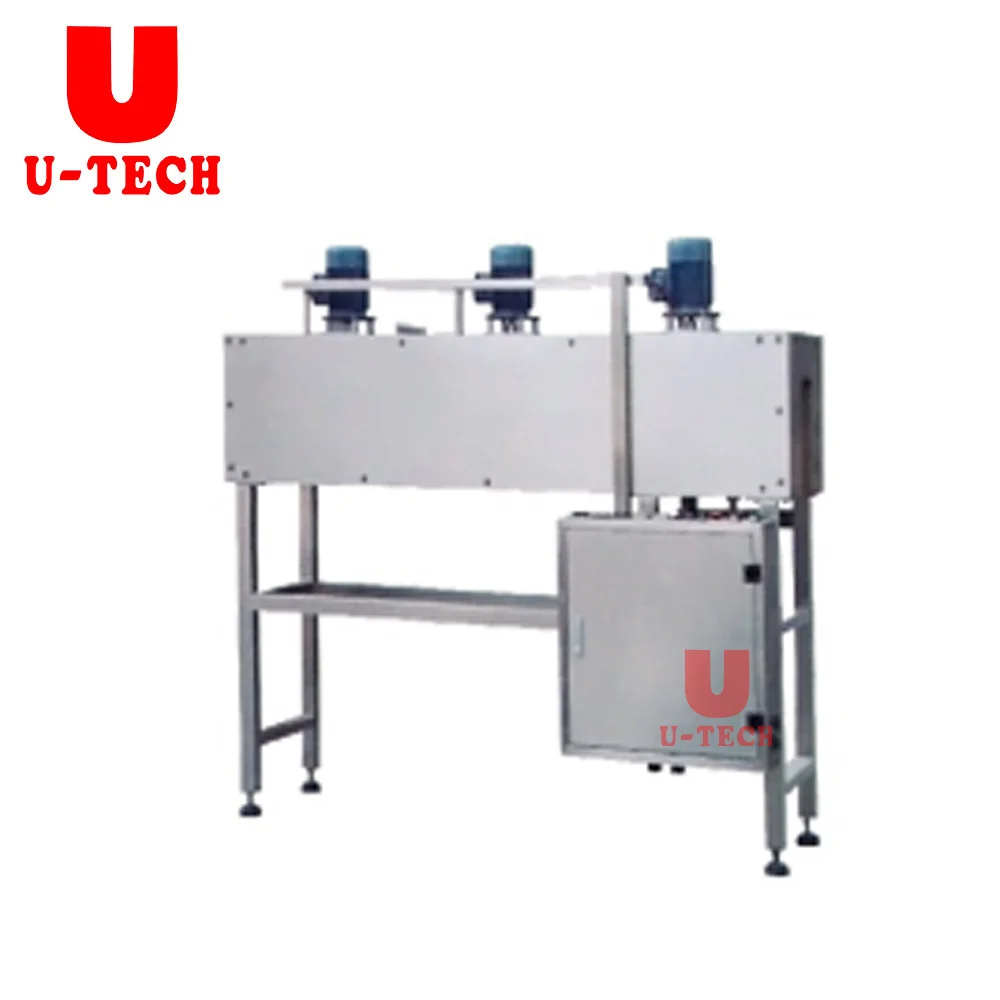

Electrical heating shrinking tunnel
With a unique design,the three segments of the hot air shrinking tunnel is independent and adjustable,which has improved
efficiency thus delivering a saving of energy;After shrinkage,the outside of product has no water globules and it can be packed
directly.

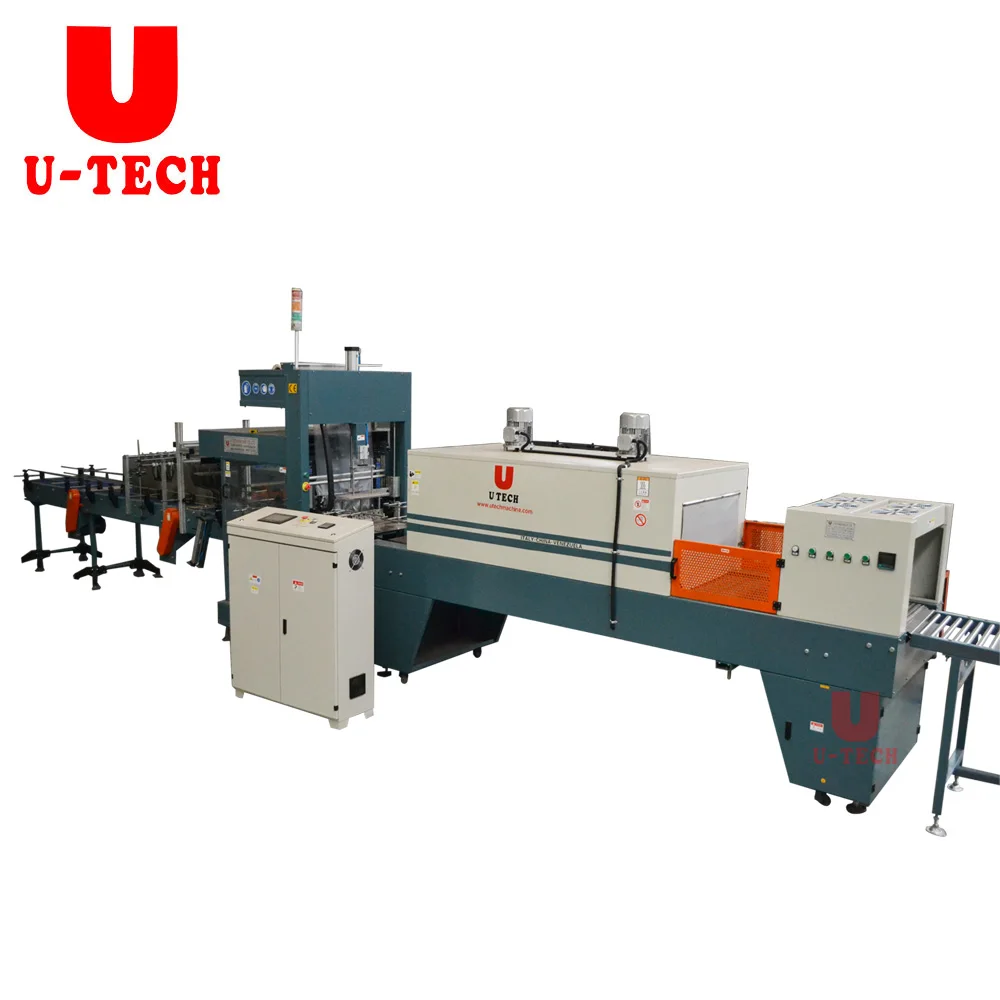

Automatic shink packing machine
specially designed and manufactured for the high- speed packing requirements of drinks (pure water, beverage, juice, and dairy product).during the product forward conveying process, it can automatically group the product into package. so as to save time and enhance packing efficiency. touch- screen operation panel with user- friendly interface and convenient paramentermsetup, absolutely it is an easy- to-operate machine. It is the ideal model of middle- speed heat- shrinking packager in domestic market

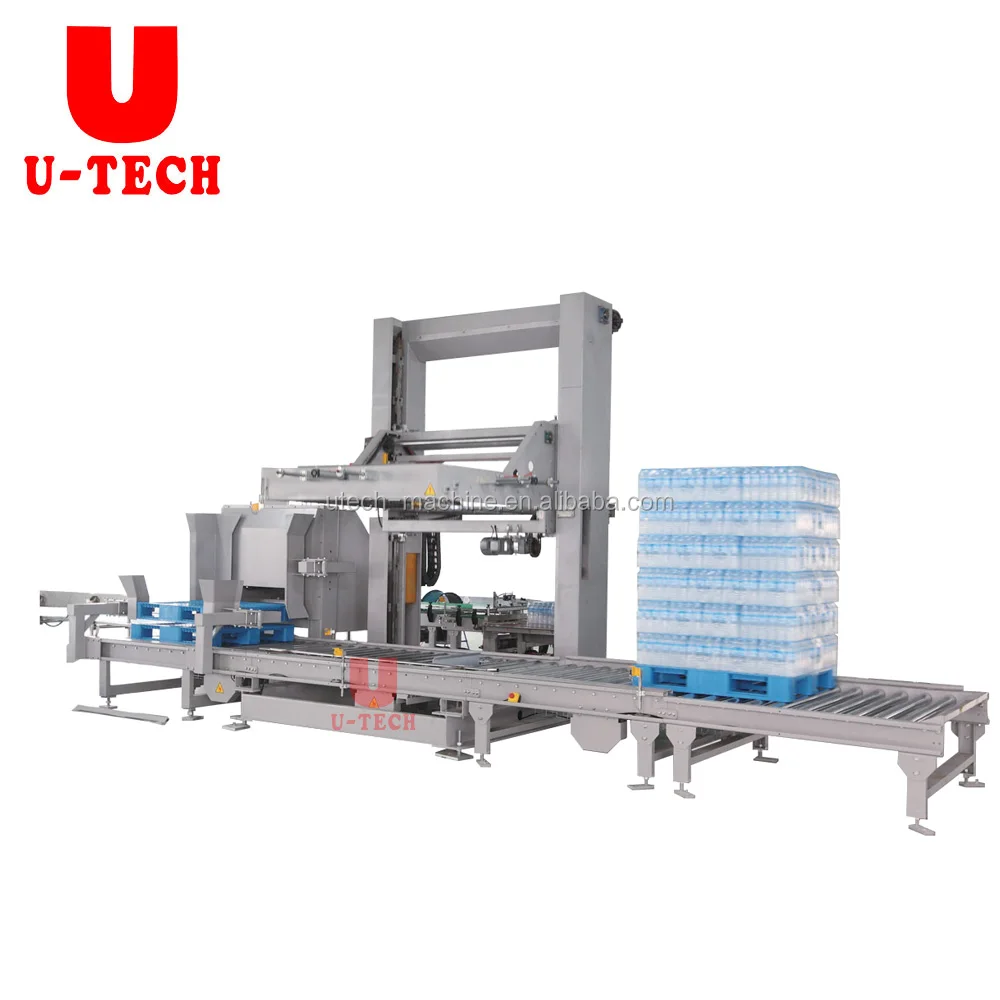

4 Pallerizer part

●Pallerizer arrange, pick up, and pile up the finish products, save many labors and whole action is made by PLC. ●Finish products is controlled by PLC through signal lamp, pushed by cylinder, finish the arrangement, up-down system come down, and gripper pick up the bottles, turn degree, drop down on the center place.
Control System
S/N
Name
Brand
country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
Related Products
Our Advantages
Certifications
FAQ
Q1:Do you have any reference project? >> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer. Q2:What's your guarantee or the warranty of the quality if we buy your machines? >>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years. Q3: Do you provide customized service? >> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on. Q4:When can I get my machine after I paid? >> A4:We will deliver the machines on time as the date we agreed both side. Q5:How can I install my machine when it arrives? >> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
