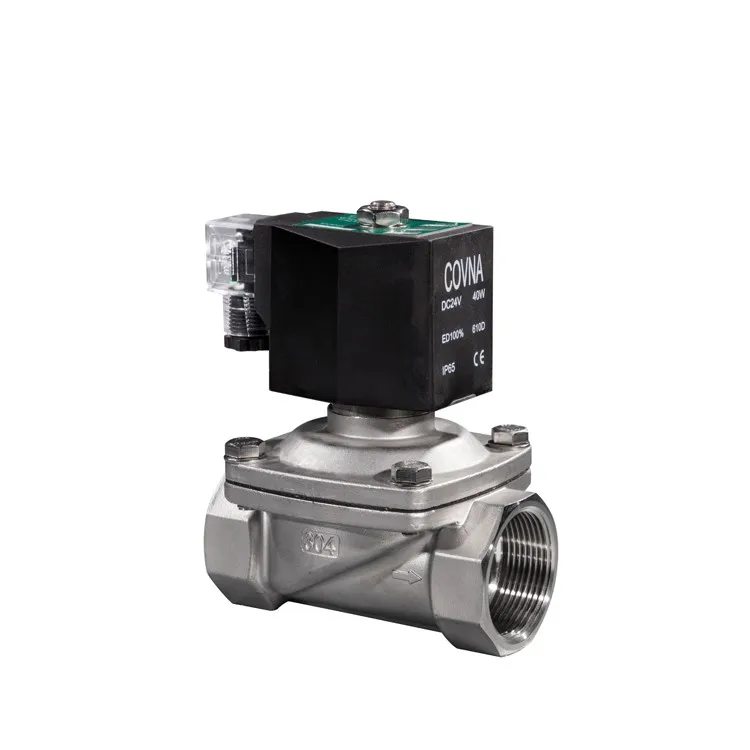

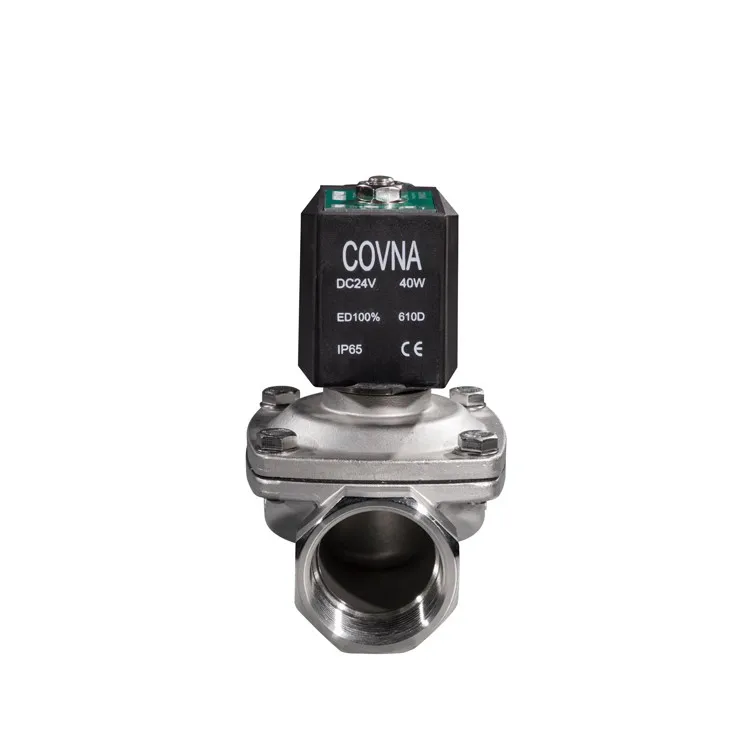

Low Price Stainless Steel 24v 12v 1 inch Water Air Solenoid Valve

FOB Reference Price:Get Latest Price
US $17.75-96.8 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure, 0 to 1.0MPa, 0 to 150PSI
Power:
Solenoid, Solenoid Operated
Material:
Stainless Steel
Temperature of Media:
High Temperature
Media:
Water, Air, Gas, Oil, Liquid, Steam, Water, Air, Gas, Oil, Liquid, Steam
Port Size:
3/8''-2''
Place of Origin:
Guangdong, China (Mainland)
Model Number:
2W21
Brand Name:
COVNA
Application:
General
Item:
Solenoid Valve
Temperature:
t<150°C
Number of Ways:
2/2 Valve, Two Way Two Position
Sealing Material:
NBR, EPDM, VITON
Port size:
DN15-DN50
Valve Operation Type:
Normally Closed (NC)
Coil Voltage:
DC24V (±10%), AC110-220V, 50/60Hz
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each Solenoid Valve For Water in a poly bag and single box, then in a master carton or as required. Plastic pallet and wooden pallet is available
Port
shenzhen/shanghai
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 6 To be negotiated

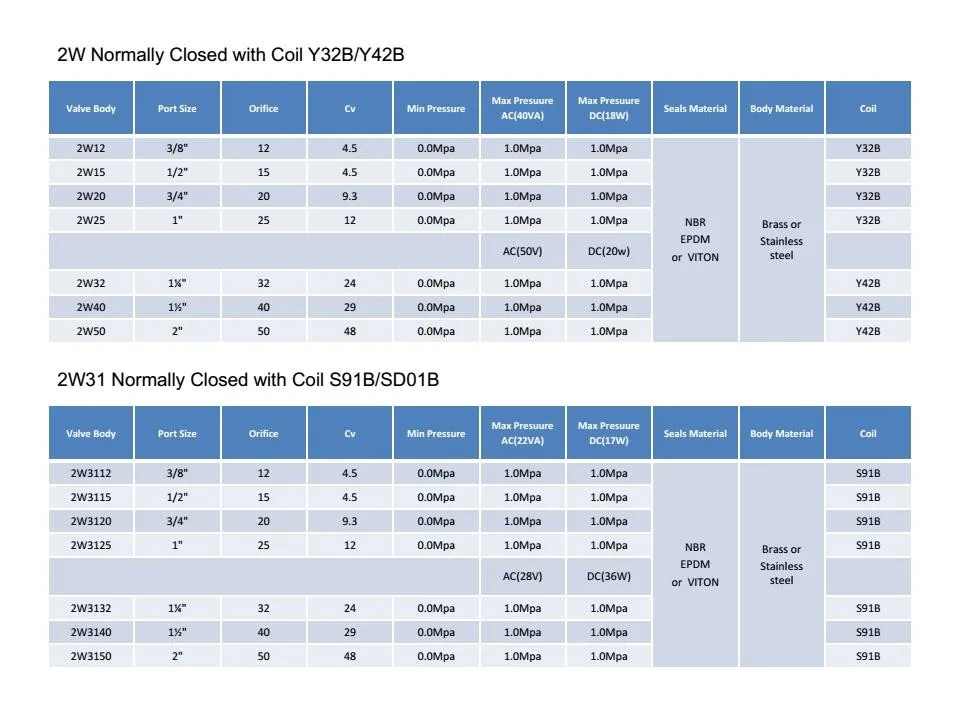

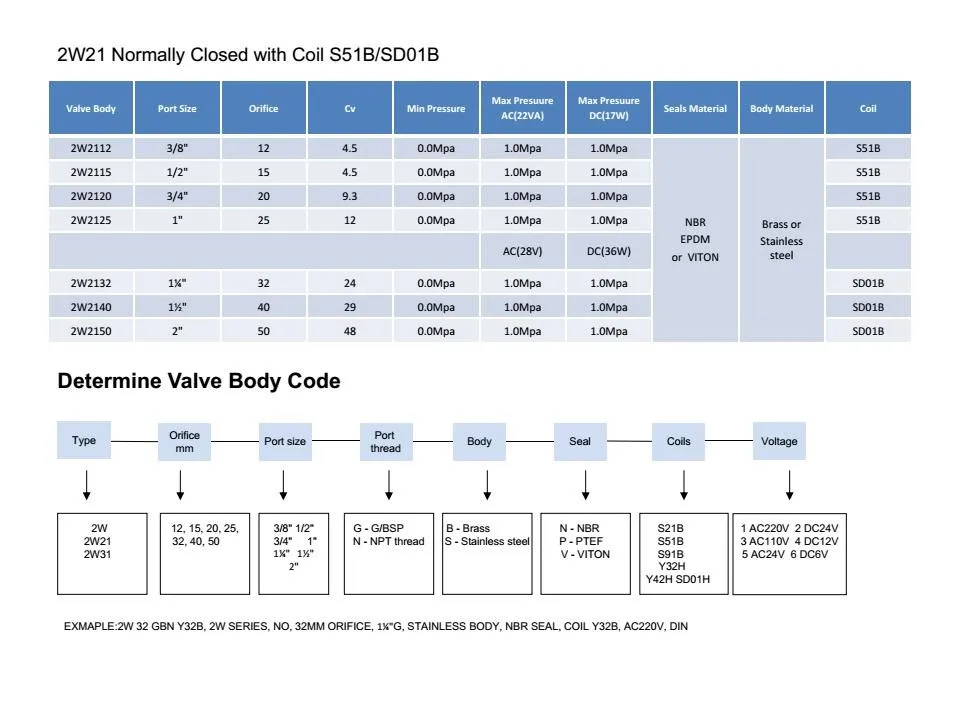

Specification

COMPACT STRUCTURE

HIGH ACCURACY

WATER-PROOF

LONG SERVICE LIFE

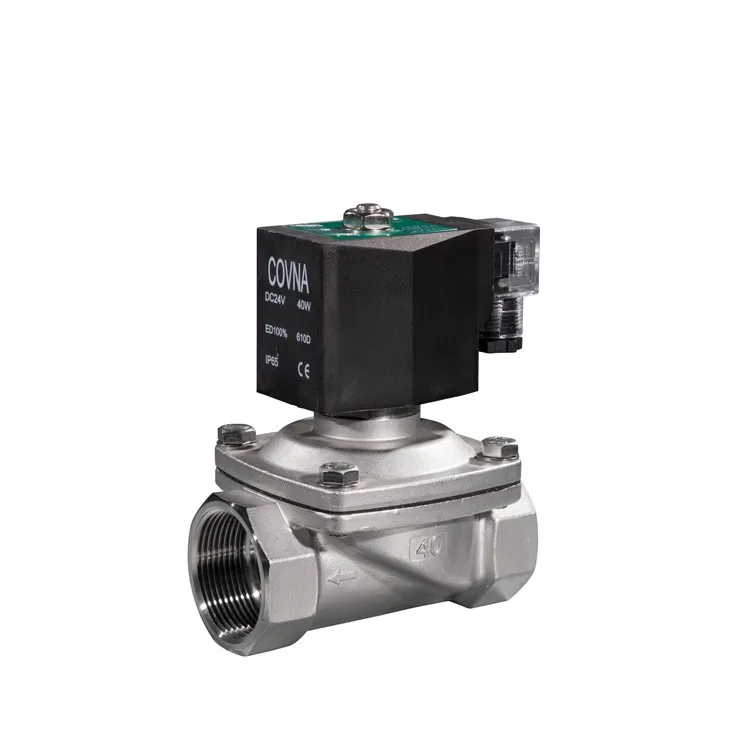

Item
Low Price Stainless Steel 24v 12v 1 inch Water Air Solenoid Valve
Size Range
3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
Operating Pressure
Normal Pressure, 0 to 1.0MPa (0 to 150PSI)
Number of Ways
2/2 Valve, Two Ways Two Positions
Valve Operation Type
Normally Closed (NC), Opens When Energized
Body Material
Brass, Stainless Steel are Available
Sealing Material
NBR, EPDM, FKM (VITON), PTFE (TEFLON)
Structure
Direct Acting, diaphragm
End Connection
Female Thread
Coil Voltage
DC24V (±10%), AC110-220V, 50/60Hz
Applicable Media
Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media
Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Ambient Temp.
Range from -20 to +60°C (-4 to 140°F)
Protection Class
IP67, Explosion-protected Construction are Available
Application
Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

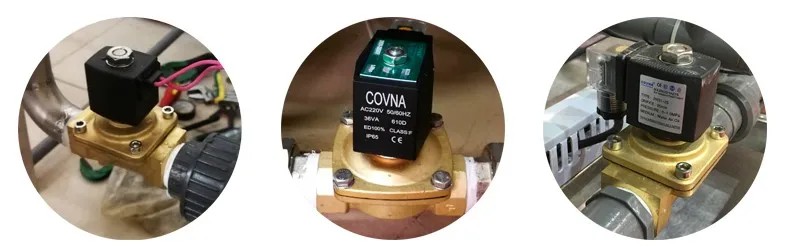

Feedback from clients:

About COVNA
COVNA from Dongguan, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.

COVNA give comprehensive service from start to finish, encompassing consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.

Together with continual feedback from our customers as well as our experience in manufacturing and quality control, COVNA aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service

Our competitive advantage:
● Consistent product quality and reduction of defective rate
● Improved manufacturing process and better productivity
● Significant cost reduction versus competitors

This is COVNA - solve your technical questions with solid experience.

Learn more about us, please feel free to call us at +86-137-24477011 or contact us via Alibaba


Certifications

COVNA were awarded both nationally and internationally and it's certified TUV SGS RoHS ISO 9001 for the entire process of design and manufacture of valves.

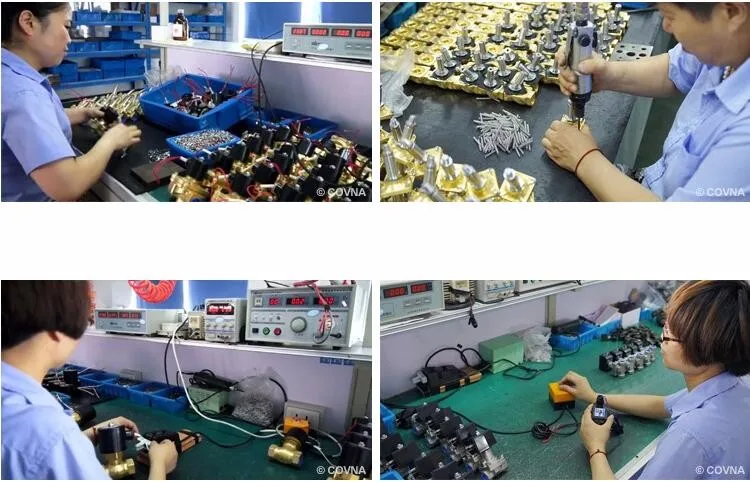

Production
#ALIBABA SELECTION SUPPLIER WITH 17 YEARS MANUFACTURING EXPERIENCE

QUALITY CONTROL

COVNA havs invested in quality assurance, state-of-

the-art machining and testing facilities in order to assist customers in safely controlling their processes.

FIVE CHECKS IN THE WHOLE PROCESS

All products have to pass strict inspection before they go out, covering raw material check, in production check, semi-finished product check, sampling check and pre-delivery inspection.

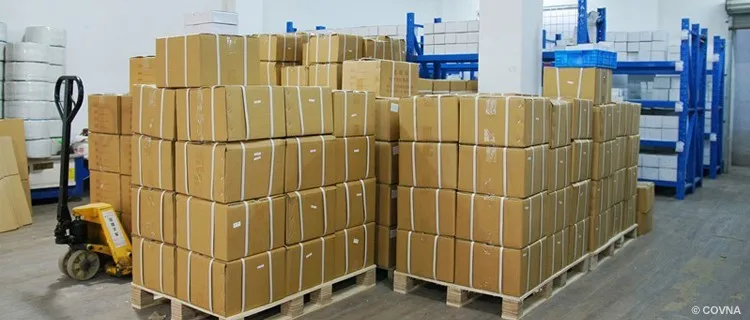

Packing

Packing: Electric valves packed with foam in carton.
Delivery Time: 7-10 working days after payment confirmed.


Similar Products

2w31 Direct Acting


2W31 Direct Acting

HK11-2 Auto Drain

HK60D UPVC butterfly valve

HK60Q Electric ball valve

HKW1 Ro valve

FAQ
Question
Answer
MOQ
1 PCS
OEM/ODM
Accepted
Can I order some samples?
Yes
What is the delivery time?
It is about 7 days after we received the deposit.
What is the payment term?
T/T, Western Union, PayPal, Ali Trade Assurance and so on
Do your company have warranty terms?
Yes, 1 year of warranty term.
Do you have products in stock?
Yes, some standard products we have in stock.
What certificate do you have?
ISO9001, CE, RoHs, TUV, SGS
How can I trust you?
We have 18 years experience about valves and we have a professional and reliable quality inspection team. And our products have certificate.
