Low cost 2-wire 4-20mA DIN connection Pressure sensor Industrial pressure transmitter

FOB Reference Price:Get Latest Price
$40.00 - $60.00 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Bingo
Model Number:
PT-ID03
Compensation temperature:
-10°C~+70°C
Working temperature:
-10°C~+85°C
Insulation resistance:
>100MΩ/50V
Insulating strength:
>500MΩ/50V
Overload capacity:
150%
Years stability:
≤±0.1%FS(model);≤±0.2%FS(max);
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
NEUTRAL CARTON for Low cost 2-wire 4-20mA DIN connection Pressure sensor ,pressure transducer
Port
NINGBO/SHANGHAI

Pressure  sensor

Product Description

1.Introduction

General  stainless steel  pressure transducer  utilizes imported stainless steel isolation film piezoresistive OEM pressure transmitter. It utilizes laser resistance adjusting technic to make wide range temperature amendment on zero point and sensibility, and output standard signals.  PT-ID03 features matching wide measuring range and good compatibility, stable and reliable performance, high precision, and various forms of output signal, can be carried out on-site adjustment.





2.Technical Parameter



Pressure range-0.1……0~0.1……100MPa
Output4~20mADC(two wire),
0~5VDC(three wire or four wire),
0~10VDC(three wire or four wire)
Pressure typeGage pressure, absolute pressure, sealing pressure
Accuracy≤±0.25%FS(model);≤±0.5%FS(max)
Years stability≤±0.1%FS(model);≤±0.2%FS(max);
Overload capacity150%
Power supply12~28VDC(model:24VDC)
Compensation temperature-20°C~+70°C
Working temperature-40°C~+85°C
Insulation resistance>100MΩ/50V
Insulating strength>500MΩ/50V
Pressure connectionM20×1.5,M12×1,G1/4,G1/2
Electrical connectionHirschmann plug or cable
MediumLiquid compatible with 316LSS
Protection GradeIP65
Explosion-proof GradeExiallCT5

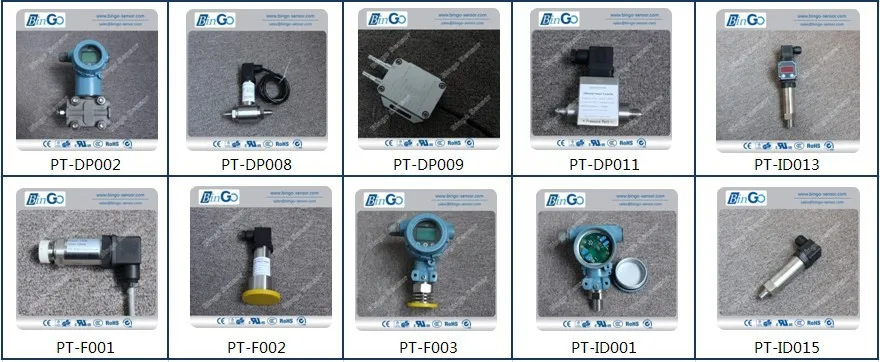

3.Other types we can supply





4.How to get latest price quickly:



The following requirements you need to show to us:

1.Working temperature

2.Working pressure range

3.The quantity you want to purchase

4.Where you use the products to?



FAQ

Applications

Stainless Steel Industrial Pressure Transmitter PT-ID03  is widely used in industrial field process pressure control, such as aerospace field,petrochemical industry, light industrial machinery, medical equipment, marine shipbuilding industry, water conservancy and hydropower plant, constant pressure water supply and Other automation control and detection system.





Packaging & Shipping

1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.

2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.



Our Services

1. Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM is available; small quantities, mixed bulk orders are also welcome;
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram;
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.



Buyer Feedback





After-Sales Service

    Guarantee:
1.12 months warranty for most of our products;
2. We will arrange delivery of the goods on time;
3. Within the warranty period, we will bear all the quality problem of our products;
4. Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
5. Without any problem, we will gain the feedbacks of our products to help improve better products.



Company Information

Show room



A corner of our company



About us





Founded in 2009, our company is committed to supplying a full range of pressure switches / transmitters / sensors, level switches / transmitters/ meters, flow switches / transmitters/ meters.

Our company is located in the "Capital of Electric Products", Liushi, Wenzhou. Besides, we set branch in Shanghai for automation control business in 2013.





Shanghai Office
ADD: Rm. 408, #1 Building, Shanghai Zhihui Science Park, No.11, lane 911, Hulan Road, Baoshan, Shanghai
Zipcode: 201900





Liushi Office
ADD: ROOM A111, JINHAO BUILDING,No.1-8 LIUWENG ROAD,LIUSHI ,YUEQING,WENZHOU
Zipcode: 325604





Yiwu Office
ADD: No. 146-3, Chouzhou North Road, Yiwu, Jinhua





Taizhou Office
ADD: No. 7, Xianqian Road, Yuhuan, Taizhou




More information, you can browse our website:  www.bingo-sensor.com
