- Place of Origin:
-
China
- Brand Name:
-
PUAO/JINLING
- Model Number:
-
PA-500
- Power Source:
-
Electric
- Warranty:
-
1 Year
- After-sale Service:
-
Online technical support
- Material:
-
metal
- Shelf Life:
-
1years
- Quality Certification:
-
CB
- Instrument classification:
-
Class III
- Safety standard:
-
None
- humidifier:
-
9 Level adjustable humidifier
- product name:
-
ICU ventialtor machine
- Display:
-
wide angle LED alphanumeric data display
- Ventilation Mode:
-
A/C, IPPV, SIPPV, IMV, SIMV, MANUAL
- Gas Supply Requirement:
-
280~600 kPa medical grade oxygen
- Tidal Volume:
-
Adjustable range: 50-1500ml, Display range: 0-2000ml
- Respiratory Rate:
-
6-60bpm
- Inspiratory/Expiratory (I:E) Ratio:
-
1:1.5-1:3.0
- PEEP:
-
1-10cmH2O
- SIMV Rate:
-
1-12bpm
- Supply Ability:
- 500 Piece/Pieces per Year
- Packaging Details
- Standard Export carton with foam inside.
- Port
- Any port of China
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 - 1 >1 Est. Time(days) 2 To be negotiated

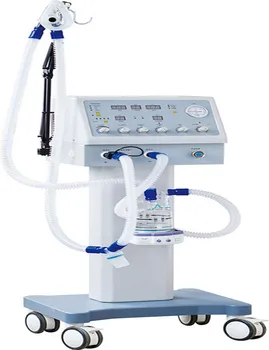

Lung ventilator machine, Salable cheap price ICU breathing medical ventilator
Features
1. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy
2. Display: High visibility, wide angle LED alphanumeric data display, equipped with tactile analog parameter controls
3. Equipped with high precession infrared turbine pressure and flow sensors
4. Power failure support functions: Automatically converts to standby mode during AC power outages
5. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
6. Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure oxygen failure and other alarms.
7. 9 Level adjustable humidifier
Specifications
|
Model |
500 |
|
Display |
LED |
|
Ventilation Mode |
A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
|
Minute Volume |
Greater than or equal to 18L |
|
Back-up Power Supply |
At least 4 hours |
|
Tidal Volume |
Adjustable range: 50-1500ml, Display range: 0-2000ml |
|
Output Oxygen Concentration |
<50% |
|
Respiratory Rate |
6-60bpm |
|
Pressure Limit |
1-6kPa |
|
Inspiratory/Expiratory (I:E) Ratio |
1:1.5-1:3.0 |
|
PEEP |
1-10cmH2O |
|
SIMV Rate |
1-12bpm |
|
Inspiratory Pressure Trigger |
.-4-10cmH2O |
|
Maximum Safe Operating Pressure |
≤6.0 kPa |
|
SIGH |
1 sigh breath in every 80-120 breaths |
|
Airway Pressure Alarm |
Upper Limit: 0.9~5.4kPa, Lower Limit: 0.5kPa |
|
Gas Supply Requirement |
280~600 kPa medical grade oxygen |
