MACON commercial indoor pool dehumidifier MDH170A

Feedback Ratings
$2,000.00 / Unit | 50 Units (Min. Order)
Color:
$2,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
40 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
Refrigerative Dehumidifier, Refrigerative Dehumidifier
Dehumidifying Technology:
Compressor, Compressor
Function:
Adjustable Humidistat, Auto Restart, Automatic Defrost, LED Display, Washable Air Filter, Auto Restart,Automatic Defrost and so on
Certification:
CE, EMC, RoHS, SASO, UR
Capacity (pints / 24h):
170, 170
Coverage Area (sq. ft.):
225
Dimensions (L x W x H (Inches):
1775*315*765
Fan Speed:
2, 3
Power (W):
3000
Voltage (V):
220
Water Tank Capacity (l):
100
Working Temperature Range:
5-35, 5~35 degree
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Macon or OEM
Model Number:
MDH170A
Diffuser automatic swing control:
Diffuser automatic swing control
refrigerant:
R410A/R407C/R134A
controller:
remote control
heating:
built-in hot water heating coil

Packaging & Delivery

Selling Units:
Single item
Single volume:
1 cm 3
Single gross weight:
200.0 kg
Lead Time :
Quantity(Unit) 1 - 50 >50
Est. Time(days) 40 To be negotiated
Product Description

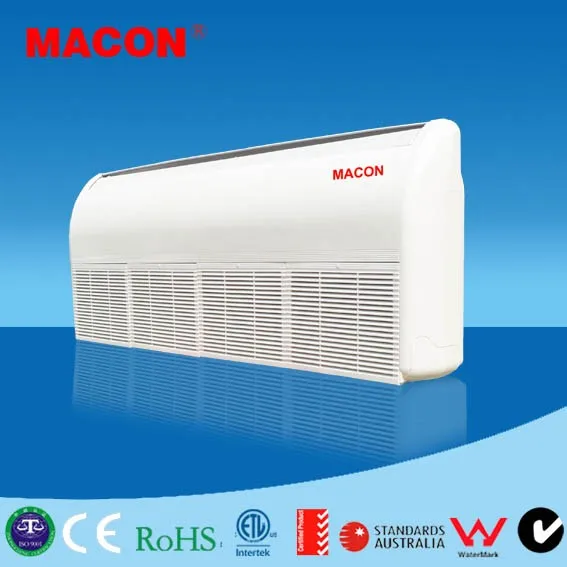

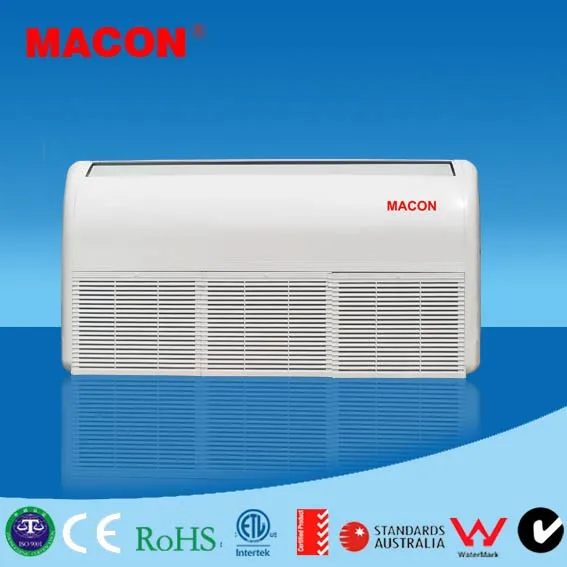

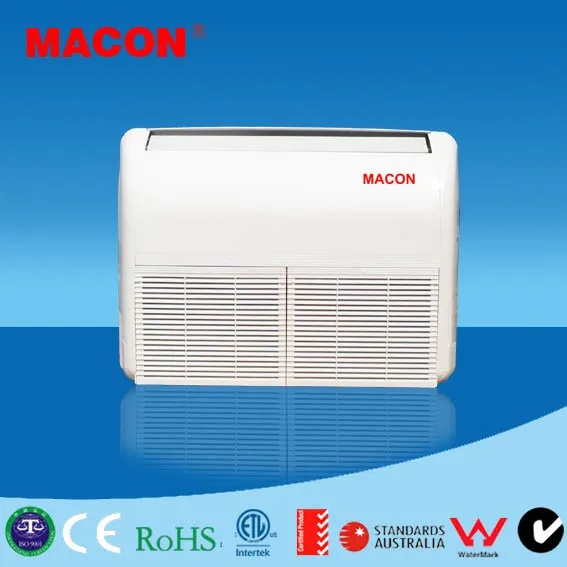

Macon dehumidifier

Main Features

1. Streamline appearance design.
2. Can be in stalled by ceiling mounted, floor standing or wall mounted.
3. With LCD line controller and LCD remote control design.
4. Wide air flowing range.
5. Auto swing.
6. Super quiet operation, rotary compressor.
7. Air heating: built-in auxiliary electrical heating, power range:1.0kw,1.5kw,2.0kw.
8. Corrosion free, easy to clean aluminium cover with easy-clean air filter. All heat exchange surfaces polyester coated.
9. Timing, automatic startup, automatic shutdown.
10. Automatic defrosting.
11. R410a Zero ozone depletion refrigerant.
12. High/low pressure and delay timer protections.
13. High moisture extraction for low power consumption.
14. Condensate connection at either side, Can drain continuously.

Product Parameters
Model
MDH
75A
125A
170A
Dehumidification @30℃/70%RH)
kg/day
75
125
170
Heat recovered to air @30℃/70%RH)
kW
3.2
5.0
8.2
Sound level
dB(A)
48
50
52
Circulating air volume
m3/h
600
1200
1800
Power supply
V/PH/Hz
220/1/50
Power input
kW
1.30
2.00
2.92
Current input
A
5.9
9.1
13.3
Starting current
A
25
42
63
Water connections
inch
3/4
Condensate drainage
mm OD
16
Working temperature
5~35
Compressor protection
3 minutes delay
Defrost mode
Automatic
Refrigerant
R410a
Compressor
Rotary
Unit Dimensions (L/M/H)
mm
905/243*673
1288/243/673
1672/243/673
Detailed Image

How a MACON dehumidifier works?

The process of dehumidification involves moisture-laden air being drawn into a dhumidifier where the air passes across a refrigerated coil. The air is rapidly cooled below its dew point, condensing the water vapour and recovering its latent heat energy for re-use. The cooled air is then passed across the condenser where it is reheated and returned to served are at the required lower relative humidity.



Free installation

Can be installed by floor standing or wall mounted




Capacity curves

Good dehumidification at different ambient temperature





Auto swing

Auto swing with wide air flowing range




Smart control

 With LCD wired controller and LCD remote control.




Remote control

details of remote control

Packing&Delivery

Standard Export Package ,make sure goods complete when you get it

 LCL Order: Interior Plastic Films + Plywood Case
Container Order: Interior Plastic Films + Cartons

Company

Macon Cooling & Heating Energy-Saving Equipment Co., Lt, specialized supplier of air source /ground source/ double source heat pump,obtained CE, ROHS, SAA, Water mark, Standard mark, C- tick, ETL, CCC certification and pass ISO9001:2000, our engineers have more than 20 years experiences in the heat pump area, what's more, we have obtained lots of patent of invention and established OEM business relationships with lots of overseas enterprises. ODM/OEM services are available.

Factory view

Production process


Certificate

Our  heat pumps has get CE,SAA, ETL, EN14511,C-Tick,water mark certificate.

Customer visit

Every year we have lots of customer from different countries visit us,they come from Europe,North America,Australia,Asia and so on.And if you are interest in our product,welcome to visit us!

Exhibition
