MACON heat pump water chillers series industrial water chiller air

Feedback Ratings
$20,000.00 / Set | 4 Sets (Min. Order)
Model Number:
MACW 500ZB/S
$20,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
35 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
1250*525*1280mm
Weight:
90~1150kg
Warranty:
1 Year
Condition:
Brandnew
Type:
Air-Cooled
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM/MACON
Cooling Capability(kw):
2.5kw~125kw
Voltage:
380v/3phase/50hz
Certification:
CE
Compressor:
scroll
Colour option:
white,black
Performance:
high cop
Cold water temperature:
7 degree
Refrigerant:
R134a/R407c/R410a
Cooling capacity:
125Kw
Color:
White
After-sales Service Provided:
No overseas service provided

Packaging & Delivery

Selling Units:
Single item
Single volume:
3 cm 3
Single gross weight:
2000.0 kg
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

Heat Pump Water Chiller

MACON outstanding features of high efficiency energy-saving, safe and reliable, environmental-friendly and low operation costs, etc, MACON heat pump water chiller is the best choice for places where cooled water is in demand such as spa center, livestock farm, greenhouse, and different industries like injection molding, electroplating, pharmacy, food & beverage etc.


Feature:
1) Wide range from 2.5KW to 120kw for different application.
2) Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
3) 3-phase scroll type compressor, with built-in thermal overload cut-out,make sure unit work safety
4) Evaporator built with high efficiency tube in tube type heat exchanger, factory insulated with flexible close cell material.

5) Energy saving, green, and envrionmental

Product Parameters
Model
MACRW
500ZB/S
Cooling capacity
KW
125
Rated input power
kW
43.86
Rated input current
dB(A)
81.3
Power supply
V/PH/Hz
380/3/50
Water inlet/outlet
inch
3"
Water flow volume
m3/h
27.5
Working temperature
5~35
Compressor protection
3 minutes delay
Defrost mode
Automatic
Refrigerant
R410a
Compressor
Scroll
Detailed Images

Wide Capacity Range

The cooling capacity of Macon heatpump water chiller ranges from 2.5KW to 125KW with the lowest setting temp.can be down to 7 degree,suitable for different market demand,no matter for household or commercial use.

Multipie Protection

Unit is designed with electronic water flow protection,compressor exhaust temp.protection,compressor high/low pressure protection,compressor over-current protection,power phase lack and phase dislocation protection.

Anti-freezing Technology

Unit designed with multi-grade antifreeze protection control function.When outdoor ambient temperature is lower than setting function,unit cooperate antifreeze protection function automatically and keep the unit safe.

Power Failure Memory Function

Automatic record of the working mode before failure and automatic recovery of the recorded working mode after power failure.Automatic adjustment of working status,no need for manual operation.

Electronic Expansion Valve

500-step linear electronic expansion valve throttle control,wide adjustable refrigerant flow control range.

Modular Combination Design

This design is suitable for commercial ,industrial,agricultural,place need cooling demand.Each group of central controller is able to control 16 unit.

24-Hour Timing Function

Timing setting available.Unit ON/OFF time is settable according to users' actual deands.

Automatic Constant temperature maintaining.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Our company

About Macon

Foshan Macon Cooling & Heating Energy-Saving Equipment Co.ltd is an international enterprise that commits itself to heat pump technology, fixes energy saving and environmental protection as its development orientation. Macon focus on research & development, production, sale and service of heat pumps.



Our certificate

Our heat pump has different certificates,such as CE  and EN14511 for Europe,ETL for North America,SAA,C-Tick,Water mark for Australia,and we also have 3 patents.



Our customer

Our product sell to more than 76 countries.And some customers will come to visit us every year.


Our exhibition

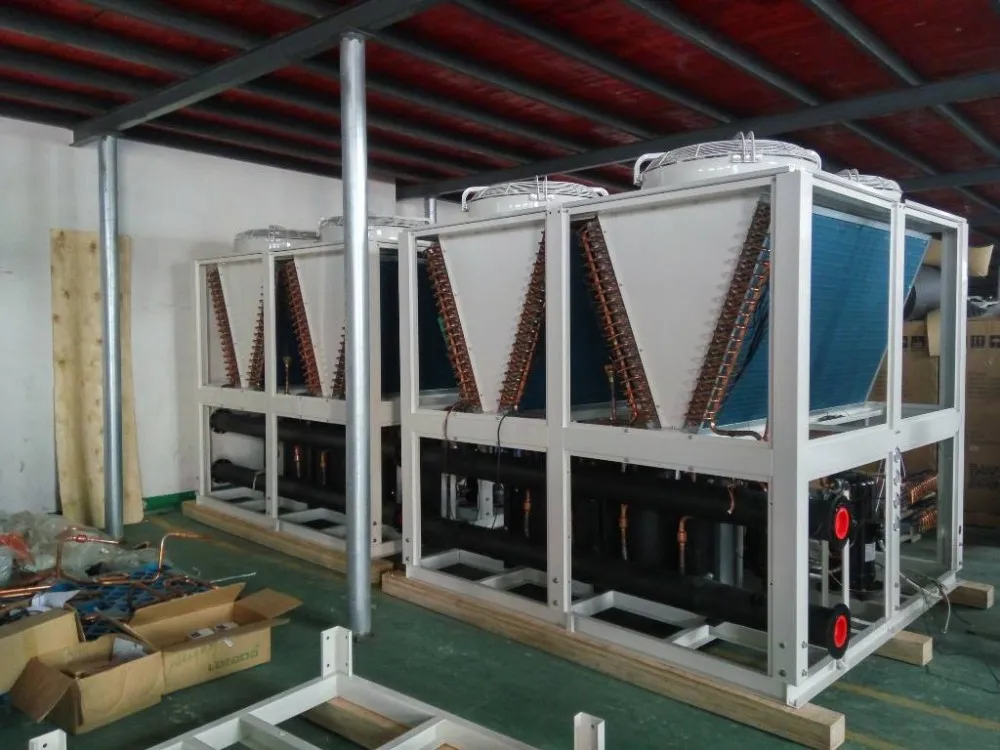

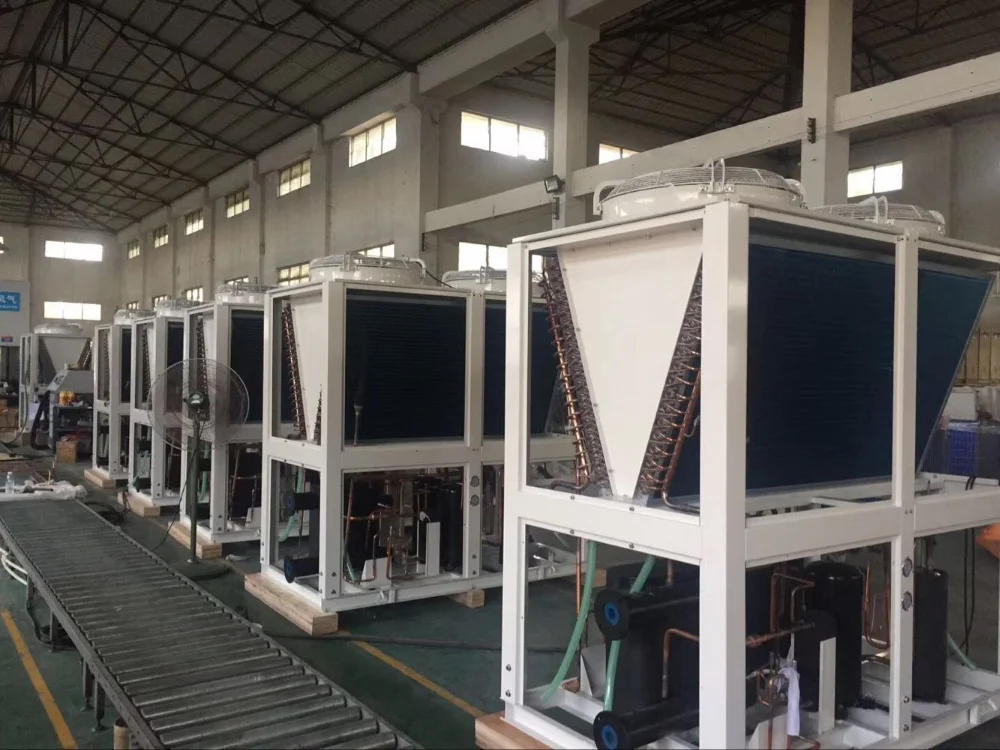

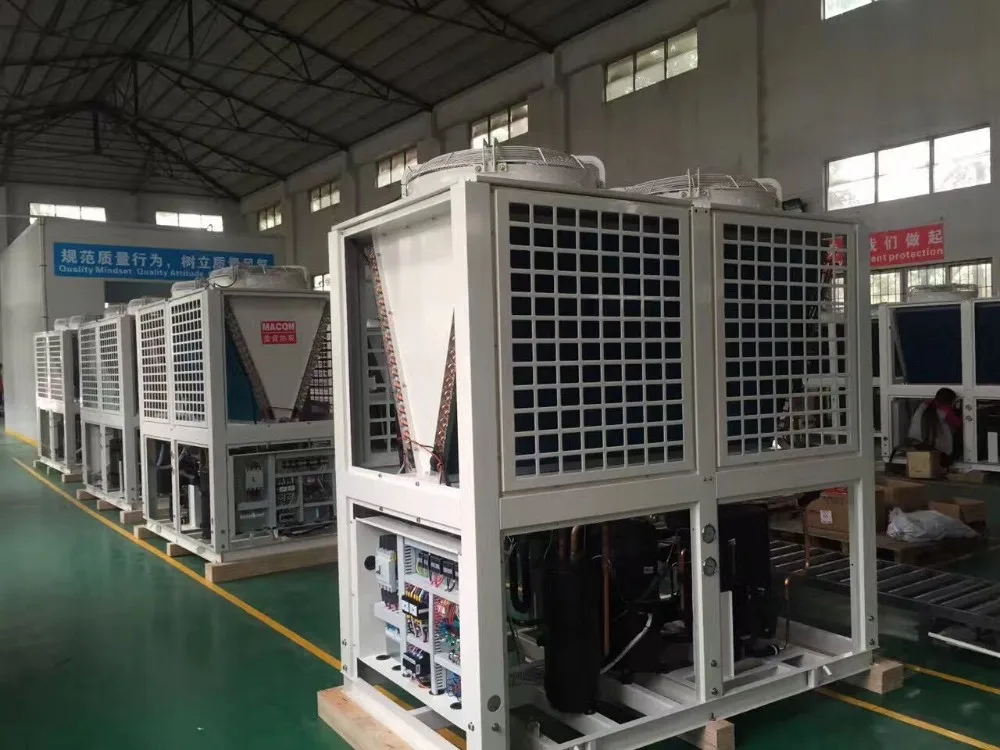

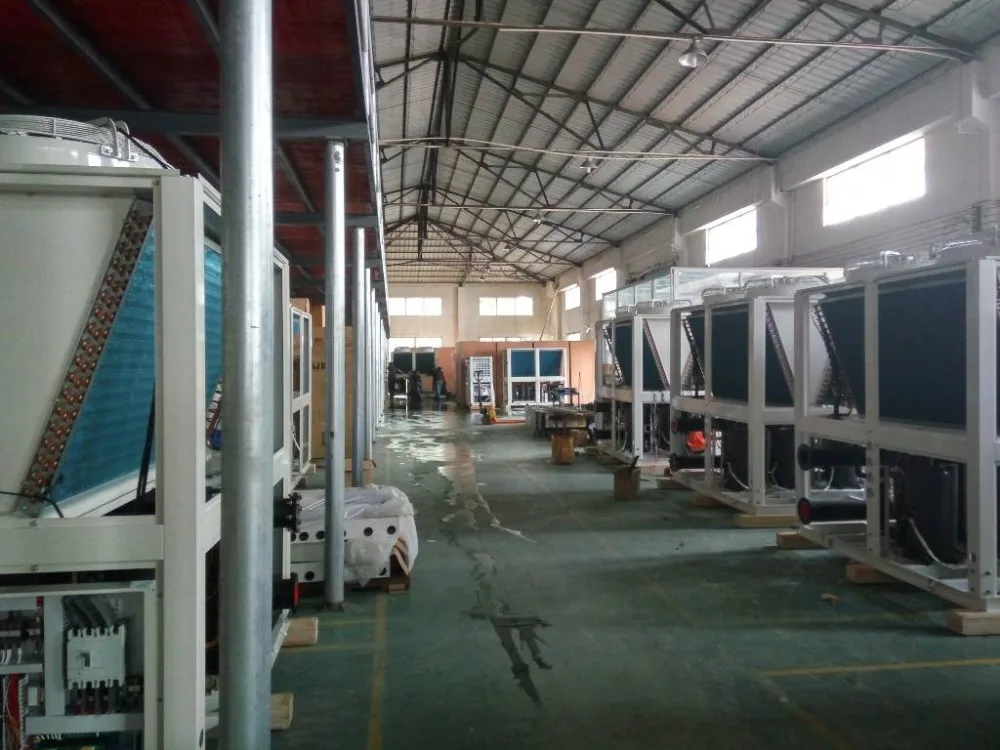

Production


Macon commercial heatpump water chiller is widely use in the place need large cooling.It is widely use in greenhouse,agricultural.
