MB204F Heavy duty double sides planer for workshop

FOB Reference Price:Get Latest Price
$7,000.00 - $8,000.00 / Set | 1 Set/Sets (Min. Order)
Type:
Double Side Planer
Model Number:
MB204F
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
12 Months
Place of Origin:
Shandong, China
Brand Name:
STEELER
Voltage:
380V
Certification:
CE ISO
Dimension(L*W*H):
2315x1155x1398mm
Applicable Industries:
Manufacturing Plant
Max.working width:
430mm
Max.working thickness:
15-150mm
Min.working length:
260mm
Max.cutting depth(upper spindle):
10mm
Max.cutting depth(bottom spindle):
8mm
Tool cutting cricle diameter:
101mm
Spindle speed:
5000r/min
Feed speed:
4-16m/min
Upper&bottom spindle motor:
7.5/5.5kw
Feed motor:
2.2kw
After-sales Service Provided:
Field maintenance and repair service
Power(W):
5.5kw
Weight:
1600KG
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Stretch film with wooden case or as your request
Port
QINGDAO SHANGHAI GUANGZHOU or as your request
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 30 To be negotiated

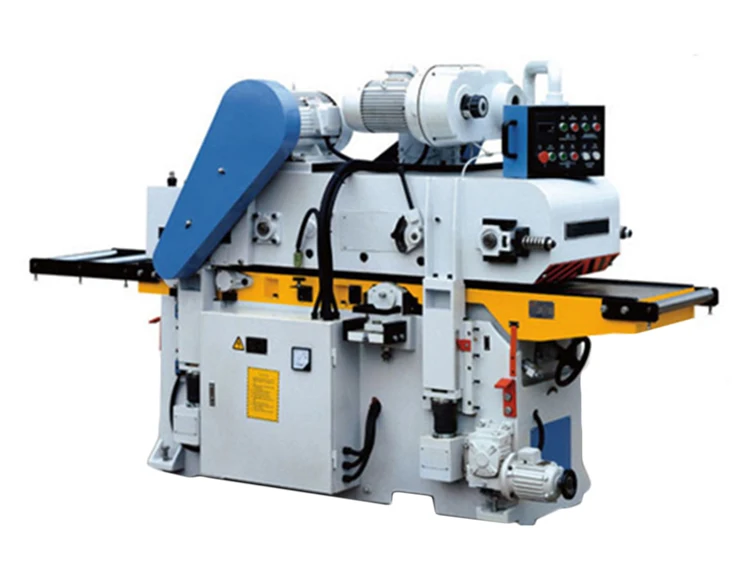

MB204F wood double side planer with good configuration

Product Description

 .jpg

Application:

Processing of sets of furniture,variety of wood materials,laminated wood,wood strips etc.



Features:

1.The  work table and machine frame adopt quality cast iron, which can keep the stable performance  and good accuracy

2.The worktable adopts special weat-resistance material,and done special treatment and polishing.So it is high precision and well wear-resistance

3.The spindle adopts special material and technology, and done dynamic balance treatment keep the stable performance and good accuracy. It improve the spindle's life

4. The top feeding system adopts the spring claw, the pressure can be adjusted, so the feeding is smooth and the quality is good

5. The bottom spindle can been pull-out, it making the exchange more convenient an safe.At the same time, it improve work efficiency

6.The setting thickness and feeding device is Digital display, it is convenient

7. The electric and manual pump lubricates the guild rail and transmission units with fixed time, fixed quantity. It also can be integral lubricating.



Advantage:

1.The bottom cutter shaft can be pull quick that make the tool replacement and correction convenient and safe.

2.The inveter controlling feeding system suitable for various material processing

3.The precision can up to 0.01mm of the magnetic grating digital readout, input the data to set the working thickness automatically

4.Auto lubricator provides the feeding, Mechanism forcibly to protect the feeding system

5.Provided with driven feed roller structure ensuring stronger and smoother feeding.Equipped with overloading protection mechanism

6.The feeding unit can be adjusted up-towards and downwards, the elevating range reaches 6mm,and thus the processing precision can be enhanced with powerful feeding

7.Equipped with pressure plate guarantees short workpiece smooth machining, increasing production output

8.The worktable adopts special weatresistance material, and done special treatment and polishing.So it is high precision and well weat-resistance.



Technical Parameters:

Max.working width

430mm

Max.working thickness

15-150mm

Min.working length

260mm

Max.cutting depth(upper spindle)

10mm

Max.cutting depth(bottom spindle)

8mm

Tool cutting cricle diameter

101mm

Spindle speed

5000r/min

Feed speed

4-16m/min

Upper&bottom spindle motor

7.5/5.5kw

Feed motor

2.2kw

Net  weight

1860kg



Detailed Images

 MB204F-206F

Finished Products

1



Packing&Service





1.Delivery:

We can guarantee delivery on time.

We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.

2. Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
