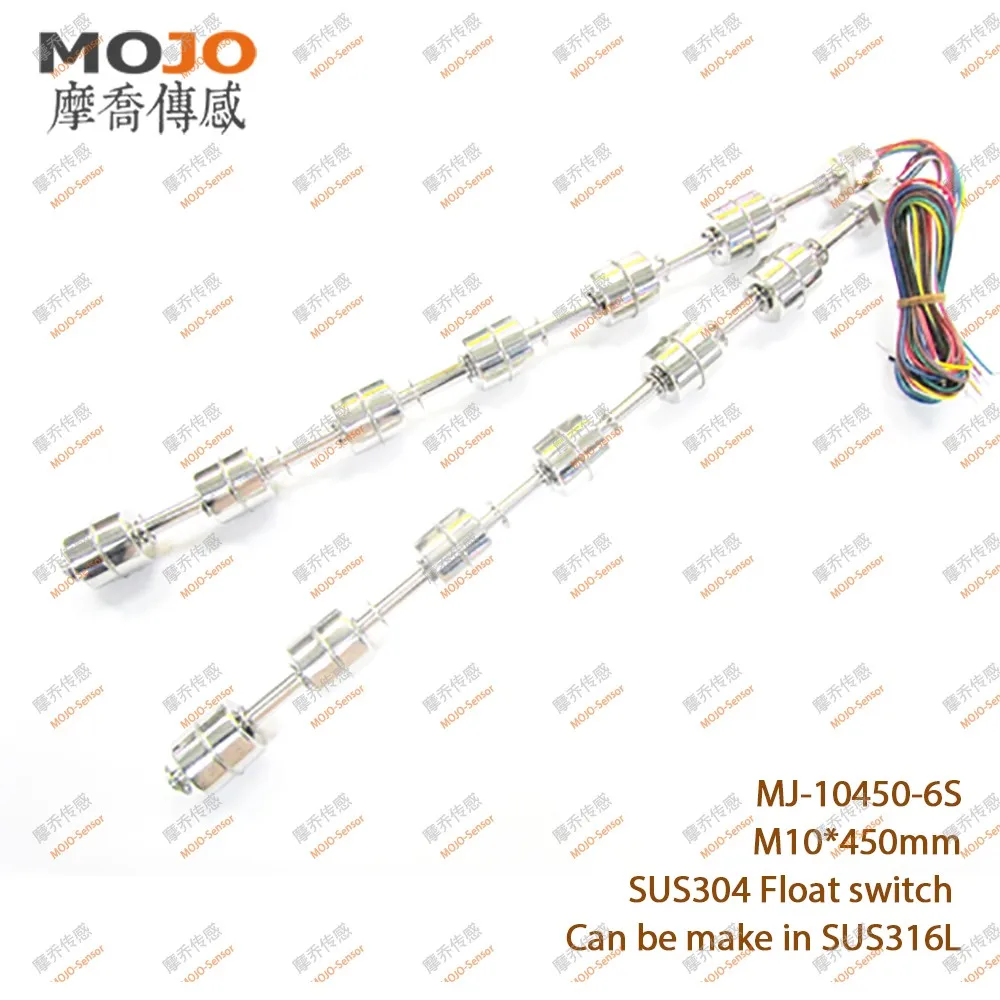

MJ-10450-6S Stainless steel material 50W 220V 6 signals M10*450 water level sensor

Feedback Ratings
  • 1-29 Pieces
    $20.00
  • 30-99 Pieces
    $19.00
  • >=100 Pieces
    $17.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MOJO
Model Number:
MJ-10450-6S 50W
Usage:
Level Sensor
Theory:
Current Sensor
Output:
Switching Transducer
Type:
Liquid sensor
Name:
Level switch
Material:
Stainless steel
Application:
Home Automation
Color:
White
Item:
2016 Top

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X10X10 cm
Single gross weight:
0.3 kg
Package Type:
1pcs / lot 10 pcs / lot
Picture Example:
package-img
package-img
Lead Time :
3
Product

The principle of operation

Liquid level sensors by the composition of reed switches and float, reed switch encapsulated in the guide, and a ring magnet is equipped in the float, when the float moves up and down with the measured of liquid level,and the internal magnet to attract magnetic reed switch contact action,so that it can to detect the liquid level position.

Detailed
Notes


Applications


The product is mainly used in household appliances (such as: water machine, water dispenser, humidifier, dehumidifier, water heater, air conditioning, direct drinking water system, family, etc.), industrial equipment (such as: air hydraulic machine, Cooler, drainage, lubricating oil system), gardening equipment, medical equipment, beauty salon equipment, aquatic farming and industrial water purification, sewage treatment systems, automatic door control system and other industries.

According to different customers, the special needs of different environments, the product has a variety of sizes, a variety of materials available, can also accept custom.



Installation instructions

1.Should be mounted away from the inlet, or switch will caused malfunction by the fluctuations in intake.

2.The load must be controlled circuit capacity with float switch contacts to match.

3.The proportion of liquid to be measured must be greater than the proportion of float.

4.Float action points have been ordered by the customer requirements adjusted at the factory, Please do not adjust the float position.



Routine maintenance

Periodically clear the guide rod and float on the dirt (as the media cycle may be).

Check for the loose buckle.



Nice cooperation with you & thanks for visiting our store!
