MJ377 Series Large-scale Log Horizontal Band Sawing Machine for Square Wood

FOB Reference Price:Get Latest Price
$35,900.00 - $36,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
NanYang
Model Number:
MJ377
Condition:
New
Max. sawing range of log:
600mm
Max. sawing range of square wood:
550mm
Max. sawing height:
575mm
Min. sawing height:
25mm
Standard sawing length:
7000mm
Extended sawing length:
3000mm
Saw wheel diameter:
720mm
Motor power:
18.5kw
Total weight:
2300kg
Demensions:
8700x2200x2300mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
band saw package: wooden pallet.
Port
shanghai
Lead Time :
Shipped in 30 days after payment


Product Description

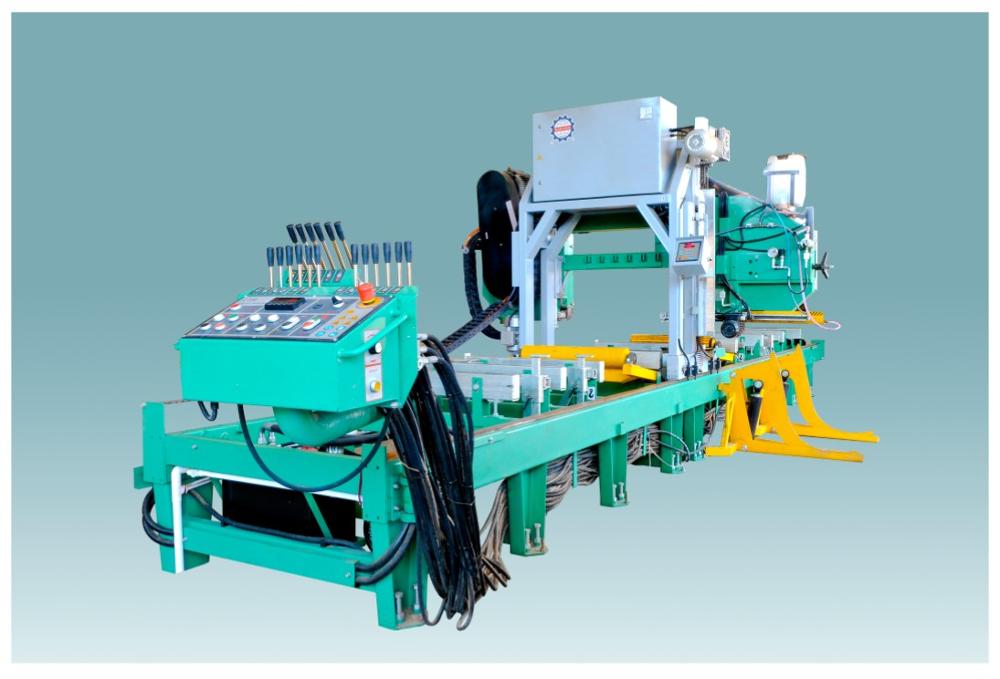

MJ377 Series large-scale log horizontal band sawing machine

click to view the video





Technical parameters:



Product Model1000H650H
Max. sawing rangeLogφ 950mmφ 600mm
Square wood850mm550mm
Max. sawing height875mm575mm
Min. sawing height25 mm25 mm
Max. sawing thickness450 mm350 mm
Standard sawing length7000 mm7000 mm
Extended sawing length3000 mm3000 mm
Min. sawing length1200 mm1200 mm
Main motor power22kw18.5kw
Vertical shifting motor power1.1kw1.1kw
Horizontal shift motor power1.1kw1.1kw
Shift speed of sawing arm25m/min35m/min
Saw wheel diameter720 mm720 mm
Specifications of saw blade5970×50 - 60×0.9 - 1.1mm5470×50 -60×0.9- 1.1mm
Kerf1.5 - 2.3mm1.5 - 2.3mm
Rotational speed of saw blade32m/s32m/s
Standard outside dimensions8.7m×2.5 - 2.9m×2.5m8.7 m×2.2 -2.6 m×2.3 m
Weight2800kg2300kg




Performance and Features:
The machine is applicable to the cutting of various log and large-scale square wood with the following features:
1.User-friendly PC interface for simple and convenient operation;


2. High-precision automatic digital display of thickness setup and control system;


3.Hydraulic saw blade tension auto-compensation system ensuring saw blade to be always at the best tension state to prolong the service life of saw blade.


4.Full hydraulic woodwork operating system: hydraulic feeding, hydraulic tumbling, hydraulic adjusting, hydraulic clamping (multiple way of clamping), hydraulic board auto-discharging and infrared estimation.


5.The plates sawed has a uniform thickness, high planeness and small error of thickness.


6.Pretreating system for removing stones and iron nails in barks to protect saw blade to the most extent.


7.Multiple automatic starting protection system ensuring safe and reliable performance.


8.Cooling, lubricating and dedusting system ensuring cooling, lubricating and dedusting of saw blade at one go safely and in an unpolluted way.








More Products














1. All the prices are FOB Shanghai. Include packing charge;

2. Payment Terms:  T/T 30% as deposit after signing contract, and 70% before shipment;

3. Delivery Time:  Within 30 days after receiving the deposit.
