MS3391-C Bluetooth Mini CCD Barcode Scanner

FOB Reference Price:Get Latest Price
  • 1 - 49
    US $63.00
  • 50 - 99
    US $47.60
  • 100 - 499
    US $46.00
  • >=500
    US $41.30
Supply Ability:
100000 Piece/Pieces per Month
Port:
Shenzhen
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Unique
Model Number:
MS3391-C
Sensor Type:
CCD Scanner Engine
Decode Capabilities:
All of teh 1D bar-code
Decode Speed:
100 times per second
Scanner Angle:
±50°,±65°,±35°(skew, pitch, Roll)
support:
android ios windos
Application:
Logistics industry, Store, Inventory, Libary, Hospital, etc
Advantage:
perfect product development and after-sales service system
Color:
Black
Communication:
Bluetooth Human Interface Device ( H-I-D)
Memory:
10,000 15-bit character barcode
Packaging & Delivery
Packaging Details
1 unit in a box, 10 boxes to a CTN
Delivery Time
Shipped in 2 days after payment
Priduct Descruption
MS3391 is a mini intelligent Bluetooth bar code scanner with small size and lightweight, it can read the high density and remote bar code. Portable, multi-platform design and used flexible, it is a perfect mobile scanner with the first choice. MS3391 can be fixed on smart mobile phone, it supporting all of Android device. You can transfer the bar code data to your servers via bluetooth, share your data whenever and wherever possible. The mini scanner with CCD scanning engine, superior performance, it not only read bar codes on paper labels, but also on the electronic screen, such as phone, computer, PC, etc. You can store more than 10,000 15-bit character barcode via offline mode to make your work more convenient and
 flexible.

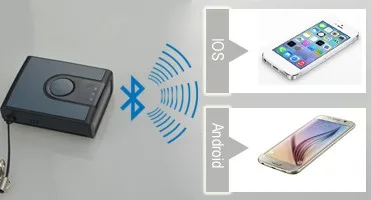

1. Used in Android, IOS and Windows device.Supporting
bluetooth H-ID(Human Interface Device)/SPP mode。

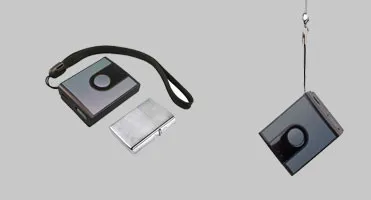

2. MS3391 has a very small volume with 30g wight, it's like a Zippo lighter, and put it in your pocket easily.

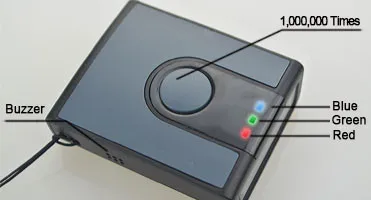

3. The key life: 1,000,000 times; Solid lanyard hole;
 Silicone Case.
4. It has red, yellow, blue LED lights and buzzer.

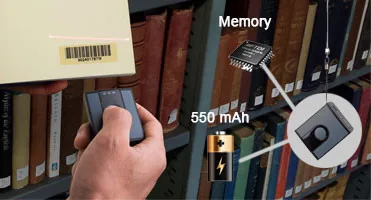

5. Built-in memory chips when without phone or computer can stored 10000 bar codes.
6. Built-in 550 mAh Li-ion battery, working time after full charge with good decode as 8hours.


Minimalist design approach, only to turn on the switch will be able to scan the bar code.

Scan engine: CCD, CCD upgraded version,Laser scan engine, High Density for your choice.

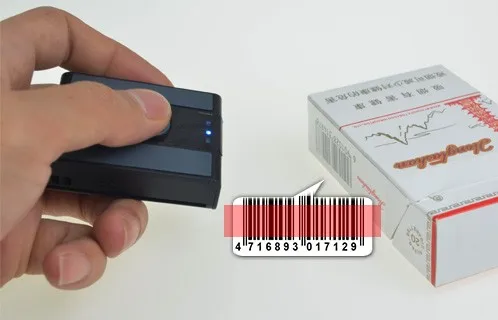

Using high-quality engine, no matter what the barcode is broken, the bar code on the screen, or the curved bar codes on the bottle, it can read easily.

It has two method to achieve wearable scanning:

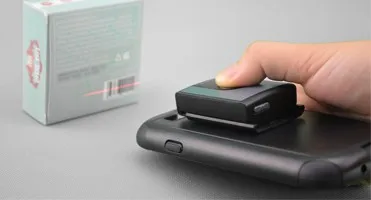

(1) Fixed MS3391 in the phone via scanner jacket.

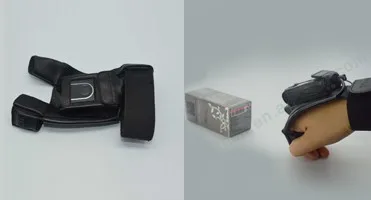

 (2) Cooperate with Finger Trigger Glove accessory.



Provide OEM / ODM services, including but not limited to: memory, time function, scan engines.


Parameter
Mechanical
Length:57.8mm
Width: 42.3mm
Height:16.4mm
Weight
39g
Data storage
10,000 15-bit character barcode  (2M Memory is optional)

Working mode

Bluetooth mode, USB output mode

Electrical
Input Voltage: DC5V ± 5%
Operating Power: 110mA @ DC5V
Start‐up Time: <100ms
Power Supply Capacity in scanner: 430mAh
Continuous Working Time: 15 days
Continuous decoding life ability



Scanner performance

Continuous Decoding Speed: 250 times / sec
Time to Read: < 20ms BER: <5 PPM
Depth of Field:20mm ~ 490mm
Sensor Pattern: Linear CCD
Scan Angle: 45 °
Print Contrast: > 20%
Light Source: 650nm LED

Barcode Type
Code 39, C odabar, Code 128, Interleaved 2 of
5, Code 93, UPC‐A, UPC‐E, EAN13, EAN8,
ISBN, ITF14


Depth of field
Barcode Width Depth of Field Scan Width
0.003"(0.mm) 0.98"~7.48" (25~65mm) 1.0"(25mm)@ 1.7"(42mm)
0.005"(0.127mm) 0.98"~7.48" (25~1 0mm) 2.4"(61mm)@ 3.0"(76mm)
0.010"(0.254mm) 0.78"~12.20" (20~310mm) 4.2"(107mm)@ 6.0"(152mm)
0.015"(0.mm) 0.98"~7.48" (20~370mm) 5.4"(mm)mm) @ 8.0"(mm)
0.020"(0.508mm) 0.78"~19.29" (20~490mm)7.0"(178mm)@11''(279mm)
Certificates
Packing & Warranty

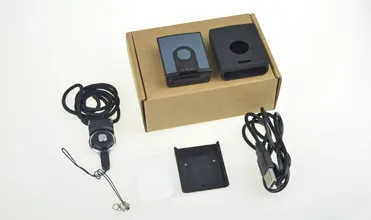

Packing



1X MS3391-C Mini Barcode Scanner
1X scanner jacket(fixed the scanner to mobile device):
1X 3M double faced adhesive tape for Jacket:

1X USB cable

1X Lanyard

1X Cases

Warranty

2 Years of quality warranty, Postech will undertake round shipping charges if any
faulty rates.

FAQ

Q1. What's your main products ?
- Laser Barcode Scanner         - Image Barcode Scanner
- Thermal Receipt Printer        - Dot -matrix Receipt Printer
- Bluetooth Printer                     - Cash Register Drawer
Q2. Are you a manufacturer?
Yes, our factory located in ShenZhen .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
