MT7601 Wifi Module 802.11 b/g/n IP Camera USB Wifi Module XMR-MK21

FOB Reference Price:Get Latest Price
  • 1 - 9999
    US $3.00
  • >=10000
    US $2.80
Supply Ability:
100000 Piece/Pieces per Month
Port:
shenzhen or other
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
XMR
Model Number:
XMR-MK21
Chipset:
MT7601
Interface type:
USB2.0
Size(L*W* H):
12.3*13*1.6mm,Tolerance:+/-0.2mm
Standards:
IEEE 802.11n, IEEE 802.11g , IEEE 802.11b
Frequency range:
2.4-2.4835GHZ
Modulation Types:
OFDM/DBPSK/DQPSK/CCK
Working mode:
Infrastructure , Ad- Hoc
Channels:
1- 11 (AMerica , Canada);1- 13 (China , Europe); 1- 14 (Japan)
Antenna type:
Connect to the external antenna through the IPEX
Operating temperature:
Work temperature : 0°C ~ 40°C Storage temperature : -20°C ~ 70°C
Packaging & Delivery
Packaging Details
to be confirmed
Delivery Time
1-2 working days after payment





Product Description

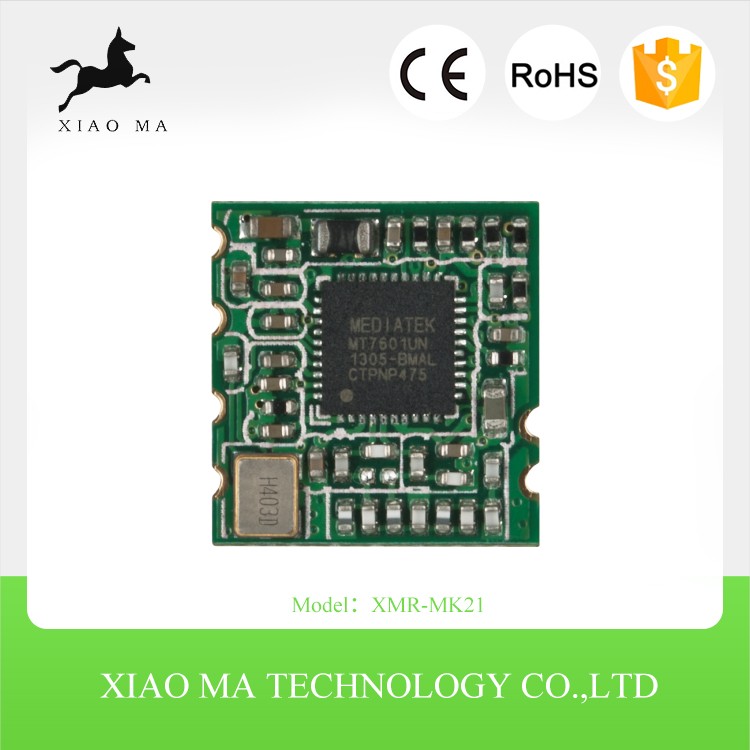

Product Name ,MT7601 Wifi Module 802.11 b/g/n IP Camera USB Wifi Module XMR-MK21

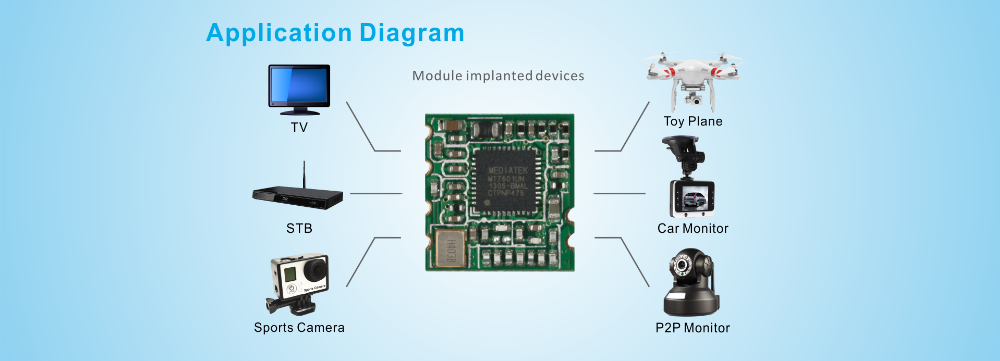

Product Application

  *Digital products ,(printer , Digital camera Digital photo frame)

  *Game Systems

  *Consumptive electronic device and intelligent application (such as TV ,DVD player , Media player , etc)

  *Tablet , notebook , E book

   *Smart phone and other mobile applications



Product Introduction

   XMR-MK21 is a highly integrated Wi-Fi single chip which supports 150mbps PHY rate . It meets FCC CE certification and IEEE802.11 b/g/n standards, offering feature-rich wireless connectivity at high standards , and delivering reliable , cost-effective  throughput from an extended distance , Optimized RF architecture and baseband algorithms provide superb performance and lower power consumption . Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators which offloads the host processor.

   XMR-MK21 is designed to support standard base features in the areas of security quality of service and international regulations , giving end users the greatest performance anytime and in any circumstance



Specifications

Item

Description

Protocol/standards

IEEE 802.11n, IEEE 802.11g , IEEE 802.11b

Interface type

USB2.0

Frequency range

2.4~2.4835MHz

Channels

1- 11 (AMerica , Canada);1- 13 (China , Europe);
1- 14
(Japan)

Data modulation

OFDM/DBPSK/DQPSK/CCK

Working mode

Infrastructure , Ad- Hoc

Transmitting rate

135/54/48/36/24/18/12/9/6 /1M (self-adapting)

Spread spectrum

DSSS

Sensitivity @ PER

54/135M:-76dBm@ 10%PER;11M:-85dBm@8%PER;
6 M: -88dBm@ 10%PER; 1M: -90dBm@8%PER;

RF Power

135M:15dBm
54 M:15dBm
11M:19dBm

Throughput

90Mbps(External antenna ,damping 50dbm in Shielding box )

Antenna connection mode

Connect to the external antenna through The half hole

Transmit distance

Indoor 100M, Outdoor 300M, according the local environment

Operating temperature

Work temperature : 0°C ~ 40°C
Storage temperature : -20°C ~ 70°C

Operating System

Windows2000/X P/Vista/Win7/Linux/WinCE

Working Power onsumption

455mW

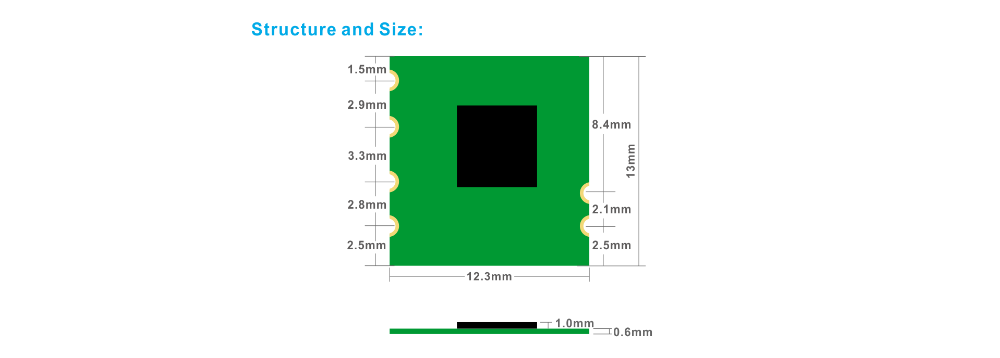

Size(L*W* H)

12.3* 13* 1.6mm

Chipset

MT7601
