MTK MT7623 Enterprise Router LTE 4G WIFI OpenWrt Wireless MT7603 MT7612 MT7615 MT7623A Chipset PCBA ODM OEM Sim Card Board

  • 2 - 9 Units
    $89.00
  • 10 - 499 Units
    $82.00
  • 500 - 4999 Units
    $80.00
  • >=5000 Units
    $78.00
Model Number:
U7623-06
Report Suspicious Activity
Overview
Quick Details
Max. LAN Data Rate:
1750Mbps
With Modem Function:
No
Standards And Protocols:
Wi-Fi 802.11ac, Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n
Wi-Fi Supported Frequency:
2.4G & 5G
Wired Transfer Rate:
10/100/1000Mbps
2.4G Wi-Fi Transmission Rate:
300 Mbps
Products Status:
Stock
Type:
Wireless
Application:
Enterprise
Function:
Firewall, QoS, VPN
LAN Ports:
4
WAN Ports:
1
Brand Name:
UniElec
Place of Origin:
Guangdong, China
USB:
1xUSB3.0
Chipset:
MT7623A
DDR3/ EMMC:
512MByte/8GB EMMC
Dual Band/11AC:
Support
PCIE slot:
3x PCIE Slot for LTE,MSATA,WIFI module
Wireless Speed:
1700Mbps(4*11ac), 1200Mbps
SATA:
1xSATA3.0
SIM Card:
1x SIM Card Slot
Supply Ability
Supply Ability:
100000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Neutral Packing or OEM packing
Port
ShenZhen or HongKong
Product Description

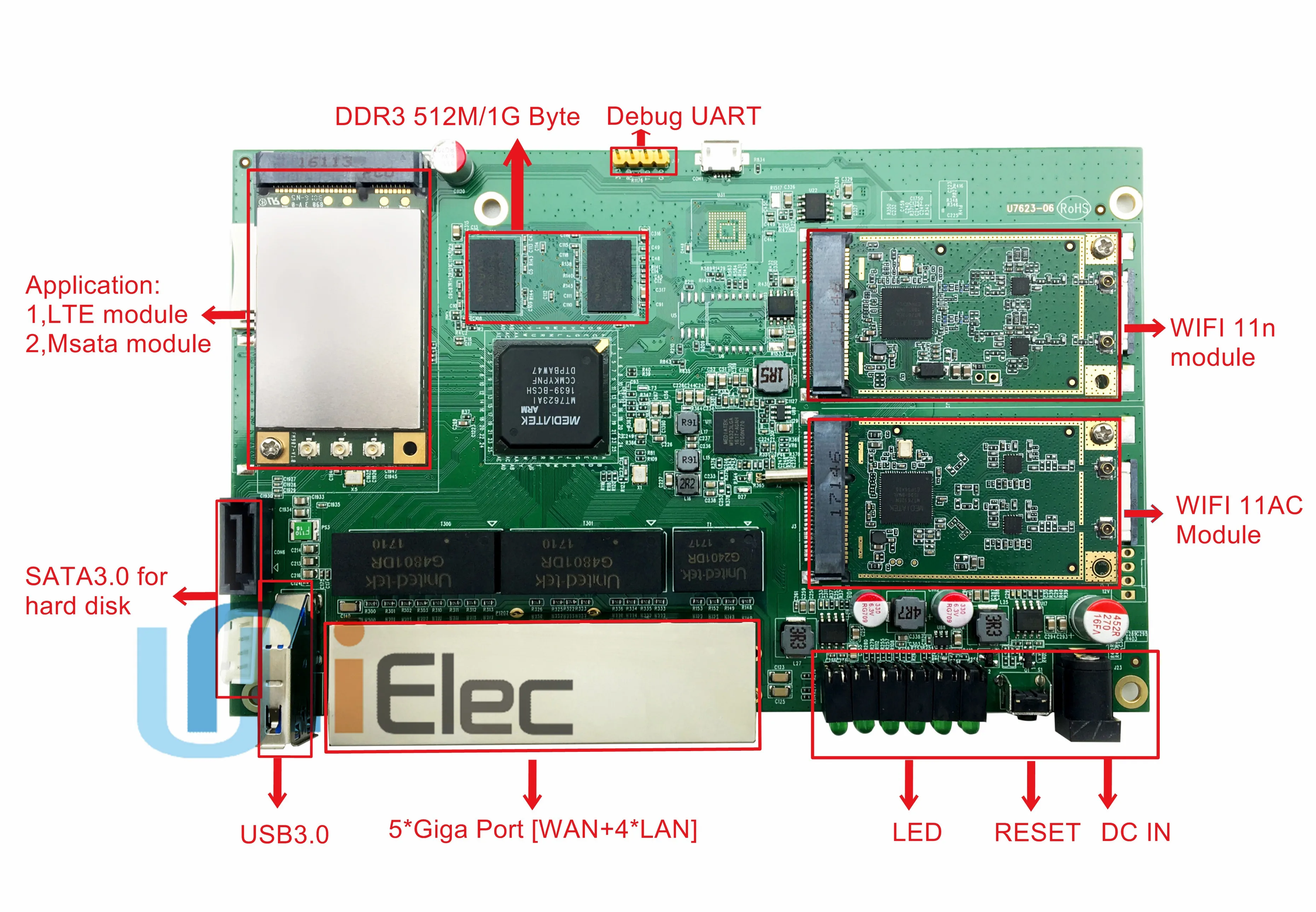

MTK MT7623A Network Process Platform  U7623-06

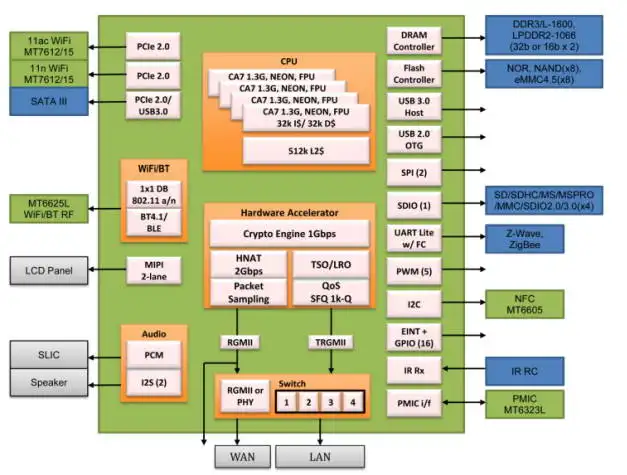

U7623-06 CPU integrates a Quad-core ARM® Cortex-A7 MPCoreTM operating up to 1.3GHz and more DRAM bandwidth. The powerful CPU is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control).For the next generation router, MT7623 Board provides several dedicated hardware engines to accelerate the NAS,NAT, QoS Samba and VPN Traffic. These accelerators relief the CPU for other upper layer application.

★ Hardware NAT 2Gbps wire speed
★ Hardware QOS 2Gbps wire speed
★ Hardware Crypto Engine - Deliver 1Gbps IPSec throughput

Detailed Images

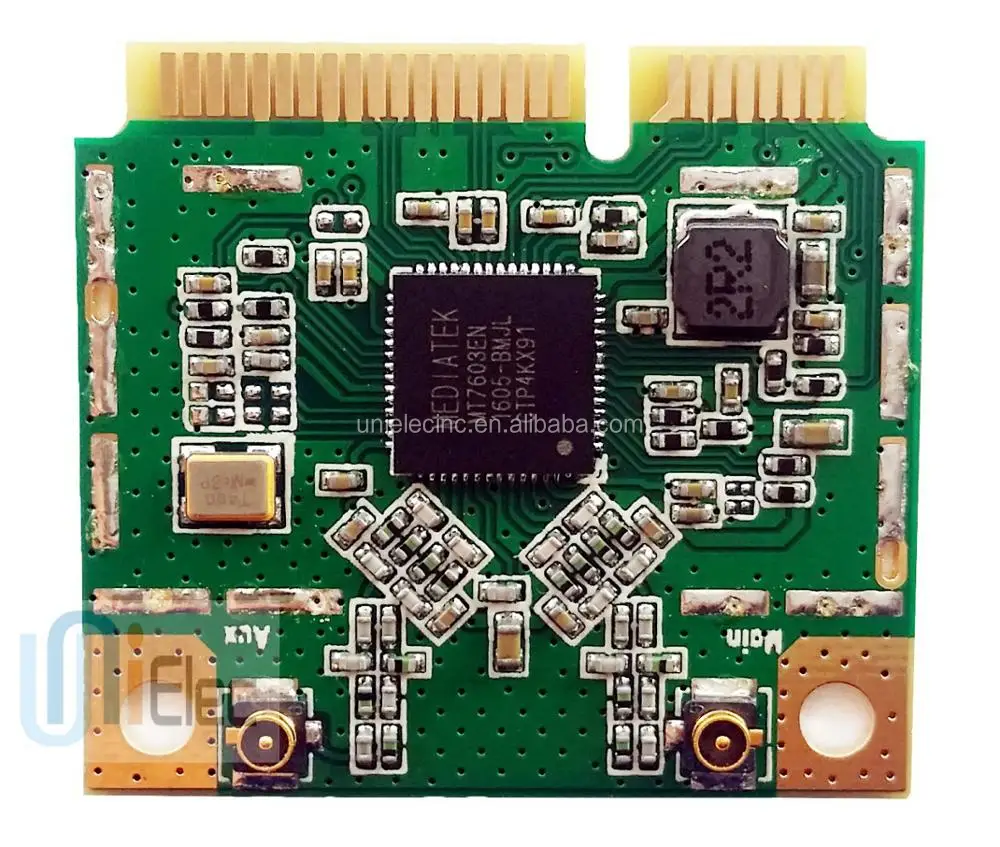

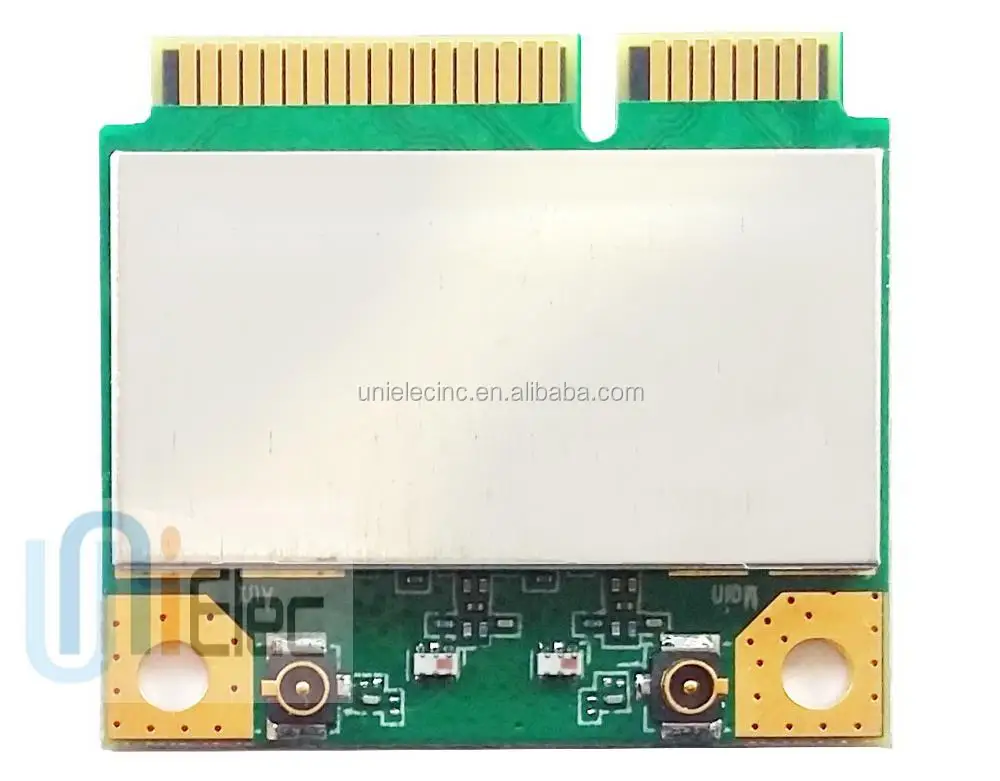

U7603E-H1

2x2 19dbm 2.4GHz 802.11b/g/n 300Mbps MiniPCIE iNIC

U7612E-H1

2x2 2.4GHz &5GHz 802. 11ac/b/g/n Enterprise 867Mbps MiniPCIE iNIC

RF Mask

Outside View with RF mask

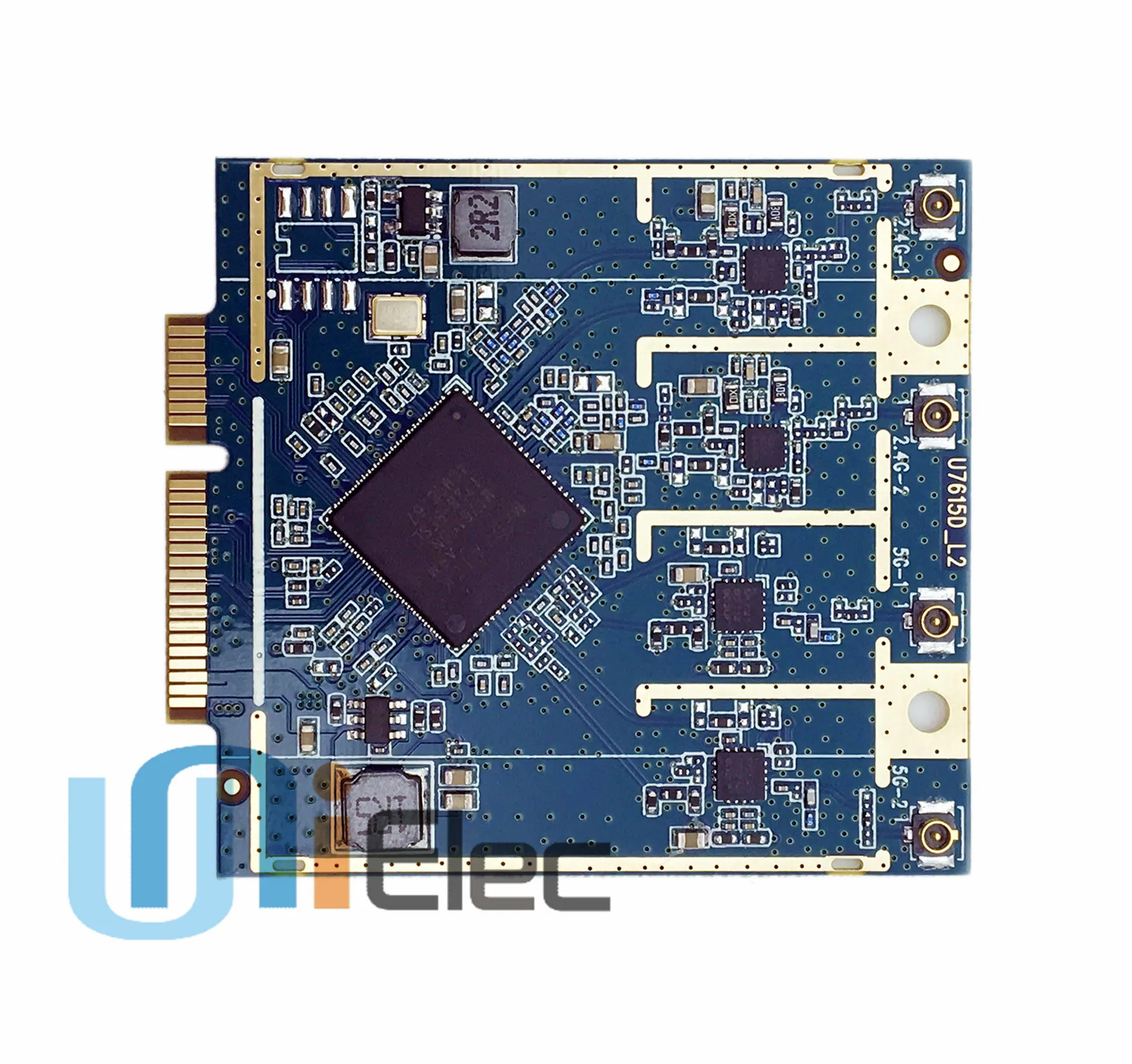

U7615D-L2

2x2 2.4GHz +2x2 5GHz 802.11ac//b/g/n 1200MbpsMiniPCIE iNIC

U7612E-F1

2x2 5GHz 21dbm 802.11ac/n 867

Mbps MiniPCIE iNIC

U7615N-L3

4x4 5GHz 802.11ac Wave2 1733Mbps MiniPCIE iNIC

Specifications
Chipset
CPU: MTK MT7623A Quad-core ARM® Cortex-A7 (1.3GHz)
System Memory
Default DDR3 32Bit 1600 Mbps 512M Byte (optional 1G/2G Byte)
EMMC
Default: Default 8G Byte (max 128G Byte) support OpenWrt
PCIE
2x Normal PCIE for 11ac or 11n WIFI module
1x PCIE connector for LTE or MSATA module
Interface
5x Gigabit 4*LAN+1WAN(Auto MDI-X)
1x Serial Debug Port 4 Pin Connector1
1x USB3.0 connector
1x SATA3.0 connector
1x 40P*0.5mm FPC for MIPI LCD
Reset Button
Yes
LED
Indicators: Power LED, LAN, LTE,WIFI,2x GPIO Signal Indicator,
DC Power
1x DC Jack Connector: 12V@1A
Power Consumption
9 Watt (Max)

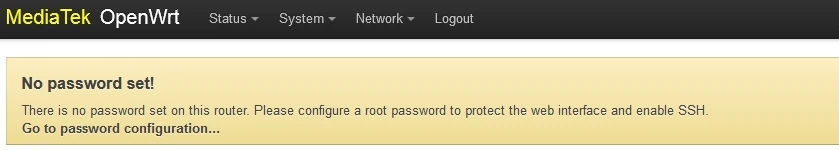

Software
OpenWRT or MTK Linux SDK which includes Uboot, Kernel ,Driver and Tool Chain
Environmental
Temperature: Operating: -10-85°C, Storage: -40ºC to 90ºC
Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 90%
CASE
Material: Aluminium Alloy, Dimensions: 188.5 x 128.5 x 25 mm
Software

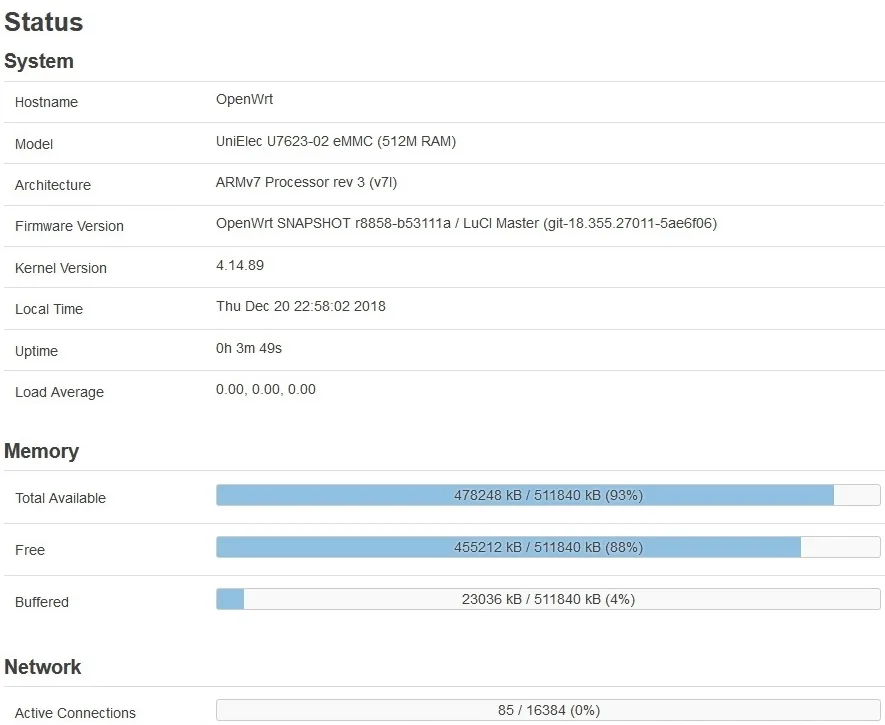

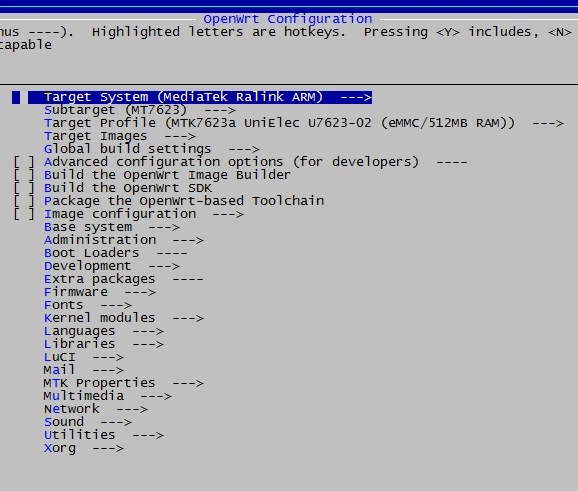

       Latest open source Openwrt can support this board directly. You can choose our board model in the kernel menu as below picture after you download Openwrt SDK. You also can email to us for the image if you don't want to download and compile the Openwrt SDK.

https://github.com/openwrt/openwrt/commit/4def81f30f2e89eeecc6ec06e3091f1dd6b3c3d9
