Made in China ladle furnace

FOB Reference Price:Get Latest Price
$10,000.00 - $1,000,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Condition:
New
Type:
Ladle furnace
Usage:
Melting Furnace
Brand Name:
HAN
Model Number:
HX-10T
Voltage:
2000KVA
Dimension(L*W*H):
Depends
Certification:
CE Certificate
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
Adjustable
Weight:
10T
Nominal capacity:
10t
Maximum rating:
12t
electrode diameter:
200mm
Electrode distribution diameter:
460mm
Transformer related power:
2000KVA
Primary voltage:
20Kv
Max diameter of ladle:
1920MM
Outlet type:
Top
Lifting type:
Hydraulic cylinder -plate type chain
Weight of load:
50T
Supply Ability
Supply Ability:
50 Set/Sets per Year
Packaging & Delivery
Packaging Details
Comply with international packing standard or
Provide packing according to customer requirement
Port
Shanghai
Lead Time :
Within 30 days after down payment
Product Description

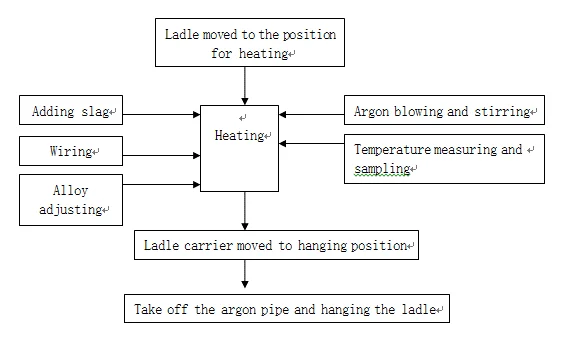

LF-10t ladle refining furnace has the outstanding design features: operation with submerged “long arc” under synthetic slag at normal pressure; bottom stirring with blowing argon; temperature measuring; sampling; microalloying; deoxidizing; desulphating; purificating; etc. It assures quality and/or productivity improvements in steelmaking. It has exact temperature adjustment for continuous casting and steel composition (metallurgical fine-tuning). It has also the buffer function between melting and casting.

Application

 Ladle refining furnace belongs to the secondary refining equipment,which typically to be used follows the primary melting furnace. Its main function is to remove sulfur,impurity from molten steel and adjust chemical components, thereby,improve quality of molten steel. LF is mainly used in high-quality carbon steel,stainless steel,manganese steel and other metal smelting.

Features

1. LF is not available for smelting, which just used to provide good reduction reaction environment for molten steel.
2. LF refining furnace is a ladle as a smelting vessel,with blowing argon stirring,can achieve a better affect of removing sulfur,impurities,as well as adjusting the composition of the alloy.
3. If the primary smelting equipment is induction furnace,then follows LF, which can improve the quality of molten steel,completely finish adjusting the alloy composition.(such as carbon steel can be adjusted as stainless steel or other types of steel in LF)
4. If the primary smelting equipment is EAF, then follows LF,which can replace the arc furnace to finish the refining process of molten steel,at the same time,arc furnace only as a melting furnace. This method can significantly improve the smelting efficiency.

Main parts

1.Ladle

2.Electrode lifting and lowering device

3. Large current line

4.Lid lifting and lowering device

5.Water cooling lid

6.Argon system

7.Compressed air system

8.Water cooling system

9.Hydraulic system

10.Electrode connection and storage device

11.Ladle car

12.H.V .power supply system

13.Transformer

14.L.V control system and auto-control system

15.Temperature / oxygen measuring lance and sample device (auxiliary parts )

16.Wire feeder system(auxiliary parts )

17.Emergency stirring lance(auxiliary parts )


Performance
No
Item
Unit
Parameters
1
Rated refining capacity
T
10-12
2
Rated transformer power
KVA
2000
3
Tap to tap time
min
45
4
Molten steel heating rate
min
>=3
5
Power consumption
℃/min
<=0.6~0.7
6
Electrode consumption
KWh/t*0C
<=12~15g
Detailed
Packing & Delivery

Packaging Details:
Comply with international packing standard or
Provide packing according to customer requirement

Delivery Detail:
Within 30 days after down payment

Our Company

Han Group is a high-tech enterprise which specialize in the researching,designing,manufacturing,installing and debugging work regard to the AC/DC steel making electric arc furnace,ladle refinery furnace,ferroalloy submerged arc furnace,ferroalloy refinery furnace,electric slag re-melting furnace,non-standard metallurgical equipments,thermo processing equipments and all kinds of relevant environmental de-dusting equipments.

Our company is located in the world known old city with long history-Xi'an.The product designing and manufacturing capacity of our company can be maximum 100t for electric arc furnace,160t for ladle refinery furnace,and from 3600KVA to 33000KVA for the capacity of submerged arc furnace.The high and low voltage compensating system,dust collecting system,direct current furnace for ferroalloy,new energy equipments which are suitable for the practical operation are designed on the basis of state industrial policy.
