Mains voltage power input and ballast compatible 4 pin rotary G24q LED lamp

FOB Reference Price:Get Latest Price
$4.00 - $12.00 / Pieces | 60 Piece/Pieces (Min. Order)
Lamp Power(W):
9
Emitting Color:
Cold White Warm White White
Report Suspicious Activity
Overview
Quick Details
Warranty(Years):
5
Input Voltage(V):
AC100-277V, 347V
Lamp Luminous Efficiency(lm/w):
130
CRI (Ra>):
82
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP22
Certification:
CE, RoHS
Place of Origin:
Taiwan
Brand Name:
BEST
Model Number:
G24
Application:
HOTEL
Light Source:
LED
Color Temperature(CCT):
3000K~6000K
LED Light Source:
smd2835
Lamp Luminous Flux(lm):
1080
ECGall LED G24 5W Lamp:
Replace G24q 10W CFL
ECGall LED G24 6W Lamp:
Replace G24q 13W CFL
ECGall LED G24 7W Lamp:
Replace G24q 18W CFL
ECGall LED G24 9W Lamp:
Replace G24q 26W CFL
compatibility:
suitable alternative replacement for G24q GX24q PL retrofit lamp
G24q:
G24q-1,G24q-2,G24q-3
lifetime:
50000 hours lifespan
Item Type:
Tube Lights
Supply Ability
Supply Ability:
3000000 Piece/Pieces per Month suitable alternative for G24q GX24q PL retrofit lamp
Packaging & Delivery
Packaging Details
suitable alternative for G24q GX24q PL retrofit lamp; replace Compact fluorescent lamp
G24 5W LED Lamp: 60 PCS/BOX; 23cm*22cm*26cm; 4.5 kg
G24 6W LED Lamp: 60 PCS/BOX; 28.5cm*22cm*26cm; 5.3 kg
G24 7W LED Lamp: 60 PCS/BOX; 32cm*22cm*26cm; 6.2 kg
G24 9W LED Lamp: 60 PCS/BOX; 35cm*22cm*26cm; 7.5 kg
Port
Shenzhen port/Kaohsiung
Video Description

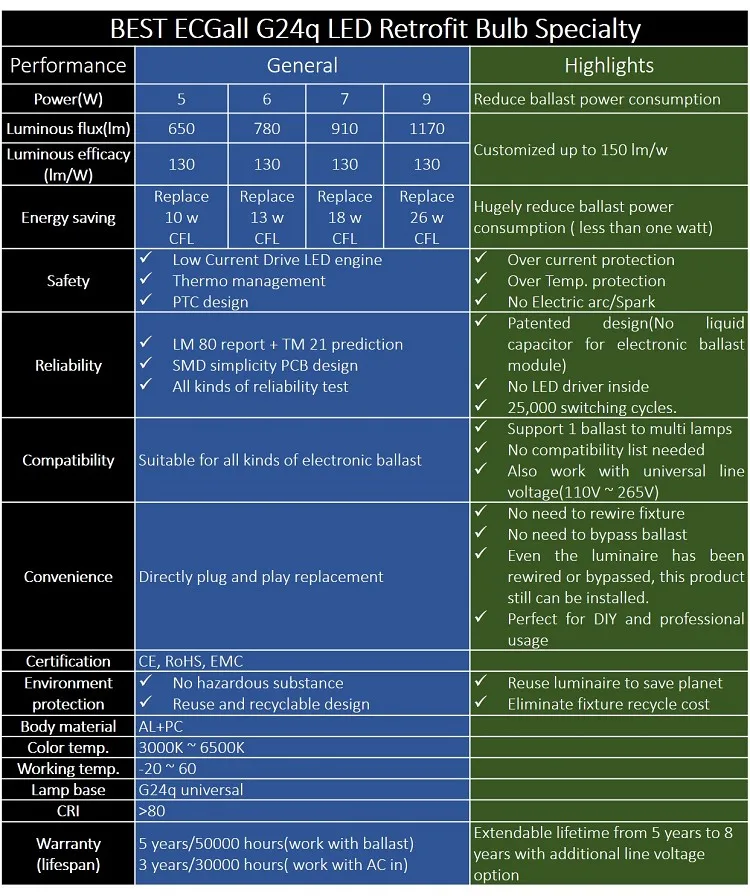

Specification

Mains voltage power input and ballast compatible 4 pin rotary G24q LED lamp

Model
Voltage (Depending on Ballast)
Base
CRI
CCT (K)

Watt
(W)
Bean Angle

Note
LED G24 EB  5W  Lamp
100-277, 347
G24
82
3000K-6000K
5W
180
Replace compact fluorescent lamp 10w
LED G24 EB 6W  Lamp
100-277, 347
G24
82
3000K-6000K
6W
180
Replace compact fluorescent lamp 13w
LED G24 EB  7W  Lamp
100-277, 347
G24
82
3000K-6000K
7W
180
  Replace compact fluorescent lamp 18w

LED G24 EB  9W  Lamp

100-277, 347
G24
82
3000K-6000K
9W
180
Replace compact  fluorescent lamp 26w
Product Description

Product Details:

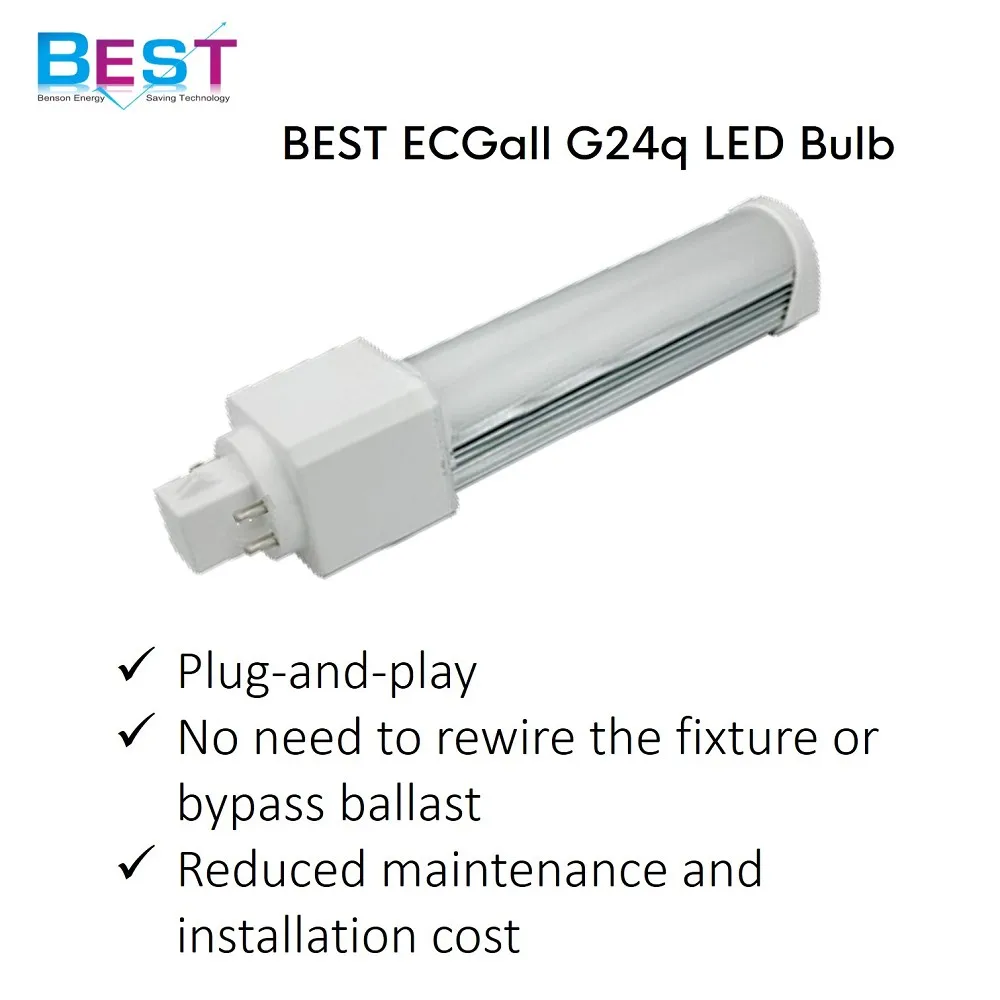

    BEST ECGall G24q LED lamp series are designed to directly replace compact fluorescent lamps (CFLs) . Just plug and play. No need to rewire or bypass the ballast.

BEST also owns unique patent for LED retrofit products. There is "No LED Driver" working while in ECG compatible mode. which can provide ultra high reliability, a long 50,000-hour lifespan, maintenance-free, energy-saving operation and higher performance, as well as instant-on capabilities.

Comparing to conventional CFL, the energy saving rate is even higher by restraining the ballast power consumption under condition of equivalent illuminance.

In order to retrofit as many base types as we can,  lamp holder can rotates 270 degrees.


Safety in LED Tube:

Over-current and overheat fuse protection.
Only passive electronic components on PCB.
All of electronic parameters are the same as FL.
Without built-in driver.
No active components on PCB, such as capacitors or inductors.

Not cause for Electric arc/spark High temperature.


Reliability in LED Tube:

Manufactured with LM 80 qualified LED light engine only .
Fig. 1,2 & 3 shows that LED chip at 55°C has the best performance and can be guaranteed 60,000 hours life time.
The temp of LED chip in our design is lower than 55 °C to ensure 60,000 hours life time.

Reliability in LED Tube:

Our patented LED lamp
No capacitor.
No inductor.
Fuse protection for overheat and overcurrent .

Applications
Company Information

About us

The BEST owns unique patent for LED retrofit products which can directly replace traditional ones, including low pressure discharge lamps ,HID and relevant products.
We will actively confront challenges and transform them into opportunities by devoting technology innovation in LED. In the future, our company will go for solar energy products.

FAQ

Q1: What is the meaning of EB, EM and AME in our product models?
In our LED retrofit products, EB stands for Electronic Ballast, EM is Electric Magnetic ballast with starter and AME series means it’s suitable for AC in, Magnetic ballast and Electric Ballast at the same time.
Q2: Could you explain what type of lamp is the EB series?.
For the traditional lamp, if the fixture doesn’t have starter on it, it is Electronic Ballast other than Magnetic ballast.(For example T5 lamp only come with EB).
Q3: Why will AME series be so innovative, compelling and competitive?.
Comparing to Magnetic ballast and Electronic Ballast fixtures, there have different lamp voltage output, so correct type of retrofit LED lamp should be installed. However, most of end customers don’t know how to tell the difference, so it may cause lamp malfunction or unintended hazards. Under this circumstances, AME series will be one for all solution to help end users in retail or DIY market.
Q4: Is it possible to get a contract of guarantee signed and stamped by our company ?
Yes, we can and it will be done while dealing with shipments.
Q5: Can T8 AME Series provide 5 year and 50000 hour warranty for all kinds of usage?
No, 5 year and 50000 hour warranty only come with Electronic Ballast retrofit, because operating conditions for other usages are totally different. Just like fluorescent lamps from other big large lighting brand, such as Oxxxx or Phxxxx, , FL lifespan in spec is also different between EB(ECG) or EM(CCG)
In conclusion, warranty are listed as following:
(1)Warranty of T8 AME Series to work with Electronic Ballast will be up to 5 years and 50000 hours; with AC in or CCG is up to 3 year and 30000 hours.
(2)Warranty of EB series is up to 5 years and 50000 hours.
(3)Warranty of EM series is 3 years and 30000 hours.
Q6: Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q7: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q8: Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q9: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q10: How to proceed an order for LED light?
A: First of all, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Finally, we arrange the production.
Q11: Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q12: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q13: How to deal with the defective products?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
