Manual LCD display concrete direct shear test equipment rock strength testing device

FOB Reference Price:Get Latest Price
$5,000.00 - $5,500.00 / Units | 1 Unit/Units (Min. Order)
Usage:
Strength Testing Machine
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Sansing
Model Number:
YZ-30B
Power:
Electronic
Product name:
Strength Testing Machine
Function:
direct shear
Application:
rock test
Horizontal displacement:
0-10mm
Normal force resolution:
0-10mm
Transverse maximum shear force:
300KN
The maximum pressure:
500KN
Straight cut box specifications:
70* 70, 150*150*150
Normal displacement:
digital or screen display
Warranty:
12 Months
Supply Ability
Supply Ability:
20 Unit/Units per Month rock strength
Packaging & Delivery
Packaging Details
Wooden Case
Port
Shanghai/Ningbo
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 10 To be negotiated
Product Description

Application:

Adopt pushing method , the direct shear test is suitable for the rock, structural planes (such as joint surface, inside layer, chip, crack surface location) ,the interface of concrete (or mortar) and rock (cementation plane) ,besides, the junction surface shear strength test of the concrete to combine with other material.

Technical Parameters
The maximum pressure
500KN
Normal force resolution
0.1kn
Maximum stroke of normal piston
100mm
Normal displacement
0-10mm
Displacement measurement accuracy
0.01mm (percentage table)
Transverse maximum shear force
300KN
Shear force resolution
0.1KN
Horizontal piston working stroke
100mm
Horizontal displacement
0-10mm
Displacement measurement accuracy
0.01mm (percentage table)
Normal maximum space
155mm (rated adjustable)
Horizontal maximum space
160mm

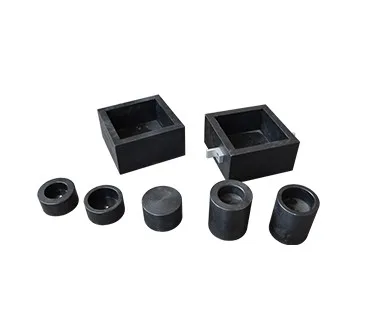

Straight cut box specifications
φ70* 70, 150*150*150

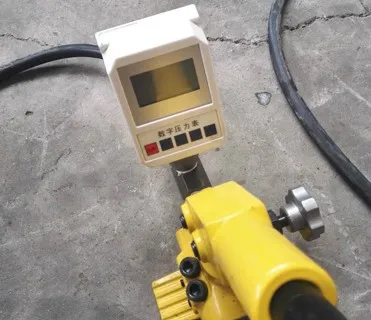

Manual loading, LCD digital display
accuracy level 1
Shear joints
10mm

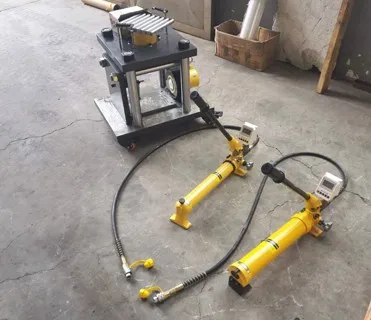

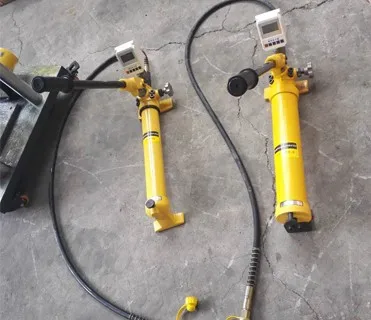

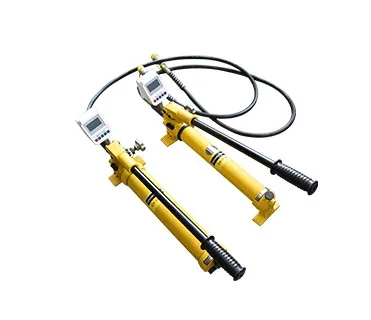

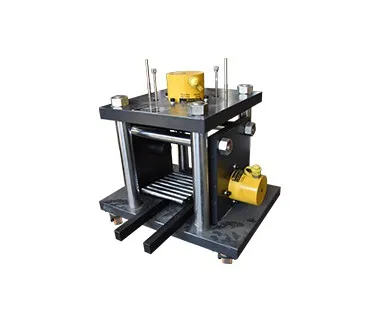

Product Show
Our Company
Certifications
Packing & Delivery
FAQ

Q: Are you trading company or manufacturer ?
A: We are the manufactory ,in this area for 20years

Q: How long is your delivery time?
A:  If the products  in stock, generally 5-10 days,.if stockout 15-20 days  ,according to the  quantity of  order.

Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample for your test , but its not free.Hope to understand the high cost of products for high quality

Q: What is your terms of payment ?
A: Payment amount<=1000USD, 100% in advance. Payment amount >=1000USD, 30% T/T in advance ,balance as the B/L copy
