Overview
Quick Details
- Condition:
-
New
- Machine Type:
-
Welding Positioner
- Applicable Industries:
-
Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
WDS(Wisdomshow)
- Voltage:
-
220/110V
- Current:
-
50/60hz
- Rated Capacity:
-
N
- Rated Duty Cycle:
-
N
- Dimensions:
-
L500mm*W590mm*H650mm
- Weight:
-
40KG
- Usage:
-
mobile phone/laptop BGA/IC rework and repair
- Certification:
-
CE
- After-sales Service Provided:
-
Video technical support, Online support
- Warranty:
-
1 Year
- Product name:
-
soldering bga ic on pcb for iphone samsung
- Function:
-
Repair Motherboards
- Electrical Material:
-
Touch screen+Temperature control module+PLC control
- Total Power:
-
4800W
- PCB size:
-
Max 400mm*370mm Min 10mm*10mm
- BGA Chip Size:
-
Max 60mm*60mm Min 1mm*1mm
- Power:
-
Ac220v ±10%,50hz
- Heater power:
-
Upper temp.one 800w,second temp.zone1200w,IR temp.zone 2700w
- Weight of machine:
-
40kg
- Color:
-
White+blue
Product Certification Verified
- CE Certified.
- Valid from 2019-10-16 until 2049-12-31
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 70X70X78 cm
- Single gross weight:
- 80.0 kg
- Package Type:
- soldering bga ic on pcb for iphone samsung wds580 is packed by Wooden Box
- Picture Example:
-
- Lead Time :
-
Quantity(Set) 1 - 1 >1 Est. Time(days) 3 To be negotiated

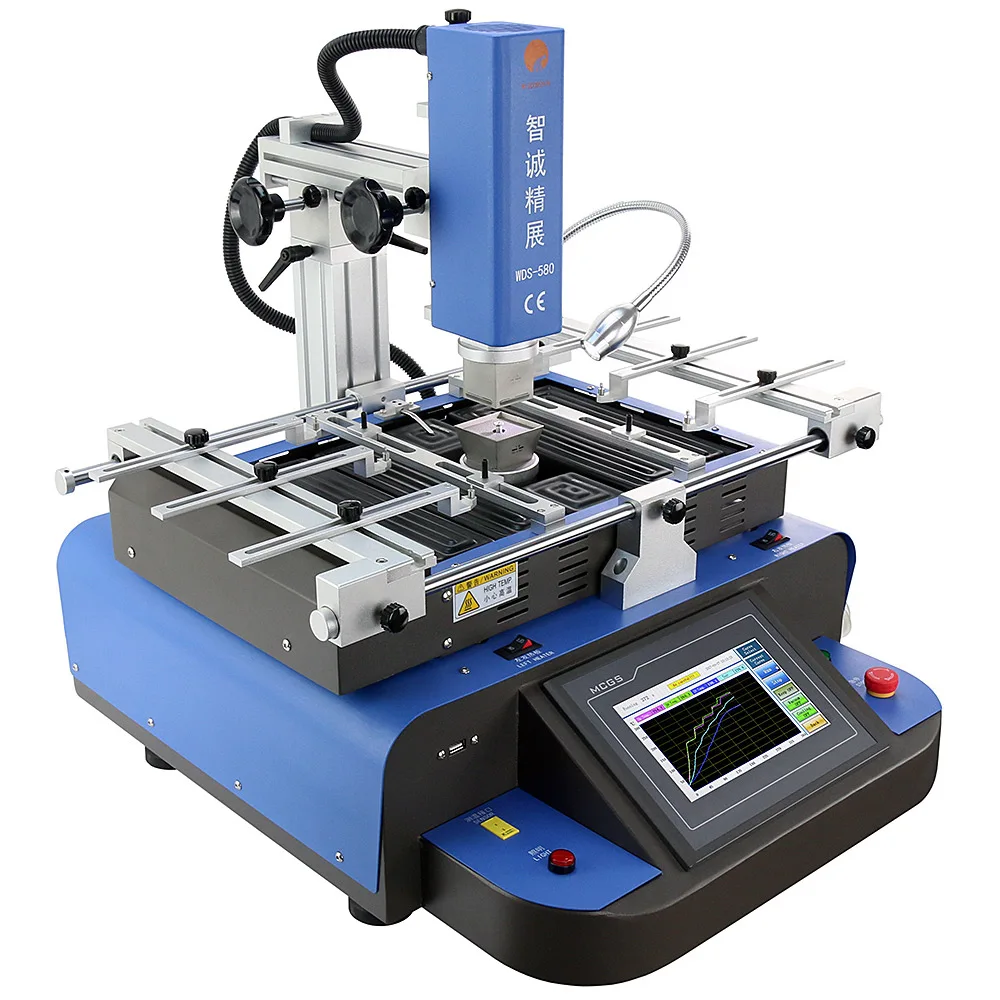

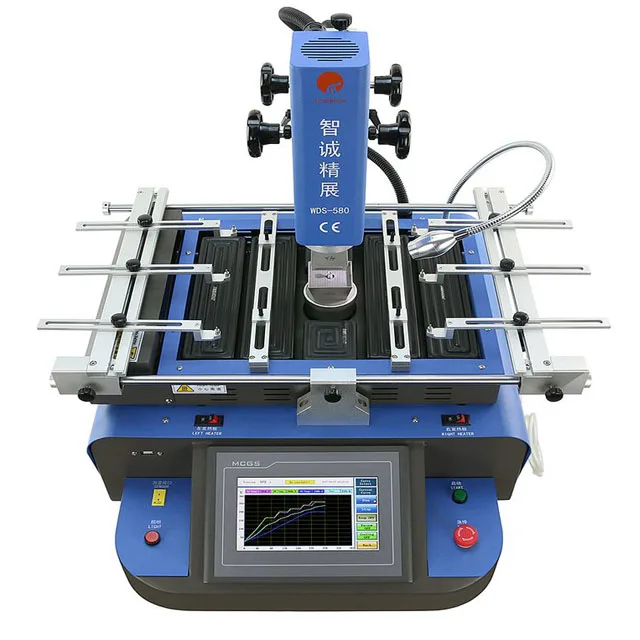

Manual bga chip reballing machine WDS-580 soldering bga ic on pcb for iphone samsung
Product Description
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone,xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.
The main user is repairing shops and factory to provide the after-sales service and rework.
Operation System
♦Manual mode.
♦Can solder, desolder, mount, pick and replace chip.
♦User-friendly.
Strict Temperature Control System
♦8 segments rising temperature/constant time / temperature rising slope, it can save hundreds of groups temperature curve.
♦It adopting high accuracy K-type thermocouple close-loop control.
♦The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.
Safety System
♦With CE certification.
♦With automatic power-off protection device when abnormal accident happens and double over-temp protection function.
How to separate BGA chip from motherboard?
How to replace a new BGA chip?
Repair steps:
1) Separate the BGA chip from motherboard –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering
1) Separate the BGA chip from motherboard –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering
Product Paramenters
Power supply
| AC 220V±10％ 50Hz |
Total power | 4800W |
Heater power | Upper temp.zone 800W,second temp.zone 1200W,IR temp.zone 2700W(1200W controlled)
|
Electrical material | Touch screen+Temperature control module+PLC control |
Locating way | V-shape card slot+Universal jigs |
PCB size | Max 400mm*370mm Min 10mm*10mm
|
Applicable chips | Max 60mm*60mm Min 1mm*1mm |
PCB thickness | 0.3-5mm |
Overall dimension
| L500mm*W590mm*H650mm |
Weight of machine | About 40KG
|
Usage | Repair chips / phone motherboard etc. |

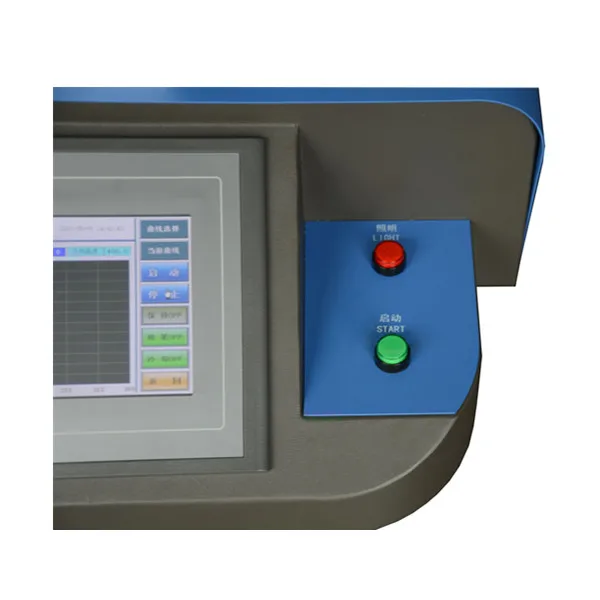

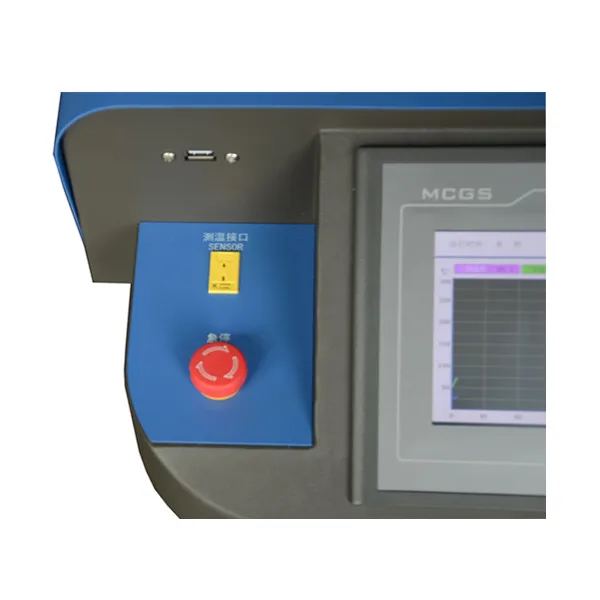

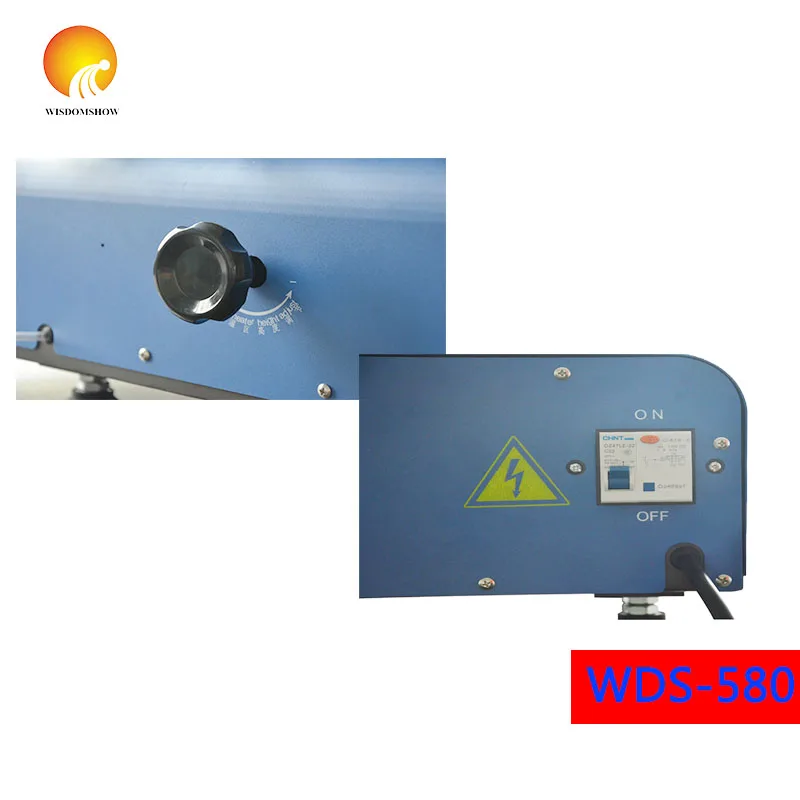

Detailed Images
Packing&Shipping
1, Standard Export Wooden cases
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
2, Delivery in 2 workdays after payment confirm;
3, Shipping by TNT,DHL,FEDEX , or by air or by sea
4, Loading port: Shenzhen or Hongkong.
