1200C electric kiln / muffle furnace, 1200C electric kiln / muffle furnace
Place of Origin:
Henan, China (Mainland)
kiln for ceramic tiles
After-sales Service Provided:
Engineers available to service machinery overseas
1000 Set/Sets per Month
Packaging & Delivery
Package in wooden box.
Application:1200C electric kiln for ceramic tiles

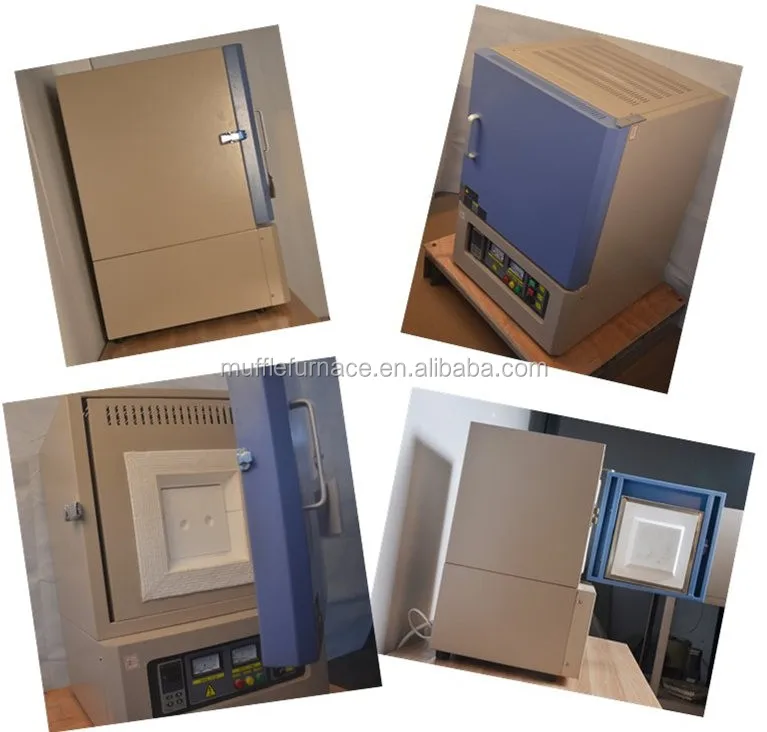

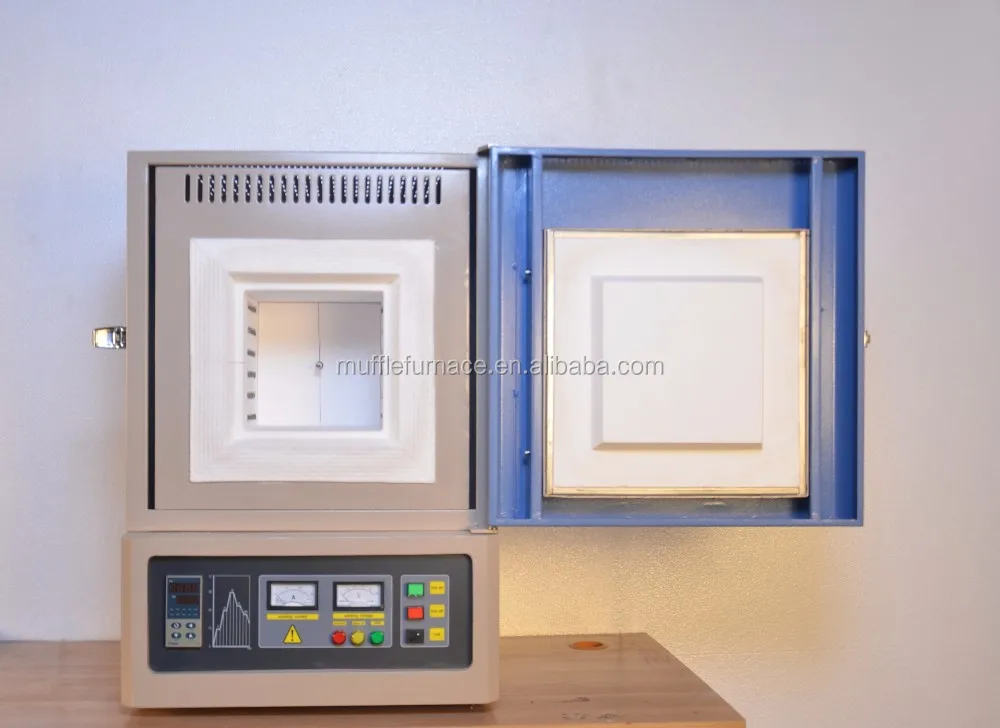

1200C electric kiln / muffle furnace is an ideal product for high temperature sintering, high temperature heat treatment, metal annealing, quality test in laboratory of university, academy, industrial and mining enterprises. Model: BR-12N-1 1200C electric kiln / muffle furnace 1200C electric kiln / muffle furnace Max temperature: 1200deg.c ( 2hours) 1200C electric kiln / muffle furnace 1200C electric kiln / muffle furnace Working temperature: 1100deg.c (continuous). Furnace chamber dimension : 100x100x100mm 1200C electric kiln / muffle furnace
Technical Specifications of our 1200C electric kiln / muffle furnace：
100x100x100mm (Width * Height * Depth)Customized design is available.
1200 oC (<2hour)
1100C kiln for ceramic tiles

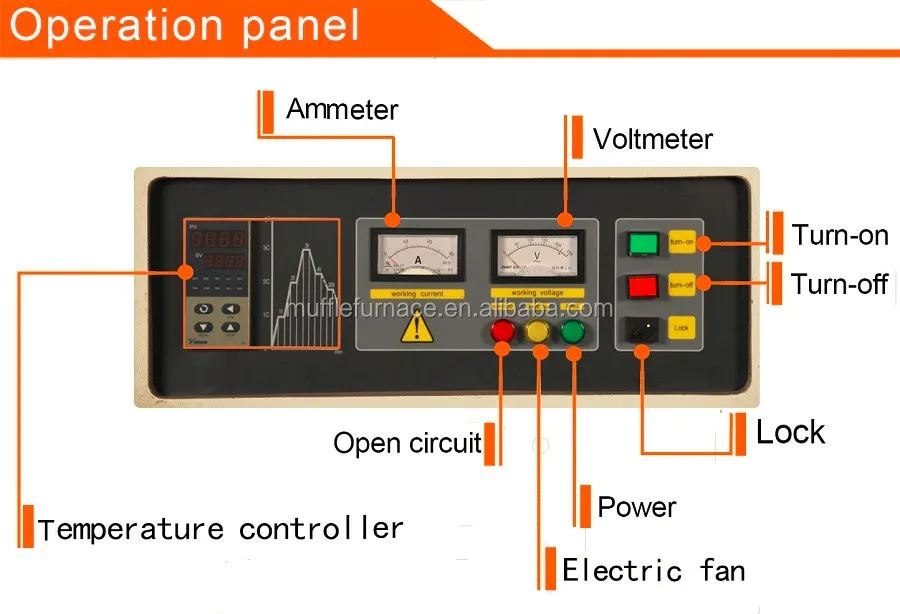

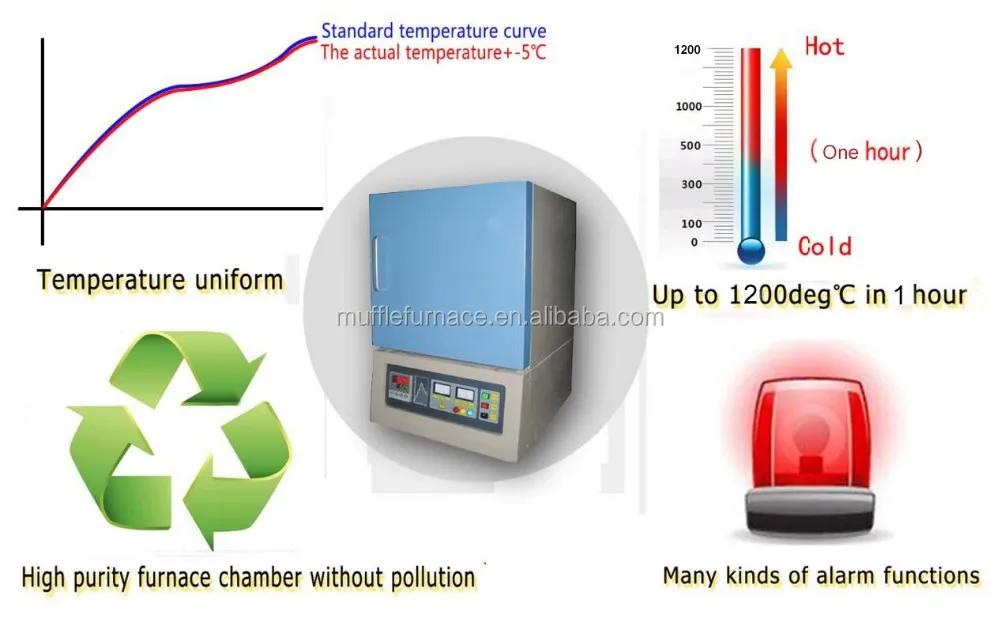

● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. ● 30 programmable segments for precise control of heating rate, cooling rate and dwell time. ● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. ● Over temperature protection and alarm allows for operation without attendant.
± 1 oC Bench top muffle furnace Bench top muffle furnace
± 5°C over 120 mm @ 1600°C ± 3°C over 80 mm @ 1600°C
0-20 oC /min Bench top muffle furnace Bench top muffle furnace
K type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube

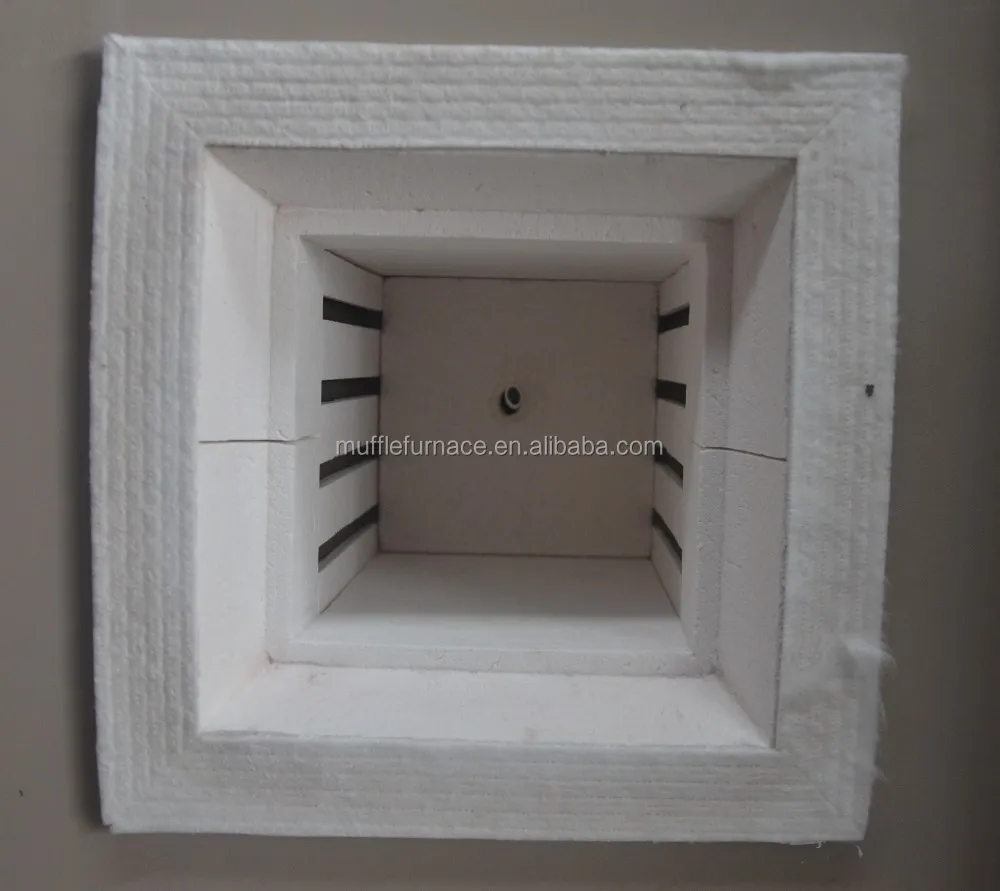

Three layers of ceramic fiber insulation materials ● First layer: 1800°C ceramic fiber board, density 500kgs/m3. Thermal conductivity (1200℃) is only 0.18W/m.k. ● Second layer: 1600°C ceramic fiber board, density 400kgs/m3. ● Third layer: 1260°C ceramic fiber board, density 320kgs/m3.

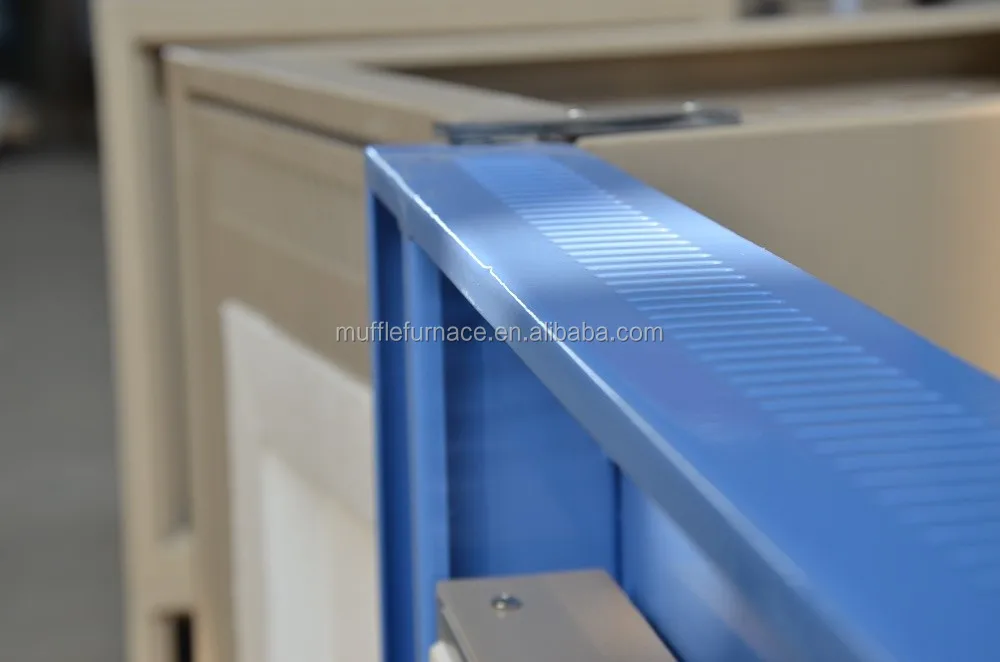

Double layer steel casing with dual cooling fan, surface temperature below 60oC
● Front open to asid ● Power cutting off when furnace door open
1KW k1200C electric kiln / muffle furnace
Net Weight: about 26kgs Gross Weight: about 56kgs
Our stock and delivery time：
3 days (in stock)
3 days (in stock)
3 days (in stock)
Warranty of our kiln for ceramic tiles：
● One year limited warranty with life time support. (Consumable parts such as heating elements and crucibles are not covered by the warranty, please order the replacement at related products) ● ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of One Year Limited Warranty. 1200C electric kiln / muffle furnace 1200C electric kiln / muffle furnace
Q:What is your delivery time ? A:For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Other customized sizes the delivery time is from 15 days to 30 days according to different products request. 1200C electric kiln / muffle furnace 1200C electric kiln / muffle furnace Q:What is your advantage ? A:1.We are a manufacturer in China. So we can control the cost well. 2.We use the top material in our furnace, imported ceramic fiber and accurancy temperature controller. 3.We supply good service after sale, you can be assured about that. 1200C electric kiln / muffle furnace 1200C electric kiln / muffle furnace Q:How many years have you been in this field? A:We have been manufacturing in this fields more than 17 years.
1200C electric kiln / muffle furnace 1200C electric kiln / muffle furnace Q:Why are you choose us ? A:We have a professional R&D team, and rich production experience of 17years,point to point service,customer brand,multiple selections,and customers all over the middle East,Europe and America,Southeast Asia and other regions.
