Manufacturer directly PLC controlled motorized trackless directional transfer platform cart

  • 1 - 4 Sets
    $6,500.00
  • >=5 Sets
    $6,000.00
Model Number:
BWP directional transfer platform cart trackless directional transfer cart battery transfer cart trackless
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 35 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, directional transfer platform cart
Place of Origin:
Henan, China
Brand Name:
BEFANBY
Warranty:
1 Year, 12 Months
After-sales Service Provided:
Field maintenance and repair service
Product Type:
motorized trackless transfer platform
Application:
Assembly Line/ Factory
Power supply:
Battery powered
Color:
Yellow/Red/Customized
Capacity:
1-150t
Certificates:
CE ISO SGS
Running Speed:
0- 20m/min
Running distance:
Unlimited
Environment:
Heat, Explosive
Supply Ability
Supply Ability:
600 Set/Sets per Year motorized trackless transfer platform manufacturer since 2003.
Packaging & Delivery
Packaging Details

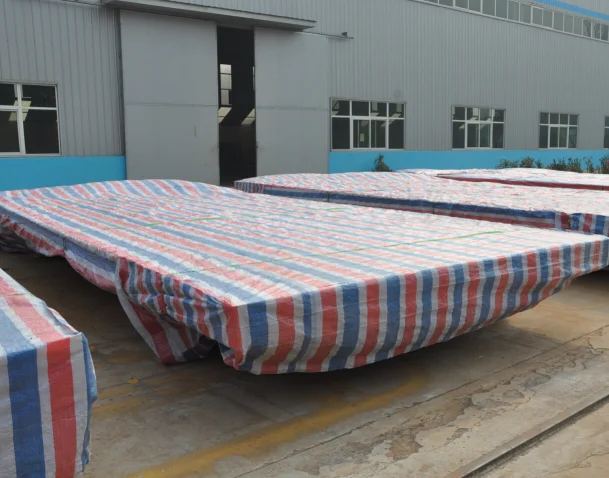

The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Port
Qingdao/Tianjin/Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 35 60 To be negotiated
Video Description
Product Description

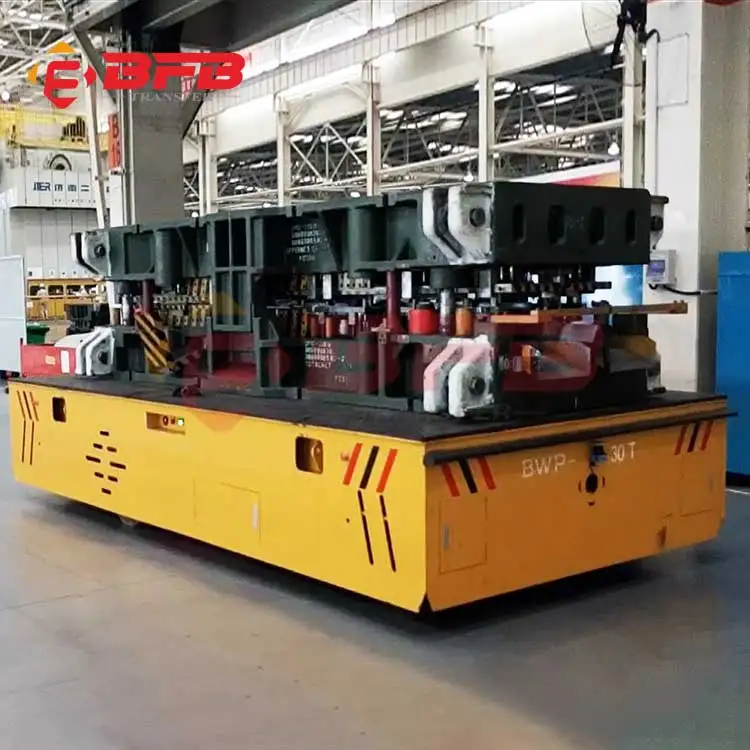

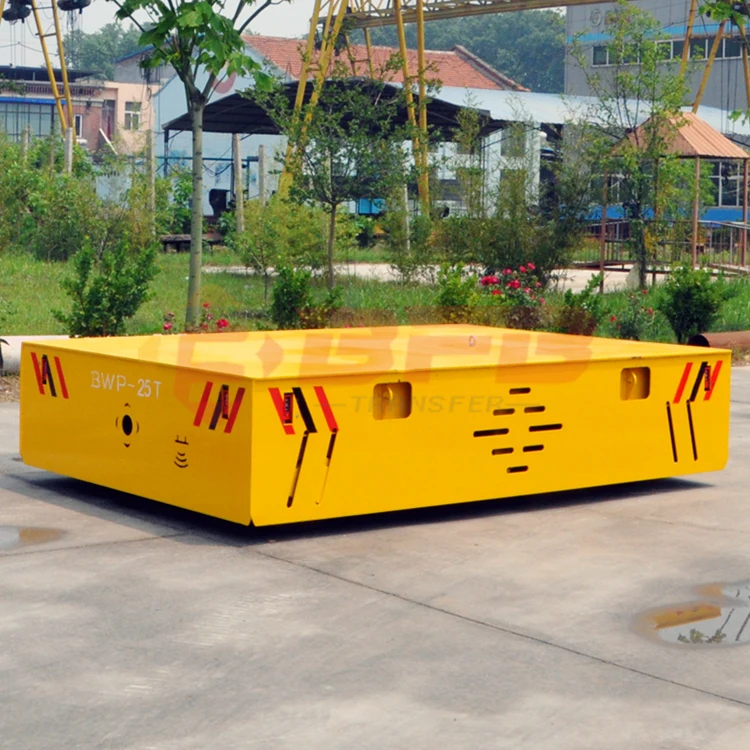

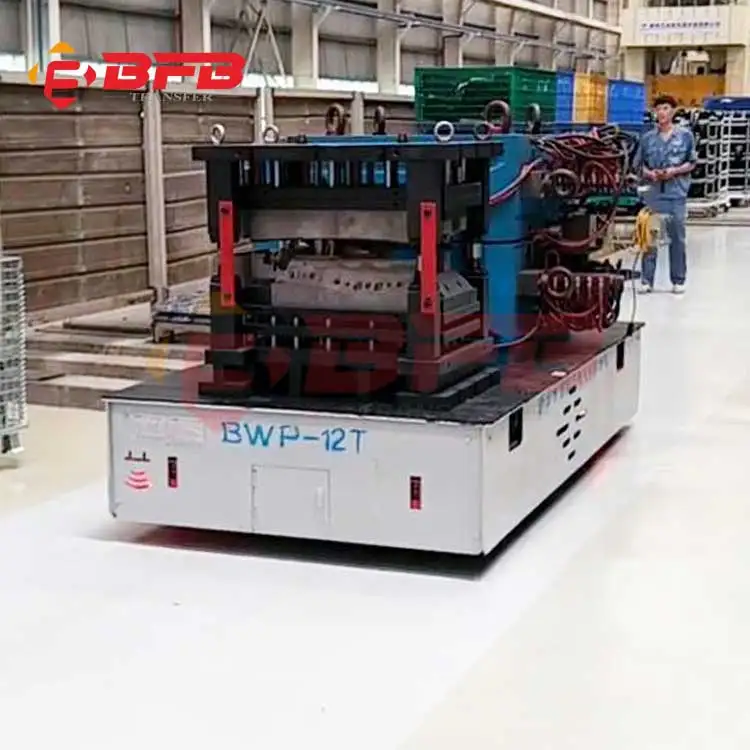

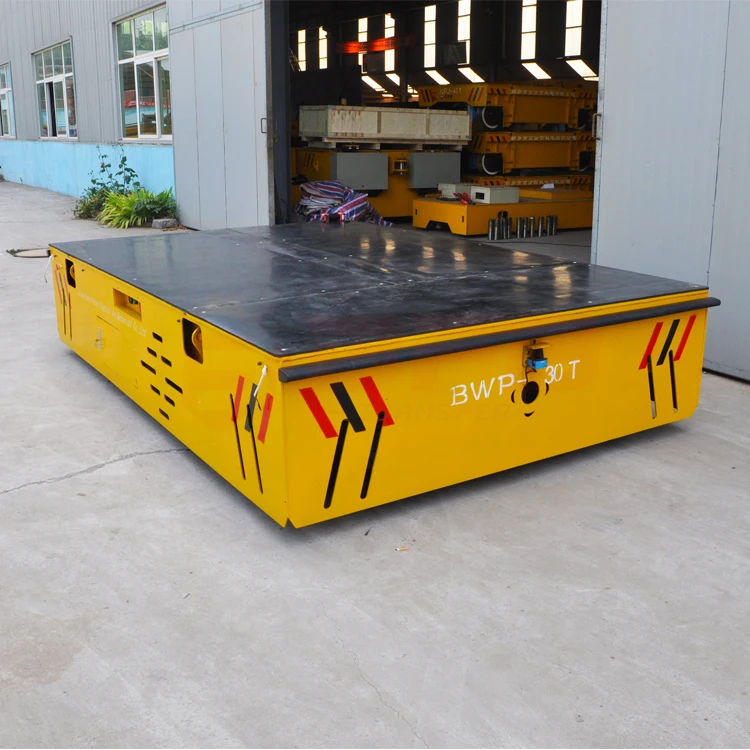

Manufacturer directly PLC controlled motorized trackless directional transfer platform cart

These trackless battery power transfer cart have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer cart are very useful to bring the heavy loads where overhead cranes cannot arrive.

Manufacturer directly PLC controlled motorized trackless directional transfer platform cart

The features as following:
1. The transfer cart is battery powered, they represent the best solution for all those appliances with delicate handling problems in limited places.(360 degree turning flexibly)
2. The trackless transfer cart is very flexible since it can move freely around the plant as indoor as outdoor.
3. It is equipped with non-marking wheels to avoid any mark on floor.(Imported PU wheel or customized)
4. Easy operation make transfer cart perfect to meet the most important requirements: where space is very limited and paths are strictly constrained.
5. Dimensions,capacity, loading platform superstructure, speed and many others features can be customized as per client request.

Advantage
1.   High level automation(self propelled/steerable)
2.   The largest capacity can reach to 500t
3.   Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
4.   Robust sturdy car frame
5.   AC/DC electric engine , diesel engine or pneumatic engine
6.   Excellent gear reducer and motor with high quality, assemblied together perfectly
7.   Remote control&hand pendant control make the opration more convenient.
8.   The speed can be adjusted
9.   Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
Product Parameter
Modle
BWP-2T
BWP-10T
BWP-30T
BWP-50T
BWP-80T
BWP-100T
Table Size (m)
2.0*1.5*0.45
2.3*2.0*0.55
3.5*2.2*0.7
5.5*2.6*0.8
6.5*2.8*0.95
6.6*3.0*1.2
Power
Maintenance Free Battery
Wheel Base
1080mm
1650mm
1650mm
2000mm
1950mm
2000mm
Wheel Dia.
250mm
350mm
450mm
600mm
600mm
600mm
Running Speed
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
0-20m/min
Motor Power
2*1.2kw
2*2.2kw
2*5.5kw
2*7.5kw
30kw
40kw
Battery Capacity
250Ah
250Ah
450Ah
500Ah
800Ah
1000Ah
Battery Volatge
24v
48v
48v
48v
72v
72v
Max Wheel Load
14.4Kn
42.6Kn
110.4Kn
174Kn
185Kn
190Kn
Reference weight
2.3t
4.2t
6.8t
8t
14.6t
26.8t

Remark: the technical parameter of the trackless transfer cart only can be make reference above.All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professinal engineer will help you solve the transfer problems in any time.PLC controlled motorized trackless directional transfer platform cart

Product Processing

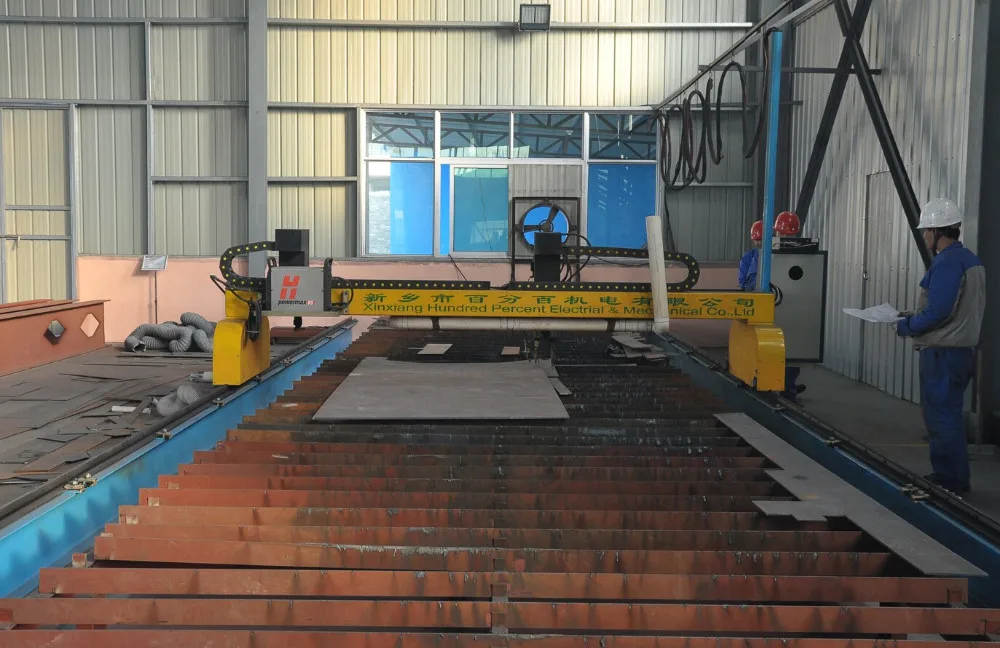

Cutting

Cutting steel plate by CNC machine. The size is strictly according to egnieer's drawing

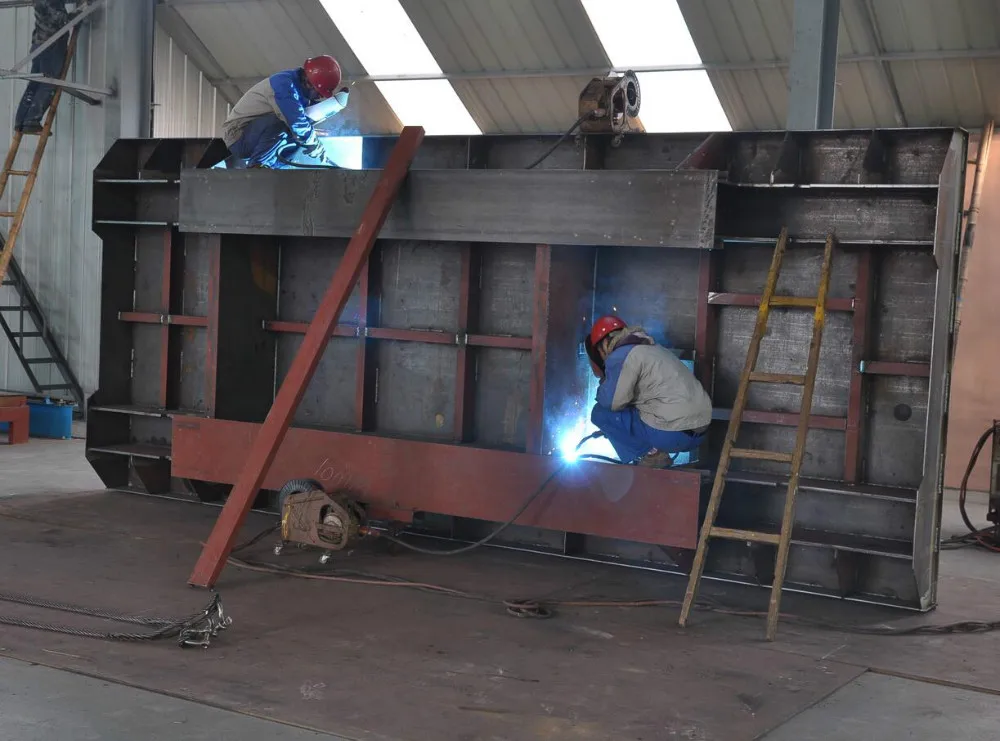

Welding

Welding the structure by rich experience worker which is weldless and  flattable is smoothly.

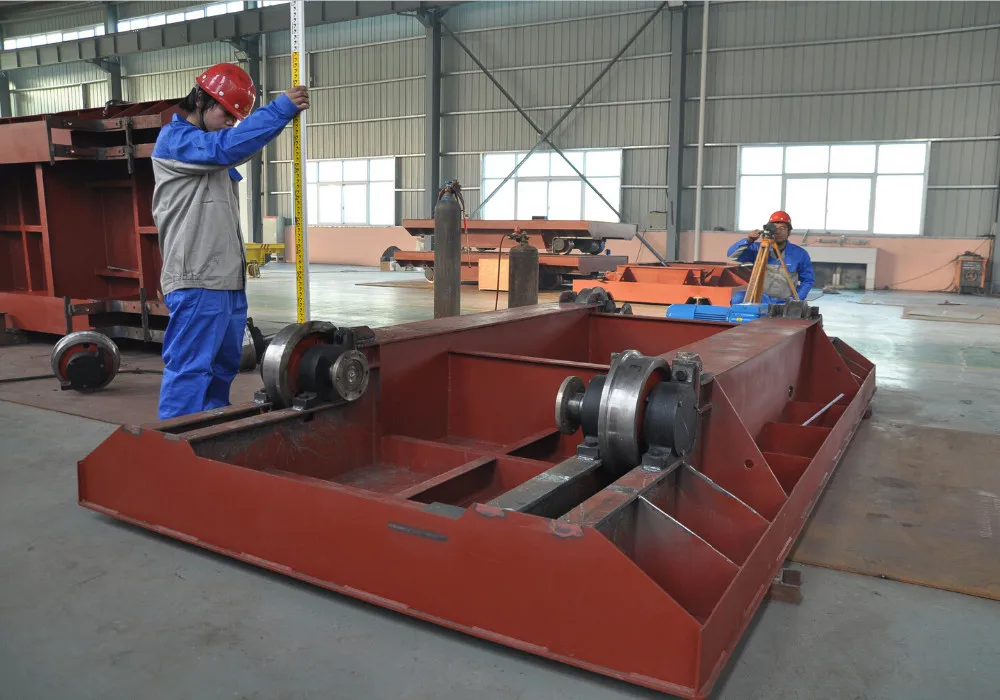

Assembling

Installed wheel sets,motor,reducer, electrical control and other required device.

Painting

Through painting and blasting grinding,the whole cart is produced well.

Packaging

It will be covered  by plastic cover and and cloth,then trapped them.

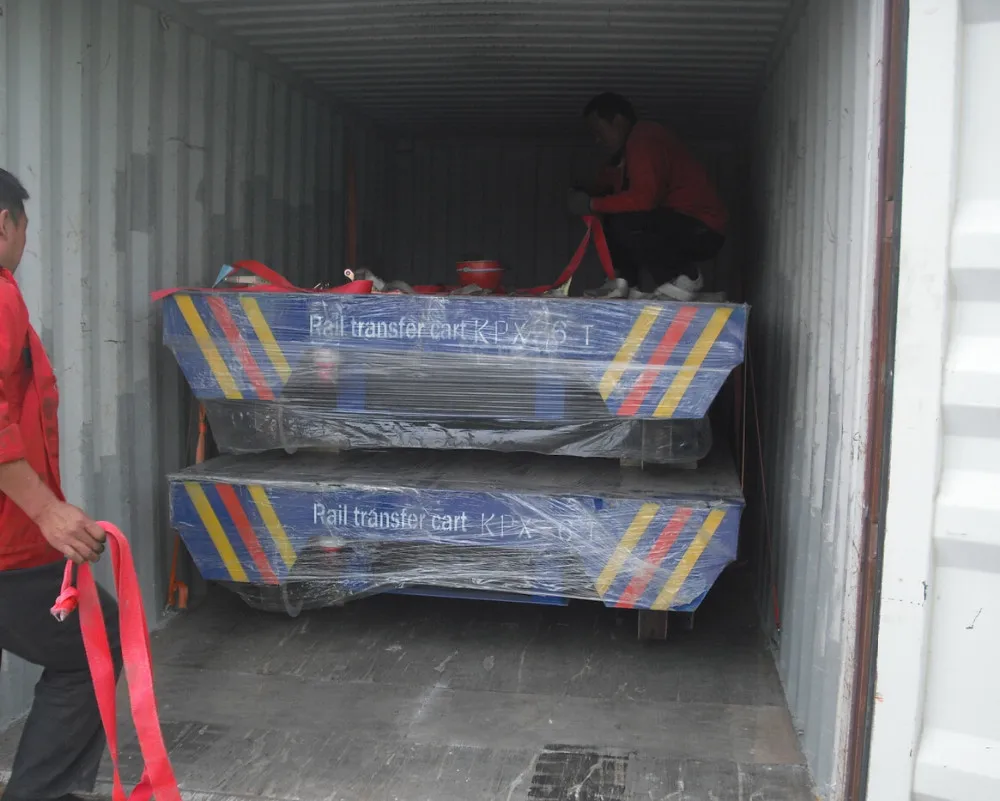

Delivery

Put into container then delivery to cutomer.

Our Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling cart ,metal sheet rail wagons as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Give us an inquiry here for more information for a free quote on any size transfer cart.
If you can think it then we can manufacture it; transfer carts for any application.
Manufacturer directly PLC controlled motorized trackless directional transfer platform cart
Contact us to learn more about how we can help you achieve your economic and safety goals.
Manufacturer directly PLC controlled motorized trackless directional transfer platform cart
                                                     Glad to listen to your voice, my friend!

Related Products

Trackless Transfer Cart                     Rail Transfer Cart                         Coil Transfer Cart                    Ladle Transfer Cart

99.8% Response Rate                       98.6% Response Rate                95.3% Response Rate            90.2% Response Rate

These points we need to learn:


1.The load capacity of the transfer cart is                       ton.

2.The table size is                  mm (L) *                   mm (W)*                    mm (H).

3.The voltage is                 V,                    HZ, 3 phase.

4.The running time is                          hours per day.

5.The running distance is                    m per time.

6.The transfer cart runs on the rails or common floor?

7.Whether exist turning?

8.Whether has other special requirement?

You can copy the above options and click here to select your specific requirement for the transfer cart to send us.And then the proper solution and price will be sent to you.
