Marchi basmati rice vertical granule packing machine (VFFS) Packaging line

FOB Reference Price:Get Latest Price
$6,000.00 - $20,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
3P 380v 50Hz
Model Number:
MC 5000D MC 5000B MC 7300B MC 1100B MC 7800B MC 9000B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support
Local Service Location:
Egypt
Showroom Location:
Egypt
Condition:
New
Function:
weighing, bag coding, bag making, filling, counting
Application:
Food, Beverage, Commodity, MEDICAL, Chemical, APPAREL
Packaging Type:
Bags, Film, Foil, Pouch
Packaging Material:
Plastic, Paper
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Place of Origin:
Guangdong, China
Brand Name:
Marchi
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Video technical support, Online support
Key Selling Points:
Multi Color
Marketing Type:
Hot Product 2019
Machinery Test Report:
Not Available
Video outgoing-inspection:
Provided
Warranty of core components:
5 years
Core Components:
Motor
Packing material:
Laminated Film
Bag shape:
Pillow Seal Sachet
Packing type:
3/4 Side/Pillow Bag
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
International export standard
Port
Guangzhou,China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Application

Automatic Vertical granule packing machine (VFFS) Packaging line
It's suitable for weighing powder, granular, liquid, paste and irregular shape products(according to product form the weighing part will need change) such as baby food, oil, candy, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips ,raisins, plum, cereals and other leisure foods, vegetable, dehydrated vegetables ,fruits, seafood, frozen food, small hardware, etc.

Product Introduction

Optional Functions: 1. gas flush         2. bag vacuuming            3.static elimination           4.degassing valve applicator

Ancillary Machines: 1. metal detector  2. check weigher    3. collecting table   4. carton machine  5. bag-in-bag machine


Technical Parameters

Model
MC5000D
MC5000B
MC7300B
Packaging size L×W(mm)
(50~280)×(70~180)
(50~340)×(80~250)
(50~460)×(80~350)
Capacity(pouch/min)
30~80
20~70
20~50
Pouch material
 laminated film, aluminum foil, aluminum-plated film etc.
Pouch type
Pillow bag, gusset bag, punching bag, quad seal bag, valve bag
Reel inner diameter(mm)
Φ75
Φ75
Φ75
Max reel outer diameter(mm)
Φ400
Φ450
Φ500
Power supply
380V, 50~60Hz, 3kw
Compressed air
0.6MPa 350L/min
Dimension L×W×H(mm)
1470×988×1400
1800×1220×1680
1854×1440×1930
Machine  material (optional)
carton steel,  stainless steel 304/316, telfon


Technical Features


- Integrates the functions such as bag-making, filling, sealing, printing, punching, and counting.

- Adopts servo motor for film pulling with automatic offset correction. Two types of driving motor, i.e. cylinder and servo can be adopted for horizontal sealing.
- Has good sealing performance and can meet customer's hygienic requirements.
- Off-the-shelf components ensure quick service response.
- No-tool changeover, user-friendly operation process.
- All the electrical components adopt local and foreign well-known brands with reliable performance
- Two types of vertical sealing mechanism, i.e. center sealing type and platen press type (the user can choose according to specific material and the film roll).
-  Robust, stainless steel frame.


Machine Details Pictures

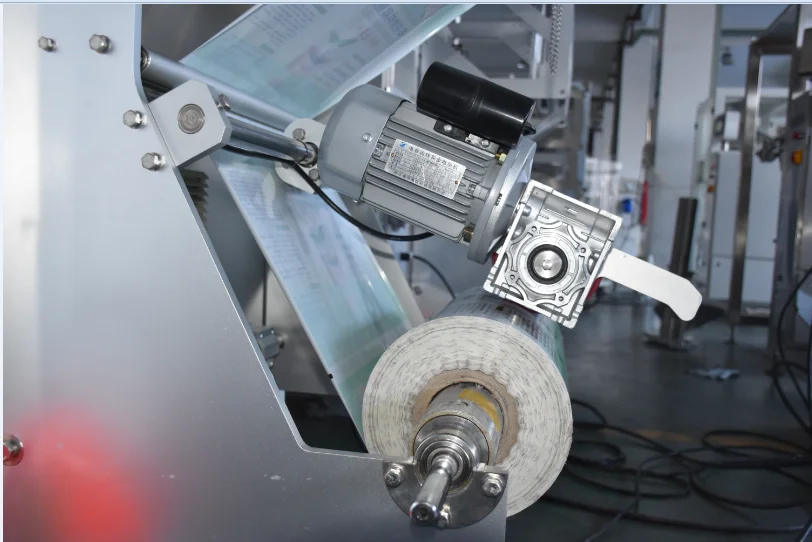

Film releasing part: air shaft fix the film tightly, at the same time the film releasing motor drive it to pull the film up smoothly, when the film runs out, the machine will send the alarm single.

Printing and mark sensor: you can print production date/ batch number/ place of origin/ etc. Max. 4 lines character are acceptable, and you can choose the printer brand as well; mark sensor through capturing the color mark to tell machine the bag length.

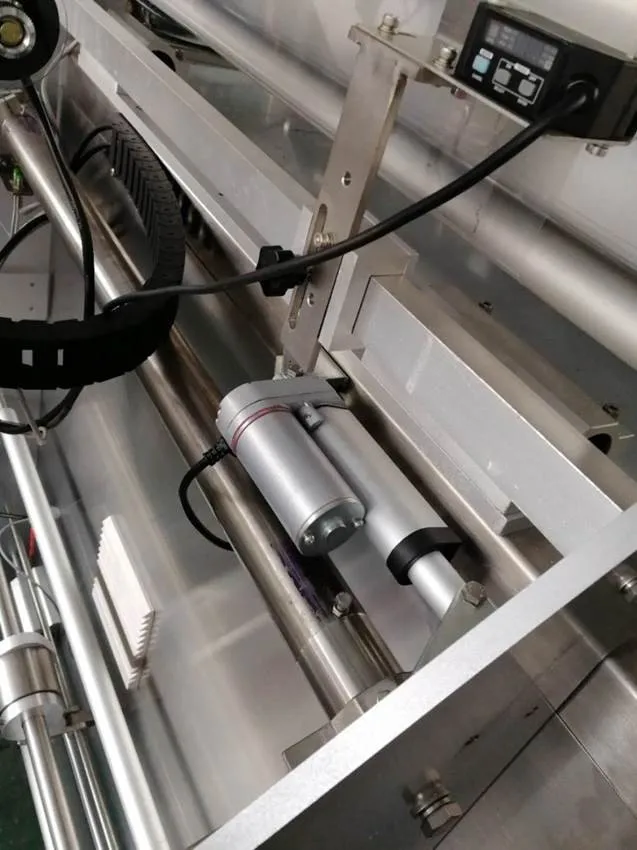

Film correction mechanism: when misalignment of the back seal/deformation of the bag happen, the positioning sensor senses the change of the film position, a worker operating through the touch screen, and the mechanism will auto change the film position rightly.

Bag former: within the acceptable range, different ba sizes can be made by changing the bag former, and the replacement process is very simple.remark: quad seal bag can't share the same machine with pillow type bag.

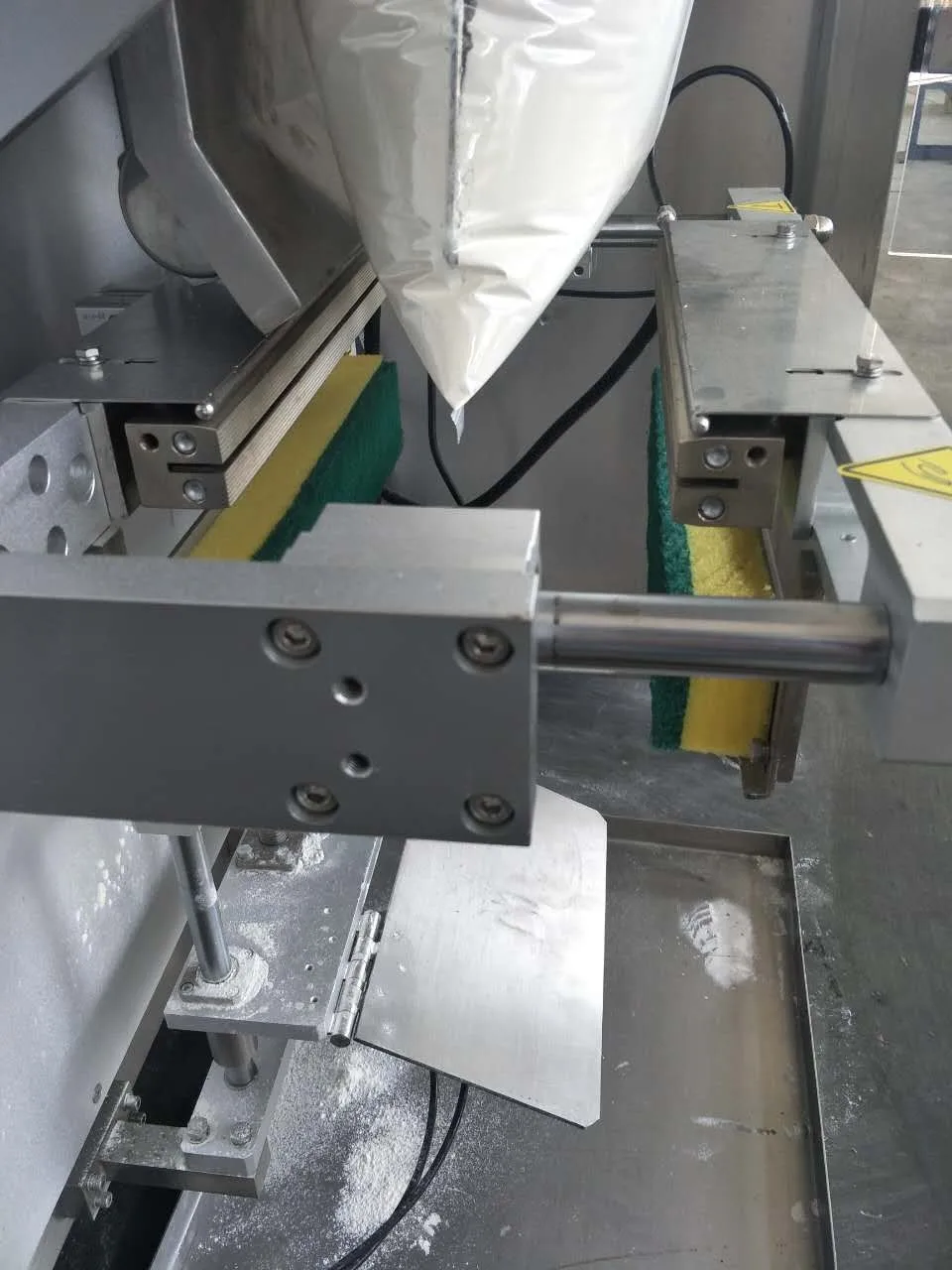

Horizontal sealing mechanism: it has sealing cooler/ air deflating device, the surface pattern of the horizontal sealing mold can be changed according to bag design.

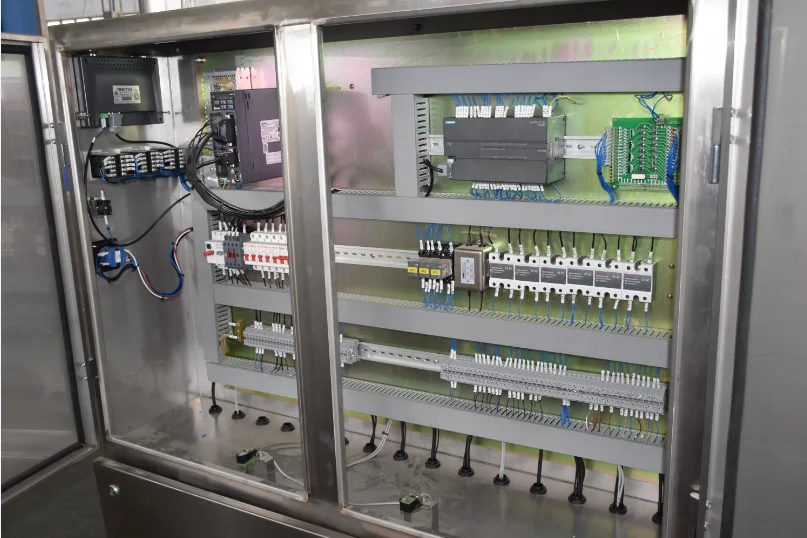

Electric cabinet: different configuration level can be made basis on the customer demands.the electric and pneumatic control device are separately in the different cabinets.

Related Products



                   check weigher

                      metal detector

      automatic carton machine

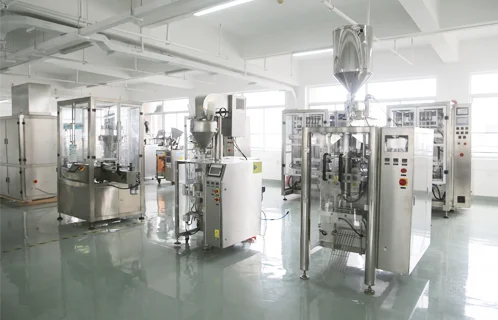

Customers Factories

       frozen dumpling packaging machine line

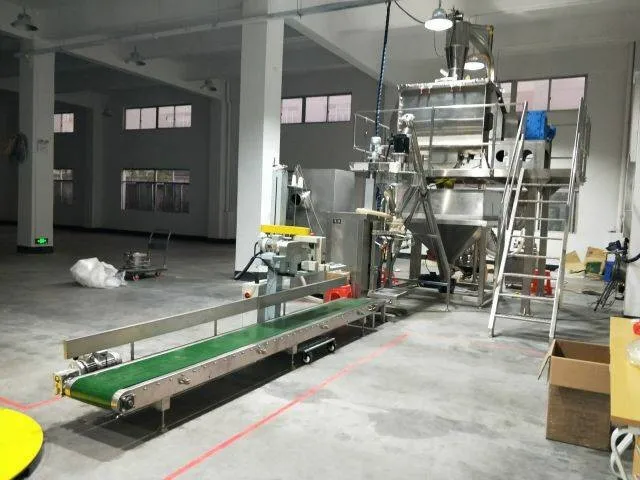

              detergent woven bag packaging machine

      vertical packaging and cartoning production line


       automatic carton pallet manipulator                        (ABBbrand)

Chemical  mixing, filling, and woven bag sewing machine

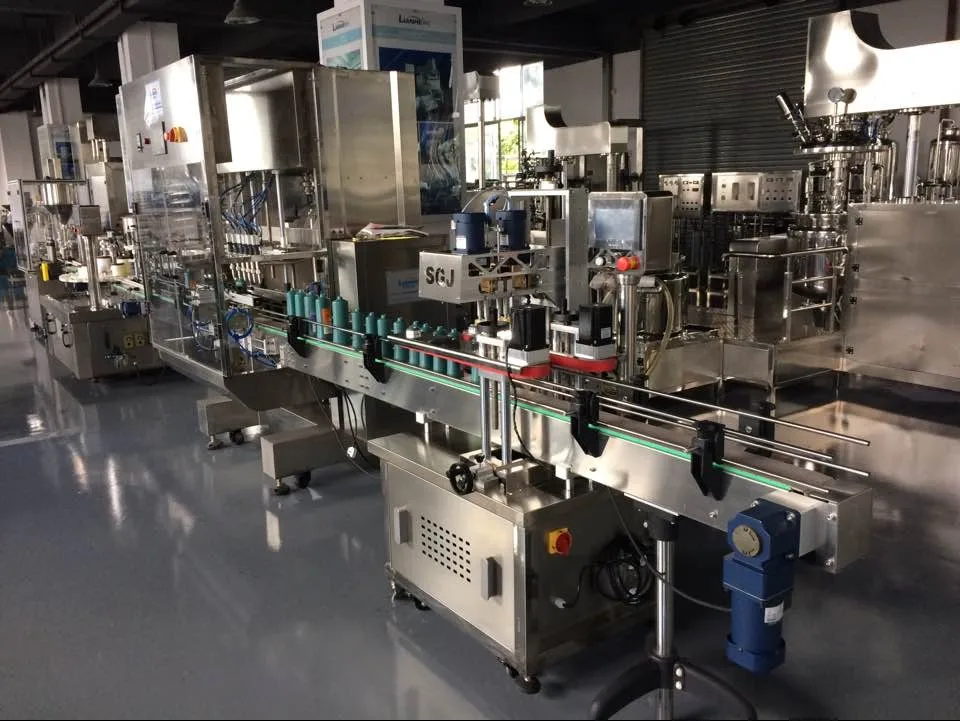

     liquid chemical bottle filling capping and labeling line

Service &Certificate

1.Turnkey Solution Provider

Marchipack has the ability to be your turnkey solution provider, and we have a unique team of mechanical, electrical, program process engineers which allows us to deliver your solution smoothly.

2. Factory Acceptance Testing

The engineers available in the service team is also utilized for trial testing thoroughly as per the client's requirements before the dispatch.

3.Professional Technical Support

A board range of technical supports are provided aims at ensuring our customers experience the maximum up-time after-sale service, these services include:

 - Installation and commissioning specification

 -Telephone /video and online support

 - Preventive maintenance programs design

 - Equipment optimization services

 - Trained engineer machine installation and commissioning paid service

4.Commissioning and Troubleshooting Training

Qualified training ensures machine effectiveness, minimize cost and reduce downtime, Marchi pack provide factory-based technical training that can be delivered either in our factory or customer's site.

5.High Availability Genuine Spare Parts

All critical spare parts are ready for instant dispatch to our customers, genuine spare parts guarantee to protect and maximize machine lifetime.

Our Company

Where we are?

Guangzhou city, Guangdong Province, China
why choose us?
√ PepsiCo China preferred supplier
√ Turnkey solution provider

√ Rich working experiences since 1994
√ Several hundred customers cases
√ Research, design, manufacturing, selling, after sale service - complete and individual department
√ A positive, responsible and ambitious team with perseverance

While focusing on the development of the packaging equipment market, Marchipack has exchanged and cooperated with many scientific research institutions at home and abroad, and the capabilities of R&D, manufacturing, and engineering projects have been rapidly improved.

There are more than 300 varieties of products we have and various products are increasingly perfect.
>All the electrical control components are well-known brands with reliable performance.
>Do all the factory inspections, full testing, to ensure that the quality meets market demand.

> 1. vertical packaging machine
> 2. premade pouch packaging machine
> 3. multilane stick pack packaging machine
> 4. linear bottle filling machine
> 5. secondary packaging machine
> 6. vacuum packaging machine
> 7. heavy bag packaging machine
> 8. cartoning machine
> 9. other ancillary machines

History Cooperation

Since its inception, Marchi has always been based on customer needs and has provided comprehensive overall design services for more than 100 large enterprises, and has won recognition and praise from the companies.

Packaging &Shipping

Firmly packed fumigation-free wooden carton, with shipping marks.Check packing list without any missing

Packaging about protect the goods against damages during handling,storing and transportation.

Shanghai Yangshan Port is the largest port in the world. World famous shipping company promise maritime safety

[FAQ]

1.Payment Terms?
40% down payment at order against the invoice.
60% of the contract value shall be payable against presentation of shipping documents, invoice and Seller's draft drawn at sight on the opening bank.

2.Machine lead time?
45-60day base upon the receive of downpayment.

3. Installation and commissioning engineer fee?
100 USD/each day/one person, Board and lodging, visa and round trip tickets shall be born by buyer.

4. Are you a manufacturing or trading company?
We are a manufacturing company, have design, manufacturing, sale, aftersale service complete and individual departments.

5.What is the estimate machine lifetime years?
In the case of proper maintenance of equipment, according to past customer statistics, it can be used for 10-20 years.
