Mavin NA4 200kg Single point cast aluminum load cell used for electronic scales Platform scale

Feedback Ratings
  • 1-19 Pieces
    $27.50
  • 20-99 Pieces
    $26.00
  • 100-499 Pieces
    $24.50
  • >=500 Pieces
    $19.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Resolution (Min. Order: 1 Pieces)
Contact Supplier
Samples - $27.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Mavin
Model Number:
NA4-200KG
Usage:
Load Cell, Pressure Sensor
Theory:
Resistance Sensor
Output:
Other
Measuring rang:
200kg
Sensitivity:
2.0mV/V±5%
Operating temperature range:
-20℃~+60℃
Input resistance:
410±15Ω
Insulation resistance:
≥5000MΩ(50VDC)
Output Resistance:
350±5Ω
Recommand voltage:
5-12V
Warranty:
12 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X14X10 cm
Single gross weight:
1.5 kg
Package Type:
Export Carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 5 To be negotiated
Product Description

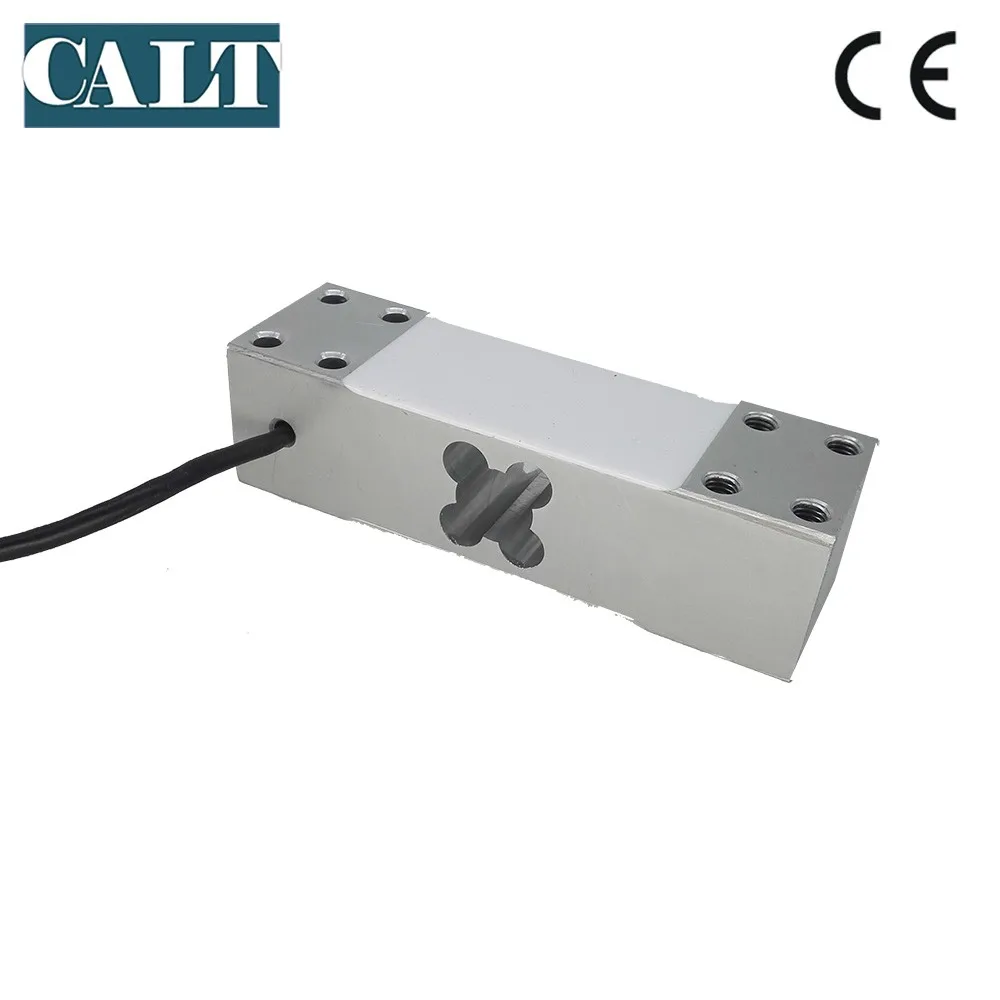

Mavin NA4 200kg Single point cast aluminum load cell used for electronic scales Platform scale

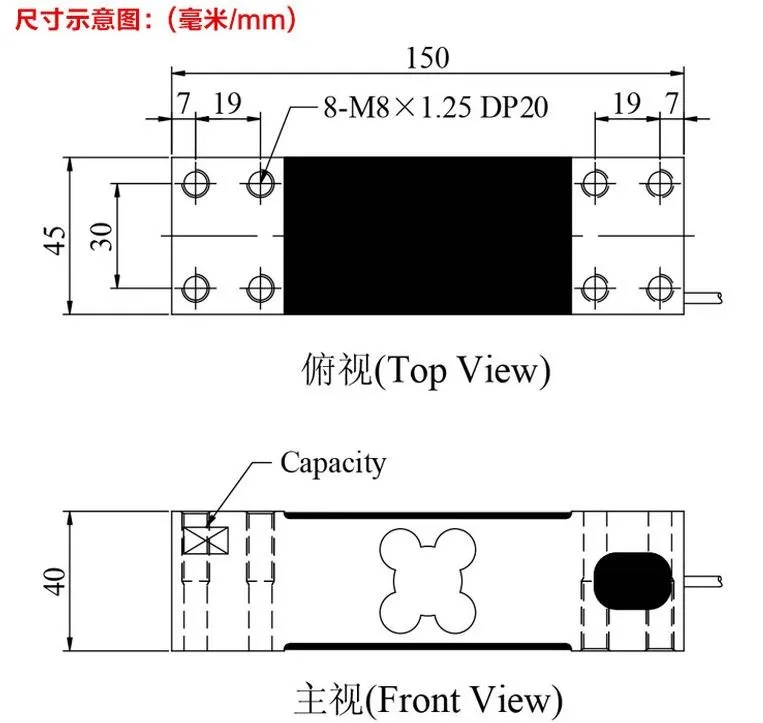

Detailed Images
Related Products
Packing & Delivery
Our Company

 Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in encoder, sensor, motor and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
