Mean Well Ultra Slim Step Shape HDR-15-5 Pass LPC 3 Years Warranty 12W 2.4A DIN Rail 5V Power Supply

FOB Reference Price:Get Latest Price
$7.00 - $16.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Mean Well
Model Number:
HDR-15-5
Output Power:
1 - 50W
Output Type:
Single
Input Voltage:
110V
Output Voltage:
5VDC
Output Frequency:
47~63Hz
Output Current:
2.4A
Product:
DIN Rail 5V Power Supply
Rated Power:
12W
Current Range:
0 ~ 2.4A
Voltage ADJ. Range:
4.5 ~ 5.5V
Efficiency:
80%
Over Voltage:
5.75 ~ 6.75V
Protections:
Short circuit / Overload / Over voltage
Working Temp.:
-30 ~ +70℃
Working Humidity:
20 ~ 90% RH non-condensing
Dimension:
17.5*90*54.5mm (W*H*D)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
78g; 160pcs/13.5Kg/1.19CUFT
Port
Shanghai / Ningbo
Lead Time :
3-15 days

Mean Well Ultra Slim Step Shape HDR-15-5 Pass LPC 3 Years Warranty 12W 2.4A DIN Rail 5V Power Supply

Product Description
Features:
  • Mean Well DIN Rail 5V Power Supply
  • Ultra slim design with 17.5mm (1SU) width
  • Universal input 85 ~ 264VAC (277VAC available)
  • No load power consumption<0.3W
  • Isolation class II
  • Pass LPS (Limited power source)
  • DC output voltage adjustable
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection (working temperature: -30°C ~ +70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
  • 3 years warranty

Applications:
  • Household control system
  • Building automation

  • Industrial control system

  • Factory automation

  • Electro-mechanical apparatus
Model Series:

HDR-15-5 / HDR-15-12 / HDR-15-15 / HDR-15-24 / HDR-15-48


Details:

MODELHDR-15-5HDR-15-12HDR-15-15HDR-15-24HDR-15-48
OUTPUTDC VOLTAGE5V12V15V24V48V
RATED CURRENT2.4A1.25A1A0.63A0.32A
CURRENT RANGE0 ~ 2.4A0 ~ 1.25A0 ~ 1A0 ~ 0.63A0 ~ 0.32A
RATED POWER 12W15W15W15.2W15.4W
RIPPLE & NOISE80mVp-p120mVp-p120mVp-p150mVp-p240mVp-p
VOLTAGE ADJ. RANGE4.5 ~ 5.5V10.8 ~ 13.8V13.5 ~ 18V21.6 ~ 29V43.2 ~ 55.2V
VOLTAGE TOLERANCE  ±2.0%±1.0%±1.0%±1.0%±1.0%
LINE REGULATION±1.0%±1.0%±1.0%±1.0%±1.0%
LOAD REGULATION±1.0%±1.0%±1.0%±1.0%±1.0%
SETUP, RISE TIME    2000ms, 80ms/230VAC  2000ms, 80ms/115VAC at full load
HOLD UP TIME30ms/230VAC  12ms/115VAC at full load
INPUTVOLTAGE RANGE     85 ~ 264VAC (277VAC available)
120 ~ 370VDC(390VDC available)
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY80%85%85.5%86%87%
AC CURRENT 0.5A/115VAC          0.25A/230VAC
INRUSH CURRENTCOLD START 25A/115VAC          45A/230VAC
PROTECTIONOVERLOAD  110 ~ 145% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE5.75 ~ 6.75V14.2 ~ 16.2V18.8 ~ 22.5V30 ~ 36V56.5~ 64.8V
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENTWORKING TEMP.-30 ~ +70°C (Refer to Derating curve)
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85°C , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT±0.03%/°C (0~50°C) RH non-condensing
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE2000 meters
SAFETY & EMC SAFETY STANDARDSUI60950-1, UI508, TUV EN61558-2-16, IEC60950-1 approved; Design refer to EN50178, TUV EN60950-1
WITHSTAND VOLTAGEI/P-O/P:3KVAC
ISOLATION RESISTANCEI/P-O/P:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSIONParameterStandardTest Level / Note
ConductedEN55032(CISPR32)Class B
RadiatedEN55032(CISPR32)Class B
Harmonic CurrentEN61000-3-2Class A
Voltage FlickerEN61000-3-3-------
EMC IMMUNITYEN55024, EN55035, EN61000-6-2, EN61204-3
ParameterStandardTest Level / Note
ESDEN-61000-4-2Level 3, 8KV air, Level 2, 4KV contact, Criteria A
Radiated SusceptibilityEN-61000-4-3Level 3, Criteria A
EFT/BurestEN-61000-4-4Level 3, Criteria A
SurgeEN-61000-4-5Level 4, 2KV/L-N, Criteria A
ConductedEN-61000-4-6Level 3, Criteria A
Magnetic FieldEN-61000-4-8Level 4, Criteria A
Voltage Dips and interruptionsEN-61000-4-11>95% dip 0.5 periods, 30% dip 25 periods,>95% interruption 250 periods
OTHERSMTBF1166K hrs min.   MIL-HDBK-217F (25°C )
DIMENSION17.5*90*54.5mm (W*H*D)
PACKING78g; 160pcs/13.5Kg/1.19CUFT

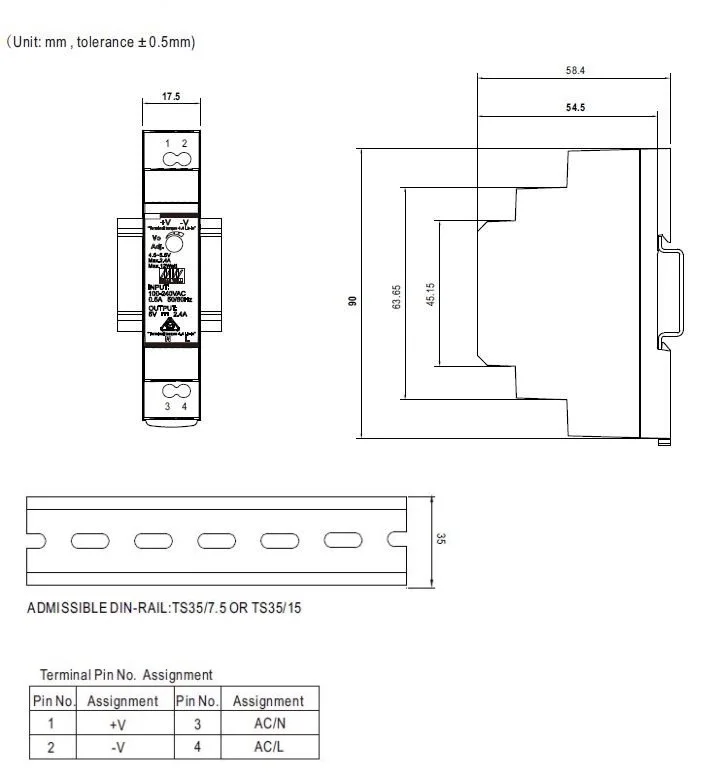

Mechanical Specification:
