Meanwell 200W 16.7A RSD-200D-12 Railway 100V DC To 12V DC Converter

FOB Reference Price:Get Latest Price
$57.00 - $79.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Mean Well
Model Number:
RSD-200D-12
Output Power:
200.4W
Output Type:
Single
Size:
191*86*40mm (L*W*H)
Weight:
0.94Kg
Input Voltage:
67.2 ~ 143VDC;57.6 ~ 154VDC
Output Voltage:
12VDC
Type:
DC/DC Converters
Output Frequency:
47~63Hz
Output Current:
16.7A
Product:
100V DC To 12V DC Converter
Efficiency:
91%
Warranty:
3 Years
Shell:
Metal case
Over Voltage:
13.8 ~ 16.2V
DC Current (Typ.):
2.1A/110V
Working Temp.:
-40 ~ +55°C
Dimension:
191*86*40mm (L*W*H)
Working Humidity:
20 ~ 90% RH non-condensing
Protections:
Short circuit / Overload / Over voltage / Over temperature
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
0.94Kg; 12pcs/12.3Kg/0.8CUFT
Port
Shanghai / Ningbo
Lead Time :
3-15 days after payment

Meanwell 200W 16.7A RSD-200D-12 Railway 100V DC To 12V DC Converter

Product Description



Features:

  • Meanwell 100V DC To 12V DC Converter
  • Complaince to EN50155 and EN45545-2 railway standard
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Half encapsulated
  • Built-in constant current limiting circuit
  • 1U low profile 40mm
  • All using 105°C long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty
Model Series:

RSD-200B-5 / RSD-200B-12 / RSD-200B-24
RSD-200C-5 / RSD-200C-12 / RSD-200C-24
RSD-200D-5 / RSD-200D-12 / RSD-200D-24

Details:

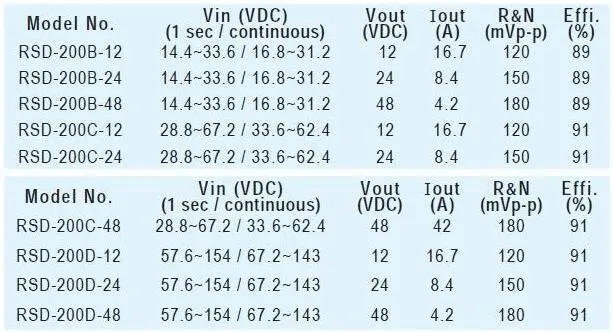

MODELRSD-200B-12RSD-200B-24RSD-200B-48
OUTPUTDC VOLTAGE12V24V48V
RATED CURRENT16.7A8.4A4.2A
CURRENT RANGE0 ~16.7A0 ~ 8.4A0 ~ 4.2A
RATED POWER200.4W201.6W201.6W
RIPPLE & NOISE (max.)      120mVp-p150mVp-p180mVp-p
VOLTAGE TOLERANCE   ±2.0 %±2.0 %±2.0 %
LINE REGULATION±0.3%±0.2 %±0.5 %
LOAD REGULATION±1.0%±1.0%±1.0%
SETUP, RISE TIME800ms, 50ms at full load
HOLD UP TIME (Typ.)B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load ; D-type comply with S2 level @ full load
INPUTVOLTAGE RANGE CONTINUOUS16.8 ~ 31.2VDC
VOLTAGE RANGE  1 SEC.14.4 ~ 33.6VDC
EFFICIENCY (Typ.)      89%89%89%
DC CURRENT(Typ.)9.6A/24V
INRUSH CURRENT (Typ.)45A/24VDC
PROTECTIONOVERLOAD    105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE13.8 ~ 16.2V27.6 ~ 32.4V55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE90°C ±5°C (TSW1) detect on main power transformer
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENTWORKING TEMP.    -40 ~ +55°C (no derating) ; +70 at 60% load by free air convection ; +70°C no derating with external base plate, TX class compliance
WORKING HUMIDITY5 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85°C , 5 ~ 95% RH
TEMP. COEFFICIENT±0.03%/°C (0 ~ 50°C)
VIBRATION10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
SAFETY & EMCSAFETY STANDARDSMeet IEC60950-1(LVD)
WITHSTAND VOLTAGEI/P-O/P:4KVDC     I/P-FG:2.5KVDC     O/P-FG:2.5KVDC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION      Compliance to EN55022 (CISPR22) Conduction Emission: Class A, Radiation Emission: Class B
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
RAILWAY STANDARDMeet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
OTHERSMTBF218.2K hrs min. MIL-HDBK-217F (25°C )
DIMENSION191*86*40mm (L*W*H)
PACKING0.94Kg; 12pcs/12.3Kg/0.8CUFT



MODELRSD-200C-12RSD-200C-24RSD-200C-48
OUTPUTDC VOLTAGE12V24V48V
RATED CURRENT16.7A8.4A4.2A
CURRENT RANGE0 ~16.7A0 ~ 8.4A0 ~ 4.2A
RATED POWER200.4W201.6W201.6W
RIPPLE & NOISE (max.)      120mVp-p150mVp-p180mVp-p
VOLTAGE TOLERANCE   ±2.0 %±2.0 %±2.0 %
LINE REGULATION±0.3%±0.2 %±0.5 %
LOAD REGULATION±1.0%±1.0%±1.0%
SETUP, RISE TIME800ms, 50ms at full load
HOLD UP TIME (Typ.)B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load ; D-type comply with S2 level @ full load
INPUTVOLTAGE RANGE CONTINUOUS33.6 ~ 62.4VDC
VOLTAGE RANGE  1 SEC.28.8 ~ 67.2VDC
EFFICIENCY (Typ.)      91%91%91%
DC CURRENT(Typ.)4.8A/48V
INRUSH CURRENT (Typ.)45A/48VDC
PROTECTIONOVERLOAD    105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE13.8 ~ 16.2V27.6 ~ 32.4V55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE90°C ±5°C (TSW1) detect on main power transformer
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENTWORKING TEMP.    -40 ~ +55°C (no derating) ; +70 at 60% load by free air convection ; +70°C no derating with external base plate, TX class compliance
WORKING HUMIDITY5 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85°C , 5 ~ 95% RH
TEMP. COEFFICIENT±0.03%/°C (0 ~ 50°C)
VIBRATION10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
SAFETY & EMCSAFETY STANDARDSMeet IEC60950-1(LVD)
WITHSTAND VOLTAGEI/P-O/P:4KVDC     I/P-FG:2.5KVDC     O/P-FG:2.5KVDC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION      Compliance to EN55022 (CISPR22) Conduction Emission: Class A, Radiation Emission: Class B
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
RAILWAY STANDARDMeet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
OTHERSMTBF218.2K hrs min. MIL-HDBK-217F (25°C )
DIMENSION191*86*40mm (L*W*H)
PACKING0.94Kg; 12pcs/12.3Kg/0.8CUFT



MODELRSD-200D-12RSD-200D-24RSD-200D-48
OUTPUTDC VOLTAGE12V24V48V
RATED CURRENT16.7A8.4A4.2A
CURRENT RANGE0 ~16.7A0 ~ 8.4A0 ~ 4.2A
RATED POWER200.4W201.6W201.6W
RIPPLE & NOISE (max.)      120mVp-p150mVp-p180mVp-p
VOLTAGE TOLERANCE   ±2.0 %±2.0 %±2.0 %
LINE REGULATION±0.3%±0.2 %±0.5 %
LOAD REGULATION±1.0%±1.0%±1.0%
SETUP, RISE TIME800ms, 50ms at full load
HOLD UP TIME (Typ.)B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load ; D-type comply with S2 level @ full load
INPUTVOLTAGE RANGE CONTINUOUS67.2 ~ 143VDC
VOLTAGE RANGE  1 SEC.57.6 ~ 154VDC
EFFICIENCY (Typ.)      91%91%91%
DC CURRENT(Typ.)2.1A/110V
INRUSH CURRENT (Typ.)45A/110VDC
PROTECTIONOVERLOAD    105 ~ 135% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE13.8 ~ 16.2V27.6 ~ 32.4V55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE90°C ±5°C (TSW1) detect on main power transformer
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENTWORKING TEMP.    -40 ~ +55°C (no derating) ; +70 at 60% load by free air convection ; +70°C no derating with external base plate, TX class compliance
WORKING HUMIDITY5 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY-40 ~ +85°C , 5 ~ 95% RH
TEMP. COEFFICIENT±0.03%/°C (0 ~ 50°C)
VIBRATION10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
SAFETY & EMCSAFETY STANDARDSMeet IEC60950-1(LVD)
WITHSTAND VOLTAGEI/P-O/P:4KVDC     I/P-FG:2.5KVDC     O/P-FG:2.5KVDC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION      Compliance to EN55022 (CISPR22) Conduction Emission: Class A, Radiation Emission: Class B
EMC IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A
RAILWAY STANDARDMeet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
OTHERSMTBF218.2K hrs min. MIL-HDBK-217F (25°C )
DIMENSION191*86*40mm (L*W*H)
PACKING0.94Kg; 12pcs/12.3Kg/0.8CUFT
