Fermenting Equipment, Double-sided &Argon gas purge welding
Place of Origin:
Shandong, China (Mainland)
220-415V, 380V/3PH/50Hz or according
300-1800kg, Various from configurations
After-sales Service Provided:
Field maintenance and repair service
Internatinal Standard SUS304-SUS316L or Solid Copper
3mm for Inner-Jacket/2mm for External-Jacket
Manual, semi-automatic, full-automatic
Steam/electric heating/direct fire heating
Beginners to be trained
10 Set/Sets per Month

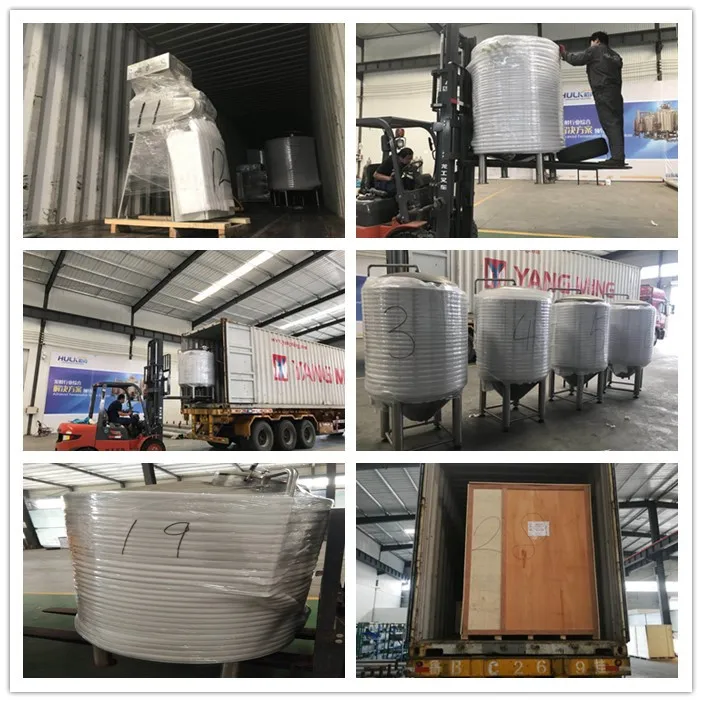

Packaging & Delivery
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with wooden box.
3. All items wrapped with soft package for protection.
1 - 1
To be negotiated
•Welding method: all the use of argon arc welding method, fight the seam with argon arc welding gun welding method, the nozzle to take argon way single-sided welding double-sided forming.

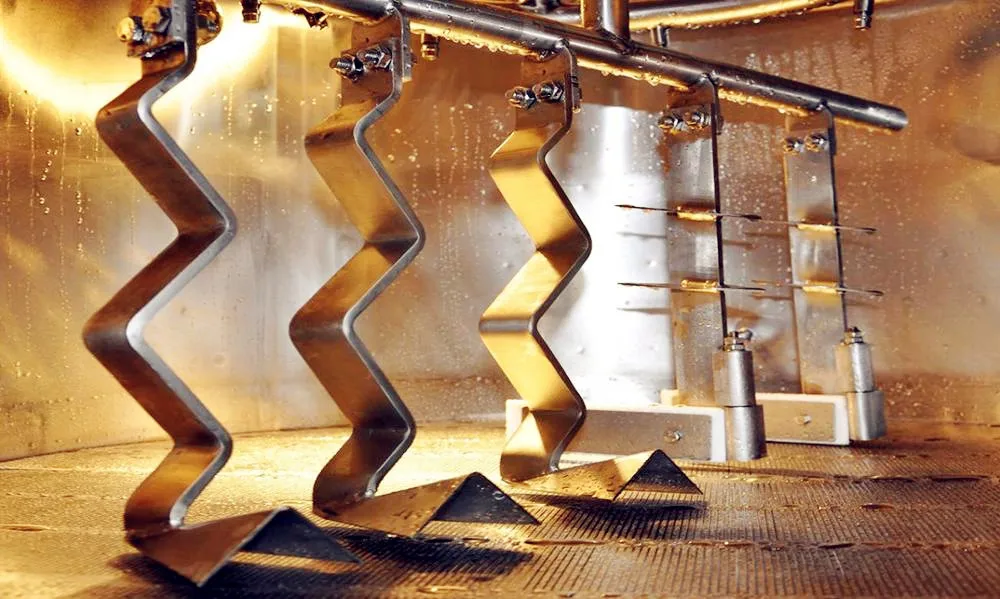

•Mixing mode: take the way of mixing, turbine worm reducer, reducer speed ratio: 1: 29 •Cleaning method: with ring cleaning coil and cleaning ball, 304 stainless steel material. •Whirlpool method:Tangential whirlpool inlet suitable design. •Heating method: Steam, electric, direct fire and oil heating by electric heating methods.

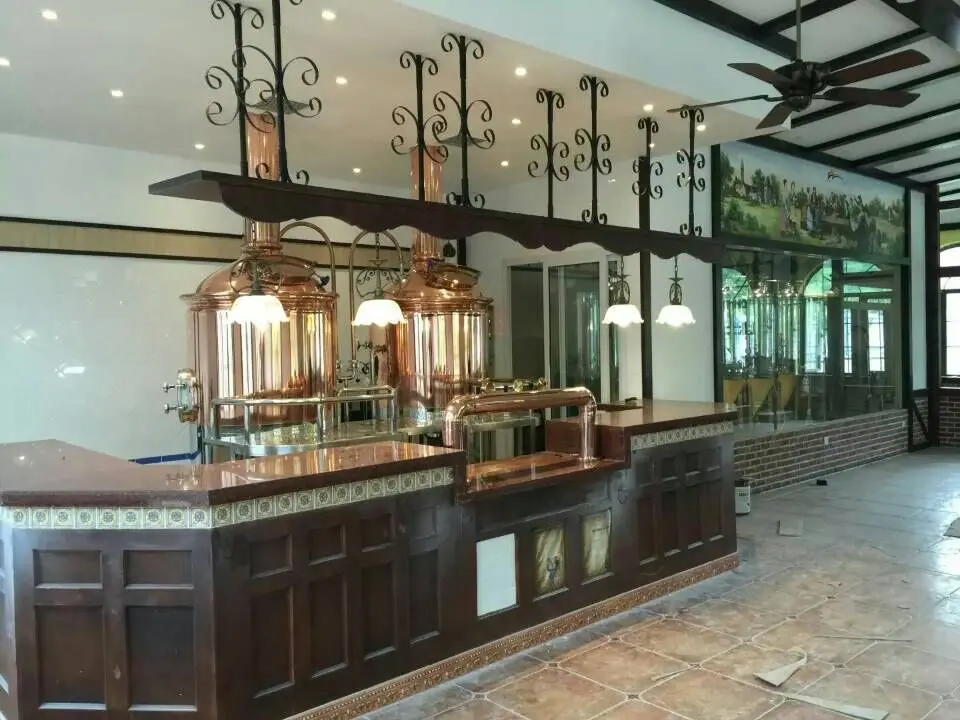

Applications area: Beer Bars, Hotels, Restaurants, Micro brewery,etc. Product features: 1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright; 2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process; 3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation; 4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;
Equipments Components of beer manufacturing equipment:

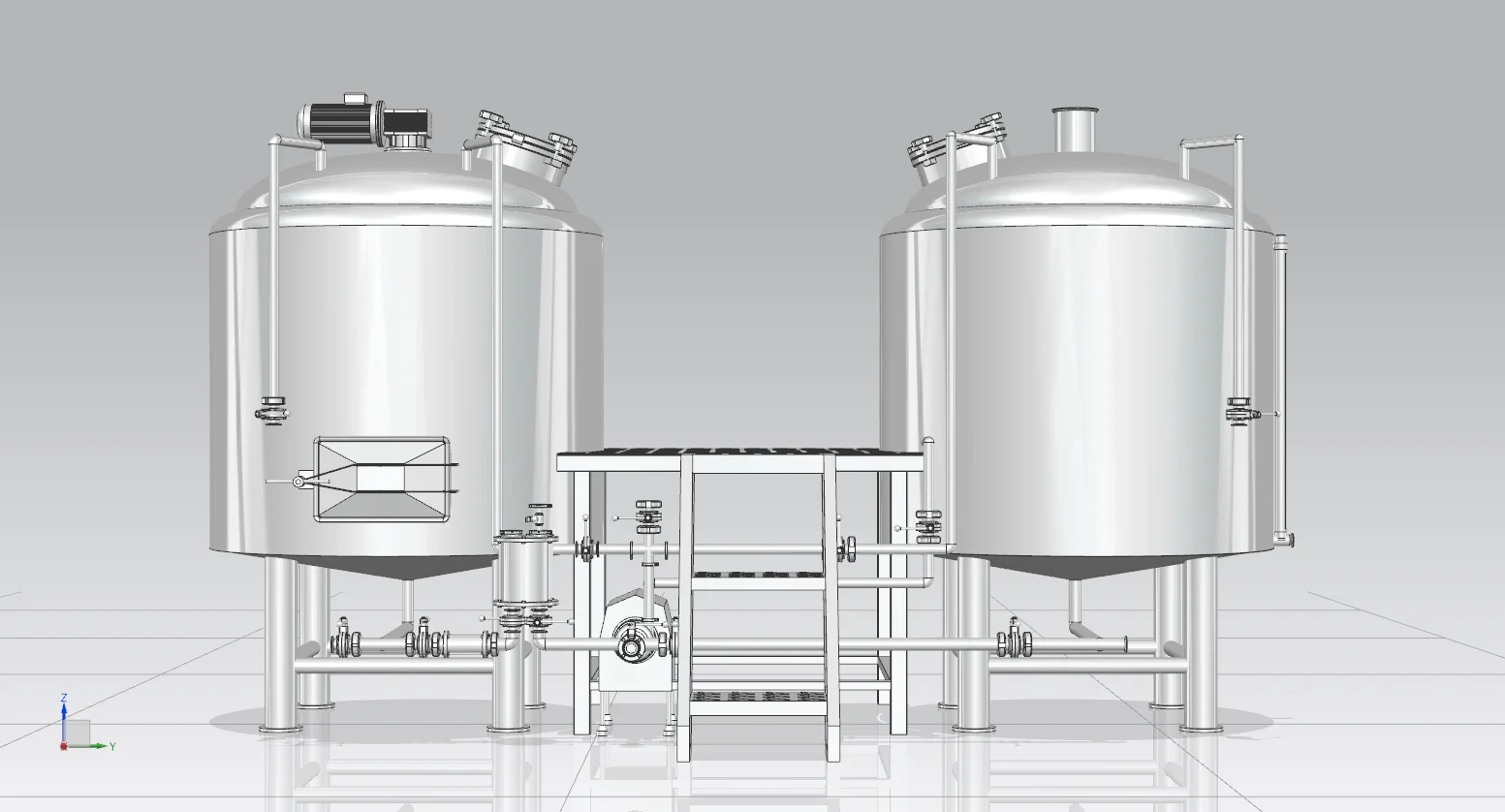

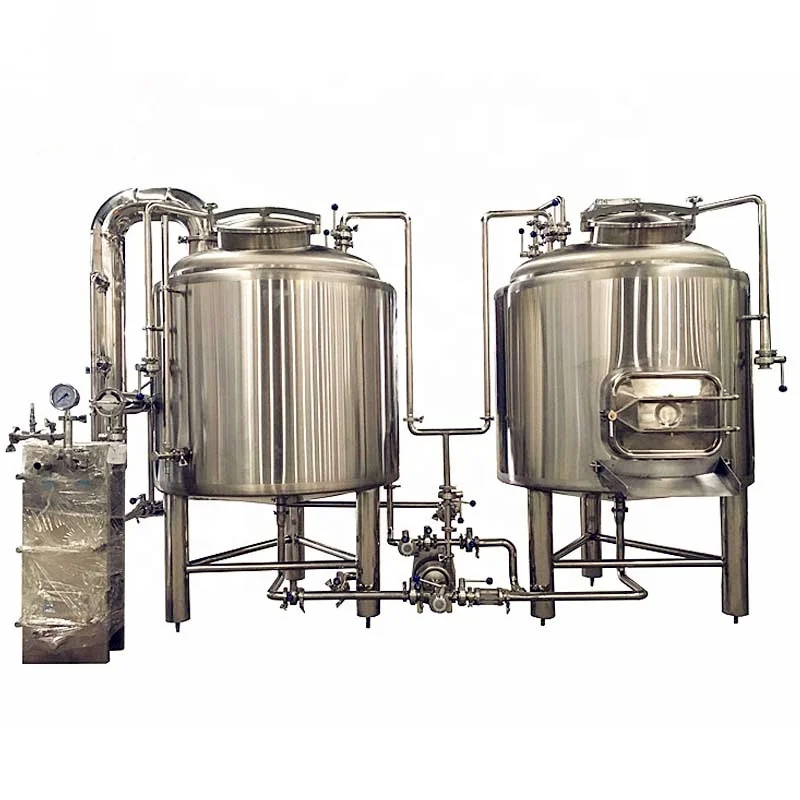

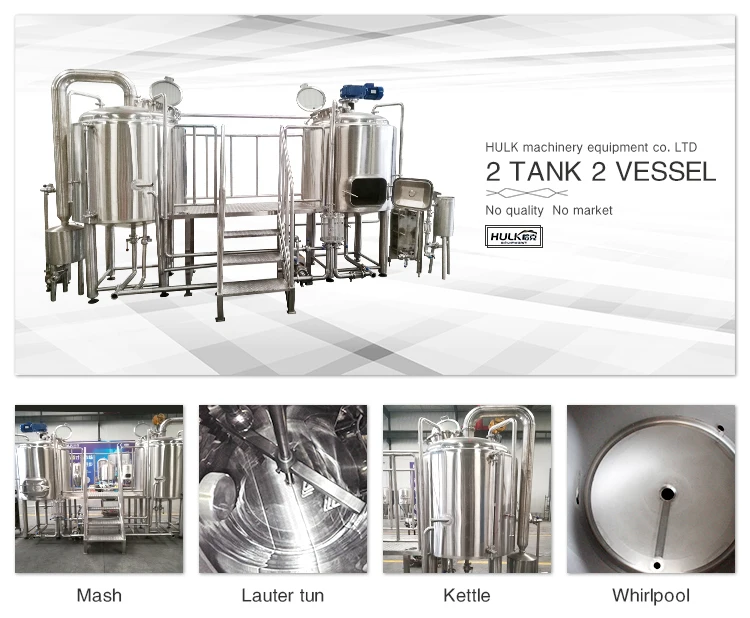

1) Miller: Particle adjustable rolling crusher 2) Auger: Flexible or steel auger to directly lift the milled grain to mash tun 3) Brew house: Grain mashing, lautering, wort boiling, whirlpool, hot water supply 4) Fermentation tanks: Wort Fermentation or maturation Single size or double size as brewhouse is common used in microbreweries Also side mounted manhole and top mounted manhole for optional 5) Beer Tank Unit: beer maturation, conditioning, service, carbonation 6) Cooling Unit: cooling wort and refrigerate the fermentation tanks and bright beer tanks 7) Controlling Unit: Brewhouse/fermentation tanks/bight beer tanks/chiller/glycol water tanks temperature control 8) CIP system: SupplyLye tanks and hydrogen peroxide tanks for all tanks cleaning 9) Others: kegs, keg filling machine, keg cleaning machine, bottle filler, beer dispenser, keg coupler, beer taps and so on
PS: All the configurations and specifications can be customized according to your requests.
Frequently Asked Questions about starting a brewery
To help the buyers figure out every cost
Drawing with full dimensions and nozzle orientation Layout of the whole systerm based on client's place
Showing and teaching how to operate the whole system
Engineers available to service machinery overseas.The customer will be asked to provide room, board, round-trip transportation, and a nominal daily subsidy.
Solving every question happened in operating the equipment.
Providing full recipes and tutoring of beer brewing.
Available to help clients to expand their breweries by sending replaceable spare parts, adding tanks, re-designing layout anytime.
