Micro Hybrid Solar Inverter 10KW 12KW inverter onda pura chinese

FOB Reference Price:Get Latest Price
$899.00 - $925.00 / Pieces | 1 Piece/Pieces (Min. Order)
Output Power:
1 - 200KW
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AMPLEC or OEM
Model Number:
AP-R12KW
Output Type:
Single
Size:
650*260*200mm
Weight:
56Kg
Input Voltage:
48V/96V/192V DC
Output Voltage:
110V or 220V
Type:
DC/AC Inverters
Output Frequency:
50/60HZ±1%
Output Current:
54.5A
Wave form:
Pure Sine Wave
Rated capacity:
12KW
Peak Power:
36000W
Nominal battery voltage:
48V/96V/192V DC
AC charger:
35A
Efficiency:
98%
Comnunication:
RS232:optional
Output voltage range:
Tracking automatically
Display:
LCD
Thermal method:
Cooling fan in intelligent control
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs packed by carton box, product size 660*275*205mm, 56KG
Port
shenzhen port
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 7 20 To be negotiated
Product Description

Micro Hybrid Solar Inverter 10KW 12KW inverter onda pura cinese

1.Pure sine wave output

2.CPU control technology; SCM control
3.Strong ability of impact resistance
4.Have UPS function and AC charger function
5.Wide input voltage range: 170-275V(AC220V); three step AVR (two step -up, one step -down)
6.Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc.
7.Anti reverse connection protection and high-low voltage protection
8.Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.
9.Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.

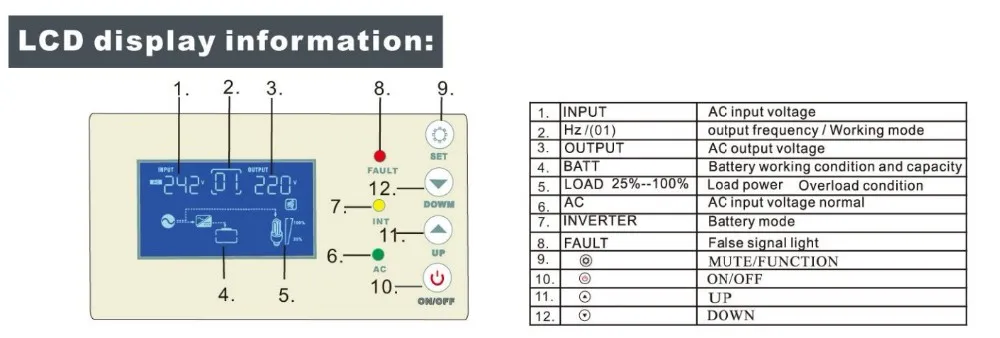

10.LCD display

11.Meet the need of different power supply
12.Use MOSFET
13.Mains supply priority mode/energy saving mode/battery priority mode are settable
14.Battery Type/ utility charging current(0A-35A) are settable,meeting different types of battery charging management

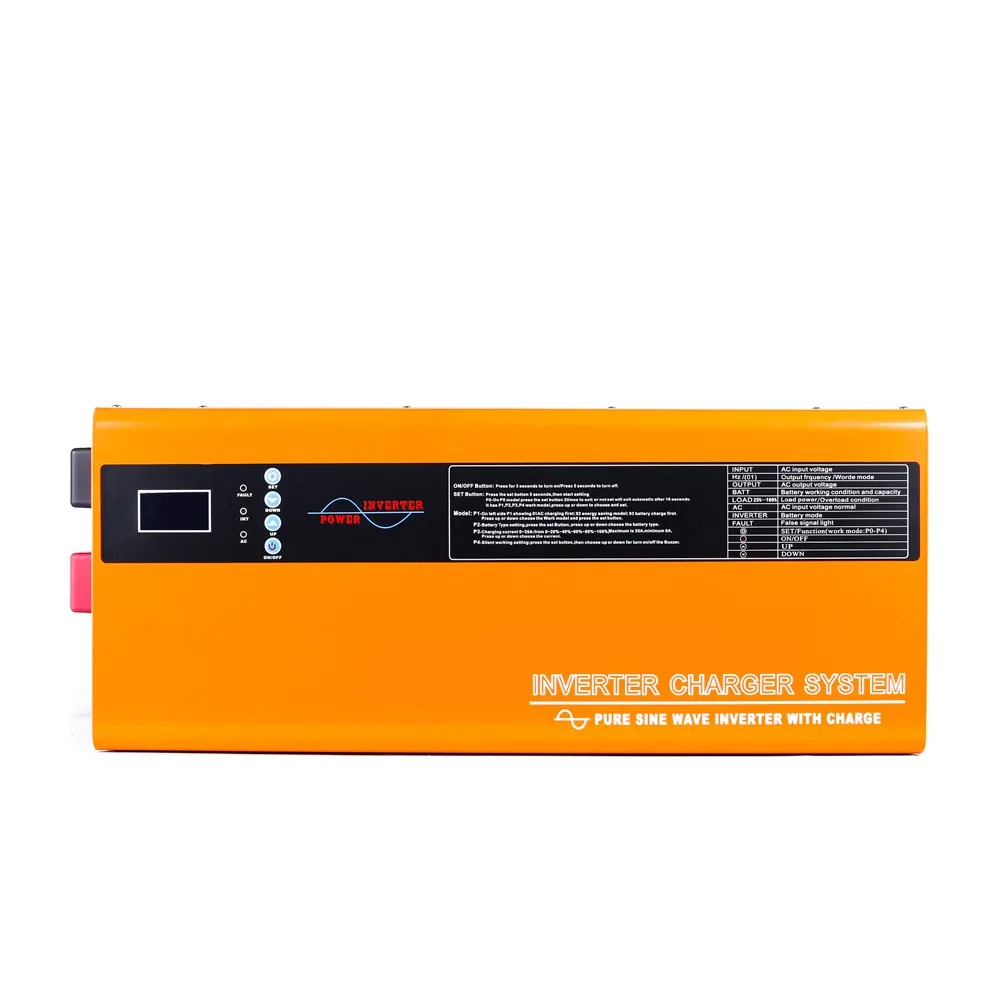

Detailed Images
Specifications
Model
12000W
12000W
12000W
Rated capacity
12000W
12000W
12000W
Peak Power
36000W
36000W
36000W
battery voltage
48VDC
96VDC
192VDC
Input
Battery voltage
48VDC:42-60VDC 96VDC:84-120VDC 96VDC:168-240VDC
Mains input voltage range
AC220V:180-270VAC
Mains input frequency range
45-65HZ
Battery low voltage alarm
48VDC:42V 96VDC:84V 192VDC:168V
Battery low voltage protection
48VDC:40V 96VDC:80V 192VDC:160V
Battery over voltage protection
48VDC:66.8V 96VDC:133.6V 192VDC:267.2V
Battery over voltage alarm
48VDC:60V 96VDC:120V 192VDC:240V
110% more than rated capacity
110% more than rated capacity
Temperature protection
≥85℃ alarm ≥90℃ machine shut off
Output Efficiency
Output voltage (battery mode)
220VAC±2%
Output frequency (battery mode)
50/60HZ±1%
Output wave form
pure sine wave
Output voltage range (mains mode)
Stabilization output:220VAC±10%
Output voltage range (mains mode)
Tracking automatically
Transfer time
≤8ms
Display
LCD
Thermal method
Cooling fan in intelligent control
≤42℃ fan rotates slowly to ≥45℃ fan rotates fast
Working mode
P1-p4
inverter alarm setting
when setted to be inverter alarm ON,alarms every 2s-5s;when setted to be inverter alarm OFF,alarms every 3s-5s,it will not alarm
Charging current
0A-35A
Comnunication
Rs232
Working Mode
P1-P4
01
Mains Priority mode(default working mode)
Mains priority mode with AC charging
02
 Energy saving mode
Load power≤10% machine turns off, ≥11%-100% machine turns on
03
Solar power priority( Solar power priority without AC charging)
When charging: Battery voltage≥13V, turn converting mode;when converting: Battery voltage≤10.5V, turn mains mode.
04
when setted to be inverter alarm ON,alarms every 2s-5s;when setted to be inverter alarm OFF,alarms every 3s-5s,it will not alarm
Packing & Delivery
Size
650*260*200mm
Packing Size
660*275*205mm
N.W
52KG
G.W
56KG
Our company
FAQ

Q: What are the components of a solar system?

A: A solar system is made up of different components. These include PV modules (groups of PV cells), which are commonly called PV panels; one or more batteries; a charge regulator or controller for a stand-alone system; an inverter for a utility-grid-connected system and when alternating current (ac) rather than direct current (dc) is required; wiring; and mounting hardware or a framework.

Q: How big a solar energy system do I need?

A: The size of solar system you need depends on several factors such as how much electricity or hot water or space heat you use, how, the size of your roof, and how much you're willing to invest. Also, do you want the system to supply your complete energy usage or to supplant a portion of your higher cost energy usage? You can contact a system designer/installer to determine what type of system would suit your needs.

Q: How long do photovoltaic (PV) systems last?

A: A PV system that is designed, installed, and maintained well will operate for more than 20 years. The basic PV module (interconnected, enclosed panel of PV cells) has no moving parts and can last more than 30 years. The best way to ensure and extend the life and effectiveness of your PV system is by having it installed and maintained properly. Experience has shown that most problems occur because of poor or sloppy system installation.

Q: Can you be able to do OEM/ODM?

A: Definitely. We have experienced R&D team and structure designer team to help customers to achieve their particular goals for bulk orders. We provide one-stop services from initial plan to finished products.
