Mini 1000w 2000w 3000w 4000w pure sine wave portable car power inverter

FOB Reference Price:Get Latest Price
$67.20 - $298.20 / Set | 1 Set/Sets (Min. Order)
Output Power:
1000W 2000W 3000W 4000W
Lead Time:
Quantity(Sets) 1 - 10 11 - 100 101 - 200 >200
Est. Time(days) 3 5 7 Negotiable
Customization:
Customized logo (Min. Order: 500 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 500 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
YUCOO
Model Number:
YK-1000L
Size:
310*173*76mm
Weight:
3.2kg
Input Voltage:
12Vdc/24Vdc/48Vdc/60Vdc/72Vdc available
Output Type:
Single
Type:
DC/AC Inverters
Output Voltage:
110Vac or 220vac±5%
Output Frequency:
50Hz/60Hz
Output Current:
4.5A/9.1A
Product name:
power inverter
Warranty:
12 Months
Display:
LCD
Wave form:
Pure Sinve Wave
Rated power:
1000w/2000w/3000w/4000w
Peak power:
2000w/4000w/6000w/8000w
Efficiency:
≥90%
Output socket:
According request
Material:
Aluminum
Protection:
Overload/overvoltage/short circuit protection, etc
Supply Ability
Supply Ability:
2000 Set/Sets per Week power inverter
Packaging & Delivery
Packaging Details
Standard packing of power inverter
Port
FOB Guangzhou
Lead Time :
Quantity(Sets) 1 - 10 11 - 100 101 - 200 >200
Est. Time(days) 3 5 7 To be negotiated

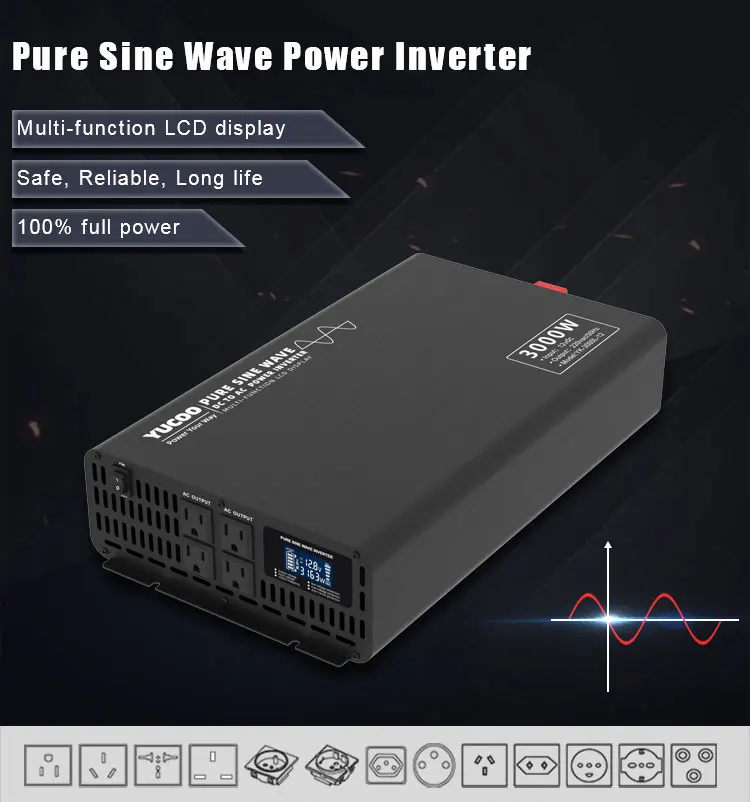

Mini 1000w 2000w 3000w 4000w pure sine wave portable car power inverter





Product Description

3000W inverter (2)



Introduction of our power inverter:

1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.

2. Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.

3. It has perfect protection functions such as input over voltage, under-voltage, overload, overheat, and output short circuit etc.

4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

5. Stable performance, safe and reliable, long service life.





Feature & advantage:

1. Efficiency: 85%-92%

2. The service life can reach a decade

3. Working noise is low and the efficiency is high

4. Strong ability of resist concussion

5. Good load ability:  Inductive , capacitive load and Hybrid load

6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output Short/Overload




Product Parameter

Model

YK-600L

YK-1000L

YK-1500L

YK-2000L

YK-3000L

YK-4000L

YK-5000L

Display

LCD Display

DC Input

Rate voltage

12Vdc/24Vdc/48Vdc/60Vdc/72Vdc

Range voltage

10-15Vdc/20-30Vdc/40-60Vdc/50-75Vdc/60-90Vdc

Output

Output Voltage

110Vac or 220vac±5%

Output Frequency

50Hz or 60Hz±0.1%

Wave

Pure Sine wave

Output Power

600W

1000W

1500W

2000W

3000W

4000W

5000W

Peak Power

1200W

2000W

3000W

4000W

6000W

8000W

10000W

Conversion Efficiency

≥90%

Protect function

Function-1

Input reverse connection protection: Fuse

Function-2

Input low voltage protection : 20Vdc±0.3V

Function-3

Recovery voltage : 24V(25.5V±0.3)

Function-4

Input high voltage protection: 30Vdc±0.3V

Function-5

Over temperature protect: 80°±5°

No-load current

0.3A

0.6A

0.7A

0.7A

1.0A

1.0A

1.0A

Over load protection

660±50W

1100±50W

1650±50W

2200±50W

3300±50W

4000±50W

5000±50W

Total Harmonic Distortion

≤3%

Working temperature

-5~+50℃

Storage temperature

-20~+70℃

Cooling method

Intelligent temperature controlled air cooling

Mechanical properties

Input terminal

Terminal form

Output socket

According request

Housing material

Aluminum

Size(mm)

200*173*76

310*173*76

340*173*76

360*173*76

400*242*88

400*242*88

420*242*88

Weight (kg)

2.1

3.2

3.5

4.5

8.5

9.5

10.5







Product Details

2000W Inverter (3)2000W Inverter (5)2000W Inverter (6)2000W Inverter (8)2000W Inverter (1)2000W Inverter (7)

Customized range



Regard as the inverter we can customize different specification according to your request

  • Input: 12Vdc/24Vdc/48Vdc/60Vdc /72vdc
  • Output: 110Vac/220Vac 60/50Hz
  • Rate Power : 300W/600W /1000W/1500W/2000W/3000W/4000W/5000W
  • Peak Power : 600W /1200W/2000W/3000W/4000W/6000W/8000W/10000W

Rate Voltage input

Rate power

Peak Power

12/24/48/60/72vdc

600W

1200W

1000W

2000W

1500W

3000W

2000W

4000W

3000W

6000W

4000W

8000W

5000W

10000W
