Mini EDM portable tap burner metal spark eroding machine

  • 1 Sets
    $2,570.00
  • >=2 Sets
    $2,185.00
Model Number:
SFX-4000B
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Sets)
Graphic customization (Min. Order: 10 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Place of Origin:
Henan, China
Brand Name:
SFX
CNC or Not:
Normal
Condition:
New
Dimension(L*W*H):
420*220*370mm
Certification:
CE/ISO9001:2008
Voltage:
110V/220V,50/60Hz
Stepper Current:
Yes
Depth setting:
Yes
Auto retract and alarm:
Yes
Accessories storage:
One-in-box
Electrode chuck diameter:
2~13mm
Working liquid:
Tap water
Depth of spindle servo:
70 mm
Processing speed:
2mm/min
Power Box Size:
420*220*370 mm
Working Head Size:
300*50*50 mm
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Power(W):
3Kw
Weight:
22 Kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X33X46 cm
Single gross weight:
26.0 kg
Package Type:
Double 5-layer corrugated case and EPE foam cushion. Strong and safe to reach customer's hand.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 2 To be negotiated
Video Description

Mini EDM portable tap burner metal spark eroding machine

China,Russia and USA Warehouse Fast Delivery&Free Shipping

No damange to the threads and work pieces!

Features:

  • Input power 3000W
  • Light, small, portable, and compact design allows the SFX-4000B tap remover to be moved and used anywhere in the shop.
  • High speed and efficiency at a low cost.
  • Simple set up and operation allows easy removal of taps anywhere.
  • Power source choices 100V/110V/120V/200V/230V/240V, 1PHASE, 50HZ/60HZ
  • Dielectric Machine uses ordinary tap water as dielectric liquid.
  • Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10,ø11,ø13,ø16,ø18 )
  • Note: ø1~ø11 are round brass rod, ø13,ø16,ø18 are hexagonal brass rod)
  • Small size and magnetic base allow machining even on large work pieces.
  • Removes taps with no damage or stress to the work piece.
  • Additional applications include cutting tungsten carbide or any other conductive material.?

Machining Functions:

  • Auto Feed
  • Depth setting (stops at a specific depth)
  • Selectable arcing timer
  • Auto retract
  • Swiveling work head
  • Alarm messages: depth arrival, arcing, over-temp.

Specification:

Stepper Current adjustmentYes
Depth setting, auto reatract and alarmYes

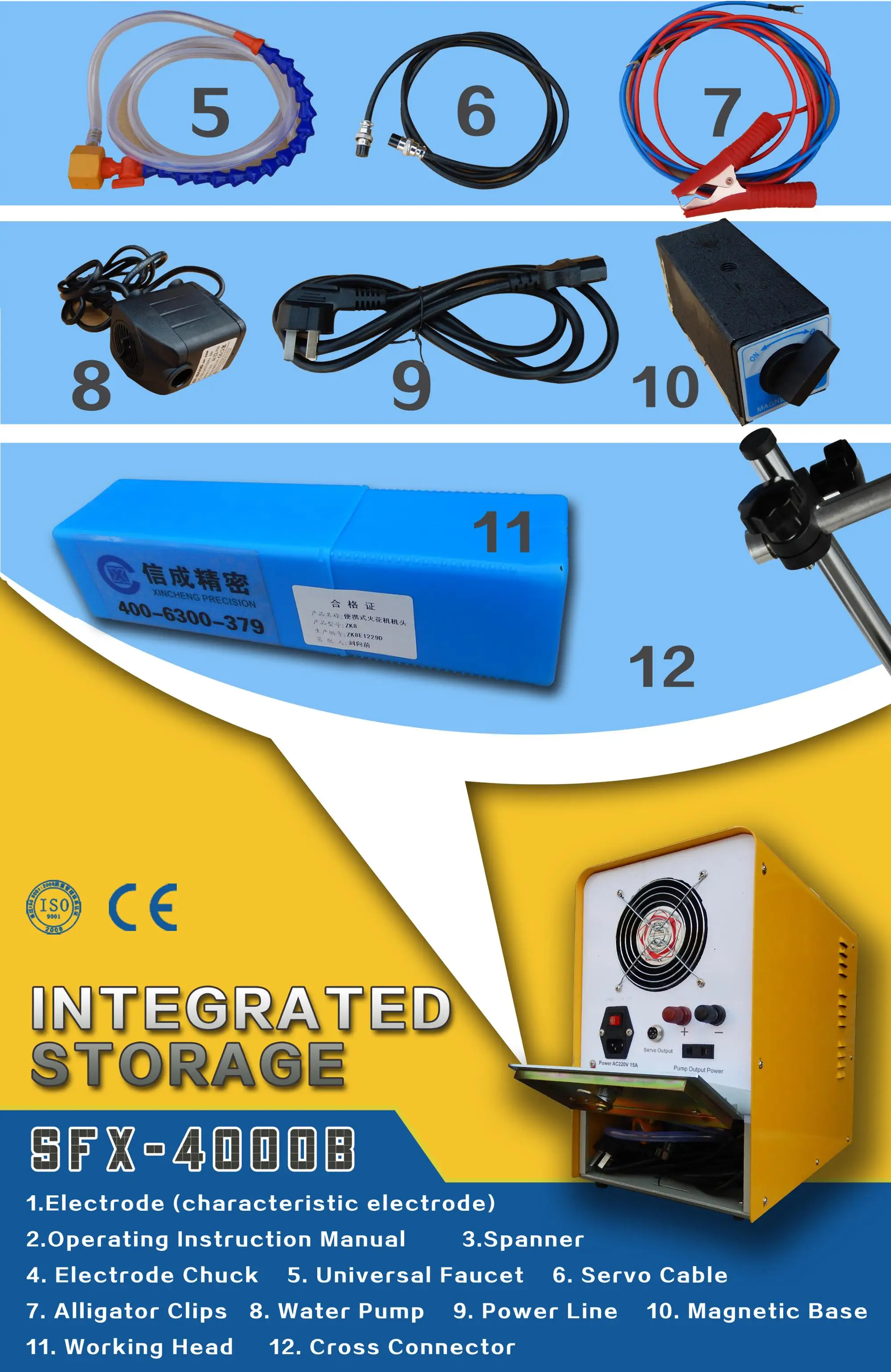

Accessories storageOne-in-Box
Input Power3000w
Electrode chuck diameter2~13 mm
Working LiquidTap water
Max Process Depth of spindle servo70mm
Short Hole Processing Speed2mm/min
Power Box Size420*220*370 mm
Model and size of working headDK8 300*50*50 mm
Packing Size528*325*460 mm
Net Weight22 Kg





Advantage: One of the big advantages of using the SFX Portable EDM machine is it's portability. Portability allows one to take the machine to the work and do the hole making or stud extraction work in place. Without the Portable EDM, broken bolts or taps may require removal of the engine head or block in a car or truck in order to extract the broken piece. Additionally, the SFX Portable EDM machine will work in any directions, ie, upside down or horizontally, etc. Most EDM machines are not portable and require that the work be taken to the machine.

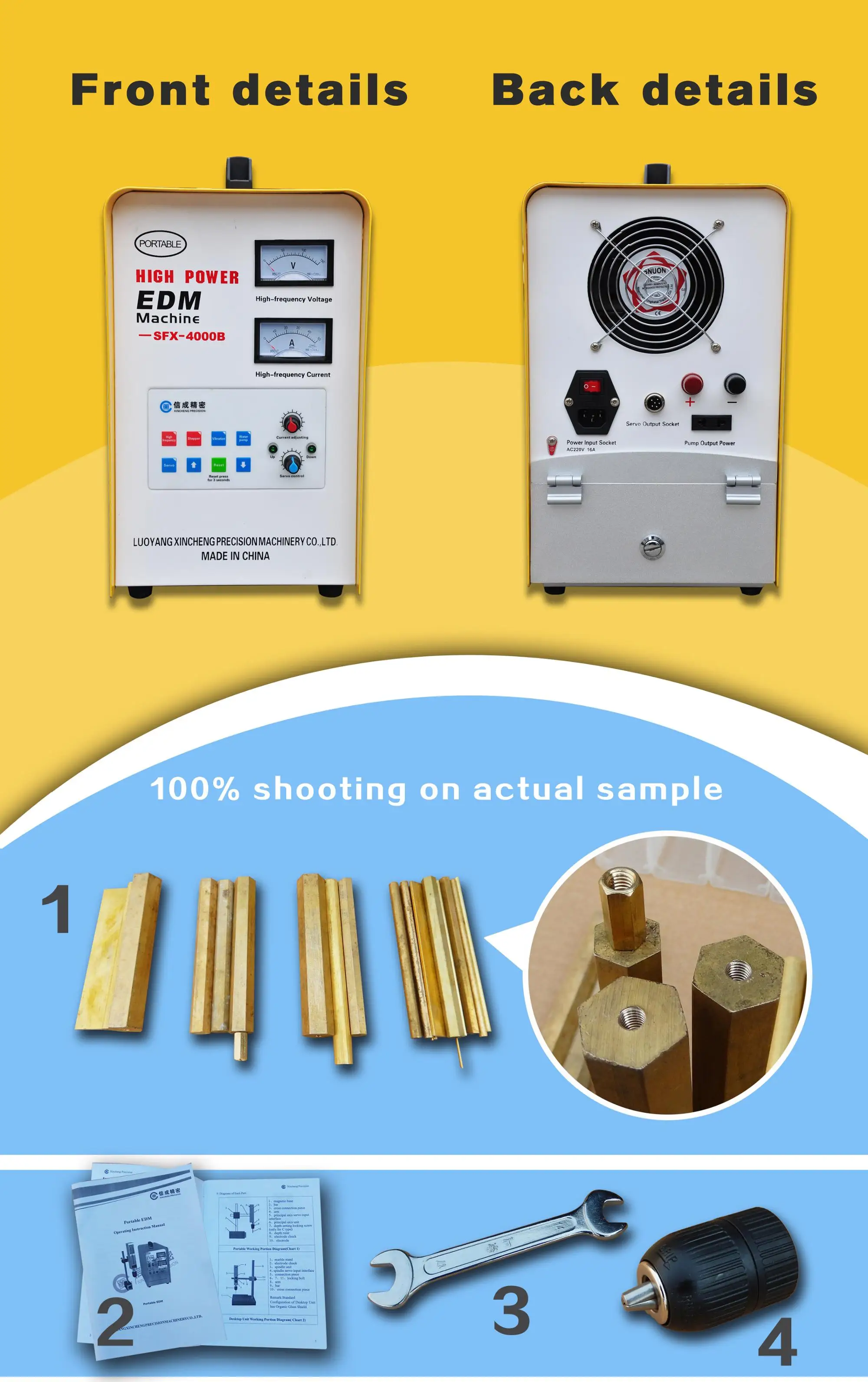

Portable edm SFX-4000B details

1.jpg2.jpgSFX-4000B packing.jpg

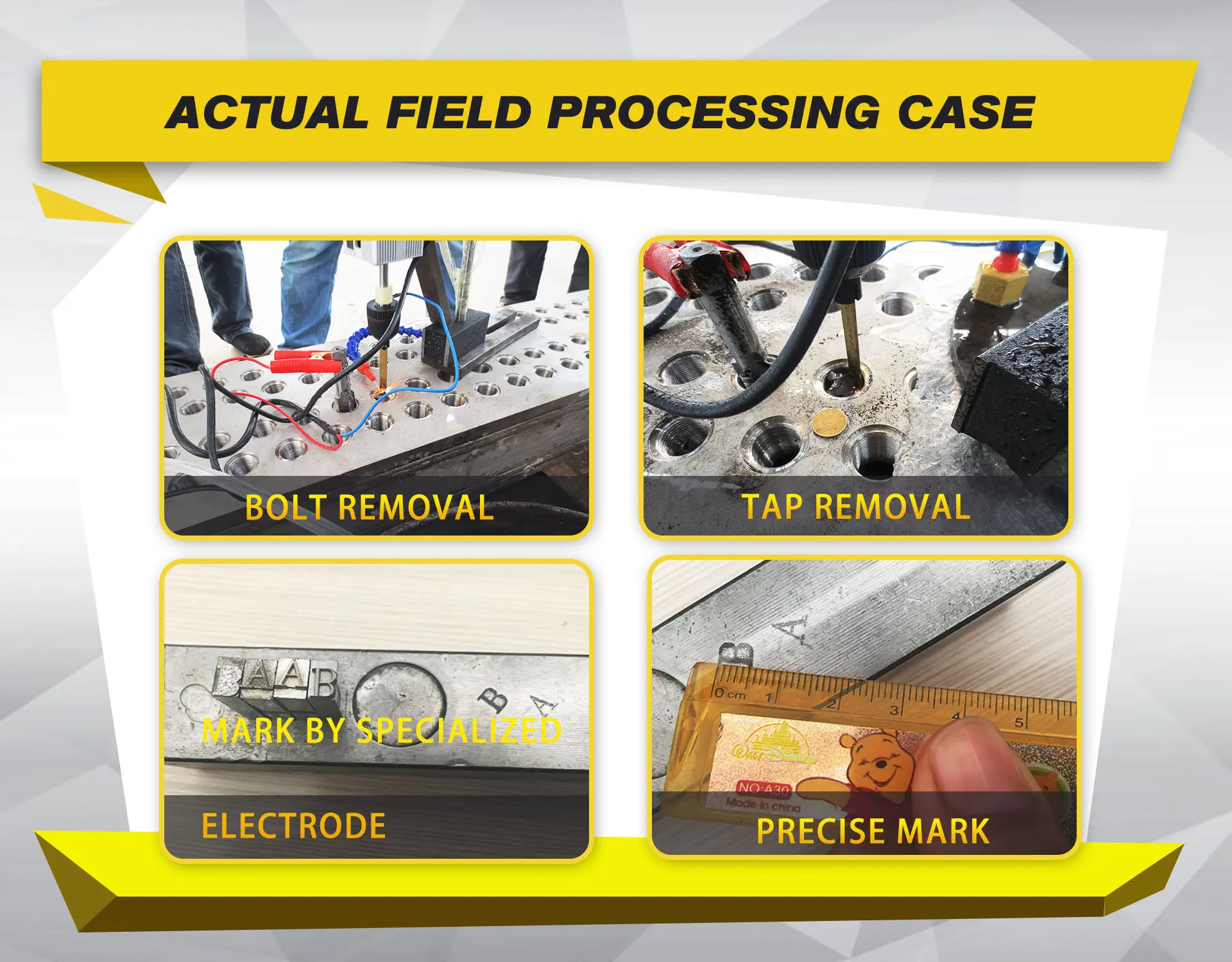

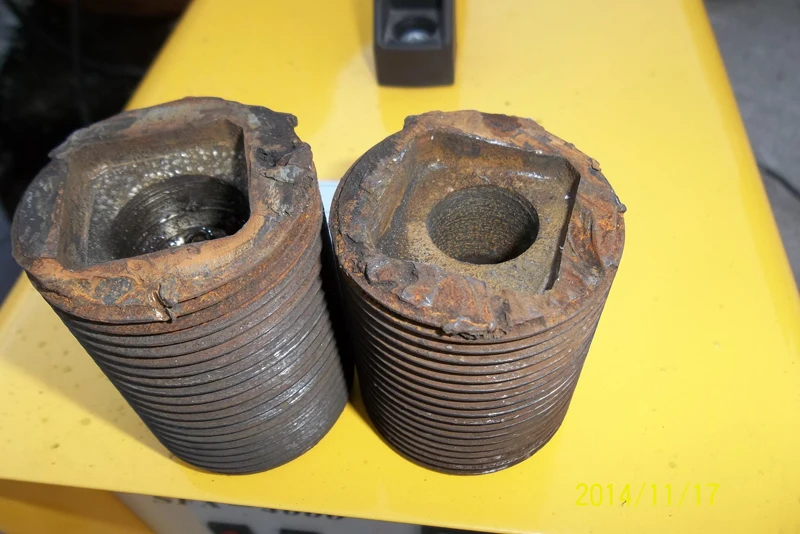

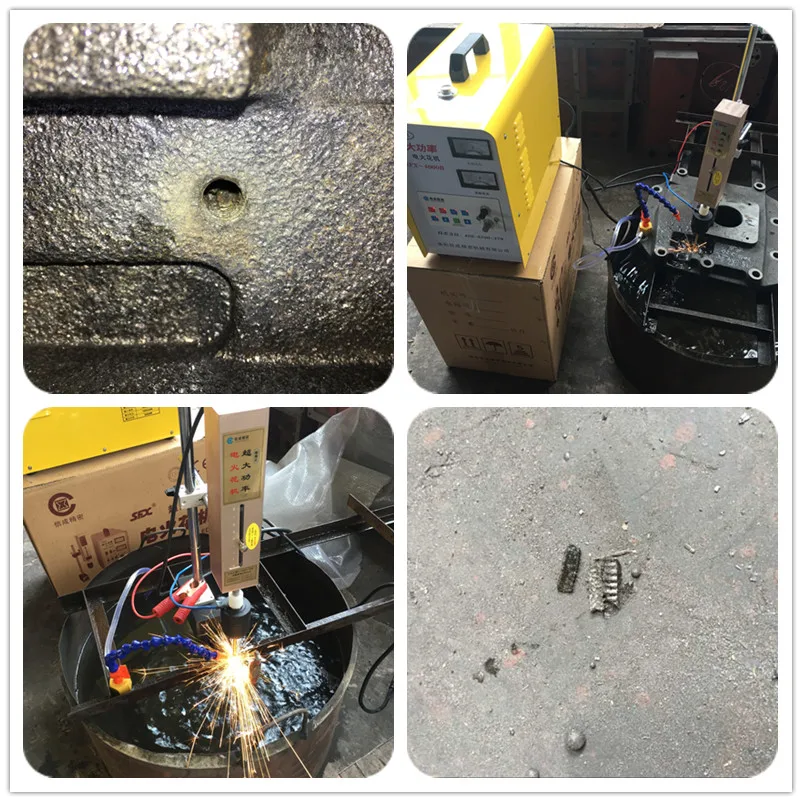

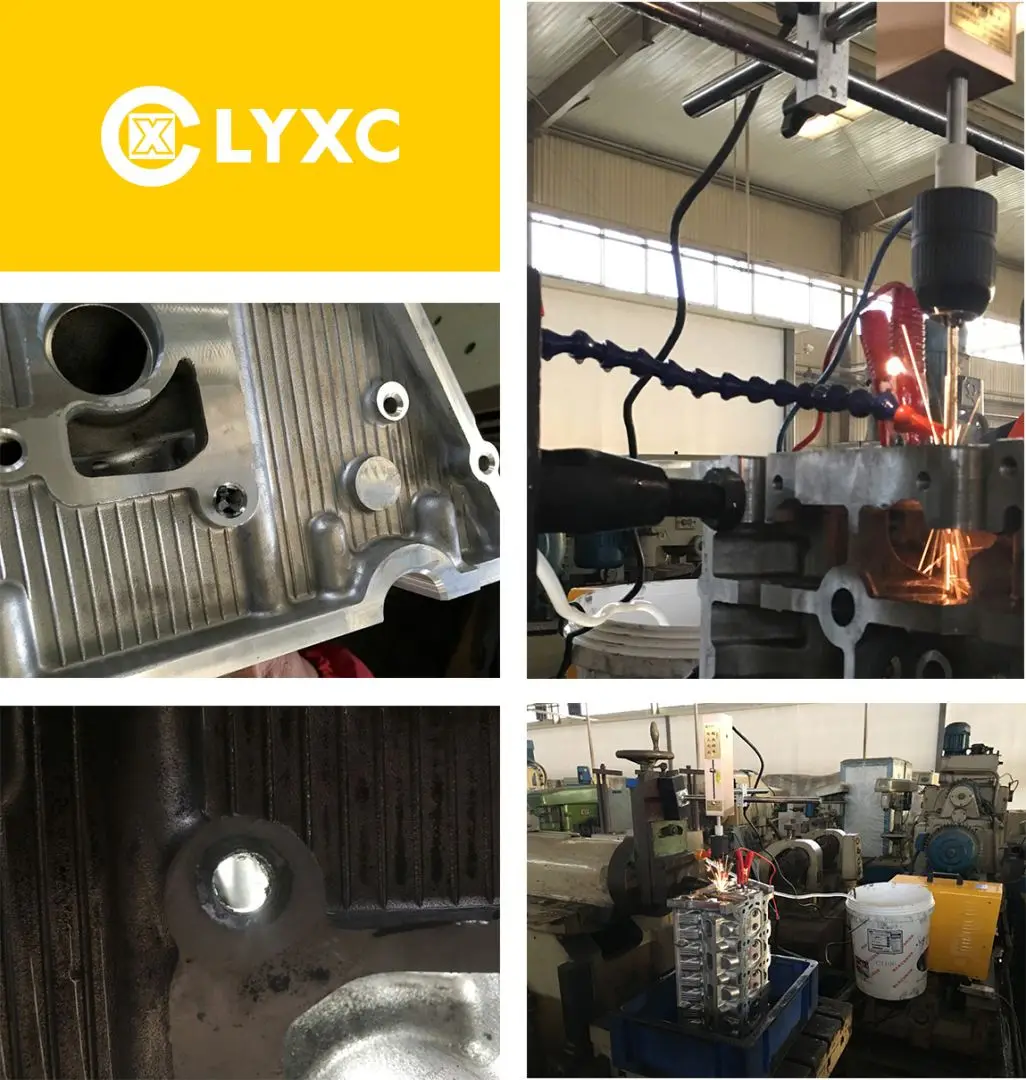

Actual Processing case.jpg1.jpg2.jpg3.jpgBroken Tap Removal.JPG



Firstly, the products will go through a thorough quality test to enure 100% running in perfection before delivery.

Secondly, the warranty is 1 year. During this period, we would repair the machine for free including the new parts needed for repair.

Note:Man-made damage is out of warranty coverage




1.How big size can your machine remove?

-Usually,our SFX-4000B can remove M2 to M36 taps,screws,studs,drills,drifts,etc.

-So far the largest size is M48 we've removed with sheet electrode.

2. How long will it take to remove one tap?

-It depends on the size of the broken taps;The processing speed is 1~2mm/min normally.

10~20 minutes to solve your broken taps headache.

3.Can I use it to process blind hole or via?

-Yes, the processing depth can be set(stop at a specific depth) and the working head can auto retract and alarm when bottoming.

4. Can I use it for wire-electrode cutting or drilling?

-Yes, but please note it is not high precision equipment which has a +0.3mm tolerance.
