Portlar
Wifi, SATA, Ekran port, Ethernet, M.2, USB 3.0, PCI-E 3.0
Yonga seti
Intel Kaby Lake Chipset
Menşe Yeri
Shenzhen, China
bellek bankası
2xSODIMM DDR4
CPU türü
Core i7/Core i5/Core i3/Pentium/Celeron
Sabit disk arabirimi
SATA, M.2 SATA/NVME 2280
Marka adı
ELSKY Brand / OEM
Product Name

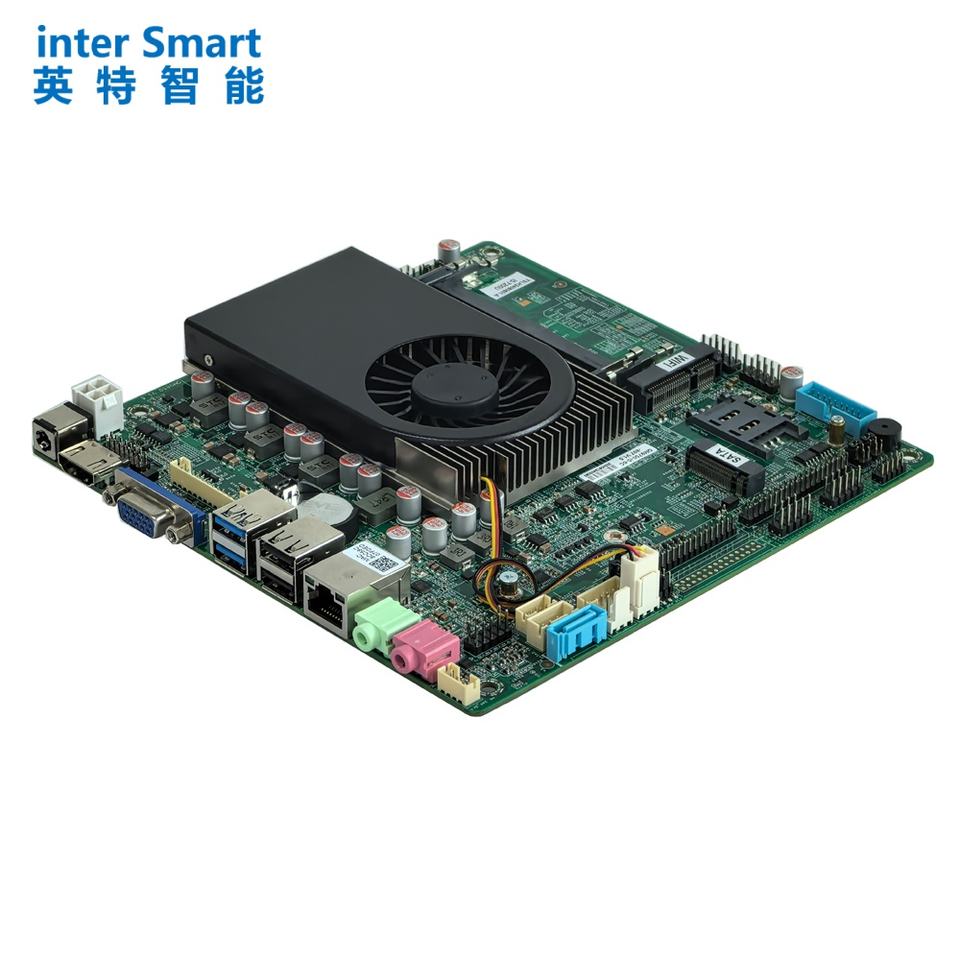

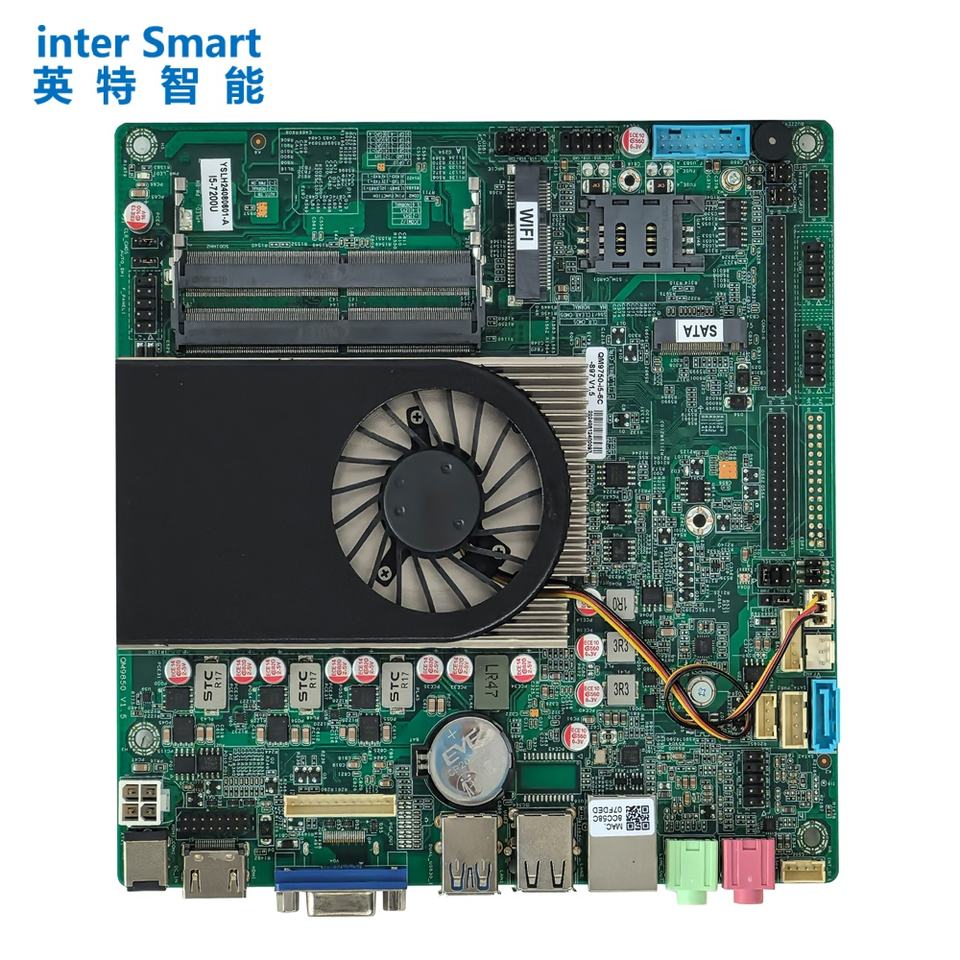

Computer Motherboard for Smart City Kiosk
CPU Support
Skylake 6th / Kaby Lake 7th / Kaby Lake R 8th Celeron Core i3 i5 i7
Models
QM9650 QM9750 QM9850
Display
VGA /DP, HD-MI, LVDS/EDP; Max 3 Multi-display
Operating System
Win10/Win11/Linux
LAN
Realtek GbE LAN Chip (10/100/1000 Mbps); Option 2xLAN
Expansion Slots
1* Mini-PCIE Slot
Power Supply
DC input 12V or 19V
Graphics
Processor Integrated Graphics
Application
All-in-one PC, Self Service Kiosk, POS Terminal, Digital Signage, etc
