Mini OBDII Bluetooth 4.0 V1.5 PIC18F25K80 chip obd car diagnostic scanner for vehicles obd2

  • 2-49 Sets
    $8.17
  • 50-199 Sets
    $7.95
  • 200-499 Sets
    $7.74
  • >=500 Sets
    $7.52
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 2000 Sets)
Customized packaging (Min. Order: 2000 Sets)

More

Graphic customization (Min. Order: 2000 Sets) Less
Samples: $8.17 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $8.17 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Boyna
Model Number:
OBT4A-S-K
Power:
25mA
Voltage:
9V~16V
Certification:
CE
Type:
Code Reader
Applicable Models:
for most OBD2 compatible vehicles
Warranty:
1 Years
Item Type:
Car Diagnostic Scanner
Model number:
MINI OBDII Bluetooth 4.0
Communication method:
Bluetooth 4.0
Software platform:
Support Android / IOS / Windows
Operating temperature:
-40℃~85℃
Operating humidity:
<60%
Dimensions:
48mm*25mm*25mm
Language:
English
Size:
25*10*8cm
Weight:
0.025Kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X6.5X3 cm
Single gross weight:
0.05 kg
Package Type:
paper box + carton box, or OEM as your request 1pc * MINI OBDII Bluetooth 4.0 Car Diagnostic Scanner
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 200 201 - 1000 1001 - 10000 >10000
Est. Time(days) 5 8 15 To be negotiated





Product Description

Mini OBDII Bluetooth 4.0 V1.5 PIC18F25K80 chip obd car diagnostic scanner for vehicles obd2


Item TypeCar Diagnostic Scanner
Model numberMINI OBDII Bluetooth 4.0
Communication methodBluetooth 4.0
Software platformSupport Android / IOS / Windows
Operating voltage9V~16V
Operating current25mA
Operating temperature -40℃~85℃
Operating humidity<60%
Dimensions48mm*25mm*25mm
LanguageEnglish
Size25*10*8cm
Weight0.04Kg



Mini OBD2 Bluetooth 4.0 Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth 4.0. Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).



Mini OBD2 Bluetooth 4.0 Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth 4.0.



Top 5 Reasons To Get Mini OBD2 Bluetooth 4.0 Scanner:

1. Software Version: V2.1 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. Wireless (Bluetooth)

5. Support Four operating platforms (IOS, Android, Symbian, Windows)

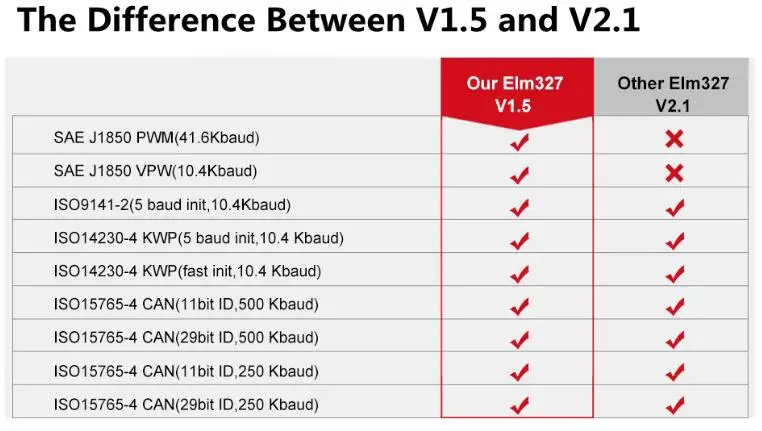

 V1.5  - V2.1.jpg

Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)



Mini OBD2 Bluetooth 4.0 Scanner Specifications:

Communication: Bluetooth 4.0

Main Chip: PICI8F25K80

Support System: IOS, Android, Symbian, Windows

Working Voltage: 9v ~ 16v

Working Current: 35mA

Standby Current: 25mA

Operating temperature: -40  ~ 85

Working Humidity: less than 60%

Size: 43mm * 25mm * 30mm



Compatible systems:

Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.

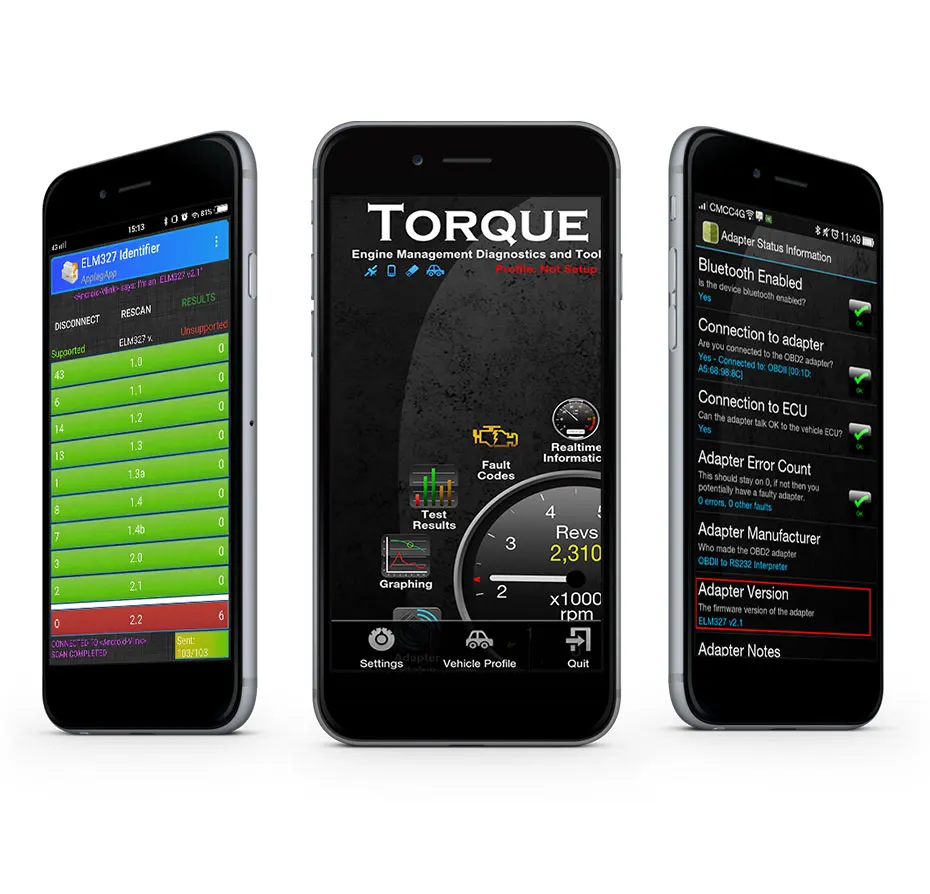

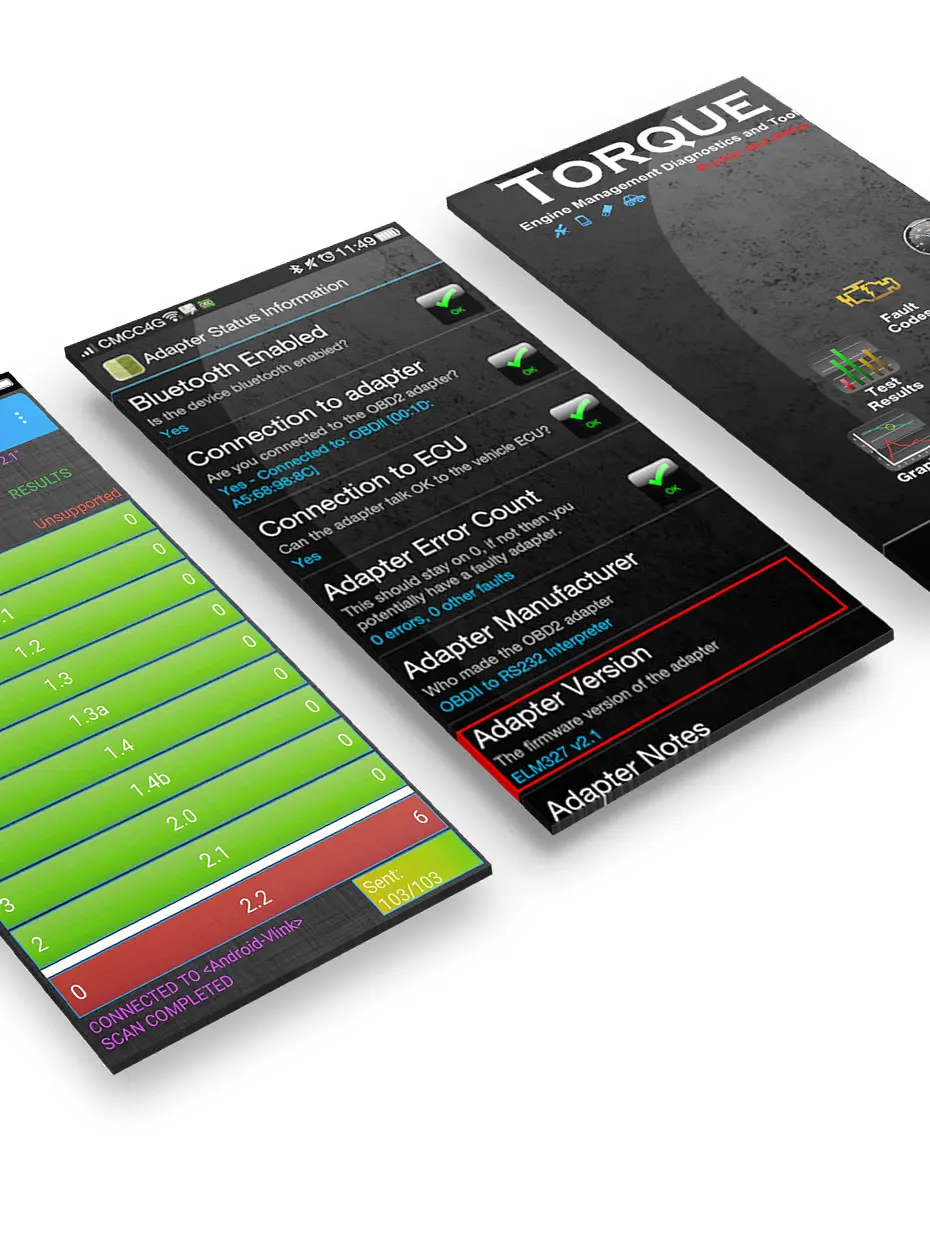

Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, ELM327 Identifier, ELM327Chat etc.

IOS: Auto Doctor, Mini OBDII

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian: OBDScope



Mini OBD2 Bluetooth 4.0 Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others


Packaging & Shipping



Packing list:

1pc x Mini OBD2 Bluetooth 4.0

1pc x Box



Package:

Poly bags + carton box, or OEM as your request



Delivery Time:

3-7 working days for samples; 7-30 working days for bulk goods.
