Mini OV2640 Camera Module CMOS Image Sensor Module for Arduino

FOB Reference Price:Get Latest Price
  • 10 - 499 Pieces
    $2.00
  • 500 - 9998 Pieces
    $1.00
  • >=9999 Pieces
    $0.90
Lead Time:
Quantity(Pieces) 1 - 9999 >9999
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
D/C:
PO
Package:
100
Model Number:
POA4334715
Type:
Logic ICs
Brand Name:
AGOAL
Place of Origin:
CHINA
Shipping by:
DHL\UPS\Fedex\EMS\HK Post
Payment:
Paypal
Packaging:
Safe
Supply Ability
Supply Ability:
9999 Piece/Pieces per Week
Packaging & Delivery
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 9999 >9999
Est. Time(days) 7 To be negotiated

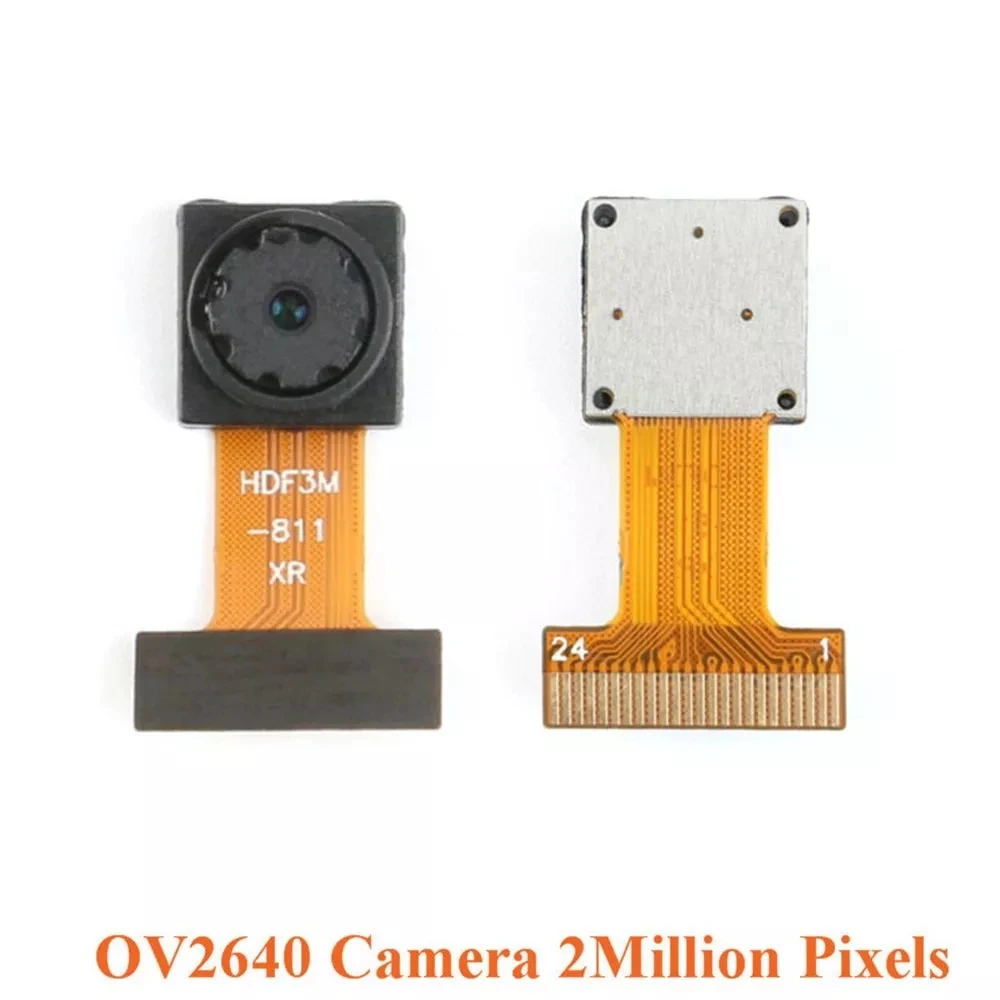

OV2640 Camera

Click to download document: OV2640

Features:

1. The OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor.
2. Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The UXGA image of this product can reach up to 15 frames per second (up to 30 frames for SVGA and 60 frames for CIF). Users have complete control over image quality, data format and transmission.
3. All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.

Note: This camera module only leads to some pins of the CSP package sensor chip and an optical lens. There is no integrated peripheral components, so you need to design it yourself.

Specifications:

Uses 1.4μm*1.4μm pixel size and uses technology for higher performance (high sensitivity,
Low crosstalk and low noise)
Automatic image control functions: automatic exposure (AEC), automatic white balance (AWB), automatic elimination of light streaks,
Automatic black level calibration (ABLC) and automatic band pass filter (ABF).
Support image quality control: color saturation adjustment, tone adjustment, gamma calibration, sharpness and lens calibration
Standard SCCB interface, compatible with IIC interface
Support RawRGB, RGB (RGB565/RGB555/RGB444), CCIR656, YUV (422/420),
YCbCr (422) and compressed image (JPEG) output formats
Support QSXGA (500W) image size output, and scale down to any other size
Flash support
Support for image scaling, panning, and window settings
Support image compression to output JPEG image data
Support for digital video interface (DVP) and MIPI interfaces
Support auto focus
Built-in embedded microprocessor

Note: This camera module only leads to some pins of the CSP package sensor chip and an optical lens. There is no integrated peripheral components, so you need to design it yourself.
