Mini Pocket wifi router 5G portable router qca9531 and qca9887

FOB Reference Price:Get Latest Price
US $17-22 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Oolite
Model Number:
MiniBox V3.2
Chipset:
QCA9531 & QCA9887
Frequency:
5.180GHz-5.850GHz; 2.412-2.472GHz
RAM:
128MB
ROM:
16MB
VCC:
5V
EEPROM:
32Kbit
Wireless Speed:
300Mbps
Interface:
1*USB;1*WAN+1*LAN;1*PCIE;1*UART console
Antenna:
3*external antenna
Size:
64mm x 44.7mm x22.5mm(L x W x H)
Packaging & Delivery
Packaging Details
plastic tray or blister
Port
shenzhen
Lead Time :
20-25 working days
Product Description

Mini Pocket wifi router 5G portable router qca9531 and qca9887

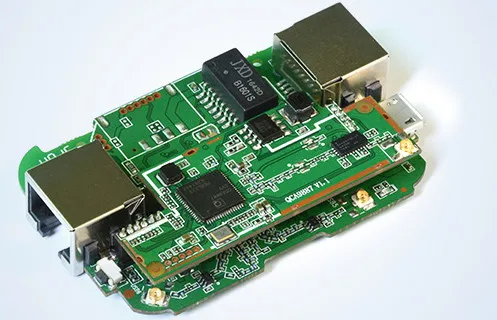

MiniBox V3.2 is exquisite portable and small wireless router that supports 5G WIFI and 2.4G WIFI. It compatible 802.11 a/b/g/n/ac maximum wireless rate can reach to 300Mbps.It is made up of base board and module.The base board use the QCA9531 chip that is a highly integrated and feature-rich IEEE802.11n 2x2 2.4 GHz System-on-a-Chip (SoC) for advanced WLAN platforms. The module use the QCA9887 chip which integrates a multi-protocol MAC, PHY, analog-to-digital/ digital-to-analog converters (ADC/DAC),1x1 radio transceivers, and PCI Express interface in an all-CMOS device for lowpower consumption and small form-factor applications.


MiniBox V3.2 has 2 FE RJ45 ports which support both wired connection and wireless connection at the same time.it allows users not only able to share their internet by wired connection but also wireless connection.Its power consumption is very low.


Applications Stage
● Smart home network equipment
● Wireless WIFI device
● Industrial field

blue

black

Products Details

1. Features

>>  CPU: QCA9531 with 550 MHz MIPS 24Kc and QCA9887
>> Supports 20/40/80 MHz at 5 GHz
>> RAM: 128MB DDR2 RAM (64MB optional)
>> Flash: 16MB SPI NOR Flash(8/16/32/64M option)
>> EEPROM:32Kbit
>> USB: 1×Micro USB (support 1×USB2.0)
>> Power supply voltage: 5V
>> Port: 1WAN+ 1 LAN
>> Antenna: 3×external antenna.
>> PCIE:1× PCIE
>> 1×RESET Button
>> 1×UART console


2. MECHANICAL

Dimensions (mm)
Length
Width
Height
64.0
(Tolerance:±0.2mm)
44.7
(Tolerance:±0.2mm)
22.5
(Tolerance:±0.2mm)


4. ELECTRICAL SPECIFICATIONS

Items
Contents
Wireless Standards
IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
5.180 GHz -5.850 GHz, 2.412 - 2.472GHz
Signal Rate
11a: Up to 54Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Wireless Modes
AP Mode, Router Mode ,Client Mode, Repeater Mode, Bridge Mode
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
WAN Type
Dynamic IP, Static IP, PPPoE, PPTP, L2TP
DHCP
Server, Client, DHCP Client List, Address Reservation
Quality of Service
WMM, Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
IPSec, OpenVPN, PPTP, L2TP, GRE
Access Control
Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Management
Access Control     Local Management Remote     Management
Certification
CE, FCC
Package Contents
Power Adapter Quick Installation Guide
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux

RF hardware performance

Item
type
measured parameters
Antenna 0
Frequency error
-1.0ppm
power
CCK 11M 16.0dbm
OFDM 54M 13.5dbm
MCS7(HT20) 13.5dbm
MCS7(HT40) 13.0dbm
EVM
CCK 11M -30.0db
OFDM 54M -32.0db
MCS7(HT20) -31.0db
MCS7(HT40) -31.0db
Reception Sensitivity
CCK 11M -85dbm
OFDM 54M -65dbm
MCS7(HT20) -62dbm
MCS7(HT40) -61dbm
Antenna 1
Frequency error
-1.0ppm
power
CCK 11M 16.0dbm
OFDM 54M 13.5dbm
MCS7(HT20) 13.5dbm
MCS7(HT40) 13.0dbm
EVM
CCK 11M -30.0db
OFDM 54M -32.0db
MCS7(HT20) -31.0db
MCS7(HT40) -31.0db
Reception Sensitivity
CCK 11M -85dbm
OFDM 54M -65dbm
MCS7(HT20) -62dbm
MCS7(HT40) -61dbm


5. ENVIRONAMENT

Operating Temperature
0°C~40°C
Storage Temperature
-40°C ~85°C
Operating Humidity
10%~90% non-condensing
Storage Humidity
Storage Humidity: 5%~90% non-condensing
