Mini desktop 4 axis metal cnc router machine ZK-4040 linear round guide rail stepper motor DSP offline controller

FOB Reference Price:Get Latest Price
US $1,500-3,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Zhuoke
Model Number:
ZK-4040
Voltage:
220V, 220V, 50/60Hz, signle phase
Power(W):
1.5kw
Dimension(L*W*H):
73*81*145cm
Weight:
370KG
Certification:
CE
Working area:
400*400*100mm
Spindle power:
1.5kw water cooling spindle
Working table:
Aircraft aluminium T slot
Guide way:
Linear round guide rail
Transmission:
Ball screw transmission
Driving mode:
Stepper motor
Control system:
DSP offline
Design software:
Artcam 2008
Running environment temperature:
0-45
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
one plywood case, 1.3 CBM
Port
Shanghai/Qingdao/Shenzhen as you need
Lead Time :
7-15 working days

Mini desktop 4 axis metal cnc router machine ZK-4040 linear round guide rail stepper motor DSP offline controller

Product Description

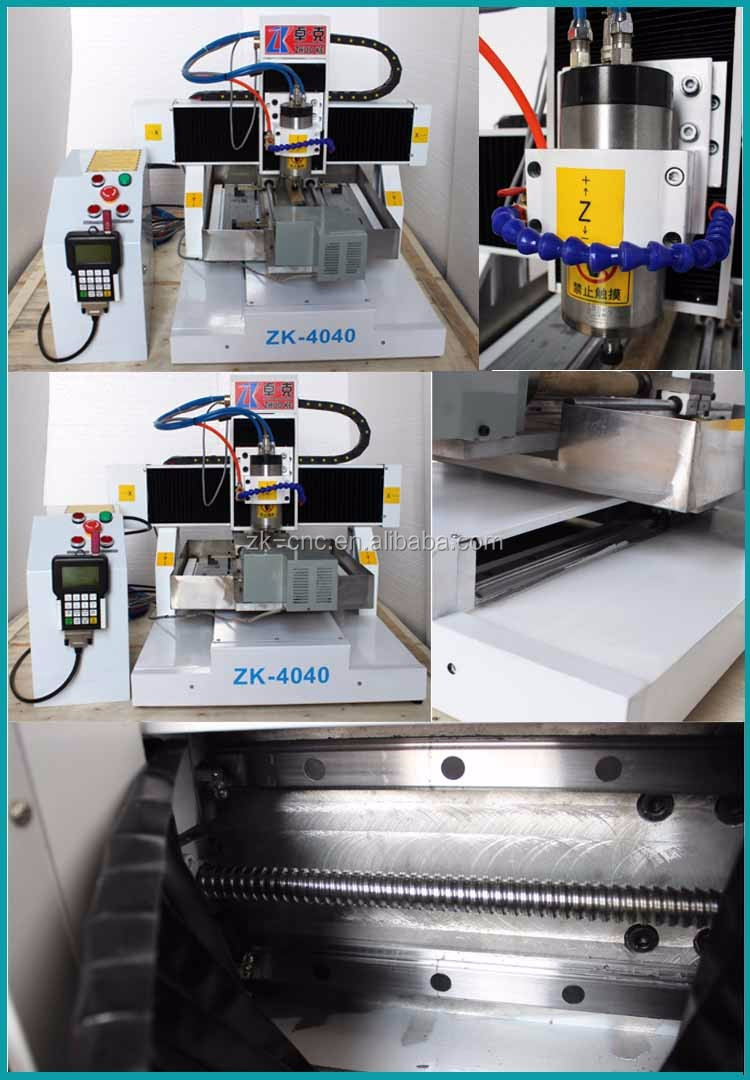

 machine display.jpg

Machine specification:(can be changed according to your need)

Model

ZK-4040 cnc router machine
CerificationCE
Working size400*400
Z-axis100mm
Working tableAircraft aluminium T slot
Moving type Gantry moving
TransmissionBall screw
Driving modeStepper motor
Spindle motor2.2kw water cooling
Collet typeER 20
Suitable tools diameter3.175/4/6/8/10/12.7mm
VoltageAC 220V, 50/60Hz, single phase
Spindle speed0-24000rpm/min
Empty traveling speed0-8000mm/min
Engraving speed0-6000mm/min
Machine accuracy0.05mm
Resetting accuracy0.05m
Diagonal error0.5mm
Control systemMach3
Carving InstructionsG code *U00*mmg *plt HPGL
Design softwareArtcam 2008
Running environment0-45oc

Machine features:

1. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.

2. Adopt 1.5W JST water cooling spindle

3. The machine adopts pl movement, it can process any kinds of materials freely.

4. Three axis adopt imported ball screw and cirle orbit, stable working, high precision and long life time.

5. X&Z-axis is dustproof.It makes sure the steady working performance of the machine for long-term using.

6. Well compatibility:CAD/CAM designing software, e.g.Type3/Artcam/Castmate/Wentai etc.

7. Has the function of forecasting process time.

8. High precision, the curving and linear speeds are consistent.Adopting execellent parts makes the fault rate to be the lowest one.

Machine details:

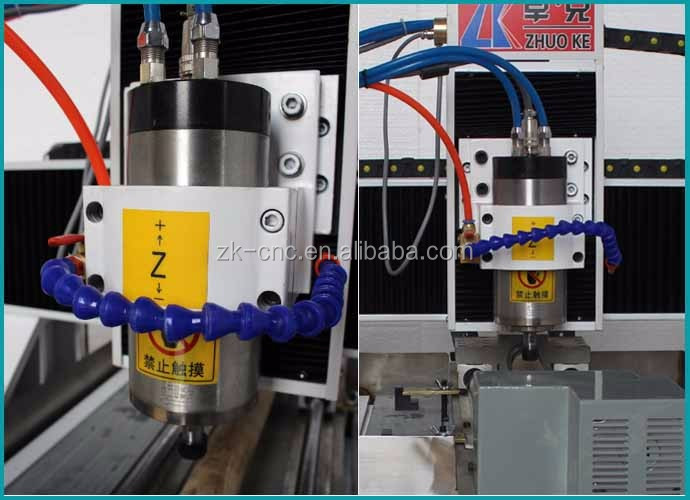

Cast aluminium gantry,platform moving,1.5kw water cooling spindle. Auto tool calibration for Z-axis, help you set the tools, not break the tool nose, ensuring the workpiece high precision processing.

spindle display.jpg

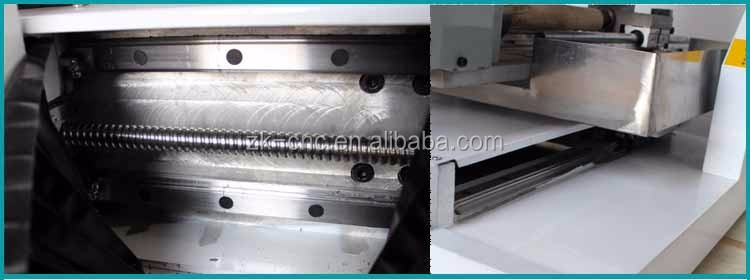

Linear round guide rail,from Taiwan, ensure machine frame much stability and durability,ball screw transmission, precision segmentation, to achieve the high precision engraving.

 guide way&transmission

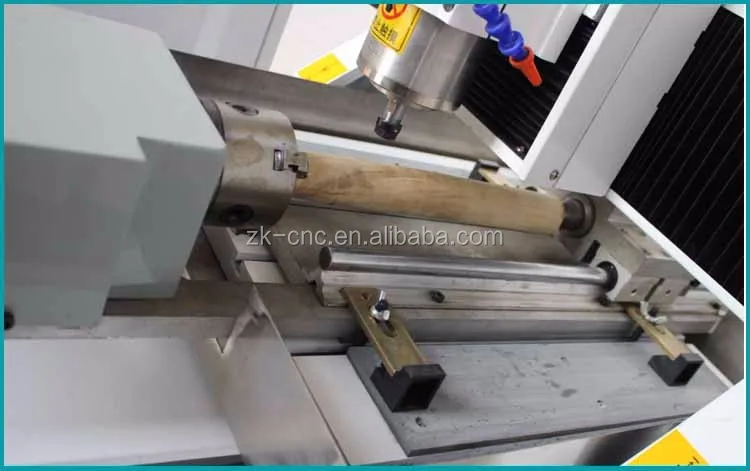

Rotary axis: 80mm diamater, 300mm length, can do round materials.
rotary axis.jpg

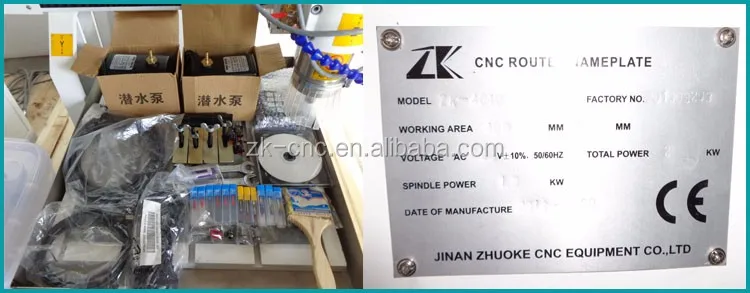

Full accessories can ensure use the machine successfully&Machine nameplate

SAMPLES 2.jpg

 Samples display

Packaging & Shipping

 package 6090.jpg



Company Information

 factory show.jpg



Our Services



service2

FAQ


contact me

 Welcome to contact me anytime if you any questions!contact me.jpg
