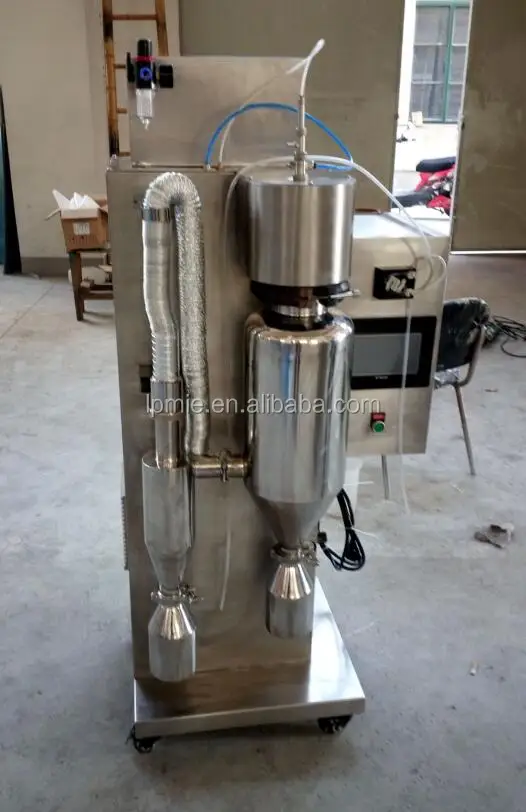

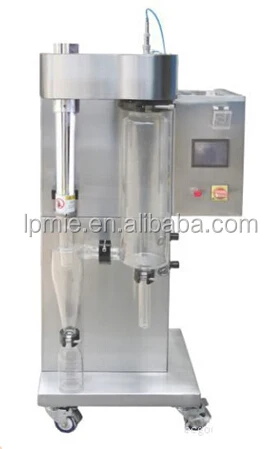

Mini type machine lab use milk spray dryer machine spray drying machine

FOB Reference Price:Get Latest Price
$5,000.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
LPHZ-1500
Condition:
New
Type:
Spray Drying Equipment
Place of Origin:
China (Mainland)
Brand Name:
LPMIE
Voltage:
220V
Power(W):
3.8KW
Dimension(L*W*H):
1500X700X600MM
Weight:
110KG
Certification:
GMP
Material:
Stainless Steel
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export wooden case for Mini type machine lab use milk spray dryer machine spray drying machine
Port
DALIAN
Lead Time :
Shipped in 30 days after payment



Mini type machine lab use milk spray dryer machine spray drying machine



The spray drying machine Mainly used in Colleges and universities, research and food, biological, beverage, chemical, materials, pharmaceutical and other enterprises laboratory research and development and production of particulate trace powder, of all solutions such as emulsion, suspending liquid with broad applicability, applicable to on the heat sensitivity material drying such as biological products, biological pesticide, enzyme preparations, because of the ejected material only in the spray into mist particle size is affected by high temperature, so just an instant heating, can keep the active material in the dry still maintain the active ingredients can not be damaged.



Parameters:



Model

LPHZ-1500

Moisture evaporation rate

1500-3000ml/h

Output powder size

5-80μm

Inlet temperature range

30℃-300℃

Outlet temperature range

30-140

Heating temperature accuracy

± 1

Drying time

1.0-1.5S

Peristaltic pump feeding range

50-3000ml/h

Dry air flow

0-5.5m3/h

Max. wind pressure

686Pa

Spray air flow

4.2m3/h

Spray pressure

2-8bar

Spray system

With standard 0.75mm double-fluid nozzle

Nozzle size

0.5-2.5mm for choosing.

Jet dredge

Striker frequency variable in the range of 0-20S

Spray/hot air flow direction

The same direction, down

Heater power

3KW 220V

Total power

3.8KW 220V

Drying chamber size

D300XH600mm

Machine dimension

700x600xH1500mm

Weight

110KG



Packaging & Shipping

Packaging:



Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.





Shipping:



Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.









Company Information

Liaoyang Pharma Machinery Co., Ltd (LPMIE) is a grouping enterprise which contributes to production and sale of pharmaceutical, chemical and packaging machinery, the group consists of several sub branches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA, Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the products are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine, tea bag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.





Our Services

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.



Technical support:

1, Technical support by phone, email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery overseas



After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.



You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.





FAQ

Why choose us?

11 years golden supplier of Alibaba.

20 years experience of machinery.

Trade assurance member of Alibaba.



How long can we get the goods?

For standard machine, we usually delivery in two weeks.

Customized machine delivery in 30-60 days.





How should I do if meet some trouble while using?

We supply 24 hours online service.





What is your terms of payment?

100% Payment before shipment or as negotiated terms with clients.
