Molex Rearview Mirror DVR car waterproof GPS GLONASS BEIDOU GALILEO Navigator Receiver GPS mouse, LED indicator, NEMA protocol

  • 2-50 Pieces
    $14.00
  • 51-99 Pieces
    $12.60
  • 100-999 Pieces
    $10.20
  • >=1000 Pieces
    $10.00
Screen Size:
no screen
Memory Capacity:
Other
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
14 day(s) after payment received
Samples: $14.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $14.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HR
Model Number:
HR-56R-MT-P02
Type:
Gps Receiver
Use:
Automotive
Warranty:
1 Years
Interface:
Molex/ USB/ Free ends/ RS232/ PS2
Main Chip:
MTK GPS Chipest
Cable Length:
1.5 Meters
Ultra high Track sensitivity::
-165dBm
Baud Rate:
4800bps to 115200bps, 9600bps by default
Module Size:
55x46x14.5mm
Wide voltage range:
3.0V to 5V
Communication type:
UART/TTL/RS232/USB
Operating temperature:
-40℃ to +85℃
Protocol:
NMEA-0183 compliant protocol or custom protocol

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X20X5 cm
Single gross weight:
0.2 kg
Package Type:
Standard & Safe
Lead Time :
Quantity(Pieces) 1 - 2000 >2000
Est. Time(days) 14 To be negotiated

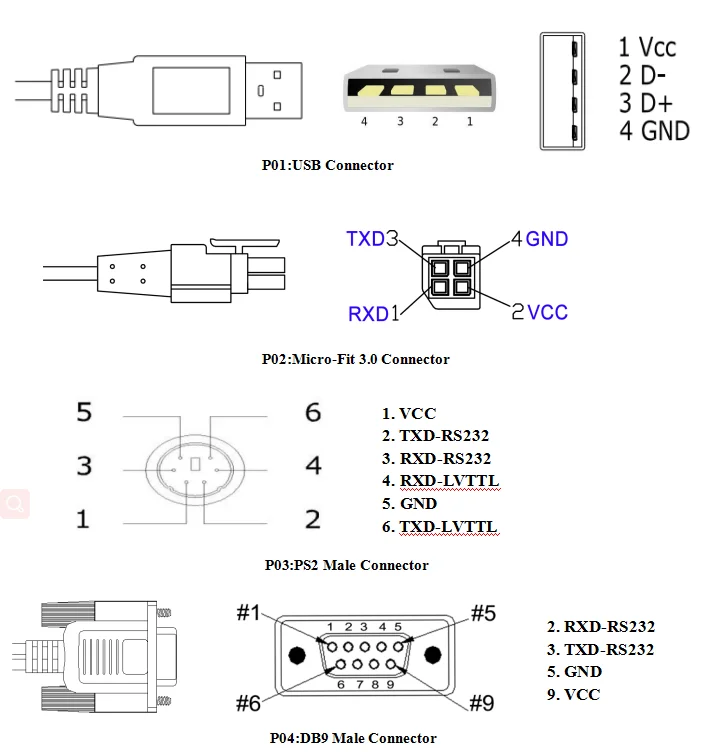

GPS mouse interface options


product description.jpgMolex Rearview Mirror DVR car waterproof GPS GLONASS BEIDOU GALILEO Navigator Receiver GPS mouse, LED indicator, NEMA protocol

Part#: HR-56R-MT-P02

-The Molex connector GPS Receiver Module we are going to ship is based on the below default.

-For your customized requirements, like connector type, pin assignment, cable length, main chip, baud rate, etc, please kindly contact us before purchasing. Thank you.



The default GPS receiver module is as below:

       -Bands: GPS bands

       -Connector: Molex (as per the drawing below)

       -Cable length: from 1.5 meters to 3 meters (depending on our stocks)

       -Mounting: Magnetic

       -Chip: MediaTek single chip

       -Baud Rate:  9600bps

       -Module Type: UART/ RS232

       -Waterproof degree: IP67

       -LED indicator: Available



Product Description

1. Application

The Gmouse is equipped with a P01-P07 Connector to your application platform and power supply connection.

The HR-56R-MT Gmouse It consists of a MediaTek MTK single chip GNSS IC which includes the RF part and Baseband part, USB,RS232 level conversion chip, a patch antenna, a LNA, a SAW filter, a TCXO, a crystal oscillator, Also comes with a 0.22F crystal capacitor ,can backup satellite ephemeris about 2 hour.


Pin Assignment

2 Description

2.Key Features

Parameter

Specification

Power Supply

• Supply voltage:  3.3V~5.5V  Typical: 5.0V

Power Consumption

• Acquisition:  45mA @VCC=VBAT=5.0V

• Tracking:  40mA @VCC=VBAT=5.0V

Receiver Type

• Code 66 search channels, 22 synchronous tracking channels

• GPS L1 1575.42MHz C/A

    SBAS: WAAS, EGNOS, MSAS, GAGAN

Sensitivity

• Tracking:   -165dBm

• Re-acquisition:   -156dBm

• Acquisition:   -146dBm

TTFF (Autonomous)

• Cold start:  35s  typ @-130dBm

• Warm start:  30s  typ @-130dBm

• Hot start:  1s  typ @-130dBm

Horizontal Position

Accuracy (Autonomous)

• <2.5m CEP @-130 dBm

Max Update Rate

• Up to 1Hz by fault

Accuracy of 1PPS Signal

• not enabled

Acceleration Accuracy

• Without aid: 0.1m/s²

Dynamic Performance

• Maximum altitude: 18,000m

• Maximum velocity: 515m/s

• Acceleration: 4G

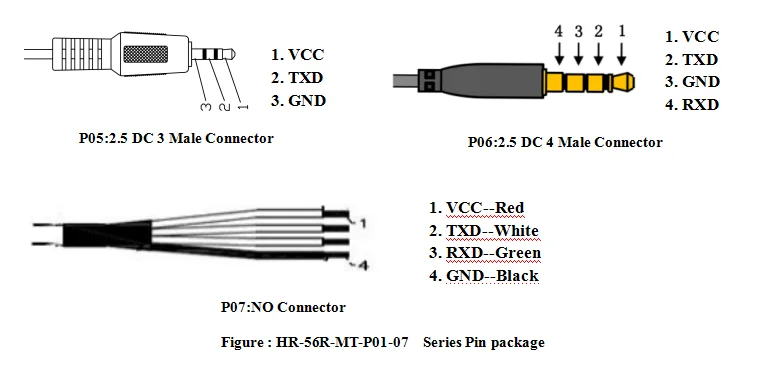

Pin Port

• Reference P01-P07

• Supports baud rate from 4800bps to 115200bps, 9600bps by default

• All port is used for NMEA output, MTK proprietary

    commands input and firmware upgrade.

Temperature Range

• Normal operation: -40°C ~ +85°C

• Storage temperature: -45°C ~ +125°C

Physical Characteristics

• Size: 55±0.20 × 46±0.20 ×14.5±0.20mm

• Connecting line specifications: Reference P01-P07, L=150cm

• Weight: Approx.28g

2.2 Power Supply

Regulated power for the HR-56R-MT is required. The VCC Pin Need a stable DC voltage supply. Power supply ripple must be less than 30mV. The input voltage Vcc should be 3.3V~5.5V, Recommended power supply voltage is 5.0V. maximum current is 45mA. Suitable decoupling must be provided by external decoupling circuitry.

2.3 RS232 Ports

The module supports two full duplex serial channels RS232. All serial connections are at 5.0V TTL logic levels, if need different voltage levels, use appropriate level shifters. The baud rate of both serial ports are fully programmable, the data format is however fixed: X, N, 8, 1, i.e. X baud rate, no parity, eight data bits and one stop bit, no other data formats are supported, LSB is sent first. The modules default baud rate is set up 9600bps, however, the user can change the default baud rate to any value from 4800 bps to 38400kbps. RS232 is used e.g. for booting and NMEA interface.

  CON Pin Description

Pin No.

Pin name

I/O

Description

Remark

RS232 Port (P02:Micro-Fit 3.0 Connector)

1

RXD

O

 Data Input(RS232 level)



2

VCC

I

Module Power Supply

Voltage range: 3.0V~5.0V

3

TXD

I

 Data output(RS232 level)



4

GND

G

Ground



2.4 UART Ports
  The module supports two full duplex serial channels UART. All serial connections are at 3V CMOS logic levels, if need different voltage levels, use appropriate level shifters. The baud rate of both serial ports are fully programmable, the data format is however fixed: X, N, 8, 1, i.e. X baud rate, no parity, eight data bits and one stop bit, no other data formats are supported, LSB is sent first. The modules default baud rate is set up 9600bps, however, the user can change the default baud rate to any value from 4800 bps to 115kbps. UART port can be used for firmware upgrade, NMEA output and UBX proprietary commands input.

CON PIN Description

Pin No.

Pin name

I/O

Description

Remark

UATR Port (P02:Micro-Fit 3.0 Connector)

1

RXD

I

UART Serial Data Input



2

VCC

I

Module Power Supply

Voltage range: 3.0V~5.0V

3

TXD

O

UART Serial Data output



4

GND

G

Ground
