Multi-Function Automatic High Speed Potato Chips/pet food/rice packaging machine Manufacturers

  • 1 - 1 Sets
    $23,000.00
  • >=2 Sets
    $21,500.00
Power:
5.5KW
Model Number:
SW-PL1
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Material (Min. Order: 1 Sets)
Language (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Spare parts
Local Service Location:
none
Showroom Location:
none
Condition:
New
Function:
FILLING, sealing, Weighing
Application:
Food, BEVERAGE
Packaging Type:
BAGS, Film, FOIL
Packaging Material:
plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V 50/60Hz
Place of Origin:
Chile
Brand Name:
Smart Weigh
Dimension(L*W*H):
(L)3770X(W)2670X(H)1450mm
Certification:
CE Certification
Key Selling Points:
Easy to operate
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
MOTOR, pump, PLC, GEAR
After-sales Service Provided:
Engineers available to service machinery overseas
material:
stainless steel 304
Warranty:
15 months
Supply Ability
Supply Ability:
35 Set/Sets per Month potato chips packing machine
Packaging & Delivery
Packaging Details
Polywood case
Port
Zhongshan port, China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Video Description
Products Description
Model
SW-PL1
System
Multihead weigher vertical packing system
Application
Granular product
Weigh range
10-1000g (10 head); 10-2000g (14 head)
Accuracy
±0.1-1.5 g
Speed
30-50 bags/min (normal)
50-70 bags/min (twin servo)
70-120 bags/min (continuous sealing)
Bag size
Width=50-500mm, length=80-800mm(Depends on packing machine model)
Bag style
Pillow bag, gusset bag, quad-sealed bag
Bag material
Laminated or PE film
Weighing method
Load cell
Control penal
7” or 10” touch screen
Power supply
5.95 KW
Air consumption
1.5m3/min
Voltage
220V/50HZ or 60HZ, single phase
Packing size
20” or 40” container
Application

Dog food

Rice

Potato Chips

Features
Multi-mouth top cone and "U" shape feeding pan
Customized top cone for small granule products, especially for sugar, rice and salt. Prevent the products go out when feeding.
Standard top cone and feeding pan
Standard top cone and feeding pan is not suitable for sugar, rice and salt.
Anti-leak hopper
Ruggedized hopper avoids big weight products break through the hopper. This design reduces the hopper gap, no leaking problems.
Standard hopper
Products may break through the hopper and leak from hopper gap.
Detailed Images

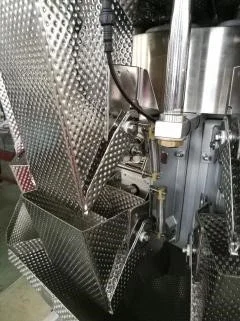

Multihead Weigher

* IP65 waterproof, use water cleaning directly, save time while cleaning;
* Modular control system, more stability and lower maintenance fees;
* Production records can be checked at any time or download to PC;
* Load cell or photo sensor checking to satisfy different requirements;
* Preset stagger dump function to stop blockage;
* Design linear feeder pan deeply to stop small granule products leaking out;
* Refer to product features, select automatic or manual adjust feeding amplitude;
* Food contact parts disassembling without tools, which is easier to clean;
* Multi-languages touch screen for various clients, English, French, Spanish, etc;
* PC monitor production status, clear on production progress (Option).

Vertical Packing Machine

* SIEMENS PLC control system, more stable and accuracy output signal, bag-making, measuring, filling, printing, cutting,
finished in one operation;
* Separate circuit boxes for pneumatic and power control. Low noise, and more stable;
* Film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
* Open door alarm and stop machine running in any condition for safety regulation;
* Film centering automatically is available (Optional);
* Only control touch screen to adjust bag deviation. Simple operation;
* Film in roller can be locked and unlocked by air, convenient while change film
Payment terms
Delivery: Within 35 days after deposit confirmation.
Payment: TT, 50% deposit, 50% before shipment; L/C;
Trade Assurance Order.
Service: Prices do not include engineer dispatching fees with oversea support.
Packing: Plywood box.
Warranty: 15 months.
Validity: 30 days.
Hot Products
Production procedures
Company Introduction
FAQ

1. How can you meet our requirements and needs well?
We will recommend the suitable model of machine and make the unique design
based on your project details and requirements.

2. Are you manufacturer or trading company?
We are manufacturer; we arespecializing in packing machine line for many years.

3. What about your payment?
* T/T by bank account directly
* Trade assurance service on Alibaba
* L/C at sight

4. How can we check your machine qualityafter we place an order?
We will send the photos and videos of the machine to you to check their running situation before delivery. What's more, welcome to come to our factory to check the machine by you own

5. How can you ensure you will send us the machine after the balance paid?
We are a factory with business license and certificate. If that is not enough, we can make the deal through trade assurance service on Alibaba or L/C payment to guarantee your money.

6. Why we should choose you?
* Professional team 24 hours provide service for you 15 months
warranty Old machine parts can be replaced no matter how long you have bought our machine
* Oversea sevice is provided.
