Attributes
1300×2500Working Table Size(mm)
CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
220V 50Hz 1Pvoltage
17Power (kW)
weight (kg):1000
warranty:1 Year
range of spindle speed(r.p.m):0 - 24000 rpm
positioning accuracy (mm):0.03
number of axes:8
No. of Spindles:Multi
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.03
brand name:Blue Elephant
dimension(l*w*h):1300*2500*200mm
key selling points:Easy To Operate
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor

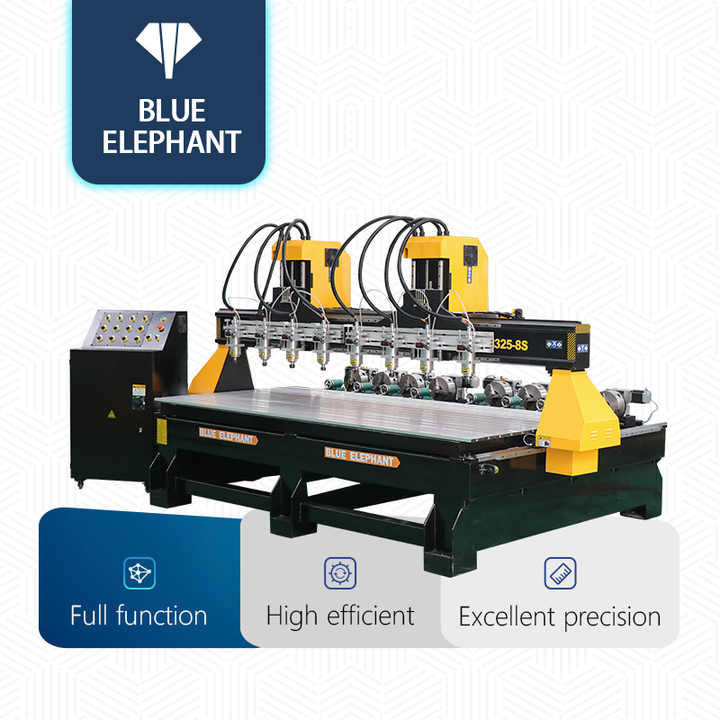

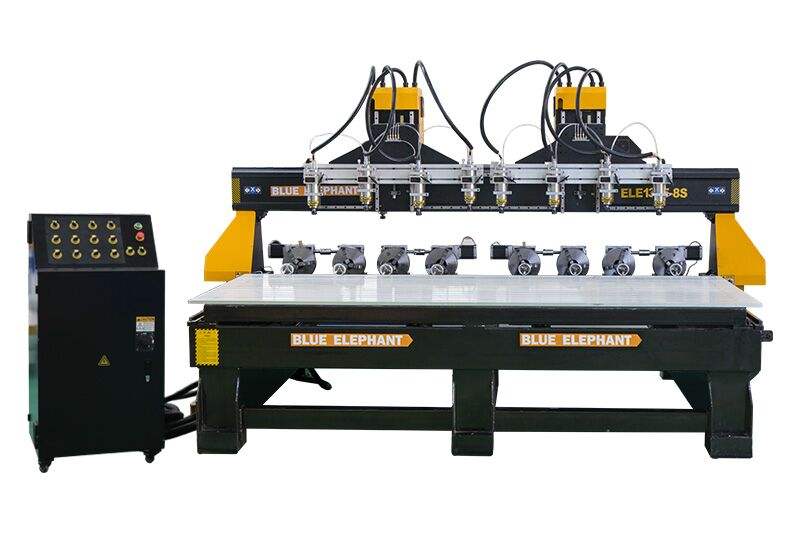

Product name:CNC Wood Working Machine
Application:Kitchen Cabinet Doors Furnitures Making
Working area:1300*2500*200mm
Spindle:2.2kw water cooling spindle, 0-24000RPM * 8 sets
Control system:DSPB18 4 axis control system
Motor and driver:750W leadshine easy servo motor
Working Table:Movable T-slot working table
limit switch:Japan OMRON limit switch
Software systerm:Artcam software 2012 Carcktype
After-sales Service Provided:Online Support
Selling Units:Single item
Single package size:130X250X20 cm
Single gross weight:68.000 kg
