Multi-Purpose ATC CNC Router for Small Business at Home

  • 1-2 Sets
    $4,000.00
  • >=3 Sets
    $3,800.00
Model Number:
1224
$
- +
available
1325
$
- +
available
1530
$
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
14 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Positioning Accuracy (mm):
0.03 mm
No. of Spindles:
ATC
Working Table Size(mm):
1300×2500
Machine Type:
CNC Router
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.03 mm
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
Forsun
Voltage:
AC380V/50HZ
Dimension(L*W*H):
3700*2200*1650mm
Certification:
CE
Weight (KG):
1600
Key Selling Points:
Multifunctional
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Name:
Multi-Purpose ATC CNC Router for Small Business at Home
Spindle:
9KW ATC Spindle from Italy
motor and driver:
SIEMENS AC SERVO Motor and Driver
inverter:
Taiwan Delta inverter
Transmission in X, Y axis:
German Helical Rack and opinion
Z axis transmission:
25 Taiwan TBI Ball Screw
Guide rail:
Taiwan HIWIN Linear Guide Rail
control:
SIEMENS controller
Key words:
Multi-Purpose ATC CNC Router
Other Name:
CNC Router for Small Business at Home
Warranty:
2 years

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X50 cm
Single gross weight:
2000.000 kg
Package Type:
Standard export wooden cases
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 To be negotiated
Video Description

Multi-Purpose ATC CNC Router for Small Business at Home

Feature

What is the feature of our ATC CNC Router Machine ?

Ø Effective working area: 1300*2500mm*200mm

Ø 9kw Italy HSD ATC air cooling spindle

Ø 11kw Taiwan Delta inverter

Ø German SIEMENS 808D control system

Ø German SIEMENS servo motor

Ø Carousel 12 PCS Tool Magazine

Ø Vacuum & T-slot working table

Ø Taiwan TBI Ball Screw,Helical Rack and Pinion



Advantages
What is the advantage of our ATC CNC Router Machine ?

Spindle

Italy HSD Air Cooling Spindle
 Top brand of the world. Spindle speed: 0-24000RPM.

Inverter

Taiwan Delta Inverter

It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control.

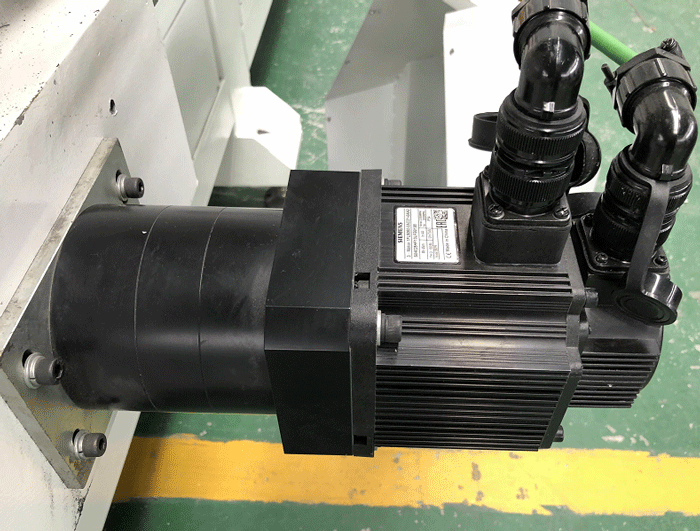

Motor

German SIEMENS servo motor.

high working efficiency and stable running promised

Control system

SIEMENS 808D Controller
Thanks to its panel based design philosophy, and IP65’s protection level, the SINUMERIK 808 series is ideal for harsh environments.

Working table

T-slot and Vacuum Table
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place.

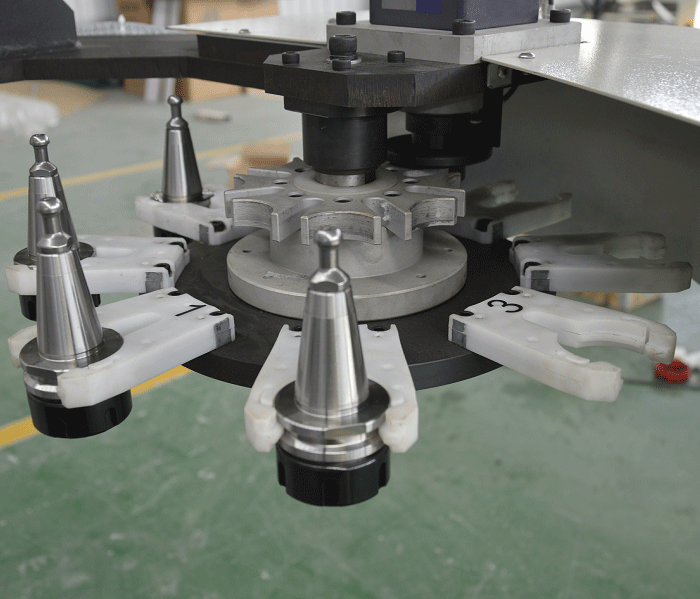

 Tool magazine

Carousel 12 PCS Tool Magazine

The use of an 12 Tool Rotary Carousel speeds up tool changes assuring faster cycle times increasing production throughput.



 Technical Data

NO

Description

Parameter

1

Positioning Accuracy

±0.03/300mm

2

Max. Rapid Travel Rate

80000mm/min

3

Max. Working Speed

45000mm/min

4

Spindle Speed

0-24000RPM

5

Command Language

G Code

6

Flash Memory

512M

7

Collet

ER32

8

X,Y Resolution

<0.03mm

9

Running Environment Temperature

0 - 45 Centigrade

10

Relative Humidity

30% - 75%

11

Packing Size

3520*2280*2100mm

12

N.W.

1800KG

13

G.W.

2000KG



Benefits

What is the benefit of our ATC CNC Router Machine ?

1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.

2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards,

artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum

Packaging & Shipping

How do we package and ship our ATC CNC Router Machine ?

Our Services

What's our services are provided for our ATC CNC Router Machine ?

Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas

After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by



Why Choose us???:



Customer Visit

Customer visiting our factory



FAQ

What do customer usually ask about ATC CNC Router Machine?

1) This is the first time I use this kind of machine, is it easy operate?

There are guide video that show how to use machine and english instruction book send to you with machine.

If there is still have any question, we will provide free professinal guide for you until you could use machine well.

2) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

3) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
