Multi stages Tipper Dump Truck Hydraulic Cylinder (Hyva/Parker/Penta Type)

FOB Reference Price:Get Latest Price
$780.00 - $1,980.00 / Pieces | 1 Piece/Pieces (Min. Order)
Maximum Stroke:
9960mm
Shaft Diameter:
90mm-280mm
Model Number:
OEM
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 2000 2001 - 5000 >5000
Est. Time(days) 35 40 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Dump truck and tipper truck
Standard or Nonstandard:
Nonstandard
Structure:
Piston Cylinder
Power:
Hydraulic
Body Material:
45# Seamless Steel,27SiMn
Place of Origin:
Shandong, China
Brand Name:
TRUCK CYLINDER
Color:
Black ,blue ,red, yellow
Certificate::
ISO/TS16949
Working pressure::
16MPa-24MPa
Coating::
Hard Chrome
Packing:
Pallet and Plywood Case
Warranty:
One Year
Used for:
Tipper truck,dump truck
Hyva type:
the same
Test:
100% tested
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Pallet,Plywood Case or according to customers requirement
Port
Qingdao
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 2000 2001 - 5000 >5000
Est. Time(days) 35 40 45 To be negotiated
Video Description

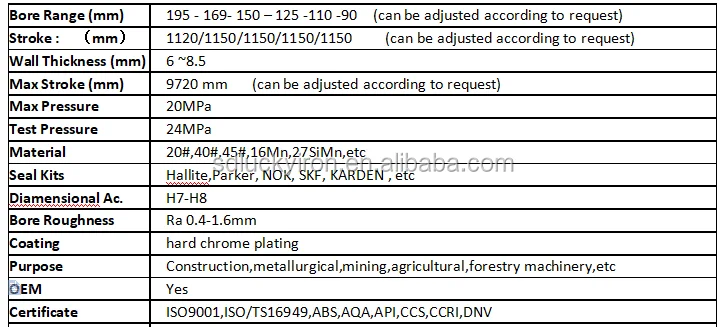

Product Description

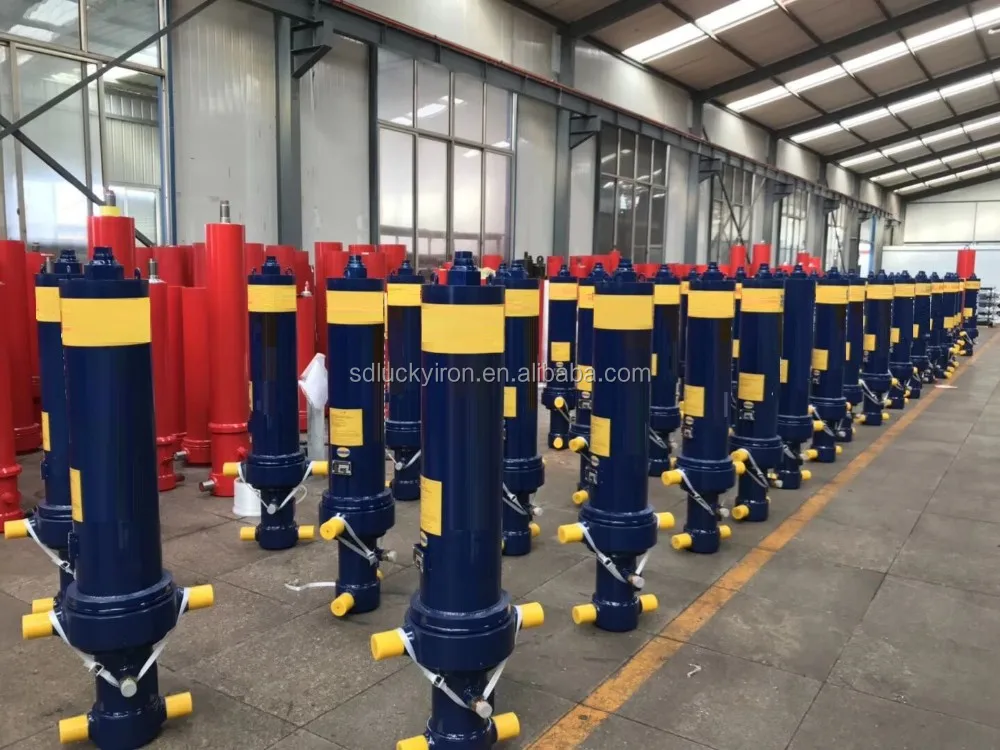

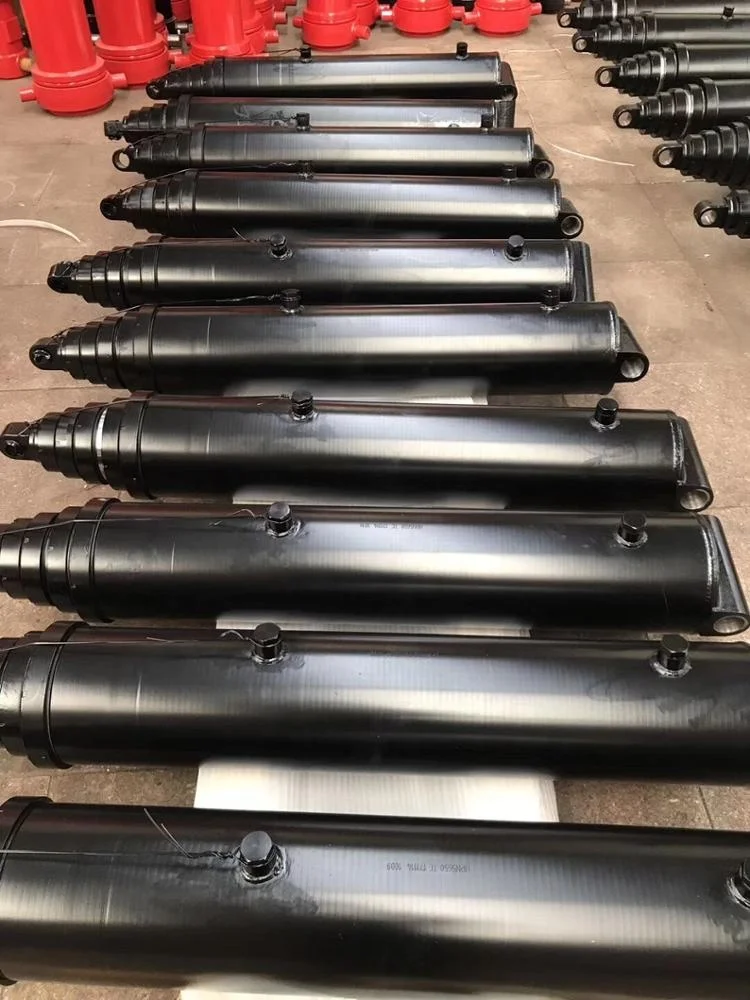

Products Show

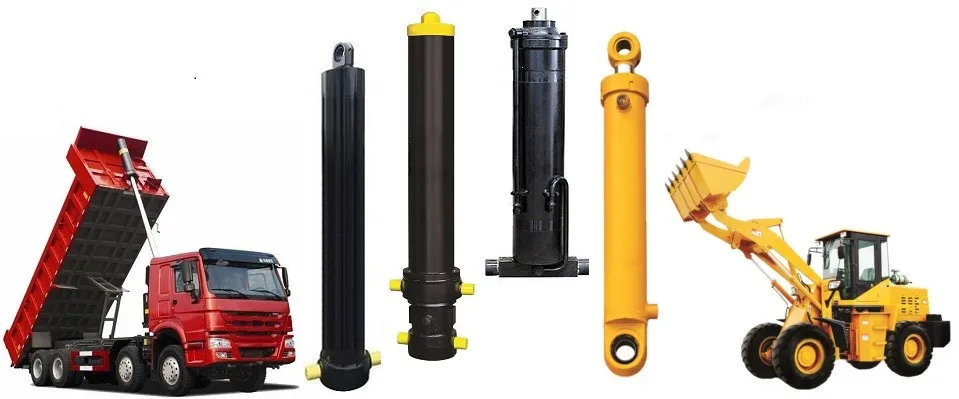

Application


FC Hydraulic Cylinder


FE Hydraulic Cylinder


MODEL: FE or FC type

Lifting Weight: 40T -90T

Sleeves. O.D.:225/195 175/150/130/110/91MM

Max. Stroke: 9980MM

Weight: from 125kg to 680KG per piece

Effective Dia of first stage : 91MM

Each Stage Stroke: from 1015mm to 1090mm

Closed Body Length: from 1.2m ~  2.1M

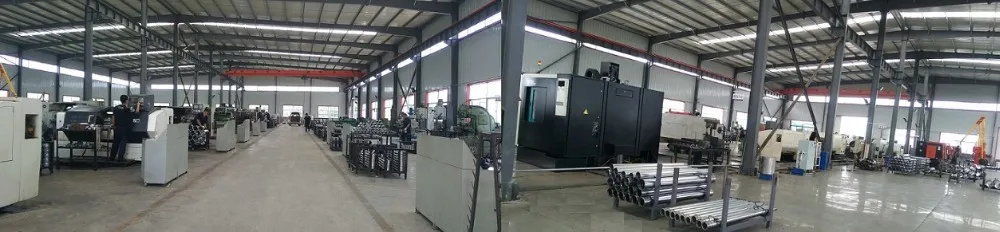

Our Company
Our Advantage

1.With more than 20 year's working experience ,our factory developed to top hydraulic cylinders manufacturer.

2.We provide a wide range of hydraulic cyliners. Such as agricultural hydraulic cylinders,single acting hydraulic cylinders ,double acting hydraulic cylinders , hydraulic power units system , cold drawn pipe and so on. Our main products are telescopic hydraulic cylinders and hydraulic power units. All cylinders passed ISO 9001:2008 quality system.

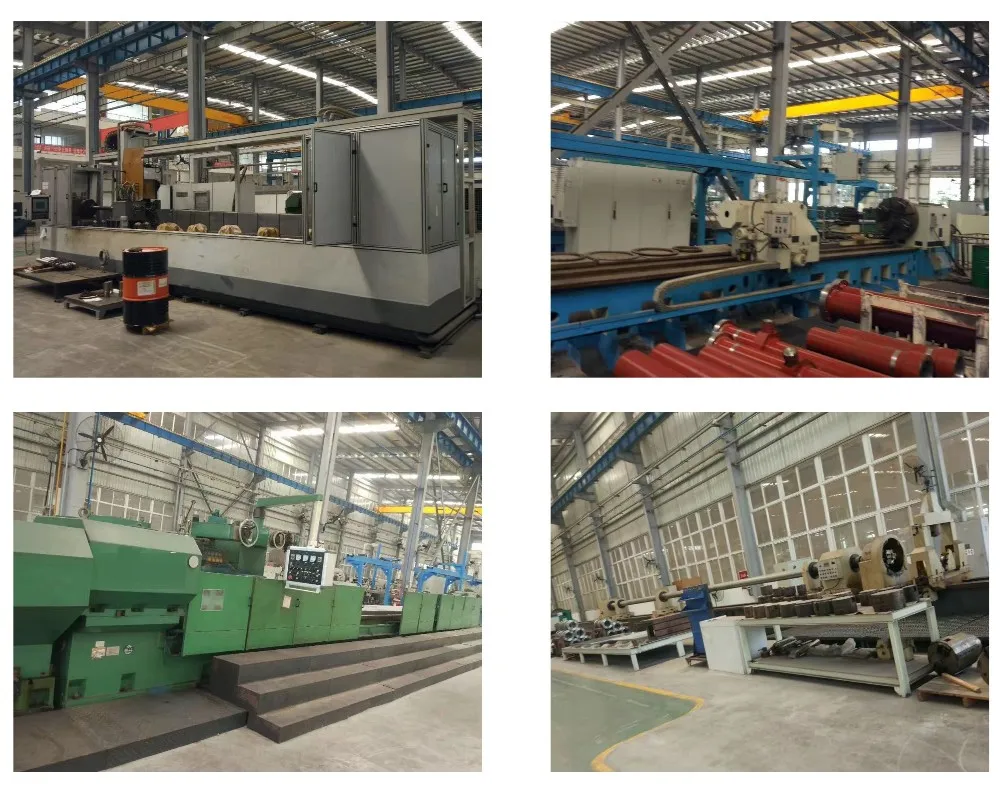

3.We have advanced equipment and excellent staff. Equipment include the heat treatment ,CNC lathe, hard chrome chrome equipment ,the cold drawing,honed etc.


4. IF customer has particular needs, our experienced staff can provide design drawing service.


5. Our cylinders have been exported to many countries. Such as Australia ,Canada, Mexico ,Thailand ,Italy etc. We got very good faceback from our overseas customers.


6. High quality ,competitive price ,excellent service and safety delivery are our main target.


7. We sincerely welcome you to visit our factory have a look. Hope we could cooperate with you on the basis of mutural benefit.

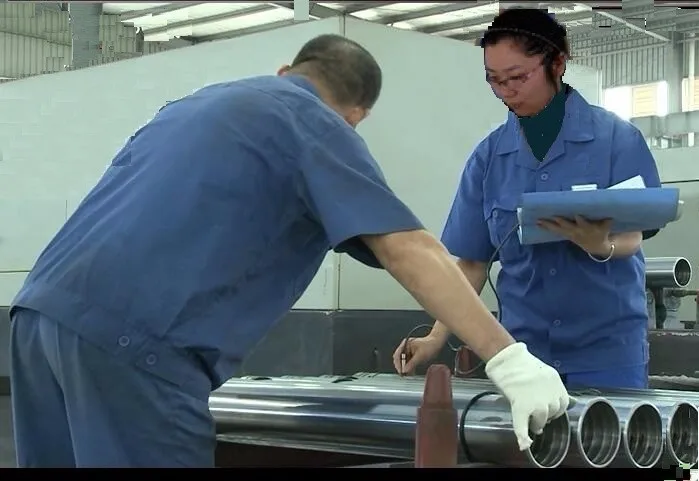

Quantity Control

In-door inspection: all raw material purchased from well-known factory.

Procedure Inspection: Each step will been tested by advanced equipment and professional inspector.

                                        Each parts need to been cleaned

                                        Each hydraulic cylinder will been carried out pressure test.

Out-door inspection:  check each cylinder  quality and package.

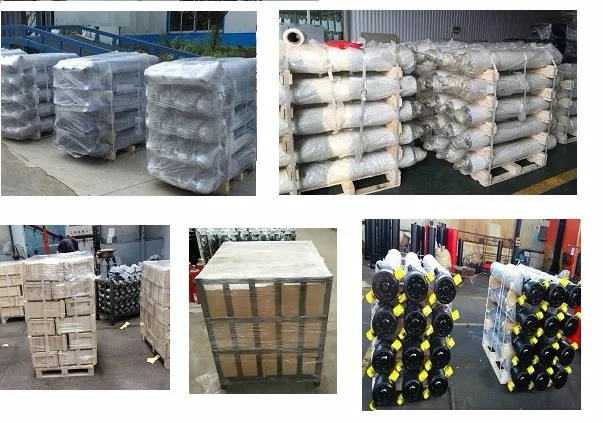

Packing & Delivery

Packing Details  :  Pallet,Plywood Case ( as customer's requirements)

Delivery Details :  30-35 days after received payment

Good package to make sure the 100% safe and prompt delivery.

Related Product

Telescopic Hydraulic cylinders are our main products. We are also make single stage cylinders and cold drawn pipe and chromed rod.

Trailer telescopic Cylinder


Parker type  Cylinder

 lifting  cylinders


FAQ

Q: How long is your delivery time?

A: It will take around 35-45  days normally. For urgent need, pls inquire us freely.

Q: Do you provide  design drawing service?

A: Yes, we could design drawing service to meed your particular needs.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
