Multicolor automatic good performance films gravure printing machine

FOB Reference Price:Get Latest Price
$20,000.00 - $180,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
XT-PMS120-800
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Screen Printer
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
XINTAI, XINTAI
Usage:
Card Printer, Label Printer, Paper Printer, Tube Printer, Bill Printer, Cloths Printer, film foil paper printer
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
380V 50Hz
Gross Power:
120kw
Dimensions(L*W*H):
15500*2800*3000mm
Weight:
12000kg
Certification:
ISO9001 CE
Warranty:
One Year
Print Material:
films gravure printing machine
Printing width:
600-1300mm
Printing colors:
1~15colors
Printing speed:
120m/min
Register Precision:
±0.1mm
Unwinding dia.:
600mm
Rnwinding dia.:
600mm
Product name:
gravure printer
heat way:
electric
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
plastic film and seaworthy container
Port
Ningbo
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Description



XT- films gravure printing machine gravure printer

This machine is suitable for multi-color rotogravure printing of rolling materials such as plastic film,paper,aluminum etc.





Suitable material:



OPP: 15~60μm      BOPP: 10~60μm

PET:12~60μm       CPP: 15~60μm

PE:5-60μm            NY: 15~50μm

PVC:15~60μm      Paper:18~80g/m2

Cellophane: 20~30μm    Composite film: 15~60μm



                                                        films gravure printing machine
Printing color1-121-121-12

Max printing width

800mm

1000mm

1200mm

Max machine speed

150m/min

150m/min

150m/min

Max printing speed

120m/min

120m/min

120m/min

Unwinding diameter

Φ600mm

Φ600mm

Φ600mm

Rewinding diameter

Φ600mm

Φ600mm

Φ600mm

Tension

3-30Kg

3-30Kg

3-30Kg

Precision of tension

±0.5Kg

±0.5Kg

±0.5Kg

Dimensions

13000x3200x3000mm

13000x3200x3000mm

13000x3200x3000mm




Unwinding unit



Structure:

    1. Double unwind shaft active unwinding separated.

    2. Tension control: magnetic powder brake

    3. Load: Air shaft





 Printing unit



Structure:

    1. Install printing plate without shaft, Horizontal installation rule is to ensure the unify of initial point of plate cylinders.

2. Through type of impressing roller, easy to change.

    3. Impressing roller structure: swing arm type, coordinate with a guide roller, ensure less change of material length.

    4. Impressing roller press in order, leave when machine stop.

5. Doctor blade device is pneumatic press, clutch, three position adjustment.

    6. Doctor blade swing by double shaft, swing rate and machine speed in proportion.

7. Ink fountain automatic open circumfluence, rise up and down by manual.

8. Compensating roller: up and down floating type, moving by precision ball screw.

9. Power gear box with pneumatic pressure design, seal oil- soaked gear box.

    10. Adjust roller: double side adjust with header indicator.

    11. Discharge air device, reduce odor.





Heating unit



Structure:

    1. Independent heating system in every color unit

    2. Intelligent continuous constant temperature control.

    3. Wind insert closed oven, heat supply can recycle

    4. Long flat port tuyere

    5. Unlock mode: single open and close by manual





Rewinding unit



Structure:

    1. Active rewinding with double shaft

2. Air shaft



















Printing product

Films gravure printing machine Products Show





Service













shipment

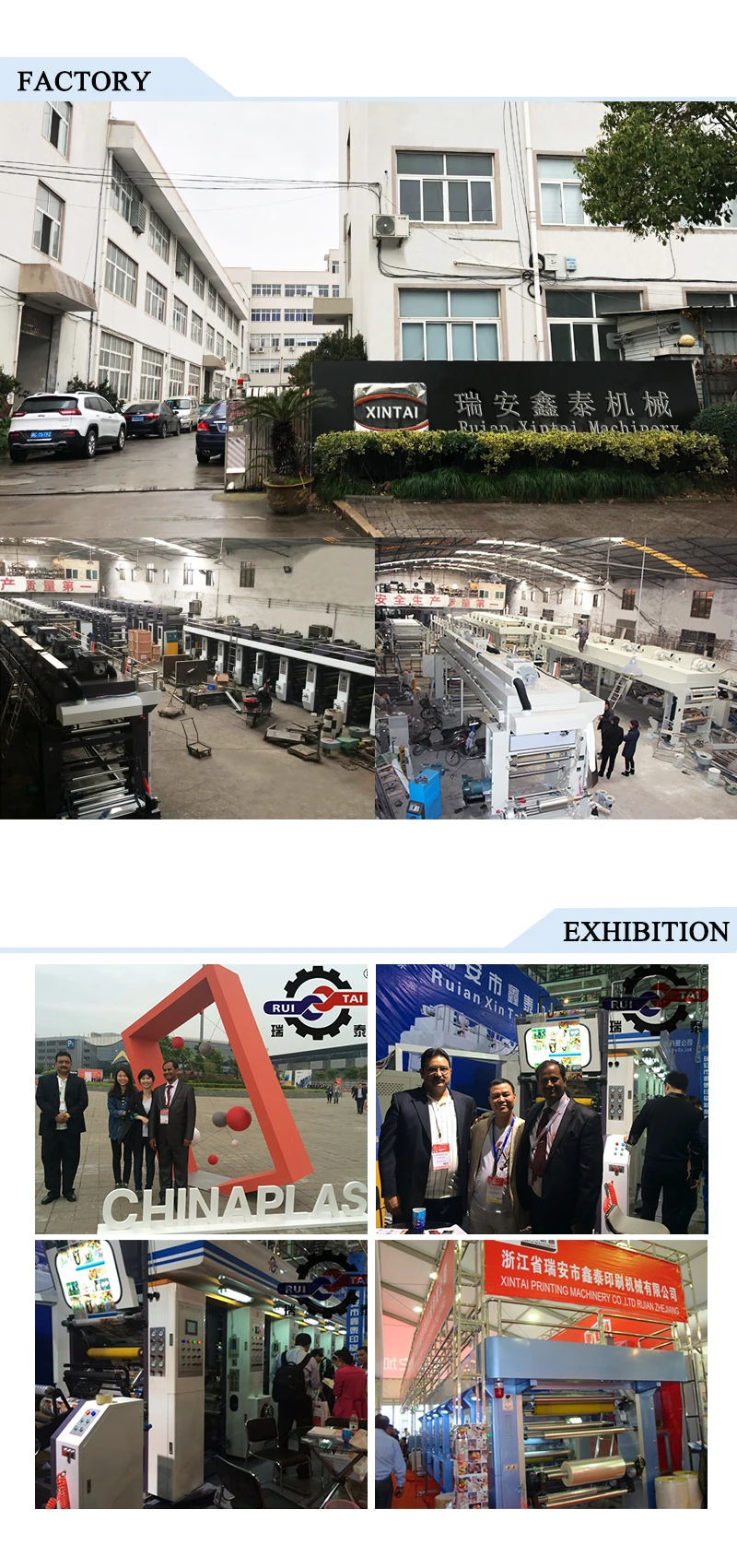

Company Information
