Multifold Paper Hand Towel Paper Folding Machine M N Folded Paper Towels Machine

  • >=1 Sets
    $67,000.00
Model Number:
ZD-CN5
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Product Type:
Hand towel making machine
Processing Type:
Laminating Machine
Power(W):
18KW
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Place of Origin:
Guangxi, China
Brand Name:
ZODE
Voltage:
380V 50HZ
Weight:
4-8Ton
Certification:
ISO 9001
Production Capacity:
150SETS/YEAR
Dimension(L*W*H):
6M*1.5M*1.8M
Product name:
Handtowel folding machine
Finished Products:
Handtowl paper
Raw material:
Jumbo roll, 4/6/8 line.etc.
Embossing unit:
Steel to steel embossung unit
Lamination unit:
Yes
Counting:
Ink counting
Finished product size:
Following to customer's requirements
Speed:
800 sheets/min/lane
Vacuum system:
Roots vacuum pump
Roots vacuum pump:
HMI,PLC
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing Details:
In standard export packing wooden case(machine surface cover PE film and foam, then pack by seaworthy wooden packing)
Shipping details:
Shipped in 30-60 days after peyment by sea, it depends on the quantity of customers.
Port
Guangzhou, Shenzhen
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

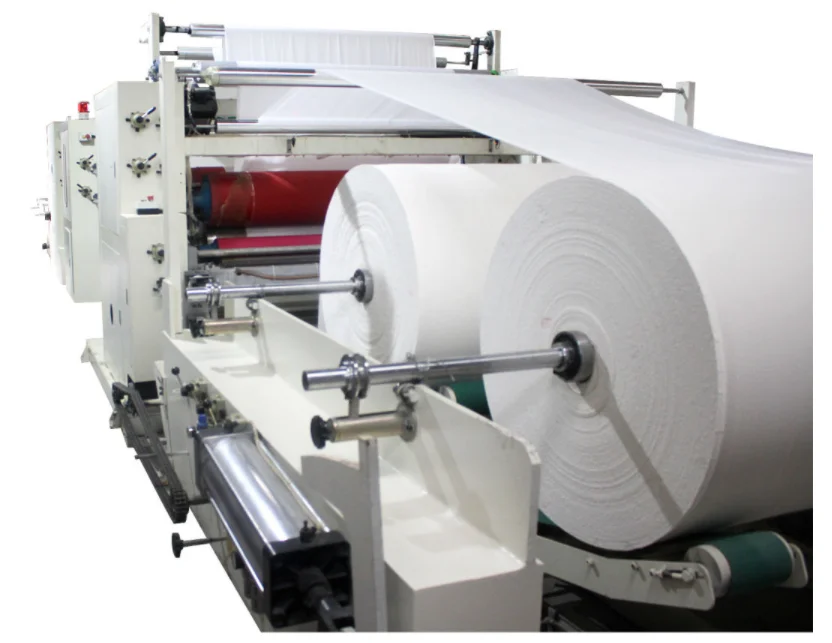

Multifold Paper Hand Towel Paper Folding Machine

M N Folded Paper Towels Machine



Product Description

 1.For after-cutting bobbin paper, to do upper gum compound ,embossing, knife roller shear, fold into N fold, W fold, 5 fold, 6 fold towels which can be drawn continuing.
2.The finished goods mainly use in toilet, kitchen and office to dry your hands.
3.The machine use vacuum absorption, automatic count divide-layers facility, has advanced technology of high speed, correct quantity and counting, low noise, stable performance.

hand towel making machine



Functions and Features
1. Automatic counting sub-bit row of output, speed adjusted by frequency changer
2. Screw shear knives, Vacuum adsorption fold, web tension control by manual
3. Variable speed unwinding, can be adapted to base level of tension.
4. Electronically Controlled Pneumatic, easy to operate.
5. Pneumatic parent roll loading system; The unwinding belt is adjusted pneumatically, when the parent paper is used up the machine will slow down to stop; All the pneumatic device's air press are adjustable.
6. Product width range, to facilitate marketing
7. Paper break sensor, air compressor provided by buyer
8. High grade glue lamination unit,two layers connected with lamination, glue unit for lamination, automatic gluing composite.
9. Steel to rubber embossing ( two sets); The steel rollers were plated with hard chrome, the embossing is very clear;
11. Broken, winding can affect the automatic stop function;

hand towel making machine



Hand Towel Paper Tissue Making Machine

Name

Parameter

Product fold method

N fold,W fold, Vfold

Suitable body paper

18-25g/M2 double layers,35-48g/M2 single layer

Suitable body paper breadth

710mm-1400mm

body paper diameter

1000mm-1500mm

body paper element diameter

Φ76mm-Φ152mm

product specification

210mm,215mm,220mm,225mm,230mm,240mm±1mm;

Length cutting length

adjustrable

fold method

vacuum absorption fold

counting method

 Ink counting

control system

PLC,Frequency control, PLC programming control, photoelectric detection

Install power

AC380V 50HZ 5.5-7.5KW(main motor)15KW-22KW(vacuum pump)

Paper feed system

1-2,  1-2 paper feed shelf, buffer cylinder control

Production speed

N fold 230m/min    4-6 fold 150m-200m/min

Required gas pressure

0.5Mpa

Longitudinal cutting device

/ continuing/not-continuing dots cutting function

packing and cutting method

+ Assist packing machine+ munual cutting machine

print device

1 color-2color

upper gum compound device

/ Hang glue/spray adhesive

emboss method

// steel vs steel, steel vs gum, steel vs wool roller

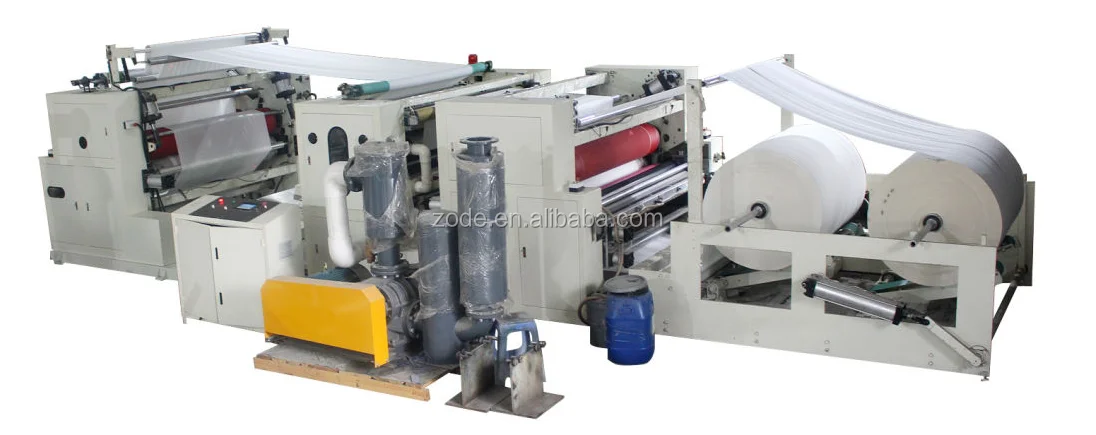

hand towel making machine1.png

handtowel machine.png

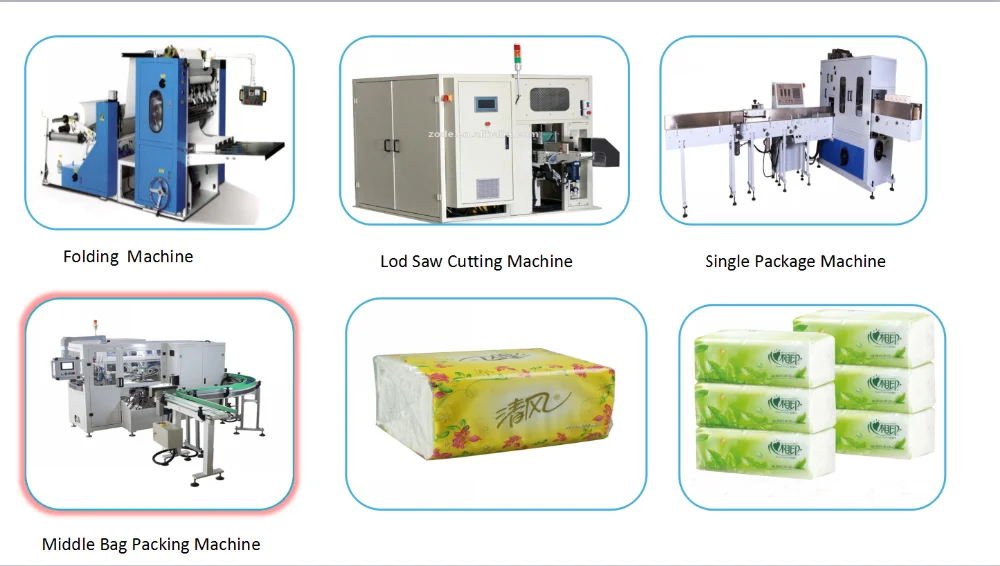

 Hand towel and facial tissue production line

tissue paper production line



Related Products

tissue paper machine



Toilet paper and kitchen towel production line

hand towel machine

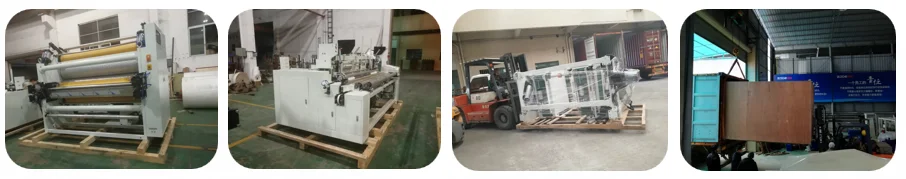

Packaging & Shipping



1)Inside package is plastic film, outside is wooden or plywood case

2)Full automatic instant porridge machine packaging is based on the customers' need).
3)Only plastic film nude packing with wooden pallet.
4)We can supply fumigation package and certificate.
5)Shipping, train, express or upon clients' demands.

Hand towel machine





Our Services



1. One year maintenance service.Any damage spare part can be exchanged from our company directly(excluding the easy damaged goods).
2. After one year, we will continue to assist you both on technical problem and the quality level for long-term.
3. We welcome you to offer us the paper sample, we can design the machine in OEM.



Company Information



Liuzhou Zhuode Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the every changing market demands and individual customer needs.



Serve the facial tissue converting and packing production line, toilet tissue and kitchen towel rewinding and packing production line, napkin tissue folding and packing production line, diaper packing machine, jumbo toilet roll band saw cutting machine and other household tissue paper processing machine around the world. Our main market is Middle East, Southeast Asia, Africa, South America, Europe and America.

toilet paper making machine



Certifications

We can provide the tissue paper machine electronic edition certificates if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates. The following are the certifications for ISO 9001, Patent certificate, Utility model patent certificate and Business license.

certification



Exhibition&Customers

Toile paper making machinetoilet paper making machie

FAQ

1: Are you trading company or manufacturer ?
A: We are factory.

2: How long is your delivery time?
A:30-60 days after received a deposit, it is according to quantity.

3: Do you provide design ?
A:we can provide solutions to customers from products choosing, designing, installing and training.


4: What is your terms of payment ?
A: 30% T/T in advance , balance before shippment.



5. How much area the whole production line needs?

A: The best way is telling us your workshop area, then we will draw a draft for you to ensure the rational use of your space.



6. If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?

A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
