NDT X Ray Wire Rope Flaw Detector XXGHZ/3505D

  • >=1 Units
    $9,385.00
Usage:
Ndt X Ray Wire Rope Flaw Detector
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
YUSHI
Model Number:
XXGHZ/3505D
Power:
Electronic
Product name:
Ndt X Ray Wire Rope Flaw Detector
Application:
Industrial X-Ray Testing
Output Voltage:
160kv-255kv
Output Current:
5mA
Max. Penetration:
54mm
Operating Mode:
Service Intermittent
Generator Size:
280mm*650mm
Controller Size:
310mm*270mm*115mm
Cooling Type:
Radiator forced air cooling
Delaying Time of Controller:
0-1min.
Supply Ability
Supply Ability:
100 Unit/Units per Month Ndt X Ray Wire Rope Flaw Detector
Packaging & Delivery
Packaging Details
Ndt X Ray Wire Rope Flaw Detector is shipped by Carton and Wooden Case
Port
Dalian
Product Description

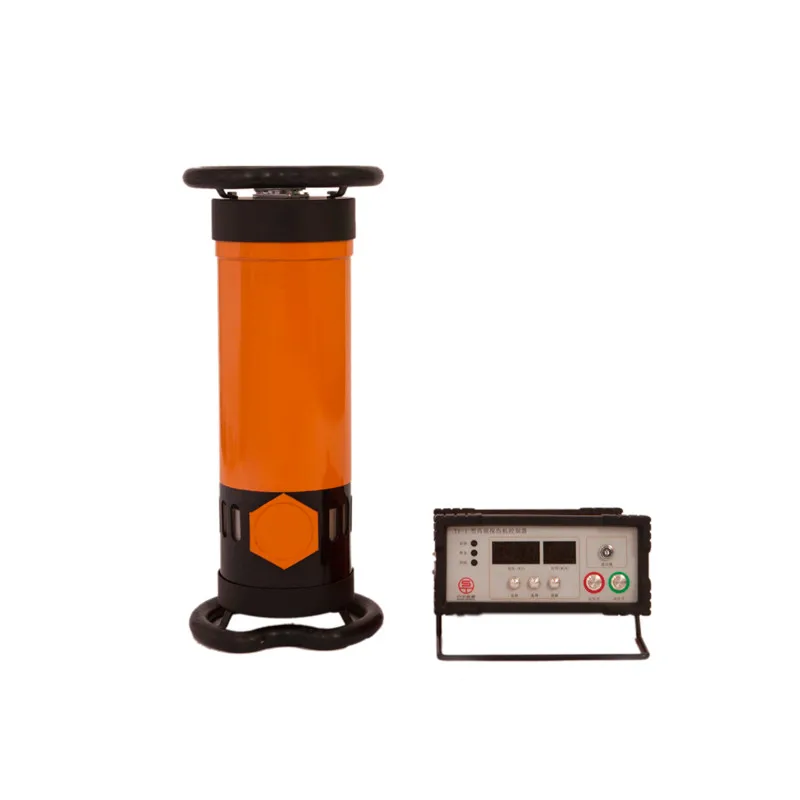

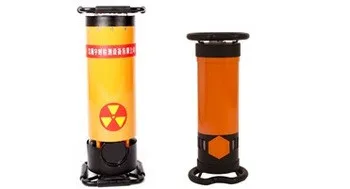

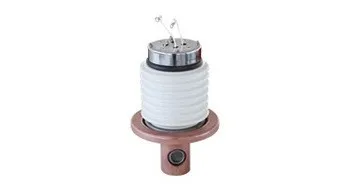

XXGHZ/3505DType Industrial X-ray Machine with X-Ray Tube


1. Intermittent Work.

2. Low heat, long service life

3.No frequent over temperature protection during the full power continuous operation

4. Non flange design, small and beautiful apperance

5. Strong heat resistance, low heat, High working efficiency and Low failure rate.


Detailed Images

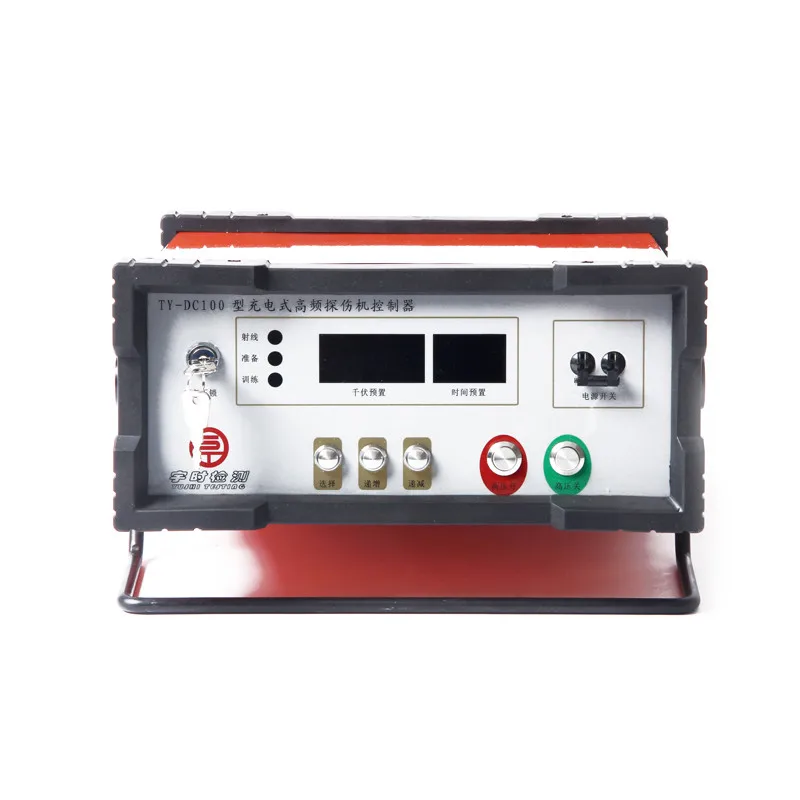

                                X-Ray Controller


                                X-Ray Controller


Specification
Model
XXG/2005D
XXG/2505D
XXG/3005D
XXG/3505D
XXGHZ/2005D
XXGHZ/2505D
XXGHZ/3005D
XXGHZ/3505D
Power Supply
160V~255V 50~60HZ
Power Capacity
>1.0KVA
>1.5KVA
>2.0KVA
>2.7KVA
Tube Voltage
100KV~200KV
150KV~250KV
170KV~300KV
220KV~350KV
Tube Current
5mA
Controller Size
3110mm×270mm×115mm
Controller Weight
9kg
Controller Delaying Time
0-1 min.
Timing Range and Error
minute error ±1%
Working Mode
Intermittent Work; Work for 5 min and rest for 5 min.
Insulation
SF6 Gas
Cooling
Radiator forced air cooling
Safety Working pressure
0.35~0.6Mpa
X-Ray Generator Size (mm)Ф×H
Ф165×520
Ф230×550
Ф270×580
Ф280×650
Ф165×520
Ф230×550
Ф270×580
Ф280×650

X-Ray Generator Weight (kg)
18
24
32
34
17
23
31
33

Max. Penetration (mm)
30
40
50
60
23
34
44
54


Working Conditions of X-ray Photography
1. Focus to Film: 600mm

2. Exposure time: 5 min.

3. Film: TianJin, Model III, intensified by double lead foil.

4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. blackness ≥ 1.5. sensitivity≤2%
Related Products
Packing & Delivery
No.
Name
Quantity
Unit
1
X-Ray Generator
1
Set
2
X-Ray Controller
1
Set
3
Power Cable
10
m
4
Connection Cable
20
m
5
Earth Wire+Earth Pin
1
Set
6
Fuse(20A)
5
Piece
7
Key
2
Piece
8
Operating Manual
1
Piece
9
Certificate of inspection
1
Piece
Certification
Company Information

FAQ:


Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.

Q:What’s the MOQ?
A: MOQ is 1 pc for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q:How long is the lead time?
A: The lead time for single order is 1-3 days, for bulk orders is 3-10 days.

Q:How to place orders?
A: 1. Email us the model and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
