NDT non - destructive testing X - ray machine with digital system

FOB Reference Price:Get Latest Price
$3,500.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
NEWHEEK
Model Number:
NKX-500/3
Power:
Electronic
Usage:
Universal Testing Machine
power condition:
three phase AC380V+-22V
power supply:
>=30KVA
high voltage generator:
>=50kw
xray tube:
the ball anode heat copacity>=200KHU
Image system:
9' image intensifier
machine resolution:
>=12 lp/cm
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood packing
Port
Qingdao
Lead Time :
20-30 days
Product Description

 1、composition:

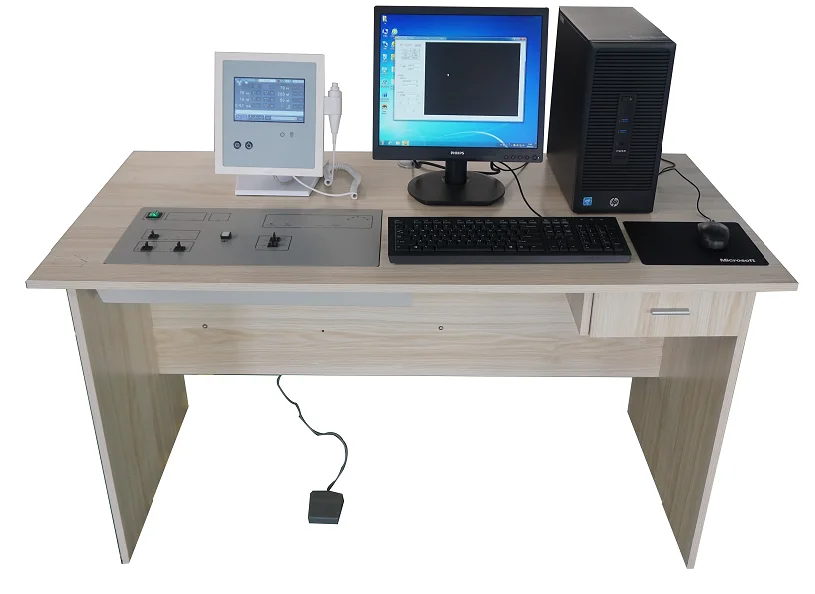

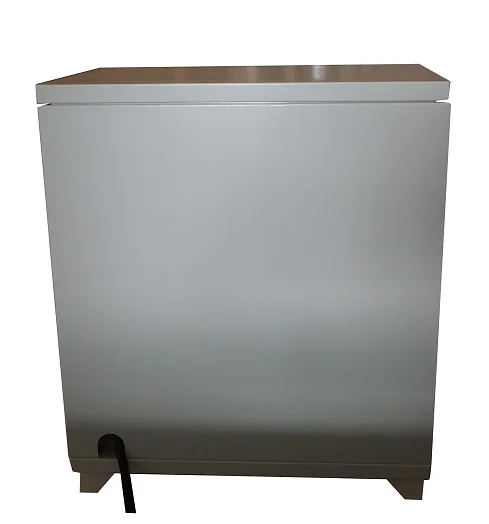

NDT industrial non-destructive testing stereoscopic vision machine is composed of tube assembly, high voltage generator, remote control station, column, pedal components, beam restraint, image intensifier TV system.
2、The scope of application:
NDT industrial non-destructive testing three-dimensional perspective machine is mainly used in industrial non-destructive testing
3、The main technical parameters:
(1)Working conditions:
1)Ambient temperature:+10℃ ~ +40℃;
2)Relative humidity:30% ~ 75%;
3)Atmospheric pressure:50kpa ~ 106kpa。
(2)Transport and storage conditions
1)Ambient temperature:-20℃ ~ +70℃;
2)Relative humidity:10% ~ 100%Including condensation;
3、Atmospheric pressure:500pa ~ 106kpa。
(3)Power requirements:
1)voltage:AC220V;
2)Power frequency:50Hz±1Hz;
3)Power supply resistance:<0.5Ω。
(4)\Working system: intermittent loading continuous operation
(5)input power:≦51kVA。
(6)Maximum output power
Perspective::P= 105kV×5mA = 525W。
(7)working frequency:
Machine operating frequency:50HZ~60HZ。
(8)exercise system
1)The vertical movement of the tube is reachable
2) Pedal horizontal movement range up to
3) Foot rotation 360

Detailed Images

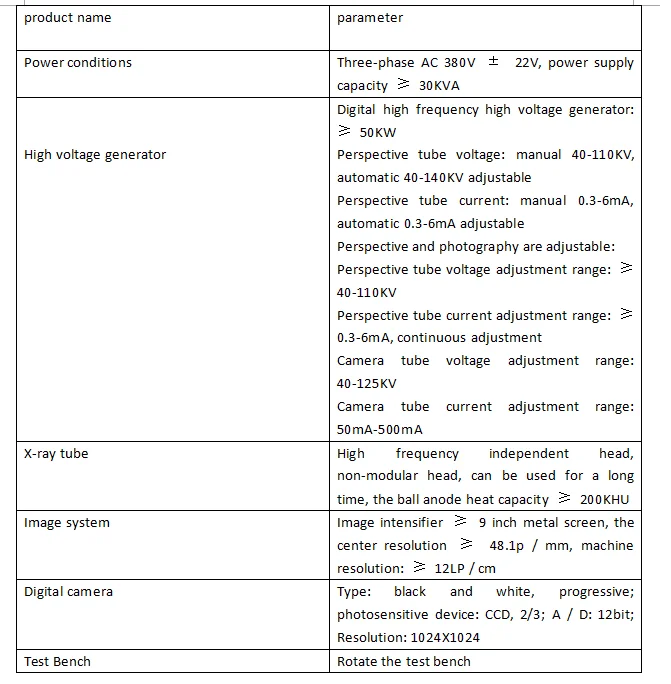

Specifications
