NEMA grade single sided pcb material epoxy resin fiber glass sheet garolite fr4 for transformer insulation board

FOB Reference Price:Get Latest Price
$1.50 - $5.50 / Kilograms | 500 Kilogram/Kilograms (Min. Order)
Lead Time:
Quantity(Kilograms) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Customization:
Customized packaging (Min. Order: 100 Kilograms)
size (Min. Order: 100 Kilograms)
Samples:
$1.00 /Kilograms | 1 Kilograms (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
XJEA
Model Number:
EPGC 202 or FR4
Type:
Insulation Sheet
Material:
Fiberglass
Application:
High Voltage
Rated Voltage:
≥35KV
Tensile Strength:
≥340MPa
Product name:
Garolite fr4
Resin:
Heat-resistant epoxy resin
Color:
Natural/Green/Black/Yellow
Density:
1.8~1.95g/m3
Dielectric constant (50Hz):
≤5.5
Dielectric loss factor(50Hz):
≤0.04
Combustibility:
V-0
Temperature index:
155
Water absorption(1-20mm thickness):
17~73mg
Certification:
ROHS
Supply Ability
Supply Ability:
999 Ton/Tons per Month Garolite fr4
Packaging & Delivery
Packaging Details
1. Standarad export packing.
2. According to customer's requirement.
NEMA grade single sided pcb material epoxy resin fiber glass sheet garolite fr4 for transformer insulation board
Port
Qingdao Port or Shanghai Port
Lead Time :
Quantity(Kilograms) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
PRODUCT INFORMATION

NEMA grade single sided pcb material epoxy resin fiber glass sheet garolite fr4 for transformer insulation board

EPGC202 ( FR4 )/203/204/306/308 apply 7628 glass fiber cloth and imported epoxy resin, it has higher mechanical properties, electrical properties, high thermal mechanical strength.Products are widely used in mechanical, electronic, electrical equipment, insulation parts and component.

SAMPLE TO SHOW
WE CAN RPOVIDE

Color: Yellow, Green, Black

Size: 1020*1220mm / 1220*2440mm

Thickness: 0.1mm-50mm    >50mm    More

Sample: Avaliable

Custom services: Avaliable

Technical Parameters

IEC
EPGC202
EPGC203
EPGC204
EPGC306
EPGC308
NEMA
FR4
G10
FR5
G11
-
Test item
Unit
Value
Density
g/m³
1.8~1.95
Vertical layer bending strength (normal)
MPa
≥340
Parallel layer impact strength (simply supported beam method)
KJ/m2
≥38
Vertical layer electrical strength
(90℃transformer oil)
Kv/mm
≥14.2
Parallel layer breakdown voltage(90℃transformer oil)
kv
≥35
≥40
≥35
≥40
≥35
Dielectric constant (50Hz)
-
≤5.5
Dielectric loss factor(50Hz)
-
≤0.04
Insulation resistance after immersion
Ω
≥5.0*1010
Proof tracking index(PTI)
-
-
-
-
≥200
-
Combustibility
-
V-0
-
V-0
-
-
Temperature index
-
155
155
155
155
180
Water absorption(1-20mm thickness)
mg
17~73
RELATED PRODUCTS

Copper Clad Laminate

Phenolic Cotton Cloth Laminated Sheet

Phenolic Paper Sheet

Please select the electric insulation material product you need

COMPANY INFORMATION

Xujue electrical insulation material Ltd, Co., is a comprehensive enterprise which integrates researching, manufacturing, market developing and service for eletric insulation material. We will provide you with good quality products and best service.

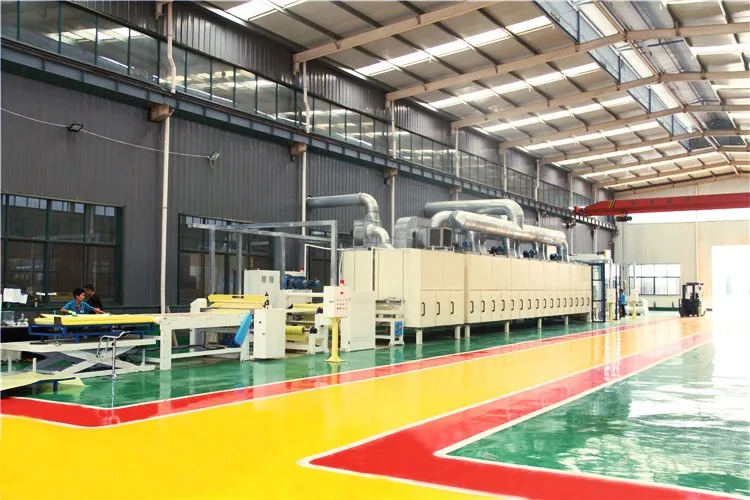

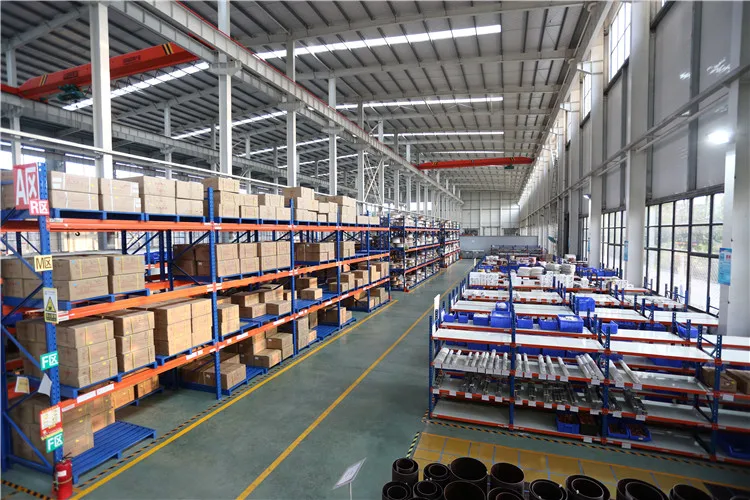

Workshop

Our company located in Henan

Certification

Quality is our commitment to each customer

Strategic partners

Cooperation is the trust of every partner to us

CONTACT US

↓↓↓ Welcome to contact us to get the latest catalogue and price. ↓↓↓
