New 550cc 4x4 quad bike(MC-395)

FOB Reference Price:Get Latest Price
US $3,200-3,500 / Pieces | 1 Piece/Pieces 2 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Transmission Type:
Automatic
Transmission System:
Shaft Drive
Certification:
EEC
Brand Name:
BODE ATV
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
MC-395 550cc atv
Product dimension::
2260 x 1180 x 1270mm
Starter::
Electric Start
Brake type::
Disc Brake
Suspension::
Macphersan Independent
TRANSMISSION::
CVT
Maximum Speed(km/h)::
85km/h
HS code:
8703101100
WARRANTY TIME:
6 MONTH
HOT SELLING COUNTRY:
EUROPEAN COUNTRY
SEATS:
TWO
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month 2000
Packaging & Delivery
Packaging Details
STEEL FRAME AND STRONG CARTON
Port
NINGBO
Lead Time :
IN 25 DAYS









New 550cc 4x4 quad bike
1)With EFI  engine
2)Spring and Damp Shock Absorbor
3)500cc farm atv
4)New model



New 550cc 4x4 quad bike(MC-395)





ENGINE TYPE4 Stroke,V-Twin Cylinder, SOHC,EFI
ENGINE COOLINGLiquid-Cooled
MAX.POWER(KW/rpm)26.5KW/7000rpm
STANDARD POWER25KW/6500rpm
MAX.TORQUE(N.m/rpm)45N.m/5500rpm
MAX.SPEED≥90Km/h
BORE STROKE72.5mm x 66.8mm
DISPLACEMENT552ml
COMPRESSION RATIO10.3:1
FUEL SUPPLY SYSTEMECU
LUBRICATIONSeparated & Pressure
AIR FILTER TYPEDry Air-Cleaner Net
SPARK PLUGDR8EA
STARTINGElectric Start & Pull Start
STARTING PROCEDURETurn lgnition
GEARSHIFTManual
TRANSMISSIONCVT (H/L/N/R)
BRAKE FRONTDisc Brake
BRAKE REARDisc Brake
BRAKE DISTANCE7m/30km/h
FRONT SUSPENSIONMacphersan Independent
REAR SUSPENSIONDouble Wishbone
SHOCK ABSORBER(F/R)Spring and Damp Shock Absorbor
BATTERY12V/18AH
ENGINE OIL1.5L
TRANSMISSION OIL0.8L
REAR OIL0.3L
FUEL93# Unleaded Gasoline
FUEL CAPACITY12L
TURNING RADIUS3280mm
MAX.LOAD(kgs)204kg
FRONT TIRE25x8-12
REAR TIRE25x10-12
OVERALL2016x1180x1237mm
PACKING SIZE2310x1320x870mm
WHEELBASE(mm)1271mm
SEAT HEIGHT(mm)895mm
GROUND CLEARANCE300mm
NET WEIGHT(kgs)285kgs
COLORRed, Blue, Orange, Black, Army Green, Camo
LOADING QUANTITY8pcs/20'GP, 18pcs/40'GP, 27pcs/40'HQ
MOQ8pcs (1*20'GP)

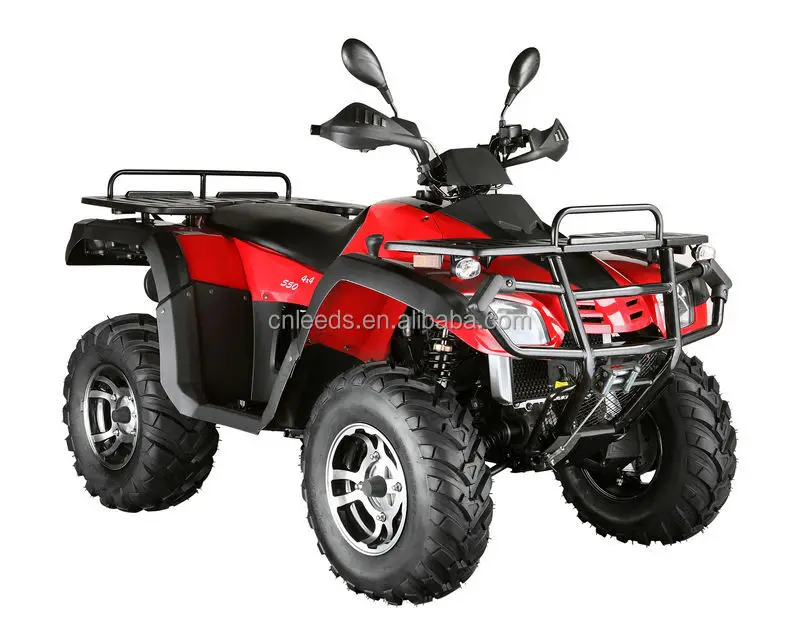

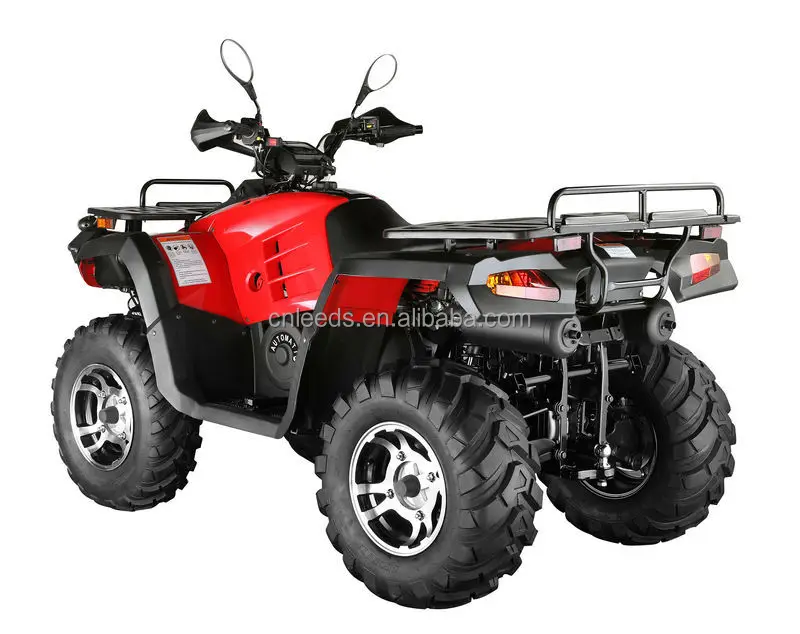

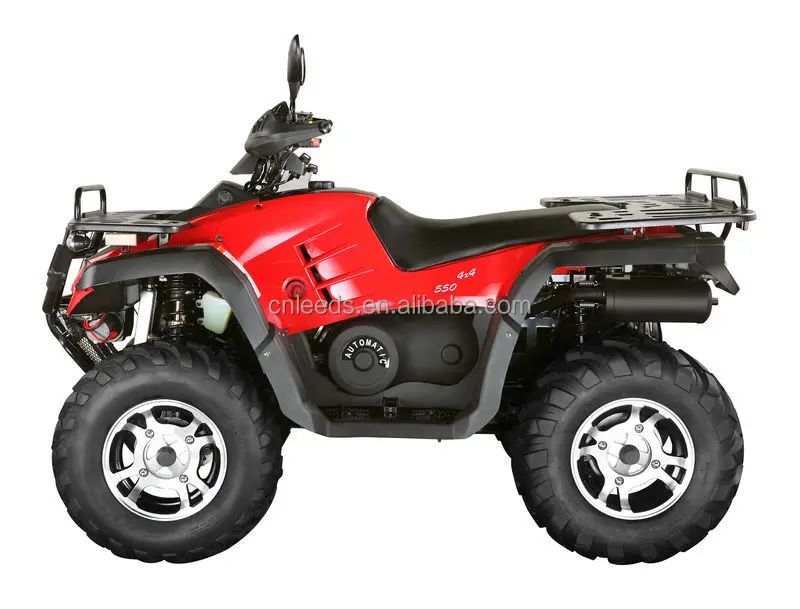

PICTURE SHOW
