New Arrival High Grade Small Submersible Slurry Pump

FOB Reference Price:Get Latest Price
US $50-110 / Pieces | 100 Piece/Pieces Small Submersible Slurry Pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SPG
Model Number:
QDX40-6-0.75
Theory:
Small Submersible Electric Pump
Structure:
Small Submersible Electric Pump
Usage:
water, liquid
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
electricity
Pressure:
High Pressure
Application:
irrigation, pump water from well, garden spray,water supply
Product name:
Small Submersible Slurry Pump
Voltage(V):
220
Flow rate(M3/H):
40
Material:
Aluminum case
Diameter Of Inlet And Outlet:
76
Head:
6
Flow Rate(M3/H):
40
Motor power(kw):
0.37hp/0.25kw
Max head(m):
12
Rotation speed(r/min):
2860
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Month Small Submersible Slurry Pump
Packaging & Delivery
Packaging Details
Small Submersible Slurry Pump Packing:
Export standard veneer cases or wooden cases or according to customers' requirements
Port
Shanghai
Lead Time :
15 days after deposit

New Arrival High Grade Small Submersible Slurry Pump

Product Description



Product Description Of Small Submersible Slurry Pump

QDX/Q series pump is made up of electric motor, pump body and sealing. Motor locates on top of pump body, and heat protector is installed to protect the motor. There are aluminum case and cast iron case types for your choice. The cast iron case type is easy to repair and has longer life.

Features: light and small

Application

Rural pumping water from well, farm land irrigation, park and garden irrigation, domestic water use. Industry and construction drainage, breeding industry is also suitable to use.

Working conditions

Pump will work continuously and normally in below conditions:

1.Medium is non-corrosive clear water; sand content ≤0.10%,and particle size ≤0.20mm

2.Medium temperature ≤40 ℃; PH value between 6.5 and 8.5;

3.Work in the head range

4.Pump totally submersed in the water, and diving depth is ≤3m, max diving depth is ≤5m; pump to water bed is ≥0.5m; pump shall be avoid of getting into mud.

5.Frequency: 50 Hz; Voltage: 220V in single phase, 380V in three phases, AC; fluctuation of voltage: 0.9 to 1.1 times of the rated voltage.

Product Picture Of Small Submersible Slurry Pump

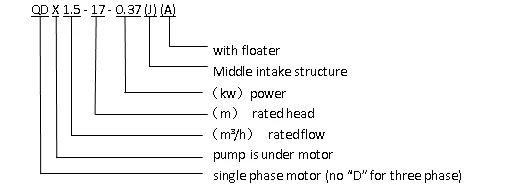

Model Meaning



Technical Parameter Of Small Submersible Slurry Pump



Material



Model



Diameter of inlet and outlet
(mm)



Voltage
(V)



Flow rate
(m³/h)



Head
(m)



Power
(kw)

Rotation speed
(r/min)

Aluminum case

QDX1.5-16-0.37

25

220

1.5

16

0.37

2860

QDX3-20-0.55

25

220

3

20

0.55

2860

QDX7-14-0.55

40

220

7

14

0.55

2860

QDX12-10-0.55

51

220

12

10

0.55

2860

QDX1.5-32-0.75

25

220

1.5

32

0.75

2860

QDX7-20-0.75

40

220

7

20

0.75

2860

QDX10-15-0.75

51

220

10

15

0.75

2860

QDX25-10-0.75

64

220

25

10

0.75

2860

QDX40-6-0.75

76

220

40

6

0.75

2860

QDX6-26-1.1

40

220

6

26

1.1

2860

QDX15-15-1.1

50

220

15

15

1.1

2860

QDX30-10-1.1

76

220

30

10

1.1

2860

QDX10-24-1.5

50

220

10

24

1.5

2860

QDX15-20-1.5

64

220

15

20

1.5

2860

QDX40-9-1.5

76

220

40

9

1.5

2860

QX40-6-0.75

76

380

40

6

0.75

2860

QX6-26-1.1

40

380

6

26

1.1

2860

QX15-15-1.1

50

380

15

15

1.1

2860

QX30-10-1.1

76

380

30

10

1.1

2860

QX10-24-1.5

50

380

10

24

1.5

2860

QX15-20-1.5

64

380

15

20

1.5

2860

QX40-9-1.5

76

380

40

9

1.5

2860



Stainless steel case

QDX1.5-16-0.37B

25

220

1.5

16

0.37

2860

QDX3-20-0.55B

25

220

3

20

0.55

2860

QDX7-14-0.55B

40

220

7

14

0.55

2860

QDX12-10-0.55B

51

220

12

10

0.55

2860

QDX1.5-32-0.75B

25

220

1.5

32

0.75

2860

QDX7-20-0.75B

40

220

7

20

0.75

2860

QDX10-15-0.75

51

220

10

15

0.75

2860

QDX25-10-0.75

64

220

25

10

0.75

2860



Cast iron case

QDX1.5-16-0.37T

25

220

1.5

16

0.37

2860

QDX3-20-0.55T

25

220

3

20

0.55

2860

QDX7-14-0.55T

40

220

7

14

0.55

2860

QDX12-10-0.55T

51

220

12

10

0.55

2860

QDX1.5-32-0.75T

25

220

1.5

32

0.75

2860

QDX7-20-0.75T

40

220

7

20

0.75

2860

QDX10-15-0.75T

51

220

10

15

0.75

2860

QDX25-10-0.75T

64

220

25

10

0.75

2860
