New Technology cone crusher, Full service international standard 3ft cone crusher

FOB Reference Price:Get Latest Price
US $100-9,999 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
60 Set/Sets per Month
Port:
shanghai,tianjin,qingdao
Overview
Quick Details
Condition:
New
Type:
Cone Crusher
Application:
ore
Motor Type:
AC Motor
Power(W):
160kw
Capacity(t/h):
280-480
Place of Origin:
Henan, China (Mainland)
Brand Name:
TYM
Model Number:
PYZ1200
Dimension(L*W*H):
depend on model
Weight:
50t
Certification:
ISO CE SGS
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
high efficient hydraulic cone crusher
Color:
white, yellow, etc.
Installation:
Engineer Guide
Test:
Engineer Guide
Material:
Cast Steel
After sale Service:
Life-long Service
Spare parts supply:
Anytime
Warrenty:
1 year
Model:
Variety
The Machines classification:
Building Stone Production Line
Packaging & Delivery
Packaging Details
International packing standard
Delivery Time
Shipped in 15 days after payment
Product Description

New Technology cone crusher, Full service international standard 3ft cone crusher

3ft symons cone crusher Introduction

Cone crusher is widely used in mining, metallurgy, construction, road building industry, chemical and silicate industry, suitable for crushing hard and medium hard ore and rock, such as iron ore, limestone, copper ore, quartz, granite , sandstone, etc.
3ft symons cone crusher Working Principle:
When working the rotation of the motor through pulley or coupling, drive shaft and the conical portion of the eccentric force moving around the circle next to a fixed point for rotating pendulum movement, so that the cone crusher crushing wall sometimes near and sometimes off the solid adjustment sleeve mounted on rolling acetabular wall surface, the ore in the crushing cavity constantly under attack, pressing and bending and crushing ore.
Bevel gear drive motor through eccentric rotation, so crushing cone make swing movement. crushing cone sometimes close and sometimes away from the fixed cone, to complete the crushing and nesting. Support sleeve and frame body connection is pressed by spring, when the piece of metal and other objects which can not be broken fall within the crusher , compressive deformation of the spring discharge foreign objects, to achieve safety and prevent damage to the machine.

Background

Material: Andesite

Capacity: 350t

Output size: 0-1, 1-2, 2-3cm

Shape required: Cubic which has a good price

Location: Indonesia

Special requirements: He has used the crushers from for one year, but the capacity and performance can not achieve his expectations. So he intends to expand the capacity to 350tph. But the inherent layout shouldn`t be changed.

Main machine purchased from TYM: HPC220, S66

Customer Introduction: Mr.Li; Own 2 crushing line; About 50 workers in local; Engage in crushing business over 15 years;

1.Two standard 3ft cone crusher have been used to extend the capacity. The previous standard 3ft cone crusher As the PYB1750 can`t achieve its capacity as we expected. So our standard 3ft cone crusher S66 has replaced his position to be the secondary crusher. The HPC220 and PYB1750 should be the tertiary crusher.

2.Because of the limited land, the location of the motor, the oil tank, the belt conveyor must be measured accurately. The photo shows that our engineer is confirming the dimensions of the land.

3.Based on the previous steel structure, the width and length of the belt should be measured accurately.

4.The distributor should be designed to meet the previous screen height.

Type
Diam-eter crush-ing cone(mm)
Max. feeding size
(mm)
Width of discharge opening
(mm)
Processing capacity
(t/h)
Motor power
(kw)
frequ-ency of main shaft(r/min)
Weight(t)
Dimensions(L*W*H) (mm)
PYB
600
65
12-25
40
30
356
5
2234×1370×1675
PYD
35
3-13
12-13
5.5
2234×1370×1675
PYB
900
115
15-50
50-90
55
333
11.2
2692×1640×2350
PYZ
60
5-20
20-65
11.2
2692×1640×2350
PYD
50
3-13
15-50
11.3
2692×1640×2350
PYB
1200
145
20-50
110-168
110
300
24.7
2790×1878×2844
PYZ
100
8-25
42-135
25
2790×1878×2844
PYD
50
3-15
18-105
25.3
2790×1878×2844
PYB
1750
215
25-50
280-480
160
245
50.3
3910×2894×3809
PYZ
185
10-30
115-320
50.3
3910×2894×3809
PYD
85
5-13
75-230
50.2
3910×2894×3809
PYB
2200
300
30-60
59-1000
280-260
220
80
4622×3302×4470
PYZ
230
10-30
200-580
80
4622×3302×4470
PYD
100
5-15
120-340
81.4
4622×3302×4470

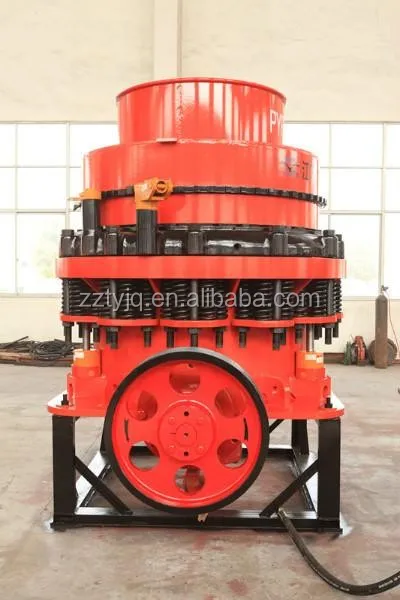

Detailed Images

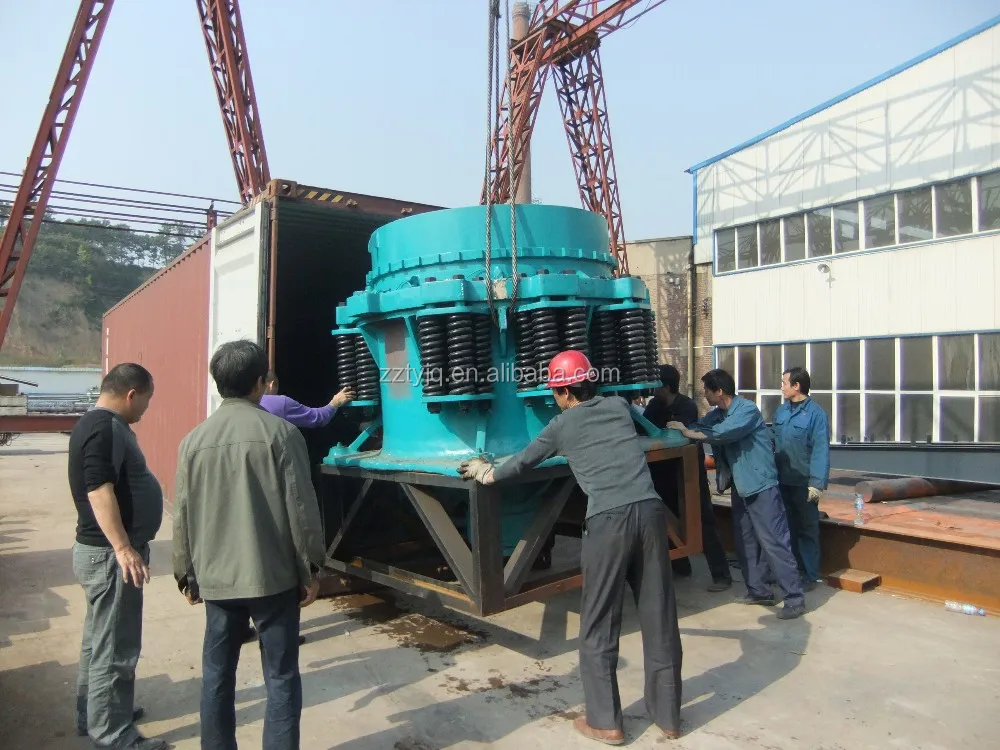

Packing & Delivery
Related Products

if you are interesting anyone please click the above pictures , checking the specification information .And don't forget to contact me

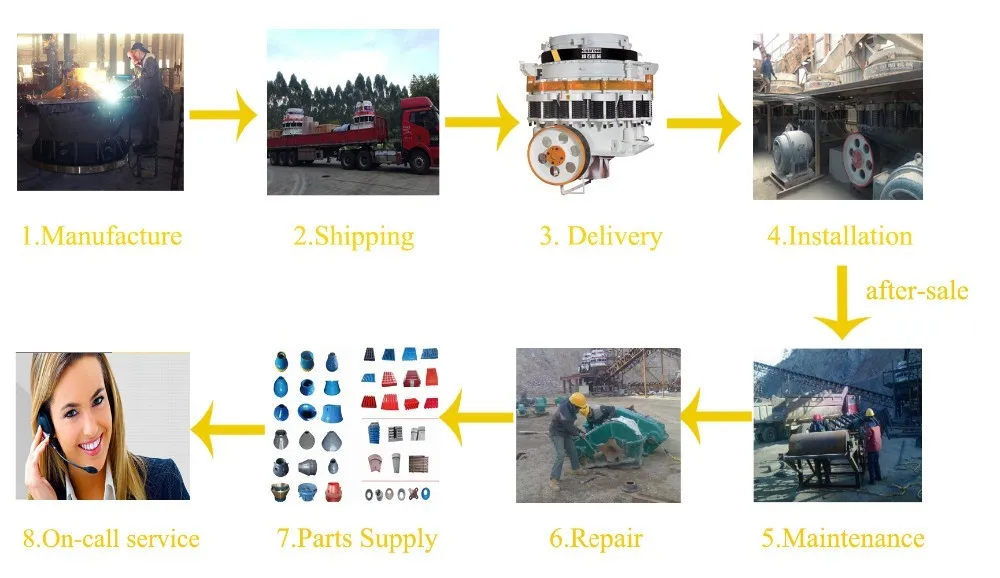

One station services
