New Zomax automatic robot lawn mower 2stroke 42.7cc from Chinese manufacturer

FOB Reference Price:Get Latest Price
$77.50 - $82.50 / Piece | 200 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Zomax
Model Number:
ZMG4301 grass trimmer
Certification:
CE
Feature:
2-Stroke, Cordless, Forced Air Cooling, Height Adjustable Handles, Single Cylinder
Cutting Type:
Swing Plastic Blade
Power Type:
Petrol / Gas
Voltage:
0
Cutting Width:
10inch
Power:
1.25kw
Bore:
40mm
Displacment:
42.7cc
Stroke:
34mm
Rated Power:
1.25kW
Dry Weight:
8.1kg
Fuel Tank Capacity:
1000ml
Line Shape:
Round
Color:
Blue & White
Engine:
2 Stroke
Standard Accessory:
Nylon head 2 line+Blade in 3 teeth
Supply Ability
Supply Ability:
800 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Every grass trimmer will be packed in a color carton box.
Port
Ningbo/Shanghai



Product Description

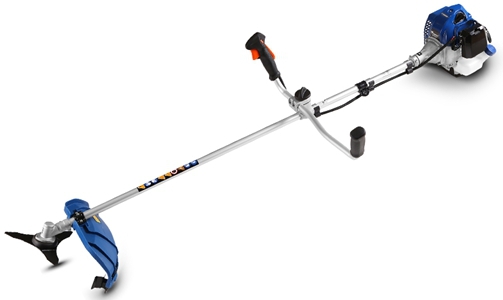

             ZMG4301 grass trimmer from .jpg










                         Engine           Displacement             Rated Power              Weight

                          2 stroke             42.7cc                      1.25kW/1.7hp                7.1kg

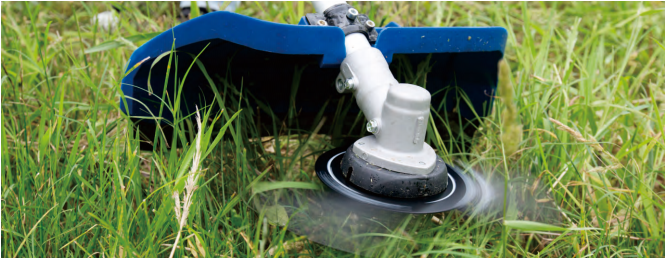

                          Sometimes, you will want something that can help you get the stray weeds or shrubs that find a home in a awkward spaces, slicing all the unwanted growth in their path, Zomax ZMG4301 offers you help. Changeable cutting head, wherever trimmer, 2 teeth cutter, 40 or 80 teeth cutter in need, brings you efficiency.



                             Standard Accessory: Nylon head 2 line+Blade in 3 teeth

                  Standard Harness: 05-H single harness















The Specification



Model

ZMG4301

Displacement

42.7cc

Rated Power

1.25kW/1.7hp

Engine

2 stroke

Bore/Stroke

Φ40/34mm

Fuel Tank Capacity

1000ml

Dry Weight

8.1kg

Max Speed

10,000rpm

Idle Speed

3,000±300rpm

Transmission System

Clutch+Hard Shaft+Gearbox

Line Head Trimmer

430mm

Line Shape

Round

Line Diameter

2.5mm

Cut Blade

255mm

Blade Thickness

1.4/2.0

Drive Shaft Diameter

26mm

Shaft Teeth

9

                            your  satisfaction is our motivation






Packaging & Shipping



                 Package: Color Carton Box










Exhibition Review











The Profile









  Zomax Garden Machinery Co., Ltd. is a wholly owned subsidiary, and was established in 2005 year. Production line covers gasoline powered chainsaw, brush cutter, trimmersand multifunction garden nursing tools.  Known as leading chainsaw manufacturer in China, our brand is awarded as top ten brands in China Hardware tool segment. Our products exported to South America, Asia, Europe, Middle East under our brand, also covers Customized brand.



Research&Development













FAQ



FAQ

Q:Difficulty in starting the chain saw (unable to start under room tempreture);
A:    1. First of all, examine if there is heavy carbon deposit in spark plug and if the spark plug ignites (hold the spark plug against the cylinder, then pull up the starter to see if the spark plug ignites);
 2. If oil is spilled into the cylinder;
 3. Check if there is cylinder pressure;
 4. Readjust screws L and H;
 5. If oil pipe is assembled properly;
 6. If the woodruff key in the flywheel mounting hole is missing.

Q: Chain is too flimsy;

A:

 1. Examine if the saw chain is installed onto the sprocket;

 2. Raise the chain with force of about 10N, the distance between the tip of sprocket teeth and guide bar shall be 5-6mm;

 3. Loosen the locknut on the clutch cover and adjust the tensioner until the chain has proper tension, then tighten the clutch cover.

Q:Lack of power when sawing;

A:

 1. Adjust the Screw H to a proper position;

 2. Examine the wear go cylinder and pinion ring.
