Attributes
Surface Mount (SMT)Mounting Type

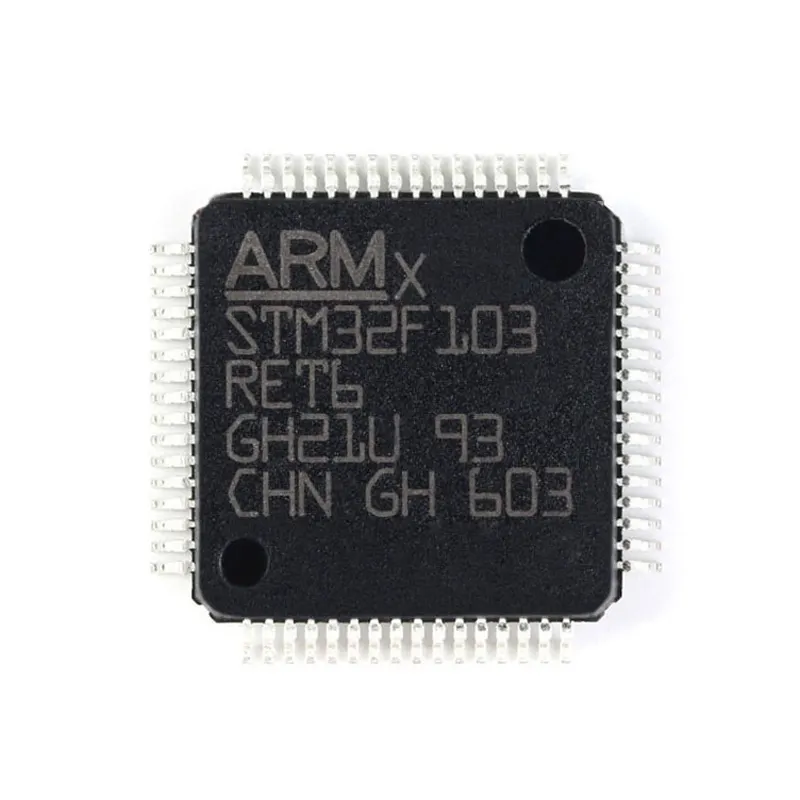

STM32F103RET6Manufacturer Part Number
MicrocontrollerType
Guangdong, ChinaPlace of Origin
Original factory standardManufacturer
2.0-3.6VManufacturing Date Code
Series:STM32F
Description:ARM Cortex-M3 mid-density performance line MCU with integrated 64/128KB Flash, 20KB SRAM, USB/CAN, and motor control PWM
Application:Motor Drives, Industrial Controls (PLC/Inverters), Medical Devices, Printers/Scanners, Alarm Systems, USB Peripherals, GPS
Operating Temperature:-40°C ~ +85°C
Module/Board Type:MCU chip (needs to be integrated into a custom PCB
Core Processor:ARM 32-bit Cortex-M3 72 MHz
Co-processor:N/A
Speed:Industrial Temperature Range (105°C Extended Range)
Flash Size:64 KB or 128 KB
RAM Size:20 KB SRAM
Connector Type:N/A
Size / Dimension:N/A
Packaging:N/A
Core Size:32-Bit Dual-Core
Connectivity:USB 2.0 FS, CAN 2.0B, 2x I²C, 3x USART, 2x SPI
Peripherals:2-bit ADC x2, 16-bit PWM timer, DMA x7, RTC, temperature sensor, watchdog
Number of I/O:26~80pcs (36pin to 100pin depending on package)
Program Memory Size:with Flash memory size (64/128KB)
Program Memory Type:Embedded Flash
EEPROM Size:N/A
Voltage - Supply (vcc/vdd):2.0V ~ 3.6V
Data Converters:2x 12-bit ADC
Oscillator Type:N/A
Controller Series:STM32F1 (Medium Density Performance Line)
Interface:N/A
Voltage - Supply:Same Voltage - Power Supply (Vcc/Vdd)
Package / Case:Multiple choice: 36pin~100pin (LQFP/TQFP/BGA, etc.), ECOPACK environmental protection package
Number of Cores/Bus Width:N/A
RAM Controllers:N/A
Graphics Acceleration:N/A
Display & Interface Controllers:No dedicated graphics controller (external require
Ethernet:N/A
USB:USB 2.0 full-speed interface
Voltage - I/o:3.3V Compatible (5V Endurance Design)
Cross Reference:Other models of STM32F103 series (such as C8/CB/RC
Fpga Gates:N/A
Selling Units:Single item
