Newest A95X MAX S905X2 4GB Ram 64GB Rom Quad core Android 8.1 Recording Media Streaming TV Box 4K

Feedback Ratings
  • 2-19 Pieces
    $62.30
  • 20-49 Pieces
    $62.00
  • >=50 Pieces
    $61.80
Plug Type:
AU Plug EU Plug UK Plug US PLUG
Color:
RAM:
4GB
ROM:
64GB
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Software custom (Min. Order: 100 Pieces)
Packing box custom (Min. Order: 500 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZKMAGIC
Model Number:
A95X MAX
Operation System:
Android 8.1
Processor Core:
Quad Core
Support Resolution:
4K
Features:
Support Recording Function
Ethernet:
1 x 10/100/1000MBps
WiFi:
802.11n 2.4G/5GHz
Key feature1:
Amlogic S905X2 Quad-core
Key feature2:
Support 2T2R 2.4G/5G WIFI
Key feature3:
Support SSD/HDD up to 2TB

Packaging & Delivery

Selling Units:
Single item
Single package size:
210X150X68 cm
Single gross weight:
0.75 kg
Package Type:
Standard package.
Lead Time :
Quantity(Piece) 1 - 99 >99
Est. Time(days) 7 To be negotiated
Product Description

A95X MAX


1. OS: Android 8.1 TV BOX
2. RAM:
4GB(Custom 2G)
3. ROM:
32GB/64GB/128GB(Option)

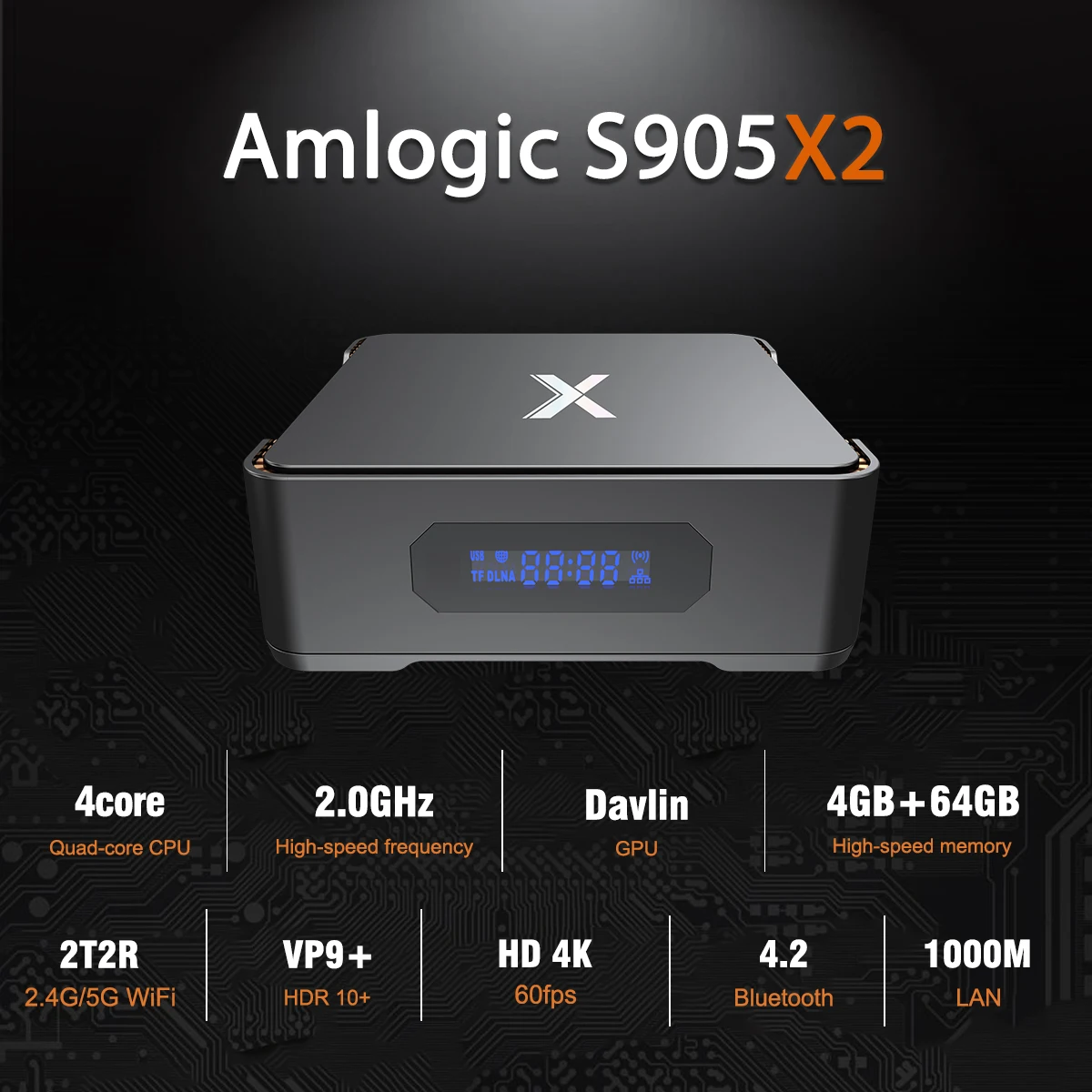

4. CPU: Amlogic S905X2 Quad-core Cortex-A53 12nm
5. WIFI: 2T2R IEEE 802.11 a/b/g/n/ac(2.4G&5G)

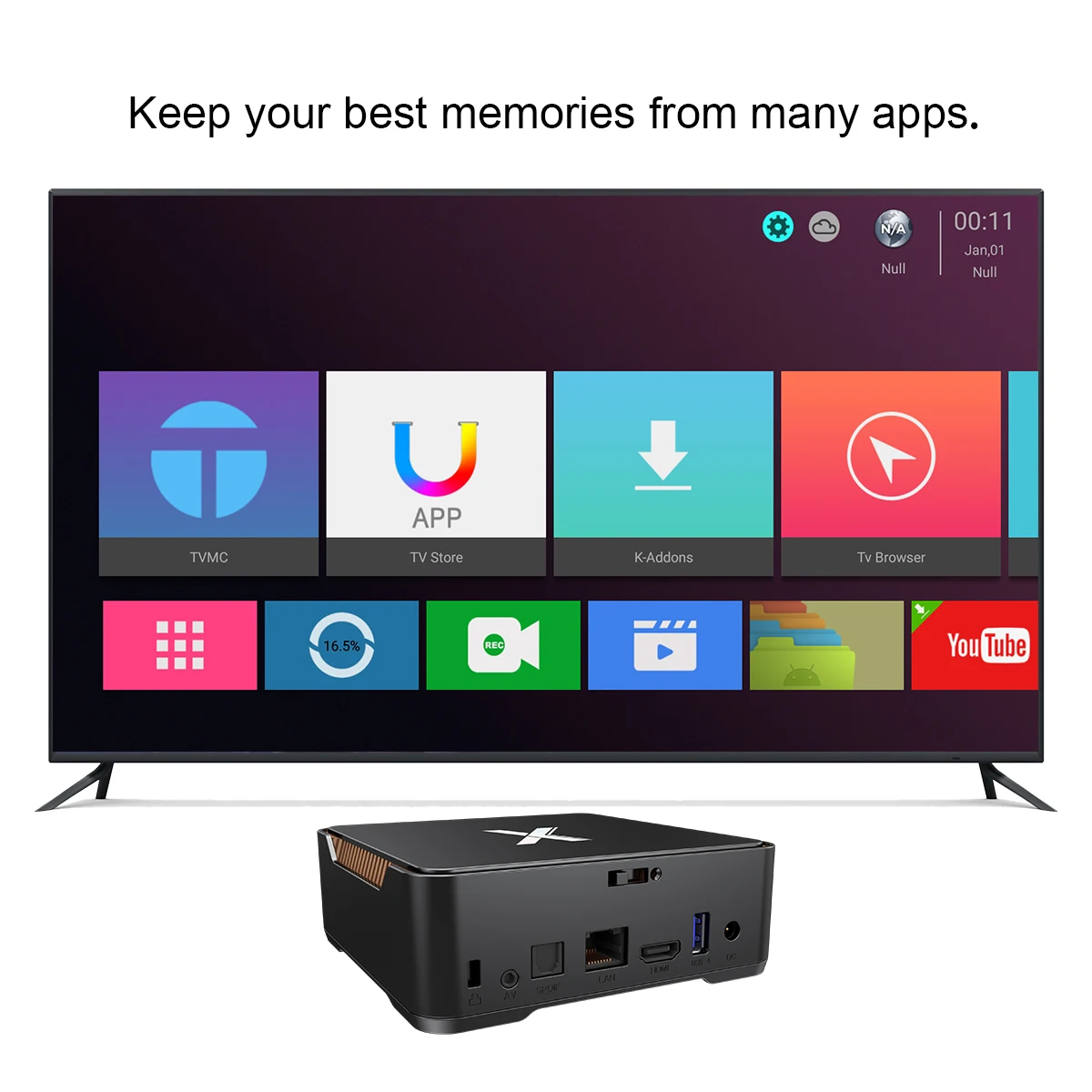

UI

System hardware configuration:
Type
Details
Descriptions
CPU
Type
Amlogic S905X2 Quad-core Cortex-A53 12nm
GPU
Type
ARM Dvalin MP2 GPU
support OpenGL ES3.2/OpenCL2.0
RAM
Capacity
4GB(Custom 2G)
ROM
EMMC
32GB/64GB/128GB(Option)
Network Connections:
Type
Details
Descriptions
WIFI

WIFI module
2T2R IEEE 802.11 a/b/g/n/ac(2.4G&5G)
Support 20MHz/40MHz/80MHz
300Mbps in 802.11n,876Mbps in 802.11 ac
BT
V4.2 Support 4.2+HS,BLE,ANT and compatible with v1.2,2.X
Ethernet Network
RJ45
IEEE 802.3 10/100M/1000M

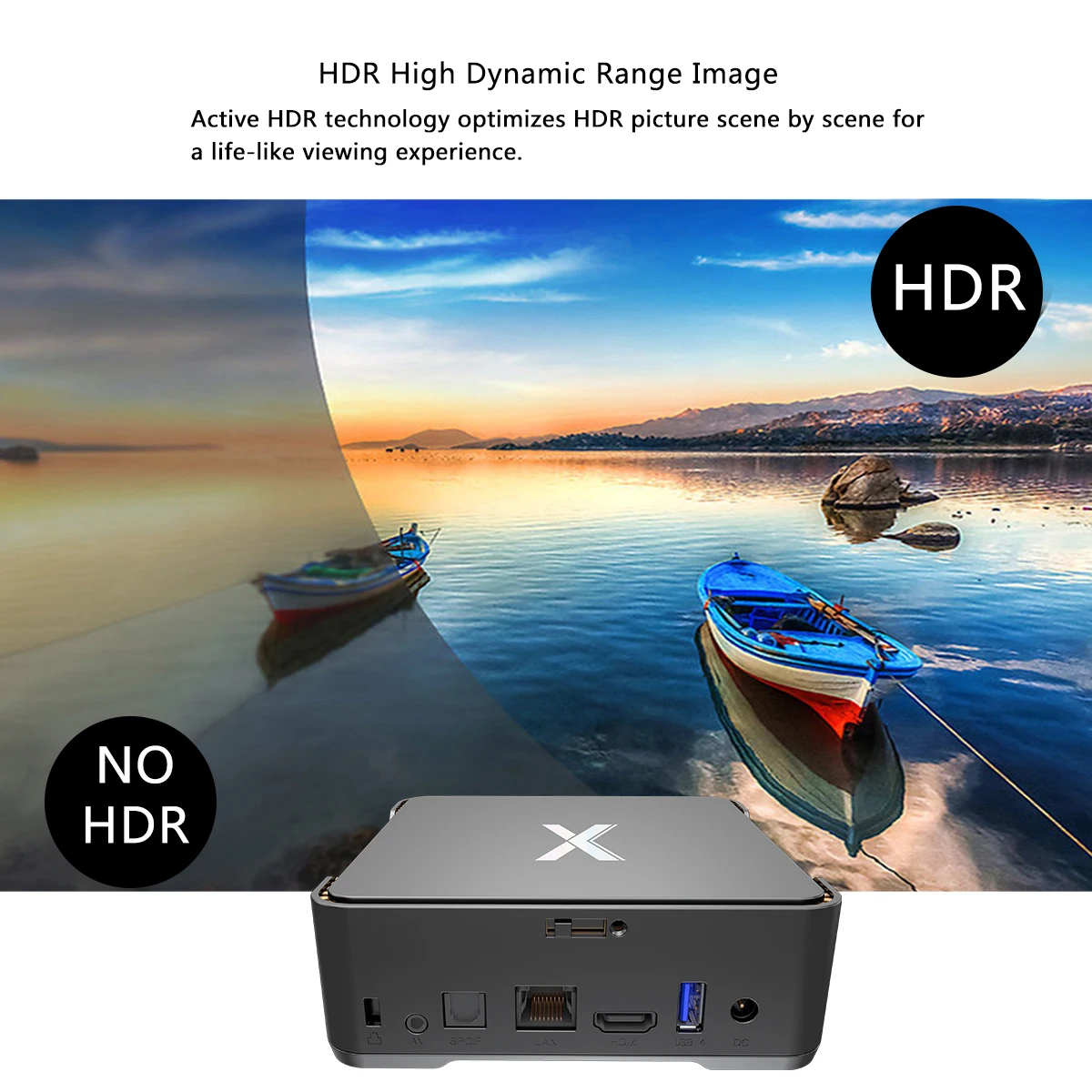

Interface Configuration:
Type
Details
Descriptions
Memory card socket
External memory
SDHC/SDXC Support 4GB/8GB/16GB/32GB/64GB
USB interface
Data transfer supportive
USB2.0x1 USB3.0x3
AV jack
AV output
∮3.5mm jack CVBS 480i/576i standard definition output
DC connector
Power
∮5.5mm jack

HDMI interface

Audio/Video output
HDMI 2.1 ,4Kx2K@75 max resolution output.
Support transmitter with 3D, Dynamic HDR ,CEC and HDCP 2.2

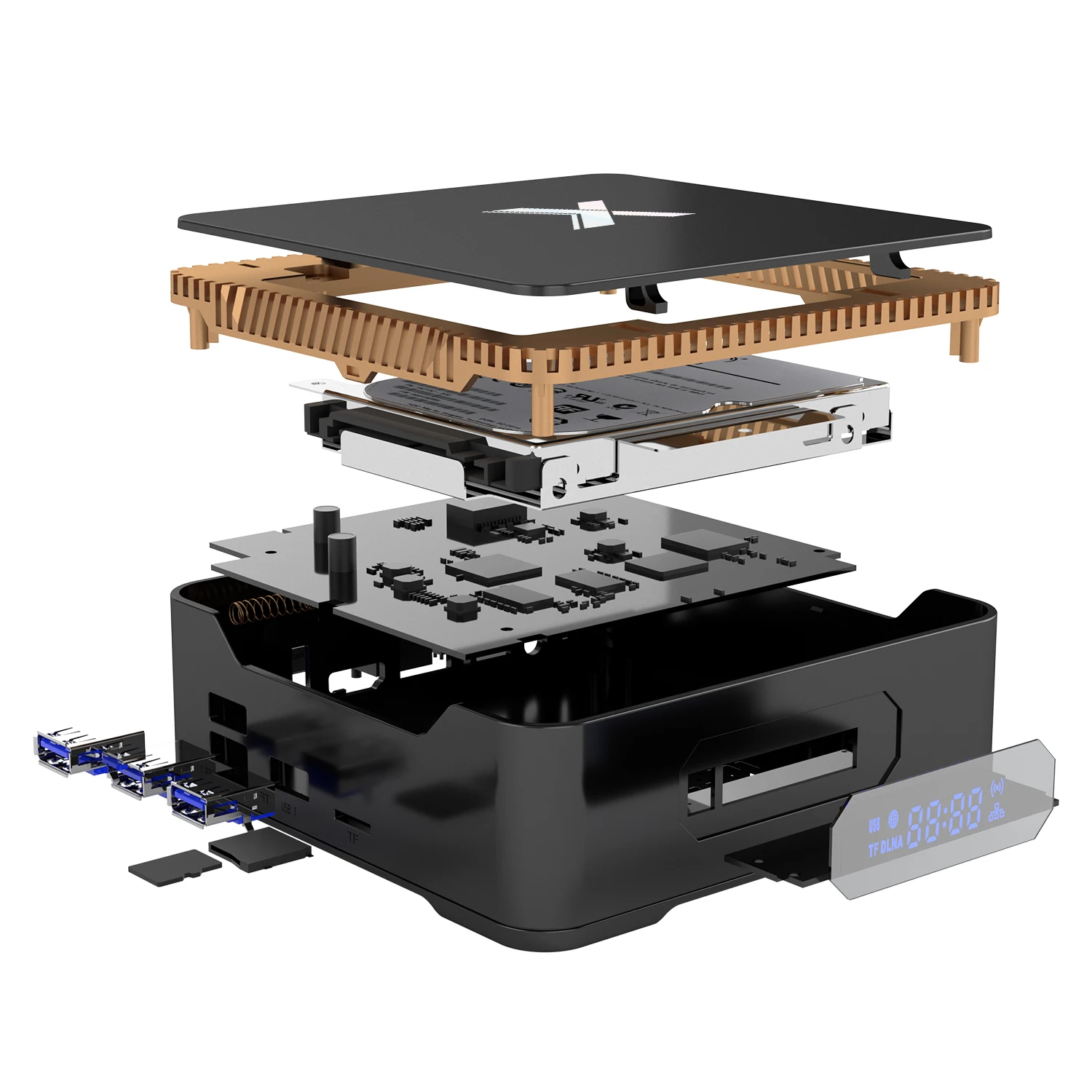

SATA jack
Data transfer supportive
support2.5〃HDD 500G/1T/2T(Power consumption<4W)
S/PDIF jack
Audio output
S/PDIF OUT
Software Configuration:
System
Android 8.1












VIDEO
Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding
Video/Picture Decoding
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC MP-10@ L5.1 up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC HP@ L5.1 up to 4Kx2K@30fps
- H.264 MVC up to 1080P@60fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
                                                   Video/Picture Encoding
Independent JPEG and H.265/H.264 encorder with configurable performance/bit-rate
JPEG image encording
H.265/H.264 video encording up to 1080P@60fps with latency




AUDIO
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
HD JPEG,BMP,GIF,PNG,TIF
Language
English French German Spanish Italian etc multilateral languages
Related Products

           S905W MXQ PRO

        S912 T95Z PLUS

         GOOGLE TV KM8

        INTEL N3450 AK5

         INTEL Z8350 T5

        INTEL Z8350 T11

FAQ

1. What kind of payments you accept?

We accept Paypal, Bank transfer, Western Union, paypal, etc according to the exact order        amount.

2.What can you do for customizing?
OEM & ODM

sofeware, logo, animation, apk, setting, UI

hareware, tv box case, package box, user manual
drop shipping and Lables for online sales customers

Zkmagic has professional R&D technical team to support customizing
your device according to your requirements.


3.How is your product quality and the warranty?
1 year warranty.
We provide unrivaled Quality - Very rigorous testing process for Incoming

Quality Control. We follow 20 QC test procedure, and do 100% FQC to ensure your satisfaction.


4.What power supply do you provide?
There are EU./UK./AU./ US. four kinds of power supply available.
We will deliver the light power supply to you according to the standard
in your country or your requirement.


5.Do you have any After-Sales service?
Yes! We have professional After-sales Dept. If you have any technical problem or question with the goods, welcome to contact our Technical Support Dept. or our sales directly.At the same time,we can offer free online upgrade for you.Ensure high quality ,best service to you.

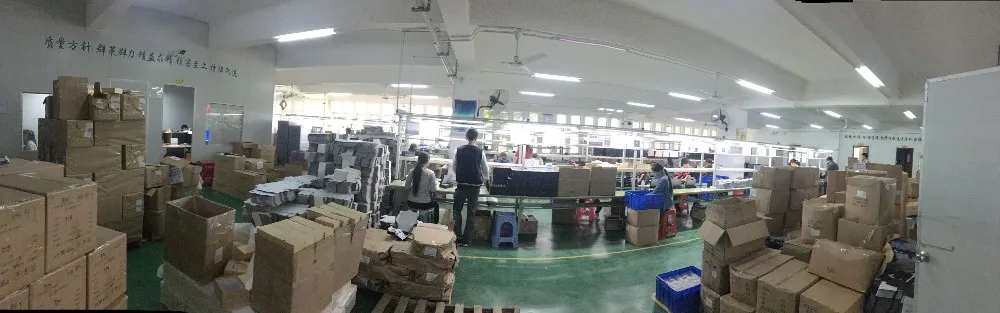

Our company
