Newest Road Smart Solar Street Light

  • 1 - 2 Pieces
    $880.00
  • 3 - 4 Pieces
    $680.00
  • >=5 Pieces
    $480.00
Emitting Color:
Cold White Warm White White
Lead Time:
Quantity(Pieces) 1 - 100 101 - 200 >200
Est. Time(days) 9 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
DC24V
Lamp Luminous Flux(lm):
6000-9600
CRI (Ra>):
70
Working Temperature(℃):
-20 - 65
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CCC, CE, CQC, EMC, FCC, RoHS, SASO
Warranty(Year):
5
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Road Smart
Model Number:
SC-NH200
Beam Angle(°):
X-axis: 140° Y-axis: 50°
Application:
Highway, Driveway, Street, Parking lots, etc
Lamp Body Material:
Die cast aluminum
LED Light Source:
105pcs Bridgelux Chip
Lamp Luminous Efficiency(lm/w):
160
Color Temperature:
3000-6500K
Lighting time:
2-3 rainy days
Light Distribution:
Batwing lens with polarized light
MPPT Technology:
Yes
Solar Panel:
200W/18V
Solar Panel Material:
Mono crystalline silicon
Mounting height:
7-12m
Product Certification Verified
RoHS Certified.
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Carton box
Color box packaged, anti-shock packaging material, with bubble bags and foam, ensure transport safety
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 101 - 200 >200
Est. Time(days) 9 15 To be negotiated
Video Description
Why choose us

1. 6 years' experience in motion sensor control, 9 years' experience in solar control system.


2.With 10 core technologies and more than 80 patent certificates, our products are very competitive and advanced.


3.More than 120 countries' clients enjoy our solar street led lights, 3000+ projects are successfully achieved all over the world.


4.5000+ square meter production area provides a modern manufacturing base which meets international requirements very well.


5.Quality is our culture. We have the best sunshine aftersales team and offer you a 3-year warranty on all our products.

Specification
Type
SC-NH100
SC-NH150C
SC-NH200C


Panel
Power
100W/18V
150W/18V
200W/18V
Material
Mono crystalline silicon
Solar cell efficiency
19-20%

Lithium battery
Capacity
424WH/12.8V
610WH/11.1V
808WH/22.2V
Charge cycle times
2000 times
1200 times
1200 times






Lamp head
Luminous flux
6000-6500lm
7200-7500lm
8400-9600lm
Light output
40W
50W
60W
LED qty
60pcs
60pcs
60pcs
LED chip
Bridgelux 160lm/w
Color temperature
3000-6500K
CRI
>70Ra
Material
Aluminum alloy
Elevation angle
12° (attention to Dialux use)
Lifespan
50000hrs



System
control voltage
5V
Light distribution
Batwing lens with polarized light
Beam angle
X-axis:140 Y-axis:50
Lighting time
2--3 rainy days
Operation temp.
-20℃~60℃

Installation
Top pole diameter
70mm
Mounting height
7-12m
Installation spacing
20--30m
1.Initiate wing design of integrated solar street light system
2.Enhanced analysis of heat dissipation and heat conduction by EFD
3.The stability of the mechanical structure is enhanced by the mechanical analysis of ABAQUS
4.Integrate the solar panel, led body, battery and controller into whole system. Easy to transport, install and maintain

Smart solar controller

1. Upgraded software algorithm
2. Road Smart unique design, system works stably
3. R&D team with 9 years experience in solar control system
4. Smart monitor and control system with 10 core technology integrated

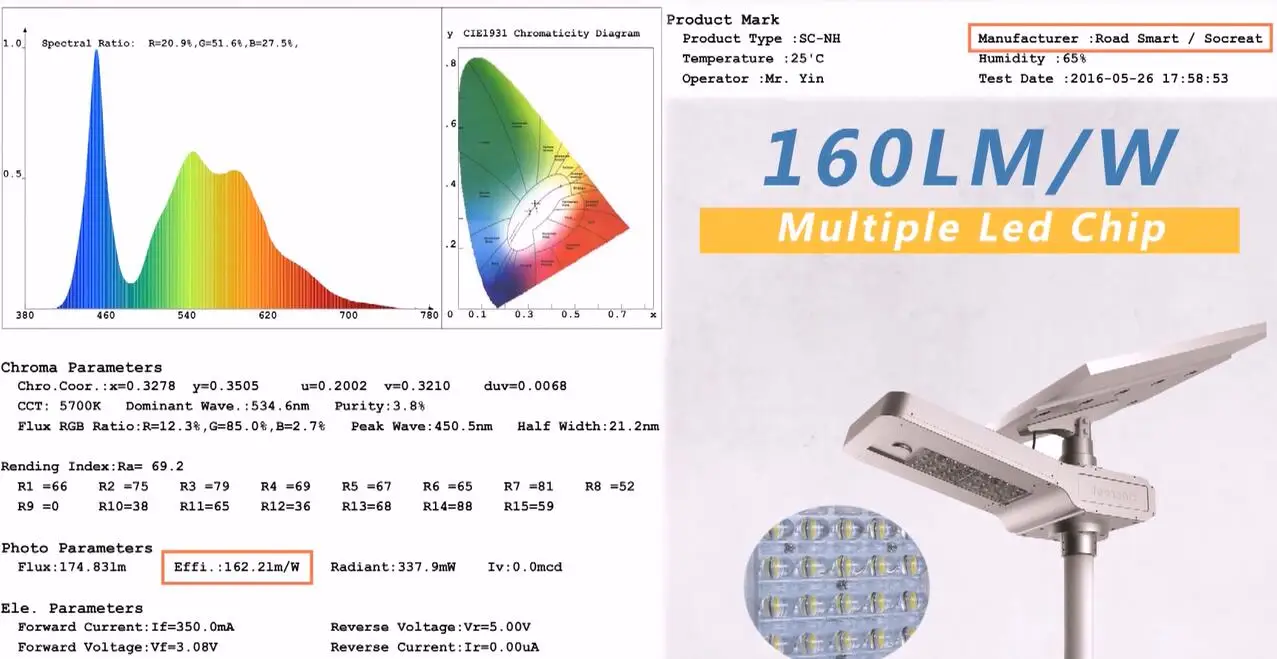

Bright led chip

1. 160lm/w high light efficiency, consume less power to get higher lumen
2. Professional light distribution strategy with patented batwing lens embedded
3. Extended develop on the basis of Bridgelux 45mil led chip, higher performance than competitor

Qualified lithium battery

1. No pollution and stable
2. High temperature resistance
3. LiFePO4 battery with high capacity
4. High quality, lifetime can reach 5-8 years
5. >2000 times charge & discharge cycle times

Efficient Solar Panel

1. Lifespan: 20-25years
2. Tempered glass cover
3.19% photoelectric conversion efficiency
4. Solar panel angle can be adjusted manually according to local latitude

Solar panel can be adjustable manually in vertical and horizontal direction, ensure maximum efficiency of solar energy

Solar panel looks like an umbrella to protect battery from high temperature and extend the lifetime. Perfectly solve heat dissipation
Product Description

* Control Mode Management: 6 work modes for choice, you can freely change it with remote control


* Unique Integration Design: Fashionable in appearance and practical in structure; easy to transport, install and maintain


* Rotating Solar Panel: Enable you freely choose  best installation angle to ensure maximum efficiency of solar energy


* Patent Bat-wing Lens:  Wider lighting area, more uniform brightness, maximum of using the lighting all light the road


* Microwave Motion Sensor : Sensor distance can reach 10 meters,higher accuracy and sensitivity than PIR sensor


* Light Efficiency Management: Multiple led chip work simultaneously, whole system light efficiency up to 160lm/w


* Charge and Discharge management: Protect battery by software and hardware, supporting battery charge at 0V

Installation Process

1. Fix bracket on the panel        2. Fix rotating head on the        3.Connect the panel to the        4.Install the whole system                                                                           lamp light                                       rotating head                                  on pole

Applications
Certifications
Company Information

Socreat Electronics Technology Limited is a high-tech joint venture enterprise from Hongkong and Mainland, specializing in research, development, production and sales of intelligent LED lightings. Road Smart, the brand of Socreat company, headquarter office in Shenzhen, factory area is about 3000 square meters. Based on "come from nature, create our future" conception, we are devoted to providing high quality outdoor led light, intelligent solar street light, solar garden light, solar wall light, motion sensor led light.


Road Smart has a professional R&D team which composes of experienced LED driver engineers and lighting designers. We master the core technology of solar lights, have the solid technical strength and rich experience in product design and manufacturing. Dedicated to strict quality control and thoughtful customer service, our staff members are always available to discuss your requirements and ensure full customer satisfaction with the best products.


Road Smart solar products have been exported to more than 120 countries and regions around the world. By leading the development of solar street light market,we are sure Road Smart will be super star in the near future. As a leader, we insist on a direction of "expert in intelligent lighting, light up the world", keeping R&D in intelligent lighting products and improving the quality of light. We are looking forward to building firm business relationship with you and creating a more comfortable, more energy-efficient, higher quality living environment together.

FAQ

Q1: Does the lamp light on automatically?

A: Yes, it will light on automatically at darkness no matter which mode except "OFF".

Q2: Can I have a sample order for solar nighthawk light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3: What about the lead time?

A: 3 workdays for sample, 5-10 workdays for batch order.

Q4: Do you offer guarantee for the products?

A: Yes, we offer 3-5 years warranty to our products.

Q5: Can the lamp be used in strong wind environment?

A: Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.

Q6: What's the difference between Motion sensor and PIR sensor?

A: Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement. PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance. But motion sensor can reach 10 meters distance and be more accurate and sensitive.

Q7: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, we will send replacements with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
